Access problems after setting up the local server

One 、 Make sure your service address page is normal

such as ：

Two 、 Confirm Intranet IP And the Internet IP

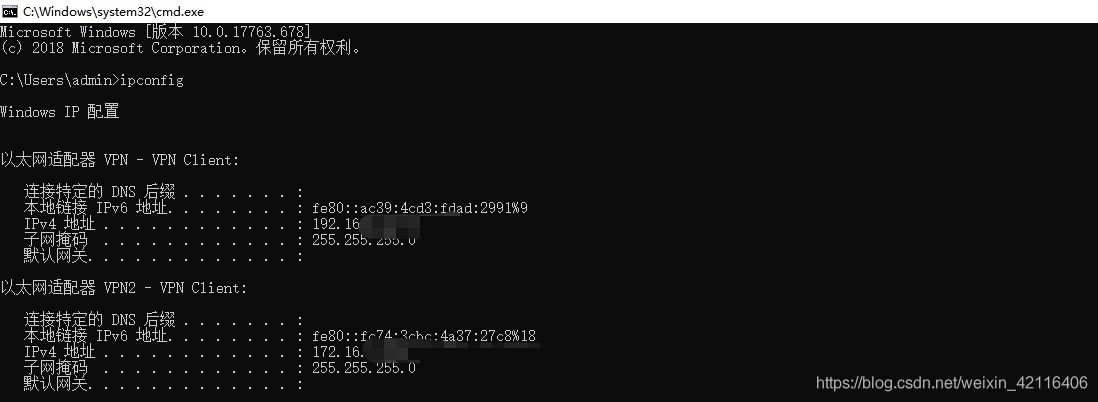

1、Windows Intranet of the system IP Inquire about

Such as my IP by ：192.168.100.000

2、 Extranet IP How to query ：

Open the browser , Enter url “ip.cn”, And press Enter Key to , You can see the Internet IP 了 .

For example, my Internet IP by ：113.67.000.00

3、 ... and 、 Set the port forwarding function of the local router

1、 Log on to the router （TP-LINK） Management page （http://192.168.0.1/）;

2、 stay “ Forwarding rules - Virtual server ” Lower setup ：

 Service port number ：8080

IP Address ：192.168.100.000

 agreement ：ALL

 state ： take effect

Or in “ Forwarding rules -DMZ host ” Lower setup “ A virtual service ”：

DMZ  state ： Enable

DMZ  host IP Address ：192.168.100.000

After setting and saving , You can use the Internet IP Visit the intranet page ：

http://113.67.000.00:8080/

DMZ（Demilitarize Zone） It exposes the host from the firewall to the external network .

It does not need to set the port , That is, all ports are open , therefore , There's a lot of security risk .s

Peanut shell ----- Dynamic domain name resolution software establishes a fixed domain name and the Internet host with maximum autonomy .
