SAP pi / PO soap2proxy consumption external WS example
2022-04-23 09:33:00 【rogerix4】
SAP PI/PO Soap2Proxy External consumption ws Example
=>Enterprice Services Builder To configure

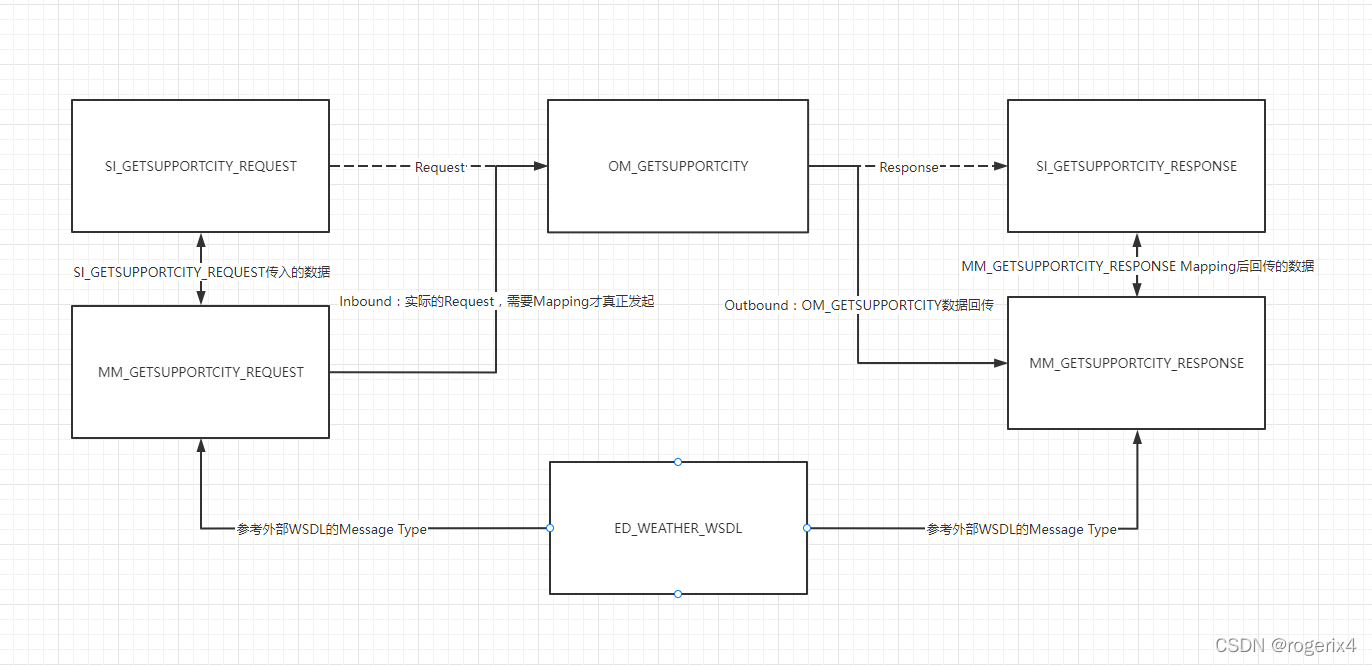

- flow chart
- Imported in advance SLD and NameSpace
1. newly build ESB Object storage directory
- newly build ESB Object storage directory , Save and activate (FOLDER_WEATHER)
2. newly build External Definition, Import WSDL

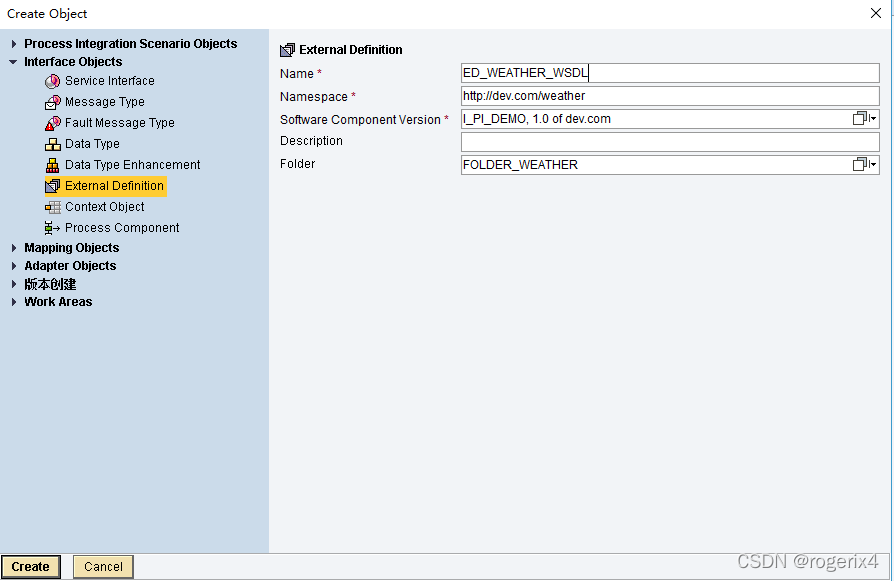

- newly build External Definition(ED_WEATHER_WSDL)
- choice WSDL File import , Save and activate
3. newly build Service Interface(getSupportCity Method )

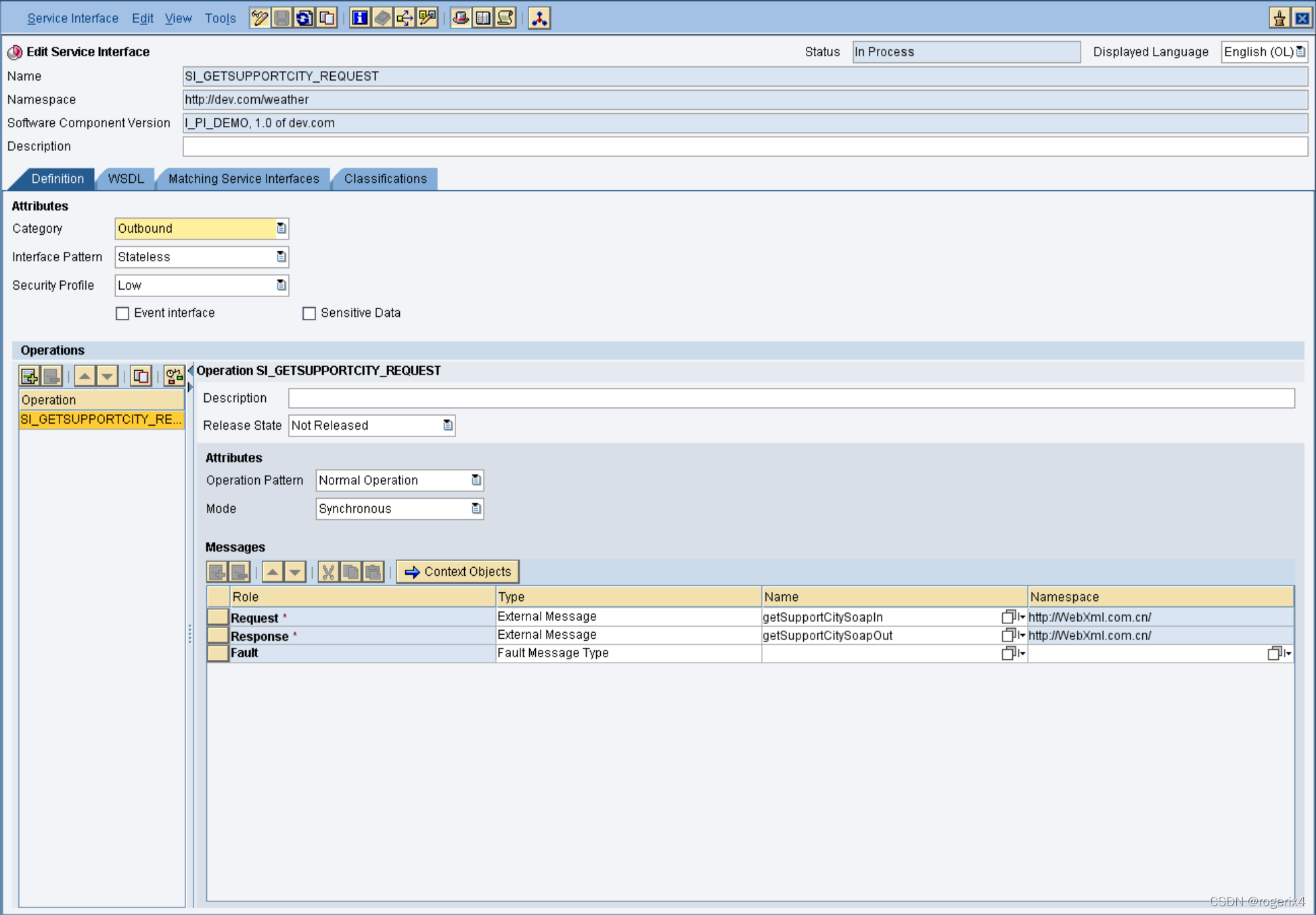

- newly build Sproxy->Soap Outbound send out SI(SI_GETSUPPORTCITY_REQUEST)
- Set parameters ; Save and activate
- Set parameters ; Save and activate

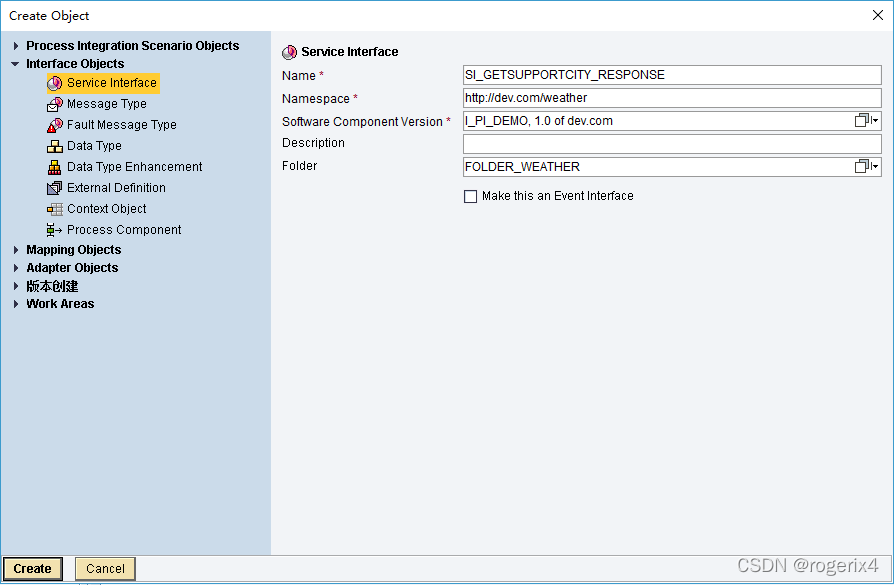

- newly build Soap->Sproxy Inbound receive SI(SI_GETSUPPORTCITY_RESPONSE)
- Set parameters ; Save and activate
- Set parameters ; Save and activate
4. newly build Message Mapping(getSupportCity Method )
- newly build Sproxy->Soap Outbound At the time of the Message Mapping(MM_GETSUPPORTCITY_REQUEST)
- Correlation field , Save and activate
- Correlation field , Save and activate

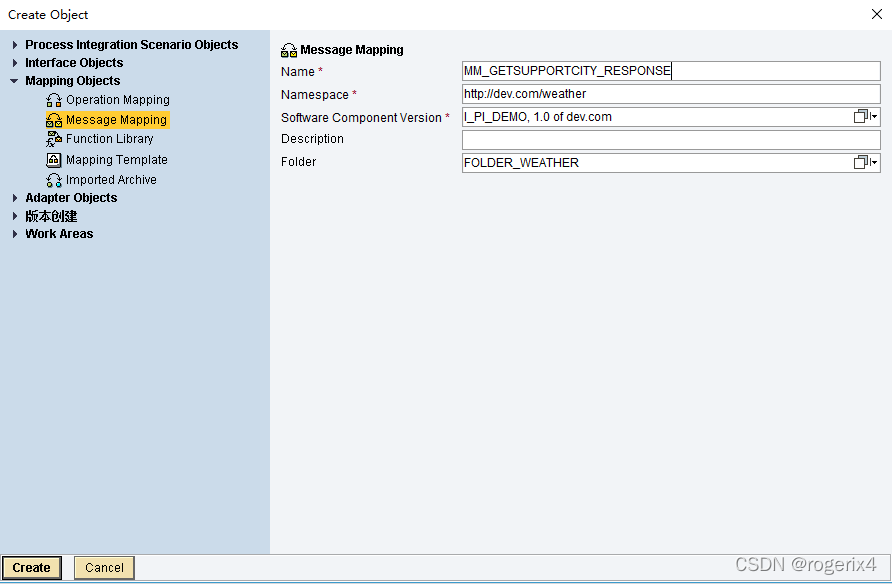

- newly build Soap->Sproxy Inbound At the time of the Message Mapping(MM_GETSUPPORTCITY_RESPONSE)
- Correlation field , Save and activate
- Correlation field , Save and activate
5. newly build Operation Mapping(getSupportCity Method )
- newly build Operation Mapping(OM_GETSUPPORTCITY)
- Request:Sproxy->Soap When sending a request
- Response:Soap->Sproxy Request to return results
- Request:Sproxy->Soap When sending a request
- Activate all inactive objects ,ESB overview
=>Integration Builder To configure
1. newly build IB Object storage directory

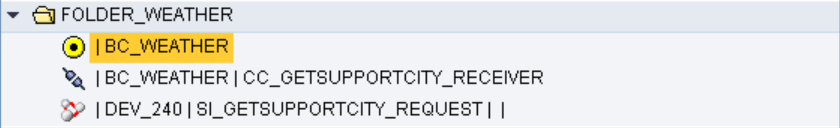

- flow chart ( actually |DEV_240|SI_GETSUPPORTCITY_RESPONSE|| It belongs to configuration and does not actually process data ; Real processing takes place in SI_GETSUPPORTCITY_RESPONSE in )

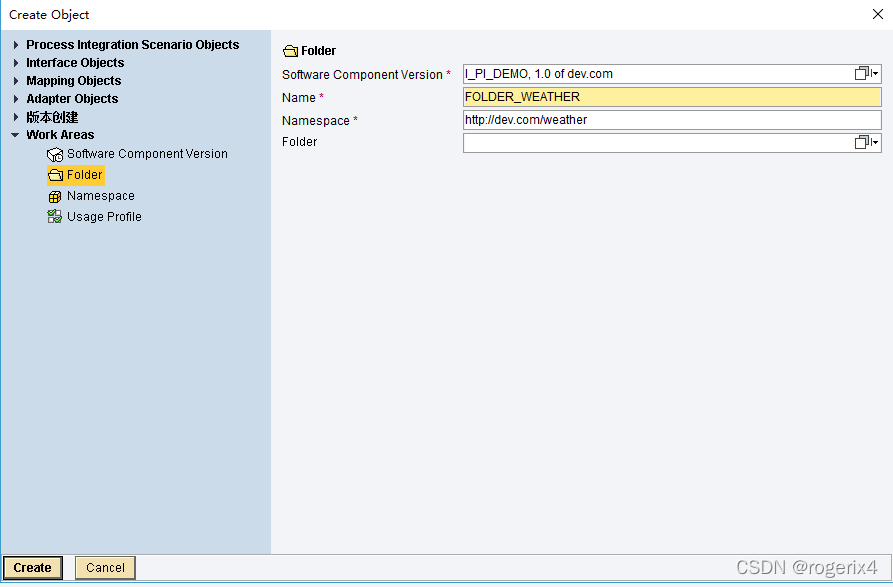

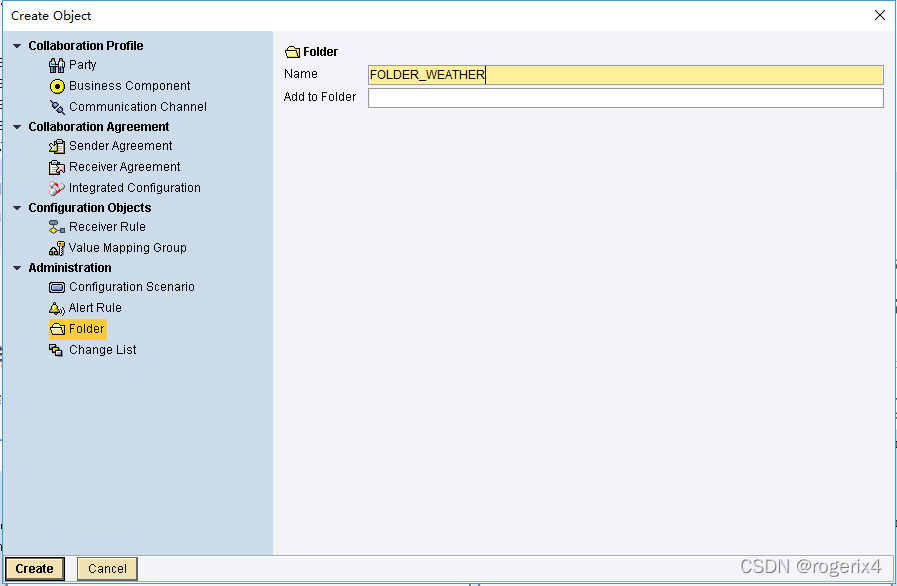

- New folder , Save and activate (FOLDER_WEATHER)
2. newly build SAP Client Information channels
- Idoc Information channels
- Proxy Information channels
- RFC Information channels
3. newly build Business Component

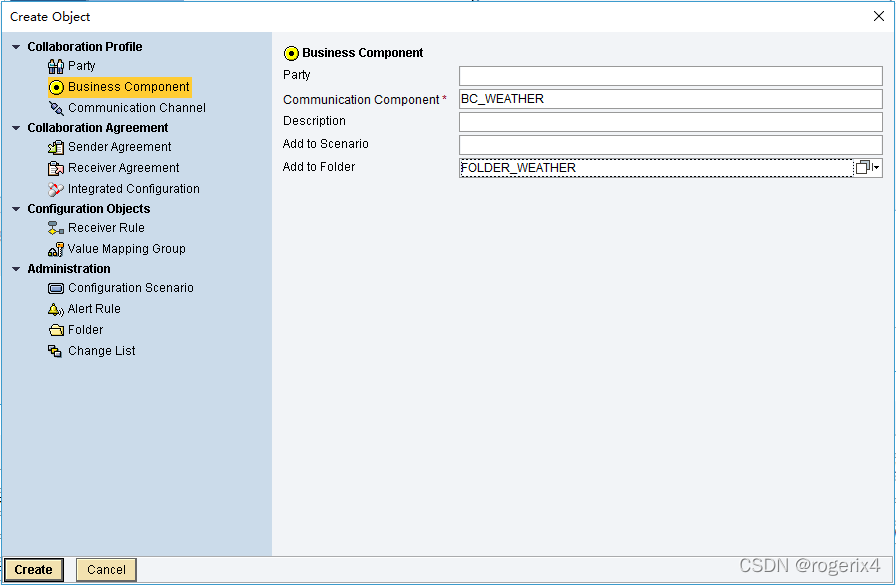

- newly build Business Component, And click the Save button (BC_WEATHER)
- Receiver Create a message channel (CC_GETSUPPORTCITY_RECEIVER)
- Soap When there are multiple methods , Need to specify Soap Action(Soap Action Can be obtained from WSDL Found in file )
- Sender
- Save and activate all objects
4. newly build Integrated Configuration
- newly build Integrated Configuration
- Inbound Processing
- Receiver
- Receiver Interface
- Outbound processing
- Inbound Processing
- Save and activate
- ID detailed list
- SAP List of system information channels
=>SAP Proxy call
1. New agent
- Transaction code :SPROXY
- Save and activate
2. ABAP call Sproxy
- Code
DATA: lo_proxy TYPE REF TO ZPI_CO_SI_GETSUPPORTCITY_REQUE. DATA: l_input type ZPI_GET_SUPPORT_CITY_SOAP_IN, l_output type ZPI_GET_SUPPORT_CITY_SOAP_OUT. DATA: l_string TYPE string. CREATE OBJECT lo_proxy. l_input-BY_PROVINCE_NAME = ` sichuan `. TRY. CALL METHOD LO_PROXY->SI_GETSUPPORTCITY_REQUEST EXPORTING OUTPUT = l_input IMPORTING INPUT = l_output. CATCH CX_AI_SYSTEM_FAULT . CATCH CX_AI_APPLICATION_FAULT . ENDTRY. LOOP AT L_OUTPUT-GET_SUPPORT_CITY_RESULT-STRING INTO l_string. WRITE: / l_string. ENDLOOP.
- Show the effect
