01 introduction

attach ：Flink Source code download address

stay Flink Of Web page , If you are careful, you can see in the monitoring page , There are details of the task , There are detailed monitoring indicators , Here's the picture （ Number of records sent 、 Number of records received 、 Number of bytes sent , Number of bytes received, etc ）：

A lot of times , We all need “ Take out the data ”, And use it in our needs , So how to extract these data ？ This paper analyzes the source code .

02 Source code analysis

2.1 Source entrance

stay Flink Of web page , Press F12 View source code , You can see ：

• Address of the interface ：http:// domain name /jobs/ad75bbaaa624e41a249825a9820a65cc
• Response content ：

{

  "jid": "ad75bbaaa624e41a249825a9820a65cc",
  "name": "insert-into_default_catalog.default_database.t_student_copy",
  "isStoppable": false,
  "state": "RUNNING",
  "start-time": 1650352652357,
  "end-time": -1,
  "duration": 64629227,
  "maxParallelism": -1,
  "now": 1650417281584,
  "timestamps": {

    "INITIALIZING": 1650352652357,
    "FAILED": 0,
    "CREATED": 1650352652449,
    "RESTARTING": 0,
    "FAILING": 0,
    "FINISHED": 0,
    "SUSPENDED": 0,
    "RECONCILING": 0,
    "CANCELLING": 0,
    "CANCELED": 0,
    "RUNNING": 1650352653087
  },
  "vertices": [
    {

      "id": "cbc357ccb763df2852fee8c4fc7d55f2",
      "name": "Source: TableSourceScan(table=[[default_catalog, default_database, t_student]], fields=[id, name]) -> NotNullEnforcer(fields=[id]) -> Sink: Sink(table=[default_catalog.default_database.t_student_copy], fields=[id, name])",
      "maxParallelism": 128,
      "parallelism": 1,
      "status": "RUNNING",
      "start-time": 1650352658363,
      "end-time": -1,
      "duration": 64623221,
      "tasks": {

        "CREATED": 0,
        "CANCELING": 0,
        "INITIALIZING": 0,
        "RECONCILING": 0,
        "CANCELED": 0,
        "RUNNING": 1,
        "DEPLOYING": 0,
        "FINISHED": 0,
        "FAILED": 0,
        "SCHEDULED": 0
      },
      "metrics": {

        "read-bytes": 0,
        "read-bytes-complete": true,
        "write-bytes": 0,
        "write-bytes-complete": true,
        "read-records": 0,
        "read-records-complete": true,
        "write-records": 0,
        "write-records-complete": true
      }
    }
  ],
  "status-counts": {

    "CREATED": 0,
    "CANCELING": 0,
    "INITIALIZING": 0,
    "RECONCILING": 0,
    "CANCELED": 0,
    "RUNNING": 1,
    "DEPLOYING": 0,
    "FINISHED": 0,
    "FAILED": 0,
    "SCHEDULED": 0
  },
  "plan": {

    "jid": "ad75bbaaa624e41a249825a9820a65cc",
    "name": "insert-into_default_catalog.default_database.t_student_copy",
    "nodes": [
      {

        "id": "cbc357ccb763df2852fee8c4fc7d55f2",
        "parallelism": 1,
        "operator": "",
        "operator_strategy": "",
        "description": "Source: TableSourceScan(table=[[default_catalog, default_database, t_student]], fields=[id, name]) -> NotNullEnforcer(fields=[id]) -> Sink: Sink(table=[default_catalog.default_database.t_student_copy], fields=[id, name])",
        "optimizer_properties": {


        }
      }
    ]
  }
}

You can see ,vertices.[0].metrics The content below is the content to be read in this article , Here's the picture ：

Ctrl+H Global search Flink Source code , We might think of looking at the interface first “/jobs/{jobId}”, In fact, this is inefficient , The best way is to use its “ specific characteristics ”, such as , We can return the fields from read-bytes Starting with , Find the definition in org.apache.flink.runtime.rest.messages.job.metrics.IOMetricsInfo This class ：

Okay , We can IOMetricsInfo This class is used as our source code analysis entry .

2.2 IOMetricsInfo

stay IOMetricsInfo,Ctrl+G see , You can see that this class has multiple places to be called , In fact, the real thing is to be JobDetailsHandler Called , Other class suffixes are Test Test class , So it is not the next step of the analysis , Let's see below. JobDetailsHandler.

stay JobDetailsHandler, You can see that the index value is the total counts What I got from , Continue to look at counts

counts It's assigned here ：

Next , Let's see. MutableIOMetrics This class .

2.3 MutableIOMetrics

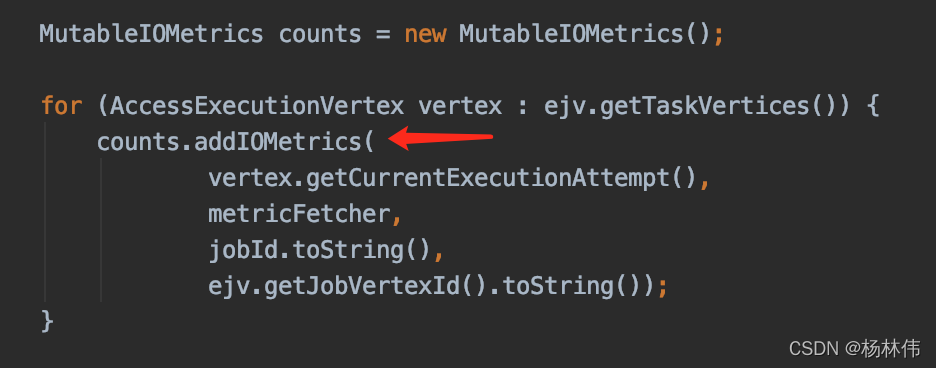

Enter the... Specified in the previous step MutableIOMetrics Inside addIOMetrics Method , You can see that the code depends on the running state of the program , Get the index value from different places ：

• Termination status ： from AccessExecution The index value is obtained
• Running state ： from MetricFetcher The index value is obtained


Because our program is running , Of course , We need to study MetricFetcher How to get the value in this class .

2.3 MetricFetcher

fetcher： It means grab , It can be understood as taking data

I translated MetricFetcher Comments for this class , The contents are as follows ：

package org.apache.flink.runtime.rest.handler.legacy.metrics;


/** * MetricFetcher Can be used from JobManager And all registered taskmanager Get indicators from . * <p> *  Only when calling {@link MetricFetcher#update()} The index will be obtained , If there is enough time since the last call to pass . * * @author : YangLinWei * @createTime: 2022/4/20 10:30  In the morning  * @version: 1.0.0 */
public interface MetricFetcher {


    /** *  obtain {@link MetricStore}, It contains all the indicators currently obtained . * * @return {@link MetricStore}  Include all acquired indicators  */
    MetricStore getMetricStore();

    /** *  Trigger the acquisition of indicators  */
    void update();

    /** * @return  Timestamp of the last update . */
    long getLastUpdateTime();
}

continue Ctrl+T View its implementation ：

You can see that there are several implementation classes , Beyond all doubt ,MetricFetcherImpl Is its real implementation class , Look at the code inside .

2.3.1 MetricFetcherImpl

MetricFetcherImpl There are several ways , as follows ：
We need to know where these indicators come from ？ There is not much code in it , Most of them are not what we need , After reading , You can know , Indicators are from queryMetrics Get this method in . Look at the code for this method ：

    /** * Query the metrics from the given QueryServiceGateway. * * @param queryServiceGateway to query for metrics */
    private void queryMetrics(final MetricQueryServiceGateway queryServiceGateway) {

        LOG.debug("Query metrics for {}.", queryServiceGateway.getAddress());

        queryServiceGateway
                .queryMetrics(timeout)
                .whenCompleteAsync(
                        (MetricDumpSerialization.MetricSerializationResult result, Throwable t) -> {

                            if (t != null) {

                                LOG.debug("Fetching metrics failed.", t);
                            } else {

                                metrics.addAll(deserializer.deserialize(result));
                            }
                        },
                        executor);
    }

therefore , The code has been tracked for so long , The discovery indicator is from the gateway （MetricQueryServiceGateway） Call the interface to get , So we need to look at the source code, the gateway interface （queryMetrics） Code implementation of .

2.4 MetricQueryServiceGateway

From the previous step , You can know that MetricQueryServiceGateway Of queryMetrics Interface , Concrete implementation MetricQueryService Class queryMetrics Method , The code is as follows ：

@Override
public CompletableFuture<MetricDumpSerialization.MetricSerializationResult> queryMetrics(
        Time timeout) {

    return callAsync(
            () -> enforceSizeLimit(serializer.serialize(counters, gauges, histograms, meters)),
            timeout);
}

I want to see others callAsync Method ：

It can be learned that , The essence is to use rpcServer I called the interface remotely to get the index （ Where exactly is called ？）.

Let's see. RpcEndpoint This class .

2.5 RpcEndpoint

Let's see. RpcEndpoint The method structure of this class ：

From these method names , We can know , It's similar to a HTTP The server , So we can also know , original Flink Of Web This is the server for page access . Look at the construction method ：

See how to open the service inside ：

You can know , It's called AkkaRpcService Of startServer Method to open the service .

Okay , It's time to stop here , Because it deviates from the center of this article , What we need to know is Where do these indicators come from ？ Then how to proceed to the next step ？

Let's go back to 2.4 Inside MetricQueryService class , See how this class is constructed ？（ There is strong coherence here ）.

2.6 MetricQueryService

You can see MetricQueryService There is one in this class createMetricQueryService Method , This method refers to Create index query service ：

See where this method is called ：

It can be found in the index service registry （MetricRegistryImpl） Inside startQueryService Method is called , Let's see where to call startQueryService This method ：

You can see that there is 3 A place has opened the service of this indicator , Namely ：

• ClusterEntrypoint：Flink The base class of the cluster entry point
• MiniCluster：MiniCluster Execute locally Flink Mission
• TaskManagerRunner： stay yarn or standalone In mode , This class is the executable entry point of the task manager . It builds related components ( The Internet 、I/O Manager 、 Memory manager 、RPC service 、HA service ) And start the .

For ease of understanding , Local execution is interpreted here Flink The mode of the task is good , That is, continue to study MiniCluster.

2.7 MiniCluster

stay MiniCluster Of start() Method , You can see the call startQueryService Method

Keep looking inside metricQueryServiceRpcService Enter the reference , You can know ,metricQueryServiceRpcService（ Index query service ） It is initialized from the configuration .

Keep looking. configuration To configure ：

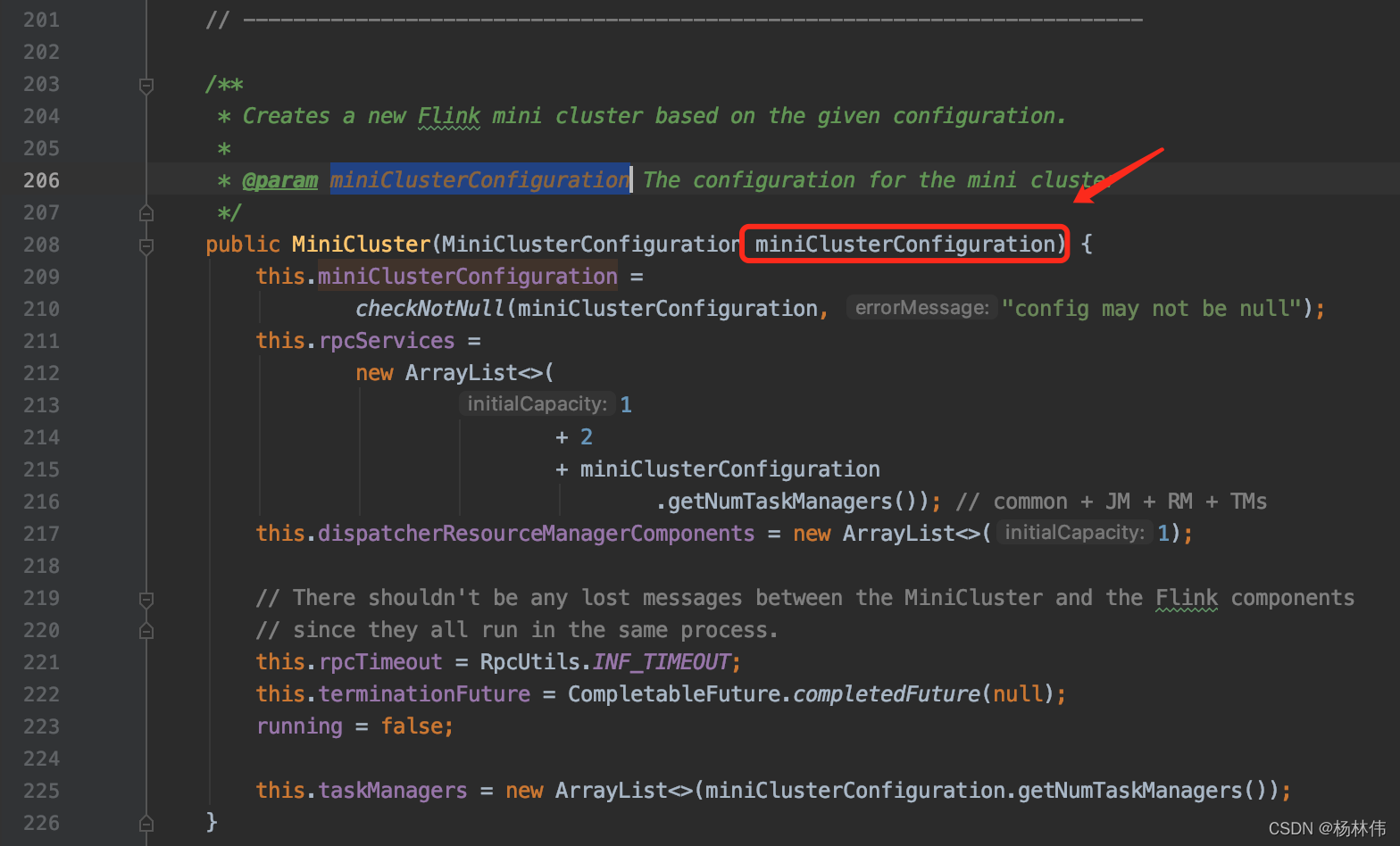

It can be learned that , Configuration is from miniClusterConfiguration What I got from , further ：

Find out , The configuration is obtained from the constructor , Continue to see where to call MiniCluster The constructor method of this class ：

There are many classes that call this method , According to the name , It is reasonable to know that LocalExecutor This class .

2.8 LocalExecutor

I am right. LocalExecutor The understanding of the ： One for local execution Pipelines（ for example ： multiple FlinkSQL） The actuator of .

Look where it's called MiniCluster Construction method of ：

Continue to see where to call create Method , It can be learned that in LocalExecutorFactory Inside getExecutor Method is called ：

Ctrl+T, You can see in the ExecutionEnviroment and StreamExecutionEnviroment In the call ：

Oh, Ho , This is not what we do every day Flink Have you developed two commonly used classes . Open it up StreamExecutionEnviroment Look at this class .

2.8 StreamExecutionEnviroment

You can see , In it executeAsync The method replaces :

Come here , We know that the configuration is initialized from the user StreamExecutionEnviroment Incoming .

03 Summary

Where to get the parameters of specific indicators , We have a good analytical idea , We can write our own Flink The program , It uses StreamExecutionEnviroment, Then break the source code of this article , You know the context .

Because of the length of this article , Continue on in the next blog .
