Hyperledger Explorer 0.3.9 environment construction

This paper mainly introduces HyperLedger Explorer 0.3.9 Build and run the environment of version . If there are any mistakes in the article, you are welcome to point out , If you have other experiences , Thank you for sharing with me .

brief introduction

• HyperledgerExplorer It's a simple 、 Powerful 、 Easy to use 、 Well maintained open source Utilities , You can browse the activities on the underlying blockchain network .
• Official documents and download addresses ： https://github.com/hyperledger/blockchain-explorer/tree/v0.3.9 If there is any confusion, just look at the official documents
• The downloaded version should correspond to ：


Fabric1.4 Build and first-network See another blog post for an example test ：Hyperledger Fabric1.4 Environment construction and example test

HyperLedger Explorer Install preconditions ：

• nodejs 8.11.x (Note that v9.x is not yet supported)
• PostgreSQL 9.5 or greater
• Jq
• gcc-c++

One 、nodejs install

# Download zip
wget https://nodejs.org/dist/v8.11.4/node-v8.11.4-linux-x64.tar.xz
# decompression
tar xvf node-v8.11.4.tar.gz
# You can move the extracted file to /usr/local/src/
# Configure environment variables
vi /etc/profile

Add the following ：

# Immediate effect
source /etc/profile

View version

Two 、PostgreSQL10 install

See blog for details ： Linux(CentOS) Lower installation PostgreSQL

3、 ... and 、Jq install

yum install epel-release
yum install jq

Four 、gcc install

yum install -y gcc-c++

5、 ... and 、Explorer download

# Download the source code
# cd /opt/gopath/src/github.com/hyperledger
# git clone https://github.com/hyperledger/blockchain-explorer.git
# Switch Fabric edition
# git checkout -b release-3.9 origin/release-3.9

Downloading can be slow , I download it directly on the official website 0.3.9 Version of explorer Source compression file , Upload to Linux Then decompress , Place in /opt/gopath/src/github.com/hyperledger/

6、 ... and 、 Modify database configuration （ The following work should be very careful ）

You can change the folder name blockchain-explorer-0.3.9 It is amended as follows blockchain-explorer

1、 Modify database configuration

cd blockchain-explorer/app
vi explorerconfig.json
# The official default configuration is as follows . user name username And password passwd Can be modified by yourself
"postgreSQL": {

"host": "127.0.0.1",
"port": "5432",
"database": "fabricexplorer",
"username": "hppoc",
"passwd": "password"
}
cd persistence/fabric/postgreSQL
chmod -R 775 db/
cd db

2、 establish postpresSQL database

The official document is the execution script ./createdb.sh To create .
I'll have problems here , So I use manual creation . If you can use ./createdb.sh Command to create , Share your feelings with me .
First use the client Navicat Connect to postpresSQL
1) Create the role
User name and password of the role , Namely xplorerconfig.json The configuration of the username,passwd

2） Create database
The database name is fabricexplorer, And the owner of the database owner Set to username This user
There may be a mistake here ：ERROR: source database “template1” is being accessed by other users

# View template database “template1” The process number of
ps -ef|grep postg
# Kill the process
kill -9  Process number
# Try creating the database again

Never used postpresSQL, Some questions are really unfamiliar , The solution to this problem is to refer to the article ：https://blog.csdn.net/design321/article/details/24740769

3) Create table
take blockchain-explorer/app/persistence/fabric/postgreSQL/db In the catalog explorerpg.sql Download to local , stay Navicat On the implementation , And will all :user Change to the corresponding username

After finishing, it is shown in the picture ：

4) After all are created, check on the server
postpresSQL Chinese Course ：https://www.runoob.com/postgresql/postgresql-create-table.html

7、 ... and 、Explorer To configure Fabric The Internet

With the official test network first-network For example

cd /opt/gopath/src/github.com/hyperledger/blockchain-explorer/app/platform/fabric
vi config.json
# be-all fabric-path Change to your own path

Such as ：

8、 ... and 、Explorer compile

cd blockchain-explorer
npm install
cd client/
npm install
npm run build

 If you encounter insufficient permissions , To give permission
chmod  -R 755  In the directory

Nine 、 start-up Explorer

Start... First first-network The Internet

cd blockchain-explorer
# start-up
./start.sh

Log is located blockchain-explorer/logs/console/
Log of successful startup, such as ：

Open the web page ：

If it's a cloud server , Remember to open in the security group 8080 port

# stop it
./stop.sh

Ten 、 Problem summary

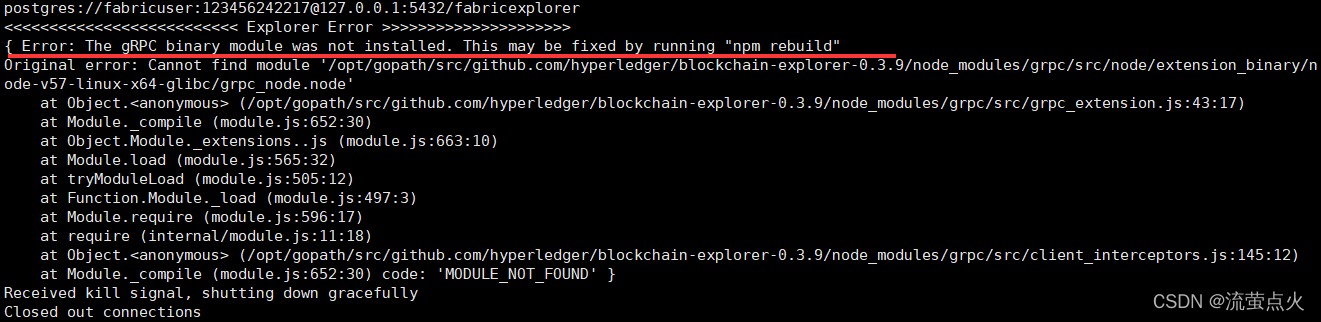

1、 start-up explorer You don't succeed , The log file shows
Error: The gRPC binary module was not installed. This may be fixed by running "npm rebuild"

solve ：

npm rebuild grpc

If prompted ：
nodejs gyp WARN EACCES user “root” does not have permission to access the dev dir
execute

npm rebuild grpc --unsafe-perm

2、 other ： To be added …

---

Refer to the post ：
https://cloud.tencent.com/developer/article/1697210
Official documents ：
https://github.com/hyperledger/blockchain-explorer
