【ARM assembly 】 How to determine the number of positive and negative numbers in an array ？

Write it at the front ：

It must be used in many algorithms if Sentence to judge , We mentioned arrays earlier , I also practiced traversing the array with the assembly loop framework , But when we use arrays , It is impossible to just traverse the array and find the sum of the array . When we do some other operations on the array , You need to use judgment statements , What are the judgment statements in the assembly ？

All judgment suffixes

stay x86 In, we can only use the jump command `“B”` Add a judge after , And in the ARM In, we can add the judgment mark after any instruction

All judgment suffixes , I marked the commonly used ones red ：

---

Let's look at today's question

How to use assembly to judge the number of positive and negative numbers in an array ？

In assembly language, the basic framework of the program is unchanged , We've written the framework of the loop before , Here we can directly post the forward traversal program , Then we think about how to use the judgment suffix to separate the positive and negative numbers in the array , Judge the number and sum them separately .

1. Preparation before Compilation

1.1 use C Pseudo code representation of

First use C Language to achieve this function , It is convenient to clarify the idea of realizing the function

C The language code ：

#include<stdio.h>
int main(){

    int ary[10] = {
    0,-1,2,3,4,5,-6,7,8,9};
    int sum1=0,sum2=0, i;
    int z=0,f=0;
    for ( i = 0; i < 10; i++)
    {

       	if(ary[i]>0){

       		z=z+1;
       		sum1 =sum1 +ary[i];
		   }
		else if(ary[i]<0){

			f=f+1;
			sum2 =sum2 +ary[i];
		   }
    }
    printf(" The number of positive numbers is ：%d\n The number of negative numbers is ：%d\n",z,f);
    printf(" The sum of positive numbers is ：%d\n The sum of negative numbers is ：%d\n",sum1,sum2);
    return 0;
}

Running results ：

1.2 Refer to the framework of forward traversal

The quickest way to learn anything is , Take the knowledge already in the brain , Compare and extend new knowledge with old knowledge .

Paste the forward traversal program , It is found that the framework for realizing the overall function is basically the same , Just change this part of the loop . Take the steps apart , It is subdivided into the following steps , Let's see .

2. To write ARM assembly

2.1 First give a string of arrays 、 Output format

Here, try to output the number of positive numbers 、 The number of negative numbers and the sum of positive numbers 、 The sum of negative numbers ; Array with ary Customize ; Calculate the number of times to cycle through the address length

.data
    fmt1:.asciz " The number of positive:%d\n The number of negative:%d\n"
    fmt2:.asciz " The positive and:%d\n The negative and:%d\n"
    ary:.word 0,-1,2,3,4,-5,6,7,8,-9
    .equ counter,( . - ary)/4

2.2 Add judgment to the loop 、 Count

This step is the core step , Prepared by foreign exchange if Judgment statement . All instructions given before , among CMP Used to determine . And CMP Closely linked is the instruction with judgment suffix , This command can be a jump （B） It can be （ADD） It can also be （MOV）.

Functions to be implemented ： Take out the first value in the array , Then judge with zero , When greater than zero , Add one... To a positive counter , And add the current value to the cumulative sum of positive numbers . When it is judged to be negative, it is the opposite .

ARM Assembly implementation method ：

        ldr r2,[r5],#4
        cmp r2,#0
        addgt r7,#1
        addgt r9,r2
        addlt r8,#1
        addlt r10,r2

If in x86 It can only be CMP Comparison is used up BLT Jump to subroutine , Jump back after execution ,ARM It's much easier to judge , It can be directly added to the statement you want to execute after you want to compare . And only one comparison is needed . It can be followed by many , Compare the code you want to execute .

2.3 Initialize the registers used in the main function

Generally, the definition of registers is after the completion of the core code , Check which registers are used in the core code , Then assign the initial value to the corresponding register

The registers here represent ：

r7 The number used to store positive numbers

r8 The number used to store negative numbers

r9 Used to store the sum of positive numbers

r10 Used to store the sum of negative numbers

What we use here R4 and R5 The same as before, no change is still ： Loop variable and array first address

    mov r4,#0
    mov r7,#0
    mov r8,#0
    mov r9,#0
    mov r10,#0
    ldr r5, =ary

2.4 The sum of output accumulation

1. If you want to print out, you must use printf, Then we have to First call the output format string , The format string has been defined at the beginning .

2. printf It's from R1 Start to output So we need to count the number of positive and negative values 、 Positive and negative numbers and , Pass to R1、R2.

3. The following part has been printed , So we can R1、R2 Cover , also When used B Jump once ,R0~R3 All the values of will change , It's best to rewrite .

        ldr r0,=fmt1
        mov r1,r7
        mov r2,r8
        bl printf

        ldr r0,=fmt2
        mov r1,r9
        mov r2,r10
        bl printf

2.5 Source code

.data
    fmt1:.asciz " The number of positive:%d\n The number of negative:%d\n"
    fmt2:.asciz " The positive and:%d\n The negative and:%d\n"
    ary:.word 0,-1,2,3,4,-5,6,7,8,-9
    .equ counter,( . - ary)/4
.text
.globl main
 main:
    stmfd sp!,{
    lr}
    mov r4,#0
    mov r7,#0
    mov r8,#0
    mov r9,#0
    mov r10,#0
    ldr r5, =ary

    b testfor
loop:
        ldr r2,[r5],#4
        cmp r2,#0
        addgt r7,#1
        addgt r9,r2
        addlt r8,#1
        addlt r10,r2

        add r4,#1
testfor:cmp r4,#counter
        blt loop

        ldr r0,=fmt1
        mov r1,r7
        mov r2,r8
        bl printf

        ldr r0,=fmt2
        mov r1,r9
        mov r2,r10
        bl printf
    mov r0, #0
    ldmfd sp!,{
    lr}
    mov pc, lr
.end

Here we need to judge the positive and negative count of the value , Because zero is neither positive nor negative

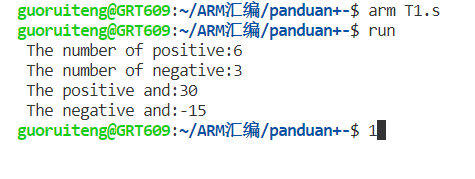

2.6 Running results

You can see that the result is correct ！

3. summary

• When operating on a given array , To put an operation into a loop , The register is addressed backwards and circularly .
• All judgment suffixes are given , stay ARM In, you can put the judgment suffix after any instruction , Used for execution after judgment ; One CMP Instructions can perform operations with many judgments .
• When compiling , Write the core code first , Then give the main function 、 Global variables 、 Add supporting conditions in the output statement .

---
