ECS uses FRP to map Apache on the local (win10 / win11) intranet to the extranet

Environmental Science ：

Aliyun server （Ubuntu operating system ）, Local machine （ Virtual machine win11/ The host win10）

frp edition frp_0.38.0_windows_amd64 frp_0.38.0_linux_amd64.tar.gz

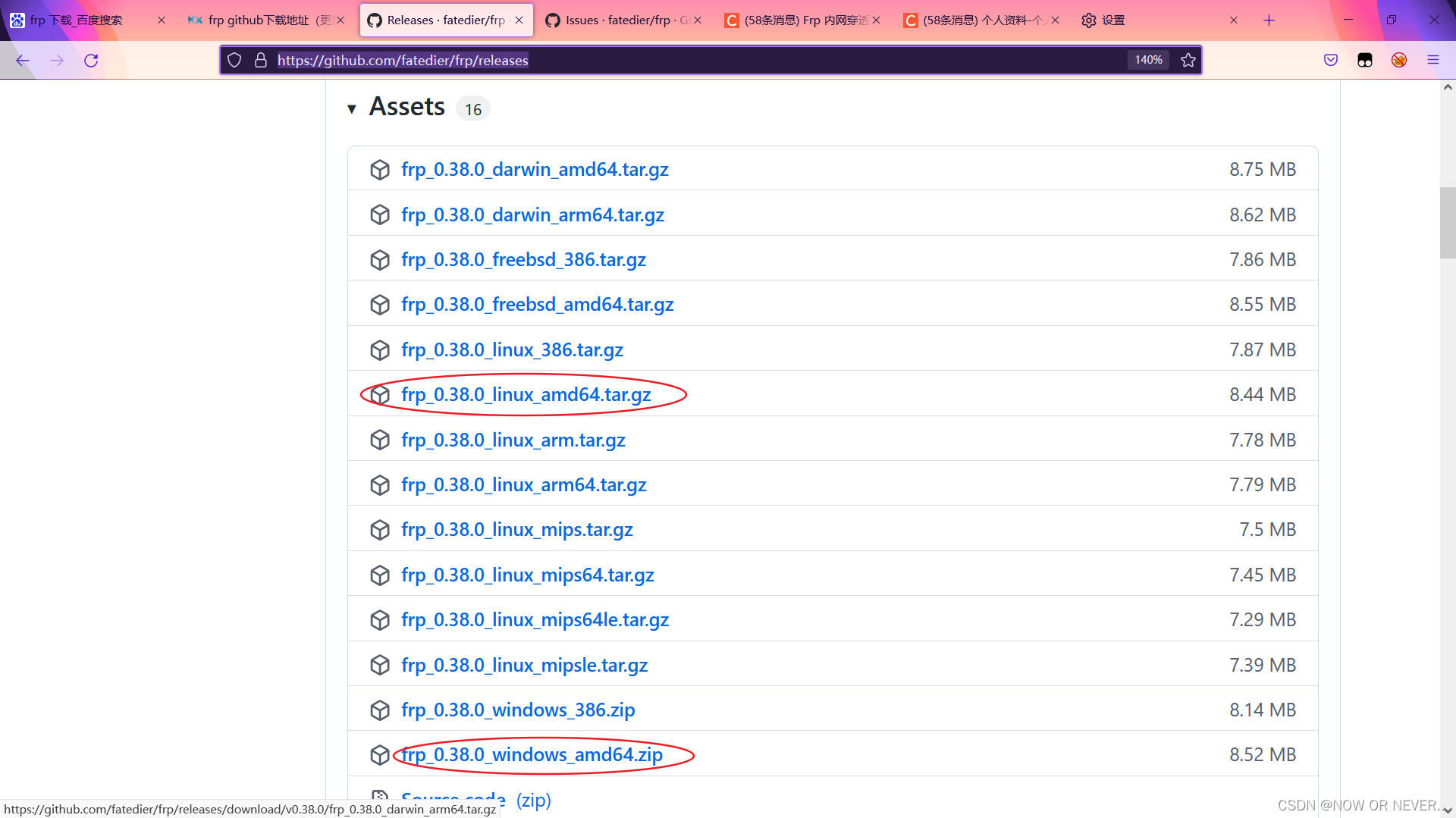

First download frp

https://github.com/fatedier/frp/releases

Unzip and configure on

Server side ：
1. Create a folder under the server frp
2. take frp_0.38.0_linux_amd64.tar.gz Copied to the frp Folder and unzip
. After decompression, it appears frp_0.38.0_linux_amd64 Folder

3. Go to this folder ( frp_0.38.0_linux_amd64) The configuration frps.ini file

vim frps.ini

Be careful ： The server-side operation is frps.ini file , Local end The configuration is frpc.ini

[common]
bind_port = 7000       #  Server and native  apache ’ Connect ‘ port ,（ Customizable ）
token = 123          #  The password used to connect to this computer （ Customize ）
vhost_http_port = 81    # frps  monitor http  The port of （ Be careful not to use 80,443,3306 And other ports that have been occupied by Alibaba cloud server ）

Be careful ： The server port will be Alibaba cloud server security group rules as well as Ubuntu operation Systematic A firewall Limited .
Alibaba cloud server's security group rules are configured ： The entry direction remains the default , Open all ports in the exit direction that will do .
Ubuntu Firewall configuration ：( With 7000,81 Port as an example )

sudo ufw status   # View firewall status
sudo ufw allow 7000    #  to open up 7000 port
sudo ufw allow 81   #  to open up 81  port
sudo ufw reload   #  service iptables restart , Make the new rules effective

If you use the view firewall command, it displays inactive , You can refer to his blog to configure the firewall Ubuntu Firewall configuration

``
4. open frps service

./frps -c frps.ini  #  Must be in folder ( frp_0.38.0_linux_amd64) Enter this command to open frps  service

Ctrl + c You'll be out of service , Closing the control window will also exit the service . If you want to control the server, you can open another control window

Local end
Decompress and enter , edit frpc.ini file , Note that frpc.ini , The configuration is as follows

[common]
server_addr = 8.142.81.11   #  Cloud server public network ip
server_port = 7000           #  Set on ECs bind_port
token = 123           #  Connect the password
[www]  #  The name in brackets can be customized
type = http    #  Do not change
local_ip = 127.0.0.1  #  Do not change
local_port = 80    #  This machine  apache  Port used
custom_domains = 8.142.81.11  #  Cloud server public network ip  Address , Or domain names that have been filed

Start... In this folder cmd Command line window ： Input frpc -c frpc.ini
start-up frpc service

Successful launch

windows 11 Next, a safety reminder will pop up , You can click the reminder , Select allow this operation , Exit and enter the start command again
Pay attention to the open configuration of the server port , This is the most problematic place
This connection configuration can only meet the minimum requirements .

If there are questions and mistakes , Welcome to the comment area, Gaga leave a message
