Supersocket is Use in net5 - concept

background ： Recently, there is a communication message project , Thinking about .net core Use in SuperSocket To achieve , But it is found that the use is still the same as .NetFramework There are some differences , Then on SuperSocket Some of the methods used in are not very familiar , Take this opportunity to learn again

Official website address attached ：SuperSocket 2.0 DocumentationSuperSocket is a light weight, cross platform and extensible socket server application framework. You can use it to build a server side socket application (like game server, GPS server, industrial control system, data acquisition server etc) easily without thinking about how to use socket, how to maintain the socket connections and how socket works., v2.0https://docs.supersocket.net/v2-0/en-US

1. Use SuperSocket Purpose 、 benefits ：

（1） encapsulation Socket Connect , Developers don't have to worry about and write too much code in Socket Connection is broken 、 Create multiple Server And so on 、 Good for Socket Configuration of

（2） Better manage client connections （AppSession）

（3） Built in command line protocol （ Built in command line pipeline filter ）

（4） Built in PipelineFilter Templates

（5） command Command And command filters CommandFilterAttribute、 Global command filter

（6）WebSocket Server quick build

（7） Enable transport layer security support TLS

（8） And ASP.Net Core Website integration , Run in one program at the same time as the website

2. Some basic concepts ：

Package Type： Package type , In fact, it is the data structure corresponding to the transmission data , You can choose the corresponding packet type to receive data according to your program message protocol , The built-in package types are ：TextPackageInfo、StringPackageInfo;

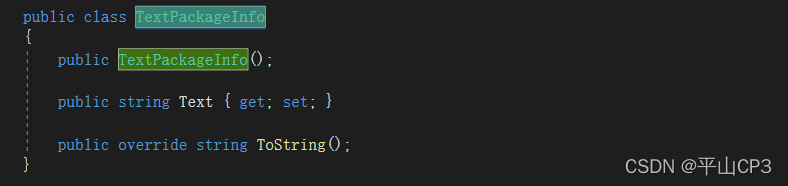

TextPackageInfo It's an ordinary text structure ：

 StringPackageInfo Is simple, including key values and body Data structure of , Some built-in Filter By default, the filtered data will be parsed into StringPackageInfo class .StringPackageInfo Class uses a space to split the request key And parameters . When the client sends data to the server

"ADD user1 123456\r\n"

The data received is ：

Key: "ADD"

Body: "user1 123456";

Parameters: ["user1", "123456"]



PipelineFilter Type: Pipe filter type , This type plays an important role in network protocol decoding . It defines how we will IO The stream is decoded into packets that the application can understand .IPipelineFilter yes PipelineFilter The basic interface of , When customizing the filter, you need to implement it .SuperSocket2.0 The types of built-in filters are ：

TerminatorPipelineFilter Terminator filter （ Filter and parse the data before the specified Terminator , Default resolution to StringPackageInfo class ）



TerminatorTextPipelineFilter  Terminator text pipeline filter （ Filter and parse the data before the specified Terminator , Default resolution to TextPackageInfo class ）



LinePipelineFilter  Line filter （ The most common filter , Except for command line restrictions , Other unlimited , Default resolution to TextPackageInfo class ）

CommandLinePipelineFilter  Command line pipeline filter （ The most common filter , Except for command line restrictions , Other unlimited , Default resolution to StringPackageInfo class ）

BeginEndMarkPipelineFilter Pipe filters with fixed start and end marks （ Filter valid data according to start and end characters , Default resolution to StringPackageInfo class ）

FixedSizePipelineFilter Fixed length filter （ Only parse data of specified length , When the data length is less than the specified length , An error will be reported and the connection will be disconnected and reconnected , Default resolution to StringPackageInfo class ）



FixedHeaderPipelineFilter Fixed beginning （ length ） Pipe filter （ By specifying the length of the beginning of the packet , rewrite GetBodyLengthFromHeader Method , Get the length of a valid packet from the beginning packet , Default resolution to StringPackageInfo class ）



Tell the truth , These filters have not been used in actual projects yet , Because the use of these filters means that the message must comply with the command good protocol , With \r\n ending , But in practice, most of the application protocols do not change the other side of the docking , So there are only custom filters . Of course, these built-in filters can basically meet most of the protocols themselves （ If only the command-line protocol were not enforced ....）

Want to know more about the function and implementation process of these filters , You can see SuperSocket.ProtoBase.dll Source code

AppSession： Represents a logical socket connection , That is, a complete connection ; By inheritance AppSession class , Rewrite the connect and disconnect methods to implement your logic

public class MySession : AppSession
{
    protected override async ValueTask OnSessionConnectedAsync()
    {
        // do something right after the sesssion is connected
    }

    protected override async ValueTask OnSessionClosedAsync(EventArgs e)
    {
        // do something right after the sesssion is closed
    }
}

SuperSocketService： Service instance , Monitor and manage client connections , Application level operations and logic can be defined in it . You can extend SuperSocketService And cover the method

public class MySuperSocketService<TReceivePackageInfo> : SuperSocketService<TReceivePackageInfo>
    where TReceivePackageInfo : class
{
    public MySuperSocketService(IServiceProvider serviceProvider, IOptions<ServerOptions> serverOptions)
        : base(serviceProvider, serverOptions)
    {

    }

    protected override async ValueTask OnSessionConnectedAsync(IAppSession session)
    {
        // do something right after the sesssion is connected
        await base.OnSessionConnectedAsync(session);
    }

    protected override async ValueTask OnSessionClosedAsync(IAppSession session)
    {
        // do something right after the sesssion is closed
        await base.OnSessionClosedAsync(session);
    }

    protected override async ValueTask OnStartedAsync()
    {
        // do something right after the service is started
    }

    protected override async ValueTask OnStopAsync()
    {
        // do something right after the service is stopped
    }
}

Command： Command processing , To handle requests from clients .

3. The configuration file

SuperSocket Also used JSON The configuration file appsettings.json;

newly added serverOptions node , Example :

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft": "Warning",
      "Microsoft.Hosting.Lifetime": "Information"
    }
  },
  "AllowedHosts": "*",
  "serverOptions": {
    "name": "TestServer",
    "listeners": [
      {
        "ip": "Any",
        "port": "2020"
      },
      {
        "ip": "Any",
        "port": "2021"
      }
    ]
  }
}

Configurable node variables , Refer to the official website ：

• name： Name of the server ;
• maxPackageLength： Maximum package size allowed in the server ; Default 4M;
• receiveBufferSize： The size of the receive buffer ; Default 4k​​;
• sendBufferSize： Size of send buffer ; Default 4k​​;
• receiveTimeout： Receive timeout ; In Milliseconds ;
• sendTimeout： Send timeout ; In Milliseconds ;
• listeners： Listener endpoint for this server ;
• listeners/*/ip： The listener's listening IP;Any： whatever ipv4 ip Address ,IPv6Any： whatever ipv6 ip Address , Other actual IP Address ;
• listeners/*/port： The listening port of the listener ;
• listeners/*/backLog： Maximum length of the pending connection queue ;
• listeners/*/noDelay： Specified flow Socket Whether to use Nagle Algorithm ;
• Monitor /*/ Security ： nothing /Ssl3/Tls11/Tls12/Tls13; Used for communication TLS Protocol version ;
• listeners/*/certificateOptions： be used for TLS encryption / Decrypted certificate options ;

These are the basic concepts , The following article describes how to start and use
