Catalog

Thread pool state

ThreadPoolExecutor Construction method of

Emergency thread ：

Conditions ：

  Thread pool execution execute() Method , When adding a task , The thread pool will make the following judgment ：

  Refusal strategy ：

workQueue Task queue ：

  Common methods of thread pool

  Thread pool underlying interface ExecutorService Interface

  ask ：submit and execute It's all about submitting tasks , What's the difference? ？

 newFixedThreadPool：

 ThreadPoolExecutor Submit task in （submit+invokeAll+invokeAny）

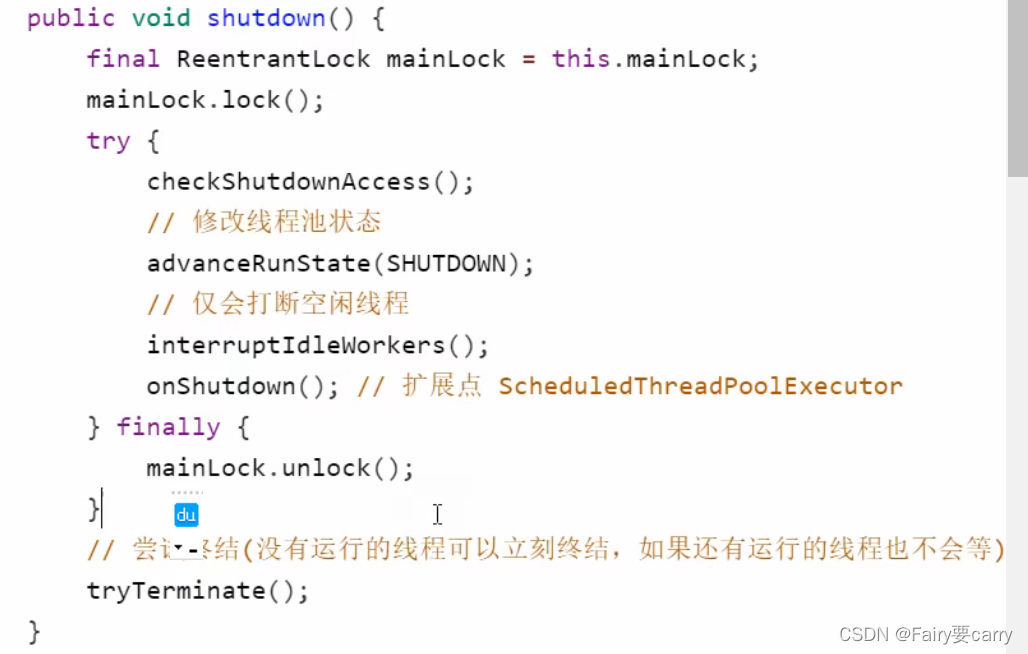

In the thread pool shutdown Method

---

 int There is 32 position , high 3 Bits represent thread state , low 29 Bits indicate the number of threads ;

Thread pool state

Running： Run submit and process tasks ;

SHUTDOWN： New tasks are not accepted , In the past, it was still carried out as usual ;

stop state ： Make use of Interrupt Method to interrupt a task , Even if you're on a mission , Will also be abandoned ;

——> When we call... In the thread pool shutdownNow() Method , The thread pool state will be determined by Running Turn into stop state

TIDYING state ： The thread is all executed , Threads in the pool are 0, It will soon enter the end state ;

TERMINDATED： Put an end to the state ;

We'll put this information （ Thread state + Number of threads ） Stored in an atomic variable ;——> Purpose ： One less time CAS operation ;

ThreadPoolExecutor Construction method of

  Essentially TreadPoolExecutor Is to implement the ExecutorService Interface ：

corePoolSize： Number of core threads

maximumPoolSize： Maximum number of threads

KeepAliveTime： Time to live —— For emergency threads ——>（ Used after the rush hour ）

unit： Time unit - For emergency threads

threadFactory： Thread factory

handler： Refusal strategy

workQueue： Task queue

Emergency thread ：

When the concurrency is large enough ,（ The blocking queue can't fit ）, Will consider the emergency thread to perform the task ; But after the mission , Will hang up after the specified lifetime ;

Conditions ：

Satisfy bounded queue , That is, when all the threads in your thread pool are busy , New tasks need to wait in the blocking queue ;——> benefits ： Help reduce CPU Use , And reduce context switching ;

  Thread pool execution execute() Method , When adding a task , The thread pool will make the following judgment ：

1. If there are idle threads , Then execute the task directly ;
2. If there are no idle threads , And the number of threads currently running is less than corePoolSize, Then create a new thread to execute the task ;
3. If there are no idle threads , And the current number of threads is equal to corePoolSize, At the same time, the blocking queue is not full , Then put the task in the queue , Without adding new threads ;
4. If there are no idle threads , And the blocking queue is full , At the same time, the number of threads in the pool is less than maximumPoolSize , Create a new thread to execute the task ;
5. If there are no idle threads , And the blocking queue is full , At the same time, the number of threads in the pool is equal to maximumPoolSize , Then according to handler Specify a policy to reject new tasks .

  Refusal strategy ：

When the task keeps coming , But our threads are busy again , We're using a rejection strategy （ Is the emergency thread also a rejection strategy ？）

stay ThreadPoolExecutor Four processing strategies are provided ;

 1、AbortPolicy: The processing task is rejected and an exception is thrown , It means giving up to ensure normal operation ;

 2、CallerRunsPolicy： The thread calls the execute In itself . This strategy provides a simple feedback control mechanism, which can slow down the submission speed of new tasks .
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) { if (!e.isShutdown()) { r.run(); }}
This strategy obviously doesn't want to give up the task . But because there are no resources in the pool , Then you can call this directly execute The thread itself executes .（ At first, I didn't want to abandon the execution of the task , But for some application scenarios , It is likely that the current thread will also be blocked . If all threads are not executable , It's likely that the program can't continue to run . It depends on the business situation .）

 3.DiscardPolicy： Tasks that cannot be performed will be deleted
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {}
This strategy and AbortPolicy Almost the same as , Also dropping tasks , It's just that he doesn't throw exceptions .

 4.DiscardOldestPolicy： If the executing program has not been closed , The task at the head of the work queue will be deleted , Then try to execute the program again （ If it fails again , Then repeat the process ）
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) { if (!e.isShutdown()) {e.getQueue().poll();e.execute(r); }}
The strategy is a little more complicated , stay pool First lose the earliest task cached in the queue without closing , Then try running the task again . This strategy requires proper care .

scene ：

Dubbo： Will log , Easy to find information ;

Netty： Create a new thread to perform the task ;

PinPoint： Try every strategy ;

ActiveMQ： The task will wait for a timeout （60s）, If other tasks are completed during this period , Then the task can be performed , Or hang up ;

workQueue Task queue ：

effect ： Determines the queuing strategy of cache tasks 2.

ThreadPoolExecutor Thread pool provides three kinds of waiting queues ：1.synchronousQueue、2.LinkedBlockingQueue、3.ArrayBlockingQueue

Bounded queues ：

synchronousQueue： Every time you insert a task , You must wait for another thread to call to remove the task from the task queue , Otherwise, it will be blocked ;

ArrayBlockingQueue：（ Supported by arrays ） On a first in, first out basis FIFO Sort by the rules of ;

Unbounded queue ：

LinkedBlockingQueue： The capacity can be specified or not , Maximum Integer.MAX_VALUE

---



newCachedThreadPool

  characteristic ：

The number of core threads is 0, The maximum is Integer.MAX_VALUE, The idle lifetime of the emergency thread is 60S;

It shows that emergency threads can be created infinitely ;

The task queue in the blocking queue uses synchronousQueue： It means that only when you see the thread coming first , The task will give it , It means two-way rush to , Because it has no capacity , Can't put into the task ;

Scene and evaluation ：

---

  Common methods of thread pool



1. getCorePoolSize()： Returns the number of core threads in the thread pool , This value is always the same , Returns the... Set in the constructor coreSize size ;
2.getMaximumPoolSize()： Returns the maximum number of threads in the thread pool , This value is always the same , Returns the... Set in the constructor coreSize size ;
3.getLargestPoolSize()： Record the maximum number of threads that have ever occurred （ Waterline ）;
4.getPoolSize()： The number of current threads in the thread pool ;
5.getActiveCount()：Returns the approximate（ The approximate ） number of threads that are actively executing tasks;
6.prestartAllCoreThreads()： Will start all core threads , Whether or not there are tasks to be performed , The thread pool will create new threads , Until the number of threads in the pool reaches corePoolSize;
7.prestartCoreThread()： Will start a core thread （ ditto ）;
allowCoreThreadTimeOut(true)： Allow core threads to KeepAliveTime After time , sign out ;

  Thread pool underlying interface ExecutorService Interface

  What we said before ThreadPoolExecutor Is the implementation class of the interface

Common methods of this interface ：

1.Future<?> submit(Runnable task)： Submit Runnable Task to thread pool , return Future object , because Runnable no return value , That is to say, call Future object get() Method returns null;
2.<T> Future<T> submit(Callable<T> task)： Submit Callable Task to thread pool , return Future object , call Future object get() Method can obtain Callable The return value of ;
3.<T> Future<T> submit(Runnable task,T result)： Submit Runnable Task to thread pool , return Future object , call Future object get() Method can obtain Runnable Parameter values for ;

RunnableTest：

public static ThreadPoolExecutor threadPool = new ThreadPoolExecutor(5, 50, 300, TimeUnit.SECONDS,
			new ArrayBlockingQueue<Runnable>(50),
			new ThreadFactory(){ public Thread newThread(Runnable r) {
                return new Thread(r, "schema_task_pool_" + r.hashCode());
            }}, new ThreadPoolExecutor.DiscardOldestPolicy());

public static void callableTest() {
	int a = 1;
	//callable
	Future<Boolean> future = threadPool.submit(new Callable<Boolean>(){
		@Override
		public Boolean call() throws Exception {
			int b = a + 100;
			System.out.println(b);
			return true;
		}
	});
	try {
		System.out.println("feature.get");
		Boolean boolean1 = future.get();
		System.out.println(boolean1);
	} catch (InterruptedException e) {
		System.out.println("InterruptedException...");
		e.printStackTrace();
	} catch (ExecutionException e) {
		System.out.println("execute exception...");
		e.printStackTrace();
	}
}

public static void runnableTest() {
	int a = 1;
	//runnable
	Future<?> future1 = threadPool.submit(new Runnable(){
		@Override
		public void run() {
			int b = a + 100;
			System.out.println(b);
		}
	});
	try {
		System.out.println("feature.get");
		Object x = future1.get(900,TimeUnit.MILLISECONDS);
		System.out.println(x);//null
	} catch (InterruptedException e) {
		e.printStackTrace();
	} catch (ExecutionException e) {
		System.out.println("execute exception...");
		e.printStackTrace();
	} catch (TimeoutException e) {
		e.printStackTrace();
	}
}

  ask ：submit and execute It's all about submitting tasks , What's the difference? ？

 submit： Two parameter types can be accepted ->Runnable+Callable, There is a return value

execute： A kind of Runnable type , also execute no return value

Continue to explore ： Why should there be Runnable And Callable Two ways ？

because Callable There is a return value , So you can throw an exception , External digestion （ And FutureTask When used together, you can obtain asynchronous execution results ）

and Runnable No results returned , In case of abnormality, it can only be digested internally

newSingleThreadExecutor

Single threaded executors :

Use scenarios ：

I want multiple tasks to queue up , Just like the serial nature , When tasks >1, After execution, it will be placed in an unbounded queue , Task completed , The only thread executing the task will not be released ;

ask ： What is the difference between creating a single thread by yourself and a single thread in the thread pool ？

Self created single thread serial execution task , If an exception occurs during task execution , There are no threads , There is no remedy ;

A single thread in a thread pool , If you are abnormal, he will have remedies , Create a new thread , Because the task is not carried out , So he will create a new thread ;

newSingleThreadExecutor： The number of threads is always 1, Do not modify the

This single threaded actuator , He won't return the thread pool object directly , But with a package , That is, there is no exposure to the unique methods of the implementation class （ThreadPoolExecutor Implementation class ）, What's exposed is ExecutorService Interface ;

 newFixedThreadPool：

What is exposed is ThreadPoolExecutor object , You can modify the methods in the thread pool ;

public static ExecutorService newFixedThreadPool(int nThreads) {
    return new ThreadPoolExecutor(nThreads, nThreads,
                                  0L, TimeUnit.MILLISECONDS,
                                  new LinkedBlockingQueue<Runnable>());
}

  difference ：

package com.example.juc.ThreadPool.FixAndSingle;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;

/**
 * @author diao 2022/4/21
 */
public class CompareFAS {
    public static void main(String[] args) throws InterruptedException {
        ExecutorService es1 = Executors.newFixedThreadPool(1);
        ExecutorService es2 = Executors.newSingleThreadExecutor();
        testThread(es1);
        TimeUnit.SECONDS.sleep(1);
        testThread(es2);
    }

    private static void testThread(ExecutorService e){
        e.submit(()->{
            throw new IllegalStateException("Error");
        });

        e.submit(()->{
            System.out.println("running....");
        });
    }
}



*：  It's not hard to find out ,newSingleThreadExecutor Returned a from XXXExecutorService() Encapsulated ThreadPoolExecutor;

So we are newSingleThreadExecutor in , You can't call the method of thread pool directly , After all, it returns ExecutorService;

public static ExecutorService newSingleThreadExecutor() {
    return new FinalizableDelegatedExecutorService
        (new ThreadPoolExecutor(1, 1,
                                0L, TimeUnit.MILLISECONDS,
                                new LinkedBlockingQueue<Runnable>()));
}

test ：

package com.example.juc.ThreadPool.FixAndSingle;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.ThreadPoolExecutor;

/**
 * @author diao 2022/4/21
 */
public class CompareTest {
    public static void main(String[] args) {
        ExecutorService es1 = Executors.newFixedThreadPool(1);
        ExecutorService es2 = Executors.newSingleThreadExecutor();

        //1. First newFixedThreadPool First convert to ThreadPoolExecutor
        ThreadPoolExecutor tp1= (ThreadPoolExecutor) es1;
        tp1.setCorePoolSize(2);
        System.out.println(tp1.getCorePoolSize());

        //2. Then we will newSingleThreadExecutor To ThreadPoolExecutor
        ThreadPoolExecutor tp2= (ThreadPoolExecutor) es2;
        tp2.setCorePoolSize(2);
        System.out.println(tp2.getCorePoolSize());
    }
}

  in other words ,newFixedThreadPool(n) Can be transformed into ThreadPoolExecutor Of , You can specify the number of threads ;

  And the other one is newSingleThreadExecutor no , The number of threads is 1（ One by one · Come on ·）;——>（ Full thread safety ）

---

 ThreadPoolExecutor Submit task in （submit+invokeAll+invokeAny）

 submit： Submit task method , Return value Future Results for task execution

package com.example.juc.ThreadPool.FixAndSingle;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;

/**
 * @author diao 2022/4/21
 */
@Slf4j(topic = "c.CompareTest02")
public class CompareTest02 {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        ExecutorService pool = Executors.newFixedThreadPool(2);

        //2. Submit the task to the thread pool , use Future Get the result of task execution
        Future<String> fu = pool.submit(() -> {
            log.debug(" Start submitting tasks ...");
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return "ok";
        });

        log.debug("{}",fu.get());
    }
}

invokeAll Method ： Submit all tasks

package com.example.juc.ThreadPool.FixAndSingle;

import lombok.extern.slf4j.Slf4j;

import java.util.Arrays;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;

/**
 * @author diao 2022/4/21
 */
@Slf4j(topic = "c.CompareTest03")
public class CompareTest03 {
    public static void main(String[] args) throws InterruptedException {
        ExecutorService pool = Executors.newFixedThreadPool(3);

        // The thread pool performs all tasks
        List<Future<String>> futures = pool.invokeAll(Arrays.asList(

                // A task , The task enters the collection
                () -> {
                 log.debug("begin");
                 Thread.sleep(1000);
                 return "1";
                },

                ()->{
                    log.debug("begin");
                    Thread.sleep(500);
                    return "2";
                },

                ()->{
                    log.debug("begin");
                    Thread.sleep(2000);
                    return "3";
                }
          ));

        // The main thread prints the task content in the thread pool
        futures.forEach(f->{
            try {
                log.debug("{}",f.get());
            } catch (InterruptedException e) {
                e.printStackTrace();
            } catch (ExecutionException e) {
                e.printStackTrace();
            }
        });
    }
}



 invokeAny： Which task is completed first will return to which task

package com.example.juc.ThreadPool.FixAndSingle;

import lombok.extern.slf4j.Slf4j;

import java.util.Arrays;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

/**
 * @author diao 2022/4/21
 */
@Slf4j(topic = "c.CompareTestInvokeAny")
public class CompareTestInvokeAny {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        ExecutorService es = Executors.newFixedThreadPool(3);

        // Put the task into the thread pool
        Object result = es.invokeAny(Arrays.asList(
                () -> {
                    log.debug("begin 1");
                    Thread.sleep(1000);
                    log.debug("end 1");
                    return "1";
                },

                () -> {
                    log.debug("begin 2");
                    Thread.sleep(500);
                    log.debug("end 2");
                    return "2";
                },

                () -> {
                    log.debug("begin 3");
                    Thread.sleep(2000);
                    log.debug("end 3");
                    return "3";
                }
        ));

        log.debug("{}",result);
    }
}

---

In the thread pool shutdown Method

The executing thread will not be interrupted , But idle threads will be interrupted ;

  then tryTerminate Try to end , After the end , Those threads that are executing let them finish executing themselves and hang up ;

 shutdownNow（）：

  All threads , All threads, whether executing or idle, are interrupted , That is to say 0 Live number ->tryTerminate() return true;

Other methods ：
