一、异常信息

Started the project this morning,Suddenly the following exception occurred,Baidu did not find a suitable solution,Decided to start with the source code,看看能不能解决.

org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'flywayInitializer' defined in class path resource [org/springframework/boot/autoconfigure/flyway/FlywayAutoConfiguration$FlywayConfiguration.class]: Invocation of init method failed; nested exception is org.flywaydb.core.api.exception.FlywayValidateException: Validate failed: Migrations have failed validation
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1786) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:602) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:524) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:944) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:917) ~[spring-context-5.3.4.jar:5.3.4]
	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:582) ~[spring-context-5.3.4.jar:5.3.4]
	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:144) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:767) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:759) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:426) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:326) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1311) ~[spring-boot-2.4.3.jar:2.4.3]
	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1300) ~[spring-boot-2.4.3.jar:2.4.3]
	at com.zhx.realpro.CloudAlarmApplication.main(CloudAlarmApplication.java:33) ~[classes/:na]
Caused by: org.flywaydb.core.api.exception.FlywayValidateException: Validate failed: Migrations have failed validation
	at org.flywaydb.core.Flyway$1.execute(Flyway.java:172) ~[flyway-core-7.1.1.jar:na]
	at org.flywaydb.core.Flyway$1.execute(Flyway.java:164) ~[flyway-core-7.1.1.jar:na]
	at org.flywaydb.core.Flyway.execute(Flyway.java:538) ~[flyway-core-7.1.1.jar:na]
	at org.flywaydb.core.Flyway.migrate(Flyway.java:164) ~[flyway-core-7.1.1.jar:na]
	at org.springframework.boot.autoconfigure.flyway.FlywayMigrationInitializer.afterPropertiesSet(FlywayMigrationInitializer.java:66) ~[spring-boot-autoconfigure-2.4.3.jar:2.4.3]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1845) ~[spring-beans-5.3.4.jar:5.3.4]
	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1782) ~[spring-beans-5.3.4.jar:5.3.4]
	... 19 common frames omitted

二、异常分析

根据错误信息,报的是FlywayValidateException异常,Find this class and hit a breakpoint
启动项目,查看调用链

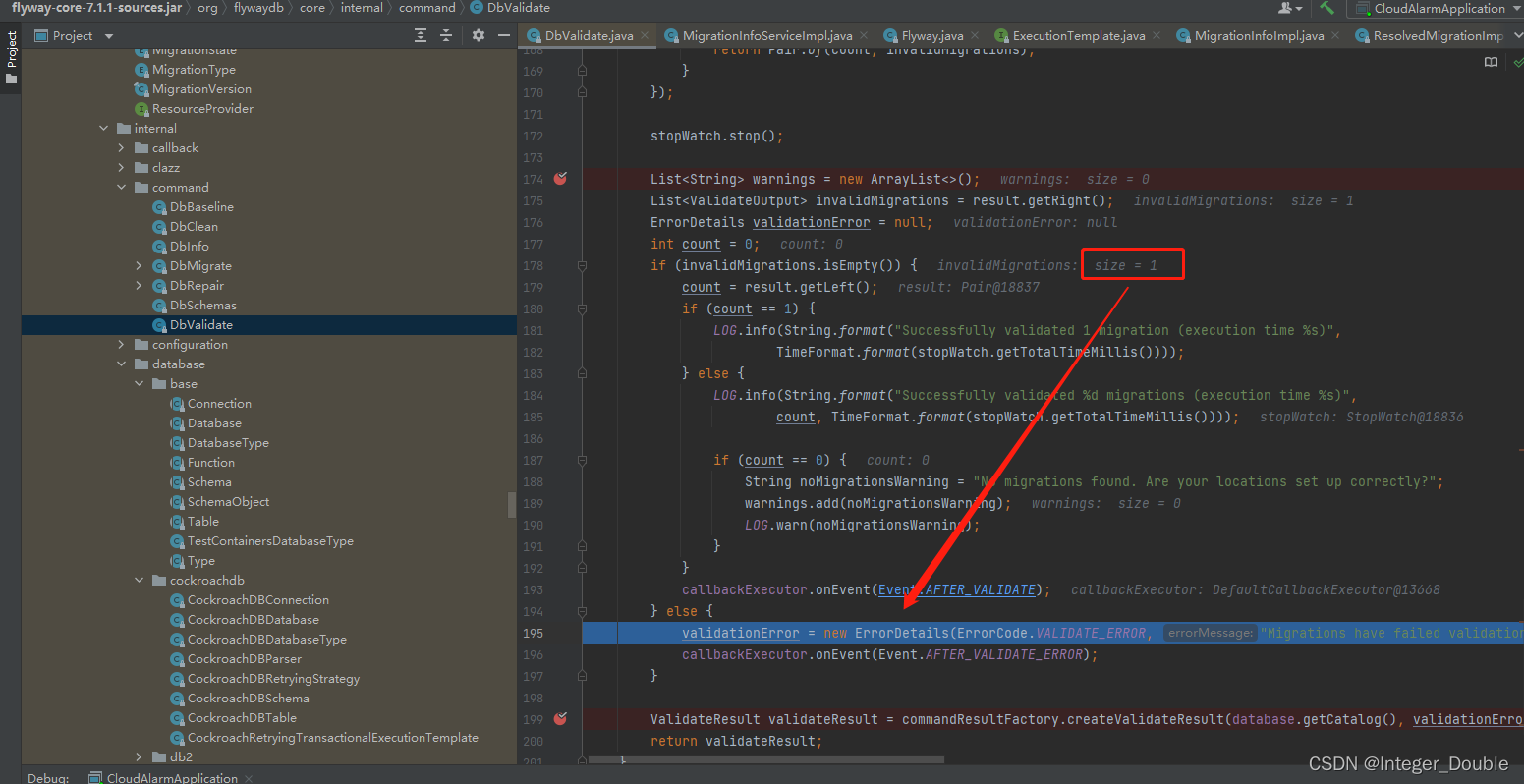

Found where the exception was thrown,Put a breakpoint on the line before it to start the project,Because the result is judged before throwing an exception
ValidateResult validateResult = doValidate(database, migrationResolver, schemaHistory, schemas, callbackExecutor, true);
Follow up on this line

ValidateResult validateResult = new DbValidate(database, schemaHistory, schemas, migrationResolver, configuration, ignorePending, callbackExecutor).validate();

validate方法里面,在Callable的call方法做校验,This piece feels a bit over-engineered,Did not find the benefit of starting a new thread.

migrationInfoService的refresh方法sql文件加载进来了,Don't watch this.Then go downList<ValidateOutput> invalidMigrations = migrationInfoService.validate();

验证所有sql文件的checksum,如果sqlThe file is executed for the first time,会产生一个checksum.之后改了sql文件的内容checksum的值就会发生改变,从而验证失败validateError就不会为空,那么invalidMigrationswill add one.进入migrationInfo.validate();

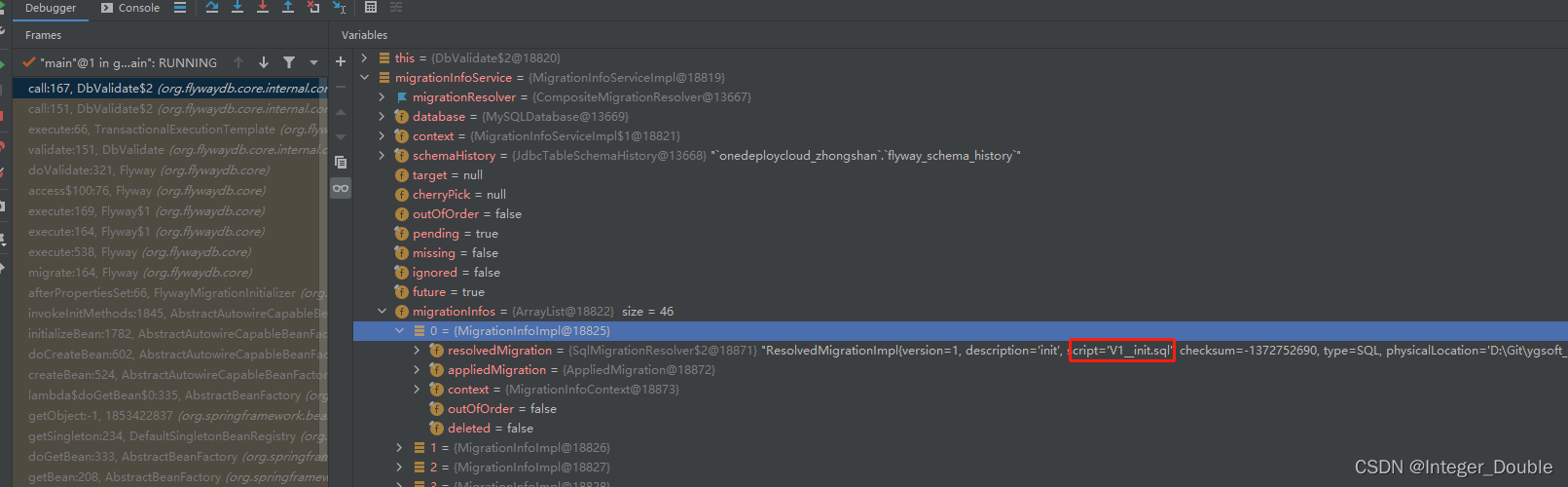

Went to this block and found twochecksum不一致.跟进去resolvedMigration.checksumMatches

不一致就返回false

返回一个ErrorDetails,错误信息很详细,But in the end there is no output,看看怎么回事,返回到DbValidate.DbValidate方法,callreturned after executionresult.

目前为止resultThere are still detailed error messages

校验失败的sqlEnter if the file is not empty validationError = new ErrorDetails(ErrorCode.VALIDATE_ERROR, "Migrations have failed validation");,The exception information here is hard-coded“Migrations have failed validation”,More detailed error messages are not output,Remember the old versionflyway是有输出的.This change is not intuitive.返回到Flyway.migrate

校验失败,抛出异常信息“ Migrations have failed validation”.

三、解决方案

As mentioned earlier, it is generally due tosqlThe file was changed after the first execution.

• 方案一：不要改动sql文件,增加新的sqlfile to modify the table
• 方案二：directly to the database tableflyway_schema_history中的checksumChange to a new onechecksum,But it is not recommended to change the library directly.估计也是这个原因,新版的flywayDo not put new oneschecksum打印出来了
