[webgl] simple tutorial

2022-04-21 22:02:00 【Xiao Shen Yue】

The first 1 Chapter - Introduce

WebGL It solves the problem that users in the page Draw and render 3D graphics The function of , And enables users to communicate with Three dimensional graphics interact into For the possibility , This technology will play an important role in developing user-friendly and intuitive interfaces in the next generation . In the next few years ,WebGL Technology will be widely used in mobile terminals of electronic devices , Include Flat 、 Mobile devices , therefore ,WebGL Technology learning is particularly important .

It's about the technology stack

HTML、HTML5
JavaScript
GLSL ES Language

The first 2 Chapter - First time to know WebGL

2.1 Draw a graph manually

Implementation steps

Add a canvas element
Get the canvas element based on webgl Context object
Using the API Realize graphics rendering

Code

  <body>
    <canvas id="cvs" width="200" height="200" style="border: dashed 1px red">
       Your browser does not support canvas elements
    </canvas>
    <script type="text/javascript"> // Get canvas elements  var cvs = document.getElementById('cvs') // Get the context object of the element  var gl = cvs.getContext('webgl') // Set the color of the drawing fill  gl.clearColor(1.0, 0.0, 0.0, 1.0) // Call cache median fill graph  gl.clear(gl.COLOR_BUFFER_BIT) </script>
  </body>

2.2 Drawing graphics using shaders

Insert picture description here

WebGL The coordinate system in

Insert picture description here

Introduction to shaders

The shader is Use OpenGL ES Shading Language A program written in a language , Responsible for recording pixels Location and Color , And by the Vertex shaders and clip shaders form , By using GLSL Write these shaders , And pass the code text to WebGL Compile at execution time , in addition , A collection of vertex shaders and fragment shaders, which we usually call Shader program .

Vertex shader The function of is to convert the input vertex from the original coordinate system to WebGL Scale space coordinate system used , The coordinate range of each axis is from -1.0 To 1.0, After the vertex shader makes the necessary transformations to the vertex coordinates , Save in the name gl_Position Standby in special variables .

Fragment Shader After the vertex shader processes the vertices of the shape , It will be called once by each pixel of each graph to be drawn , Its function is to determine the color value of pixels , And save it under the name gl_FragColor Of the special variables , The color value will eventually be drawn to the corresponding position of the graphics pixel .

Code

  <body>
    <canvas id="cvs" width="200" height="200" style="border: dashed 1px red">
       Your browser does not support canvas elements
    </canvas>
    <script type="text/javascript"> // Get canvas elements  var cvs = document.getElementById('cvs') // Get the context object of the element  var gl = cvs.getContext('webgl') // Vertex shader variables  var VSHADER_SOURCE = 'void main() {' + // Define the coordinates of the point and convert them into variables to save  'gl_Position = vec4(0.0, 0.0, 0.0, 1.0); ' + // Sets the diameter of the zoom distance  'gl_PointSize = 10.0; ' + '} ' // Clip shader variables  var FSHADER_SOURCE = 'void main() {' + // Set the color of graphics pixels and save  'gl_FragColor = vec4(0.0, 1.0, 0.0, 1.0);' + '}' // Create a new shader object for loading vertex strings  var vertShader = gl.createShader(gl.VERTEX_SHADER) // Load the saved vertex code string variable  gl.shaderSource(vertShader, VSHADER_SOURCE) // Compile vertex shader  gl.compileShader(vertShader) // Create a new shader object for loading fragment strings  var fragShader = gl.createShader(gl.FRAGMENT_SHADER) // Load the saved fragment code string variable  gl.shaderSource(fragShader, FSHADER_SOURCE) // Compiling fragment shaders  gl.compileShader(fragShader) // Create a new program  var shaderProgram = gl.createProgram() // Attach two compiled shader objects respectively  gl.attachShader(shaderProgram, vertShader) gl.attachShader(shaderProgram, fragShader) // Link two attached shader programs  gl.linkProgram(shaderProgram) // Use of open program  gl.useProgram(shaderProgram) // Draw a drawing at a specified location  gl.drawArrays(gl.POINTS, 0, 1) </script>
  </body>

The first 3 Chapter - Draw triangle

3.1 Method of multipoint rendering

Insert picture description here

what attribute Variable

It is a storage qualifier , To define a attribute Global variable of , The data of this variable will be transferred from the outside to the vertex shader , And save The vertices Relevant data , Only vertex shaders can use it .

Use attribute Variable

In the vertex shader , Make a statement attribute Variable .
take attribute A variable is assigned to gl_Position Variable .
towards attribute Variables transfer data .

Use cache Association attribute Variable

Create cache object
Bind cache object
Write data to object
Assign cache objects to attribute Variable
Turn on attribute Variable

3.2 Drawing triangle method

 <body>
    <canvas id="cvs" width="200" height="200" style="border: dashed 1px red">
       Your browser does not support canvas elements
    </canvas>
    <script type="text/javascript"> // Get canvas elements  var cvs = document.getElementById('cvs') // Get the context object of the element  var gl = cvs.getContext('webgl') // Vertex shader variables  var VSHADER_SOURCE = // Use the storage qualifier to define a variable that accepts vertex coordinates  'attribute vec4 a_Position;' + 'void main() {' + // Define the coordinates of the point and convert them into variables to save  'gl_Position = a_Position; ' + '} ' // Clip shader variables  var FSHADER_SOURCE = 'void main() {' + // Set the color of graphics pixels and save  'gl_FragColor = vec4(0.0, 1.0, 0.0, 1.0);' + '}' // Create a new shader object for loading vertex strings  var vertShader = gl.createShader(gl.VERTEX_SHADER) // Load the saved vertex code string variable  gl.shaderSource(vertShader, VSHADER_SOURCE) // Compile vertex shader  gl.compileShader(vertShader) // Create a new shader object for loading fragment strings  var fragShader = gl.createShader(gl.FRAGMENT_SHADER) // Load the saved fragment code string variable  gl.shaderSource(fragShader, FSHADER_SOURCE) // Compiling fragment shaders  gl.compileShader(fragShader) // Create a new program  var shaderProgram = gl.createProgram() // Attach two compiled shader objects respectively  gl.attachShader(shaderProgram, vertShader) gl.attachShader(shaderProgram, fragShader) // Link two attached shader programs  gl.linkProgram(shaderProgram) // Use of open program  gl.useProgram(shaderProgram) // Define a type array to hold vertex coordinate values  var vertices = new Float32Array([0.0, 0.5, -0.5, -0.5, 0.5, -0.5]) // First create a cache object  var vertexBuffer = gl.createBuffer() // Describe the type of cache object saved  gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer) // Write coordinate data  gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW) // Gets the variable in the vertex shader  var a_Position = gl.getAttribLocation(shaderProgram, 'a_Position') // Assign coordinate values to variables  gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, 0, 0) // Enable the use of variable values  gl.enableVertexAttribArray(a_Position) // Draw a drawing at a specified location  gl.drawArrays(gl.TRIANGLES, 0, 3) </script>
  </body>

The first 4 Chapter -WebGL Animation

4.1 Graphics move

Insert picture description here

The translation principle
To translate a triangle , Just move each vertex of it , That is, add a component to each vertex , Get a new coordinate ：
X1=X+TX``Y1=Y+TY``Z1=Z+TZ

You only need to add a constant to each component of vertex coordinates in the shader , Of course, this modification is on the vertex shader .

uniform Type variable
Used to save and transmit consistent data , It can be used for both vertices , It can also be used for fragments .

  <body>
    <canvas id="cvs" width="200" height="200" style="border: dashed 1px red">
       Your browser does not support canvas elements
    </canvas>
    <script type="text/javascript"> // Get canvas elements  var cvs = document.getElementById('cvs') // Get the context object of the element  var gl = cvs.getContext('webgl') // Vertex shader variables  var VSHADER_SOURCE = // Use the storage qualifier to define a variable that accepts vertex coordinates  'attribute vec4 a_Position;' + // Use the storage qualifier to define a variable that accepts a consistent offset  'uniform vec4 u_Translation;' + 'void main() {' + // Define the coordinates of the point and convert them into variables to save  'gl_Position = a_Position + u_Translation; ' + '} ' // Clip shader variables  var FSHADER_SOURCE = 'void main() {' + // Set the color of graphics pixels and save  'gl_FragColor = vec4(0.0, 1.0, 0.0, 1.0);' + '}' // Create a new shader object for loading vertex strings  var vertShader = gl.createShader(gl.VERTEX_SHADER) // Load the saved vertex code string variable  gl.shaderSource(vertShader, VSHADER_SOURCE) // Compile vertex shader  gl.compileShader(vertShader) // Create a new shader object for loading fragment strings  var fragShader = gl.createShader(gl.FRAGMENT_SHADER) // Load the saved fragment code string variable  gl.shaderSource(fragShader, FSHADER_SOURCE) // Compiling fragment shaders  gl.compileShader(fragShader) // Create a new program  var shaderProgram = gl.createProgram() // Attach two compiled shader objects respectively  gl.attachShader(shaderProgram, vertShader) gl.attachShader(shaderProgram, fragShader) // Link two attached shader programs  gl.linkProgram(shaderProgram) // Use of open program  gl.useProgram(shaderProgram) // Define a type array to hold vertex coordinate values  var vertices = new Float32Array([0.0, 0.5, -0.5, -0.5, 0.5, -0.5]) // First create a cache object  var vertexBuffer = gl.createBuffer() // Describe the type of cache object saved  gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer) // Write coordinate data  gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW) // Gets the variable in the vertex shader  var a_Position = gl.getAttribLocation(shaderProgram, 'a_Position') // Assign coordinate values to variables  gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, 0, 0) // Enable the use of variable values  gl.enableVertexAttribArray(a_Position) // Define the uniform offset of each coordinate point  var Tx = 0.2, Ty = 0.3, Tz = 0.0 // Get into vertex shader uniform Variable  var u_Translation = gl.getUniformLocation(shaderProgram, 'u_Translation') // Assign multiple offset values to uniform Variable  gl.uniform4f(u_Translation, Tx, Ty, Tz, 0.0) // Draw a drawing at a specified location  gl.drawArrays(gl.TRIANGLES, 0, 3) </script>
  </body>

4.2 Graphics rotation

Insert picture description here

Rotation principle
In order to describe the rotation process of a figure , The following must be specified ：

Rotation axis ( around X and Y Shaft rotation )
Direction of rotation ( Clockwise and counterclockwise ), Negative values are clockwise , Counterclockwise when positive
The angle of rotation ( Angle through which the figure passes )

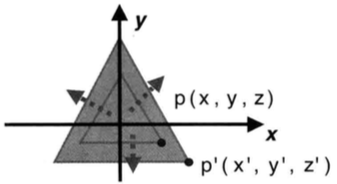

4.3 Graphics zoom

Insert picture description here

The principle of scaling
By changing the matrix value in the original graph , Realize the effect of drawing enlargement and contraction , therefore , Just modify the matrix value of the original graph .
Animation to achieve

demand ： Make an animation of rotating triangles by

effect ：

Screen refresh rate
The speed at which images are updated on the screen , That is, the number of times the image on the screen appears per second , It's usually 60Hz The screen of every 16.7ms Refresh once .
Animation principle
When the image is refreshed , Elicit in a coherent manner 、 Make transition changes in a smooth way .
The core approach

  requestAnimationFrame(callback)
  // Execute an animation , And call before next rendering. callback The callback function updates the animation

The first 5 Chapter -WebGL Color

5.1 Introduction to operation steps

Insert picture description here

Color adding steps

Define an attribute variable in the vertex shader that receives externally passed in color values a_Color And a variable for transferring the obtained color value v_Color
Define a of the same type and name in the clip shader v_Color Variable receives the value passed in from the vertex .
Retyped array of vertex coordinates and color values
Pass the array value into the cache and take it out , Two variables assigned to vertices
Receive cached values and draw graphics and colors

vertexAttribPointer Method

Parameters	explain
The first 1 Parameters	Specify to be assigned attribute Where variables are stored
The first 2 Parameters	Specifies the number of components per vertex in the cache （1~4）
The first 3 Parameters	Type a , Unsigned bytes , Short integer , Signed short integer , integer , Unsigned integer , floating-point
The first 4 Parameters	Indicates whether to classify non floating point data into [0,1][-1,1] Section
The first 5 Parameters	Bytes of two adjacent vertices . The default is 0
The first 6 Parameters	Represents the offset of the cache object （ In bytes ）,attribute Where do variables start to be stored in the buffer

Case realization

Add canvas elements , And get the webGL object , Save in variable .
Define shader content , And compile the attachment .
Use cache objects to transfer multiple coordinate data to vertices .
Draw the image according to the coordinate data .

5.2 Shader compilation and image rendering

  <body>
    <canvas id="cvs" width="200" height="200" style="border: dashed 1px red">
       Your browser does not support canvas elements
    </canvas>
    <script type="text/javascript"> // Get canvas elements  var cvs = document.getElementById('cvs') // Get the context object of the element  var gl = cvs.getContext('webgl') // Vertex shader variables  var VSHADER_SOURCE = // Use the storage qualifier to define a variable that accepts vertex coordinates  'attribute vec4 a_Position;' + 'attribute vec4 a_Color;' + 'varying vec4 v_Color;' + 'void main() {' + // Define the coordinates of the point and convert them into variables to save  'gl_Position = a_Position; ' + 'v_Color = a_Color; ' + '} ' // Clip shader variables  var FSHADER_SOURCE = 'precision mediump float;' + 'varying vec4 v_Color;' + 'void main() {' + // Set the color of graphics pixels and save  'gl_FragColor = v_Color ;' + '}' // Create a new shader object for loading vertex strings  var vertShader = gl.createShader(gl.VERTEX_SHADER) // Load the saved vertex code string variable  gl.shaderSource(vertShader, VSHADER_SOURCE) // Compile vertex shader  gl.compileShader(vertShader) // Create a new shader object for loading fragment strings  var fragShader = gl.createShader(gl.FRAGMENT_SHADER) // Load the saved fragment code string variable  gl.shaderSource(fragShader, FSHADER_SOURCE) // Compiling fragment shaders  gl.compileShader(fragShader) // Create a new program  var shaderProgram = gl.createProgram() // Attach two compiled shader objects respectively  gl.attachShader(shaderProgram, vertShader) gl.attachShader(shaderProgram, fragShader) // Link two attached shader programs  gl.linkProgram(shaderProgram) // Use of open program  gl.useProgram(shaderProgram) // Define a type array to hold vertex coordinate values  var vertices = new Float32Array([ // x, y, red, green, blue 0.0, 0.5, 1.0, 0.0, 0.0, -0.5, -0.5, 0.0, 1.0, 0.0, 0.5, -0.5, 0.0, 0.0, 1.0, ]) // First create a cache object  var vertexBuffer = gl.createBuffer() // Describe the type of cache object saved  gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer) // Write coordinate data  gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW) // Gets the number of bytes of a single element in the array  var FSIZE = vertices.BYTES_PER_ELEMENT // Gets the variable in the vertex shader  var a_Position = gl.getAttribLocation(shaderProgram, 'a_Position') // Assign coordinate values to variables  gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, FSIZE * 5, 0) // Enable the use of variable values  gl.enableVertexAttribArray(a_Position) // Gets the variable in the vertex shader  var a_Color = gl.getAttribLocation(shaderProgram, 'a_Color') // Assign coordinate values to variables  gl.vertexAttribPointer(a_Color, 3, gl.FLOAT, false, FSIZE * 5, FSIZE * 2) // Enable the use of variable values  gl.enableVertexAttribArray(a_Color) // Draw a drawing at a specified location  gl.drawArrays(gl.TRIANGLES, 0, 3) </script>
  </body>
