FSM finite state machine

         When you want to make a function, you need to go through different situations （ Conditions ）, When dealing with problems in different ways , In general , Will write a lot if-else Code to judge , This way of writing is confusing when switching between states or adding new states . And if you use a state machine , The functions of each state are relatively independent and clear . 23 A state pattern in a design pattern , Is a better way to realize the function of finite state machine .

When I was a child, I played a very simple game console , It's called “ Electronic pets ”.

Seeing these classic pictures, I don't know if they remind everyone of them . This is the main character of today , I'm going to use the state machine to implement a “ chicken ” The little game .

Numerical design of the game , As follows ：

Next on the game code ！ The code is pure lua Written .

State base class ：

--  State base class
local P = class("FSMState")

FSMState = P

--  Constructors
function P:ctor(owner)
    self._owner = owner
    self._isPause = false

    self._name = "FSMState"
end

--  Pause the state machine
function P:pause()
	self._isPause = true
end

--  Continue state machine
function P:resume()
	self._isPause = false
end

--  State description
function P:info()
end

--  Set whether the current state is allowed to be switched
function P:condition()
	return true
end

--  Timer
function P:update()
end

function P:clear()
	self._owner = nil
end

State subclass 1【 Chicken... Eat 】：

--  State base class
local P = class("StateEat", FSMState)

--  Constructors
function P:ctor(owner)
    self._owner = owner

    self._name = "StateEat"
end

function P:info()
	return " The chicken went to dinner "
end

function P:update(dt)
	if not self._isPause then
		self._owner.satiety = self._owner.satiety + math.random(30, 50)
		self._owner.energy = self._owner.energy - math.random(10, 20)
		self._owner.clean = self._owner.clean - math.random(5, 10)
		self._owner.time = self._owner.time + 1
	end
end

return P

State subclass 2【 The chick sleeps 】：

--  State base class
local P = class("StateSleep", FSMState)

--  Constructors
function P:ctor(owner)
    self._owner = owner

    self._name = "StateSleep"
end

function P:info()
	return " The chicken went to bed "
end

function P:update(dt)
	if not self._isPause then
		self._owner.satiety = self._owner.satiety - math.random(20, 30)
		self._owner.energy = self._owner.energy + math.random(50, 80)
		self._owner.time = self._owner.time + math.random(8, 10)
		self._owner.happy = 70
	end
end

return P

The chick sleeps 、 having dinner 、 Take a shower 、 In a daze 、 play ,5 States , Not one by one ……

Next is the more important machine The class

--  State base class
local P = class("FSMMachine")

FSMMachine = P

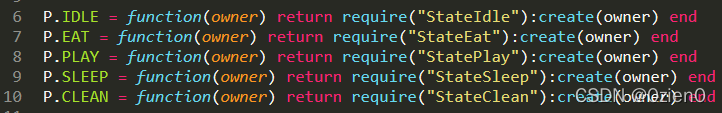

P.IDLE = function(owner) return require("StateIdle"):create(owner) end
P.EAT = function(owner) return require("StateEat"):create(owner) end
P.PLAY = function(owner) return require("StatePlay"):create(owner) end
P.SLEEP = function(owner) return require("StateSleep"):create(owner) end
P.CLEAN = function(owner) return require("StateClean"):create(owner) end

--  Constructors
function P:ctor()
	self._scheduleId = nil 			--  Timer ID
	self._interval = 0.03			--  The time interval of the timer
	self._state = nil				--  state
	self._preState = nil			--  Last state [ Save the last state , Achieve freedom “ Restore the previous state ” The function of ]
end

--  Start state machine
function P:start(owner)
	self._owner = owner
	self._state = require("StateIdle"):create(owner)


	--  This class maintains a timer for the entire state machine （ Use here while Loop to force the timer ……, adopt os.clock() To achieve sleep function , Although it will occupy CPU, But it's just a hand training game , Use it like this first ）
	--  If the chick's satiety is 0, Starve to death , At the end of the game, jump out of the loop
	local index = 1
	while owner.satiety > 0 do
		self:update(index)
		index = index + 1
	end

	print(" The chick died , At the age of " .. math.floor(self._owner.time / 24) .. " God " .. self._owner.time % 24 .. " Hours  ")
	-- self._scheduleId = display.scheduleScriptFunc(function (dt)
	-- 	self:update(dt)
	-- end, 5, false)
end

--  Pause the state machine
function P:pause()
	if self._state then
		self._state:pause()
	end
end

--  Continue state machine
function P:resume()
	if self._state then
		self._state:resume()
	end
end

--  Timer
function P:update(dt)
	-- print("zien ", dt)

	--  Call the current state of update Function to execute the timer of the current state
	if self._state then
		self._state:update()
		self:checkState()
	end

	self:sleep1(self._interval)
end

--  Check whether the status needs to be changed
function P:checkState()
	if self._owner.satiety < 20 then	--  Very hungry
		self:changeState(FSMMachine.EAT)
	elseif self._owner.energy < 20 then	--  Very tired
		self:changeState(FSMMachine.SLEEP)
	elseif self._owner.happy < 20 then	--  Very unhappy
		self:changeState(FSMMachine.PLAY)
	elseif self._owner.clean < 20 then	--  Very dirty
		self:changeState(FSMMachine.CLEAN)
	elseif self._owner.satiety < 40 then	--  hungry
		self:changeState(FSMMachine.EAT)
	elseif self._owner.energy < 40 then	--  Tired out
		self:changeState(FSMMachine.SLEEP)
	elseif self._owner.happy < 40 then	--  unhappy
		self:changeState(FSMMachine.PLAY)
	elseif self._owner.clean < 40 then	--  dirty
		self:changeState(FSMMachine.CLEAN)
	else 								--  If everything is normal, you will be in a daze
		self:changeState(FSMMachine.IDLE)
	end

	self:showInfo()
end

--  Output chick status information
function P:showInfo()
	local str = " Chicken age ：" .. math.floor(self._owner.time / 24) .. " God " .. self._owner.time % 24 .. " Hours  "
	str = str .. "  Satiety ：" .. self._owner.satiety
	str = str .. "  Joy ：" .. self._owner.happy
	str = str .. "  Energy level ：" .. self._owner.energy
	str = str .. "  Cleanliness ：" .. self._owner.clean
	str = str .. "  " .. self._state:info()

	print(str)
end

--  State change
function P:changeState(state)
	if self._state and self._state:condition() then
		local newState = state(self._owner)
		if newState then
			--  Clear the previous status
			if self._preState then
				self._preState:clear()
			end

			self._preState = self._state
			self._state = newState
		end
	end
end

--  Return to the previous status
function P:revert()
	if self._preState and self._state then
		local tmpState = self._preState
		self._preState = self._state
		self._state = tmpState
	end
end

function P:sleep(n)
	if n > 0 then
		os.execute("ping -n " .. tonumber(n + 1) .. " localhost > NUL")
	end
end

function P:sleep1(n)
	local t = os.clock()
	while os.clock() < t + n do

	end
end

return P

Simply analyze this machine Some functions of ：

It's a status table , By using the status of this table , To switch the state of the chicken .

After starting the state machine ,machine Class will maintain a timer , The timer will execute 【 Current effective status 】 Corresponding update function . adopt machine Class to drive the operation of the current state .

Switch between different states according to different conditions . After reaching the conditions , Use the values of the condition table submitted above , You can switch states .

The state pattern is roughly such a sub structure , One machine class , One state Base class , Plus N There are two different functions state Subclasses constitute a general state pattern . Here is a simple entry function .

require "tools.init"
require "init"

math.randomseed(tostring(os.time()):reverse():sub(1, 7)) --  Set random seeds

function main()
    local chick = {satiety = 100, happy = 100, energy = 100, clean = 100, time = 0}

    local fsm = FSMMachine:new()
    fsm:start(chick)
end

main()

The chicken's properties are just the initial settings , Then start the state machine , You can see the chick's life ！

The operation effect is roughly as follows ：

Boring me , Tried to raise 10 Second chicken , result

Only 3 Just barely raised , I really have a talent for raising chickens =.=！

By the way , This chicken game , It's too simple , There will be more and more complex situations in real projects , Such as ：

1. In the state base class, I preset the function of pausing the state machine ;

2. stay machine Class, I preset the function of returning the state of the last execution ;

3. In this game , It is necessary to execute one state before entering the next state , In fact, it is possible that a state is still in the process of implementation , There will be a need to change the State , Specifically, interrupt the current state and directly enter the next state , Or record the next status , Wait for the execution of the current state to end before entering the next state , These all need specific analysis of specific problems .

4. This state machine is also a fully automatic state machine , And all subclass state switching conditions are consistent , So the state switching section is also very simple , Practical application , Probably because of some external changes, the state machine needs to switch states , And each subclass may have its own different state switching conditions .

Simply speaking , It's just a little practice demo, Just for fun ~

The source code is here ：
