How to use keil5 to develop MSP430 and TIVA series development boards

How to use keil5 Development msp430,Tiva series

Launchpad The series is Ti Texas Instruments launched a series of low-cost development evaluation kits , Even now , This series of MCU It is still an excellent microcontroller chip .Ti Launchpad Another series of boards of the platform ——Tiva C Series of TM4C123G Launchpad Assessment Kit EK-TM4C123GXL, Based on high performance ARM Cortex-M4 processor .

because TI Official CCS It's troublesome to use , Installation is also troublesome . So we find a way to MDK Develop on the platform, right . You can also use IAR for msp430

Installation is required first MDK5 namely Keil5. If not installed, please turn to this
https://baijiahao.baidu.com/s?id=1596425032383473114&wfr=spider&for=pc

1. First we need to install TI Of pack. There are TI Series of chip model support library . Because there is no , So please download from Baidu cloud connection . link ：https://pan.baidu.com/s/1AwhEOy0qNuAuAv5uxFSlQQ
   Extraction code ：h5vu

   2. Click the package and install it directly . It will directly locate you MDK5 Installation path for . Open after installation keil Of pack Icon we can see


   We can see Tiva Series and MSP430 Series of chips device.
   3. Click the magic wand to change the corresponding chip model

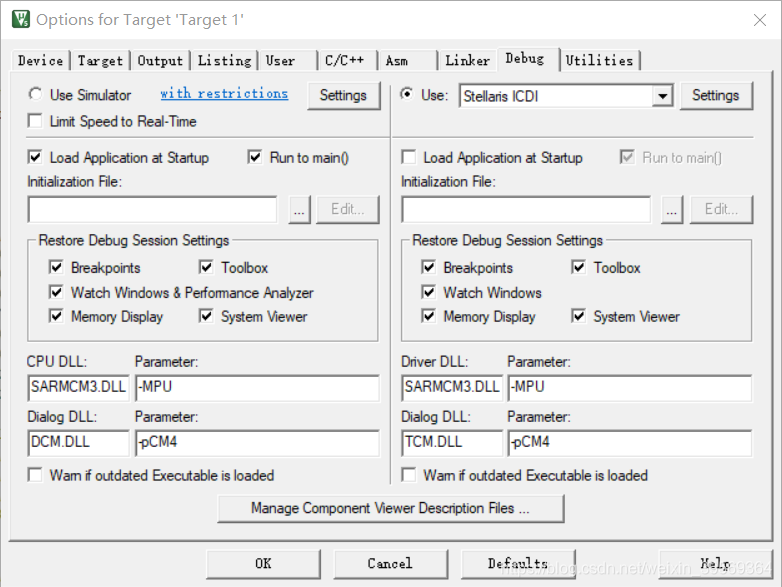

2. And then we Debug Need to choose Stellaris ICDI. instead of STM32 The use of J-link. If you use J-link Download is also possible . Find the corresponding pin connection .


   6. Then connect the board , Click on LOAD You can download the program

   7. Attached here is MDK edition LCD Link routines ：https://pan.baidu.com/s/12znufMWugqmlV4oWxVIITQ
   Extraction code ：xxxe

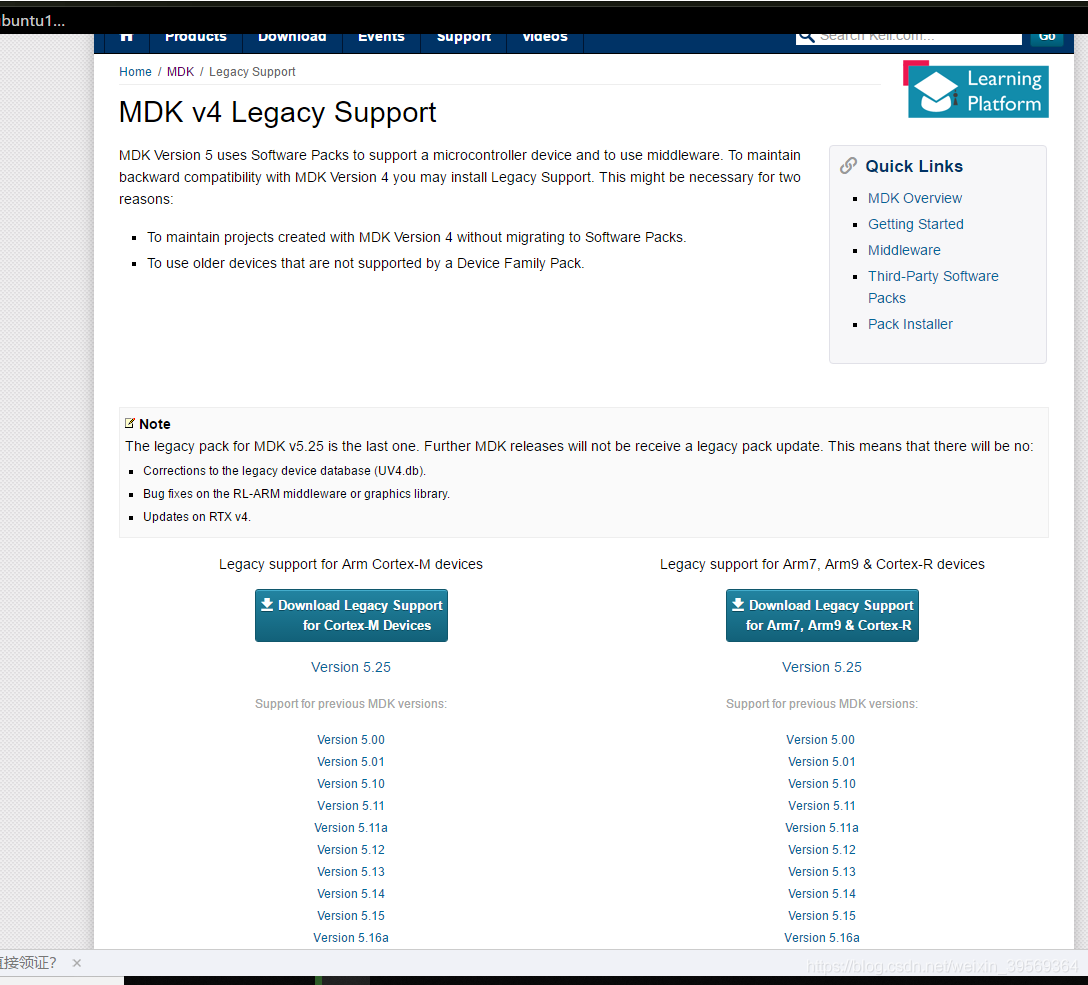

8. The above routine uses keil4 It's written in the edition . because keil4 Of project and keil5 Not compatible with each other , In order to make keil5 Can open keil4 The engineering of , We also need to install MDK v4 Legacy Support. You need to download your own version of support . You can download it on the official website .（MDK5 open MDK4 Incompatibilities and solutions in project engineering ：https://blog.csdn.net/qq_38410730/article/details/79742065）

Or download from my baidu cloud connection （ my MDK5 The version is 1.13.4.0）：
link ：https://pan.baidu.com/s/1lr3LHNTxQWQHKcCfYMhcfA
Extraction code ：j70s


10. After downloading ： You can see LCD The content displayed on the ！We done！

Enjoy!
