Write it at the front

   It was written in the last article be based on pytorch build AlexNet Neural network is used for flower recognition Project practice , It is recommended to understand the above before reading this article. In addition, the network model built in this section is VGG, I need you. VGG Have a deeper understanding of the network structure of , It's not clear to stamp this icon *** Learn more .

   This article also identifies the types of flowers , And the previous article used AlexNet The overall steps of identification are exactly the same , The main difference is that the structure of the network is different , therefore , This section will only address VGG Explain in detail the construction of network structure , The rest is basically the same as the previous one , I won't repeat , You can download it yourself Code Further study .




VGGNet Network model building

   This part of the code may really make you feel the beauty of the code , It's really beautiful. First of all, we know VGG There are four structures , Respectively VGG11、VGG13、VGG16、VGG19. I think if we build one alone VGG The Internet is not difficult to do ,VGG This straight tube structure is easy to implement in code . Official demo Through a dictionary 4 Medium structure VGG The network is put together , We just need to pass in relevant parameters when calling , It's really wonderful ！！！ Now let's learn
   First, we define a dictionary cfgs, There are four key value pairs in the dictionary , Each key corresponds to VGG A structure of , Each value is a parameter in the corresponding structure .

cfgs = {

    'vgg11': [64, 'M', 128, 'M', 256, 256, 'M', 512, 512, 'M', 512, 512, 'M'],
    'vgg13': [64, 64, 'M', 128, 128, 'M', 256, 256, 'M', 512, 512, 'M', 512, 512, 'M'],
    'vgg16': [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 'M', 512, 512, 512, 'M', 512, 512, 512, 'M'],
    'vgg19': [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 256, 'M', 512, 512, 512, 512, 'M', 512, 512, 512, 512, 'M'],
}


Concrete , We take vgg16 To explain ：


   With this dictionary , We can construct the feature extraction layer by passing in relevant parameters ：

#  stay cfgs Pass in "vgg16", Get a list cfg
#cfg = [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 'M', 512, 512, 512, 'M', 512, 512, 512, 'M']
cfg = cfgs["vgg16"]

# Define the feature extraction layer function make_features, take cfg Pass in as a parameter
def make_features(cfg: list):
    layers = []
    in_channels = 3
    # Traverse the whole cfg list
    for v in cfg:
        # if v The value of is "M", Then in the layer structure layers Add a maximum pooling layer , Its kernel_size=2, stride=2
        if v == "M":
            layers += [nn.MaxPool2d(kernel_size=2, stride=2)]
        # if v Values are numbers , Then in the layer structure layers Add a convolution core and Relu Activation function
        else:
            conv2d = nn.Conv2d(in_channels, v, kernel_size=3, padding=1)
            layers += [conv2d, nn.ReLU(True)]
            in_channels = v
    return nn.Sequential(*layers)

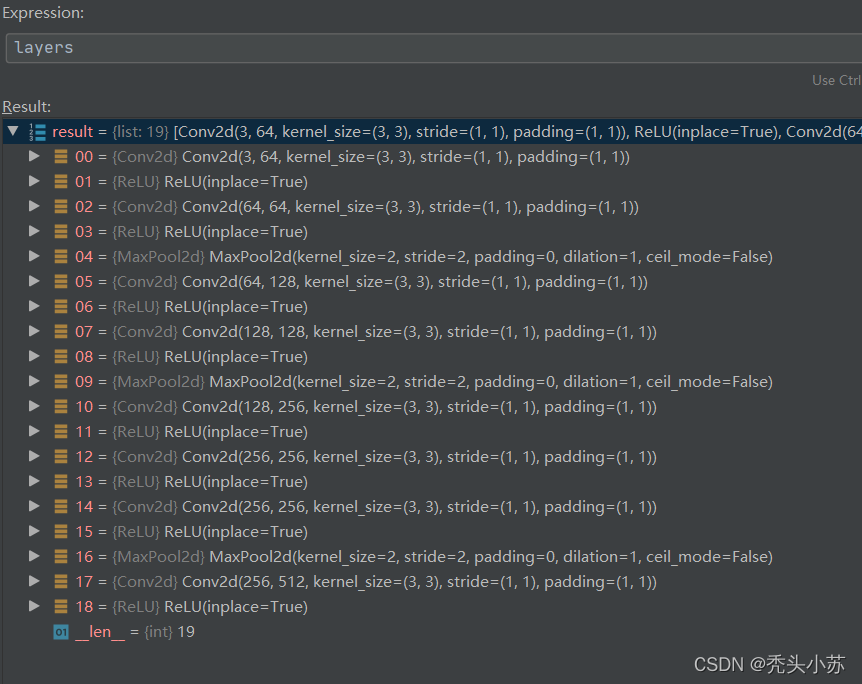

   Through the above procedure , We can take a look at the results layers Part of the internal structure 【 Only the first few layers are selected 】, As shown in the figure below ：



Next, we can build our classification layer , That is, the part of the whole connection layer ：

self.classifier = nn.Sequential(
            nn.Linear(512*7*7, 4096),
            nn.ReLU(True),
            nn.Dropout(p=0.5),
            nn.Linear(4096, 4096),
            nn.ReLU(True),
            nn.Dropout(p=0.5),
            nn.Linear(4096, num_classes)
        )


When all this is ready , Then we can define our network model , As shown below ：

class VGG(nn.Module):
    def __init__(self, features, num_classes=1000):
        super(VGG, self).__init__()
        self.features = features
        self.classifier = nn.Sequential(
            nn.Linear(512*7*7, 4096),
            nn.ReLU(True),
            nn.Dropout(p=0.5),
            nn.Linear(4096, 4096),
            nn.ReLU(True),
            nn.Dropout(p=0.5),
            nn.Linear(4096, num_classes)
        )
        if init_weights:
            self._initialize_weights()

    def forward(self, x):
        # N x 3 x 224 x 224
        x = self.features(x)
        # N x 512 x 7 x 7
        x = torch.flatten(x, start_dim=1)
        # N x 512*7*7
        x = self.classifier(x)
        return x


thus , Our model will be created , Finally, let's take a look at what we just created VGG Model structure ：




Display of training results

   This article will not explain the training steps in detail , and be based on pytorch build AlexNet Neural network is used for flower recognition Almost the same . Here are the training results , As shown in the figure below ：

   Its accuracy has reached 0.761, We can take another look at what we keep VGG Model , Here's the picture , It can be seen that VGG There are still many parameters used , Yes 500+M, This is also consistent with our theory .



Summary

   For this part, I strongly recommend that you use Pycharm Debugging function of , Look at the results of each run step by step , In this way, you will find that the code structure is particularly clear .
