Sim Api User Guide(5)
2.9.13 ConfigureProfileMode
Prototype
HEXAPI_Status ConfigureProfileMode(bool bTimeZero)
Parameters
Return
Description
指定gprof剖析是否从零时间开始。
对于RTOS应用,开始时间为0表示剖析数据收集立即开始,因此包括操作系统的启动指令。
如果bTimeZero被设置为1,gprof剖析数据收集从时间零开始。
如果bTimeZero被设置为0,gprof配置文件数据收集不从时间零开始,因此不包括操作系统启动指令。
因此不包括配置文件数据中的操作系统启动指令。
hexagon-sim中的–profile_timezero选项类似于这个功能。
2.9.14 ConfigureCoreFrequency
Prototype
HEXAPI_Status ConfigureCoreFrequency(HEX_8u_t ClkHz)
Parameters
Return
Description
配置初始Hexagon核心频率。
hexagon-sim中的 --dsp_clock MHz选项与此函数类似。注意,命令行选项指定的频率是MHz,而这个函数指定的频率是Hz。
2.9.15 ConfigureTimingMode
Prototype
HEXAPI_Status ConfigureTimingMode(HEXAPI_TimingMode mode)
Parameters
Return
Description
启用或禁用计时模式。这将打开或关闭高速缓存和核心流水线的滞后建模。只有当计时模式被启用时,才能保证正确的外部总线行为。
2.9.16 ConfigureSimStdin
Prototype
HEXAPI_Status ConfigureSimStdin(const char *pStdin,
HEXAPI_OpenMode mode = HEX_MODE_READ)

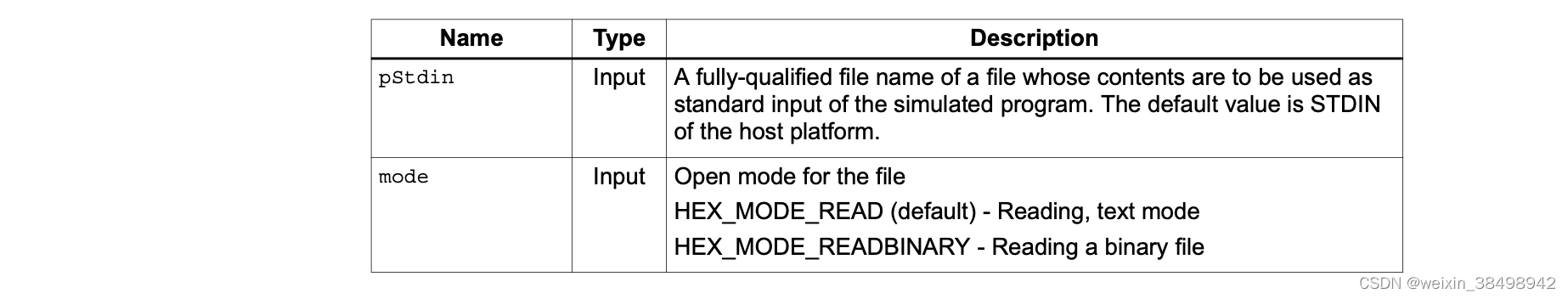

Parameters
Return
Description
配置模拟程序的标准输入。模拟程序的任何读操作,如果明确或隐含地指定了stdin,就会从与pStdin文件相关的文件中获得输入。
在pStdin中传递一个NULL值将恢复到调用进程的stdin。
注意 hexagon-sim中的-sim_in选项与此函数类似。
2.9.17 ConfigureSimStdout
Prototype
HEXAPI_Status ConfigureSimStdout(const char *pStdout,
HEXAPI_OpenMode mode = HEX_MODE_WRITE)
Parameters
Return
Description
配置模拟程序的标准输出。模拟程序的任何写操作,如果明确或隐含地指定了stdout,就会将其输出写入与pStdout文件相关的文件。
在pStdout中传递一个NULL值将恢复到调用进程的stdout。
注意 hexagon-sim中的-sim_out选项与此函数类似。
2.9.18 ConfigureSimStderr
Prototype
HEXAPI_Status ConfigureSimStderr(const char *pStderr,
HEXAPI_OpenMode mode = HEX_MODE_WRITE)
Parameters
Return
Description
配置模拟程序的标准错误输出。模拟程序的任何写操作,如果明确或隐含地指定了stderr,就会将其输出写入与pStderr文件相关的文件。
在pStderr中传递一个NULL值将恢复到调用进程的stderr。
注意 hexagon-sim中的-sim_err选项与此函数类似。
2.9.19 ConfigureExecutableBinary
Prototype
HEXAPI_Status ConfigureExecutableBinary(const char *pElfFile)
Parameters
Return
Description
指定要加载到 Hexagon 仿真器中进行仿真的二进制文件。
注意 pElfFile 是使用 HEX_MODE_READBINARY 模式打开的。
