The fledgling Xiao Li's 115th blog project notes on the creation of the domestic GD32F103RCT6 basic project

GD32F103RBT6 kernel resource introduction

Core: ARM Cortex-M3
Main frequency: 108 MHz,
Read only memory (ROM): 256 KB
Random access memory (RAM): 48KB
General interface: SPI, I2C,UART, I2S, CAN
USB, OTG, Ethernet, Multi-Purpose Serial Peripheral Multi-purpose Serial Peripheral Controller
Analog-to-Digital Converter: 3-channel 12-bit precision ADC
Digital-to-Analog Converter:2-Channel 12-Bit Precision DAC
Temperature Range: -40 °C to 85 °C

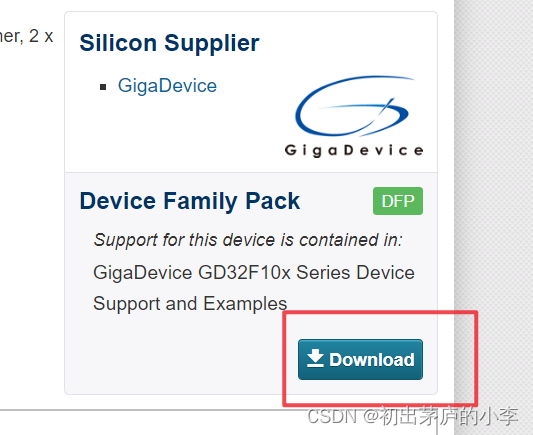

Keil's Pack Support Pack Download

Download: https://www.keil.com/dd2/gigadevice/gd32f103rc/

Install Support Package

Installation successful

Development board

Project Template Construction

Download the official firmware library:

Build project template: code in firmware library

• CMSIS folder about ARM - CortexM3 core files
• LIBARY A folder where library files are stored
• STARTUP Folder where startup files are stored
• USER folder stores chip related configuration files GD32F103RCT6
• PROJECT The folder where the project directory is stored
• API stores user-defined folders

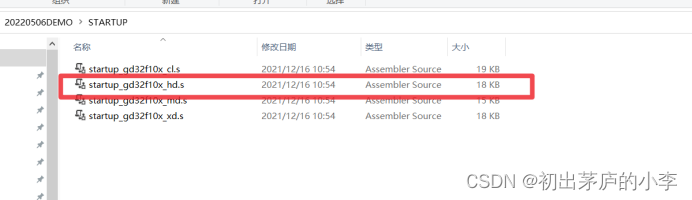

Startup files folder

USER folder

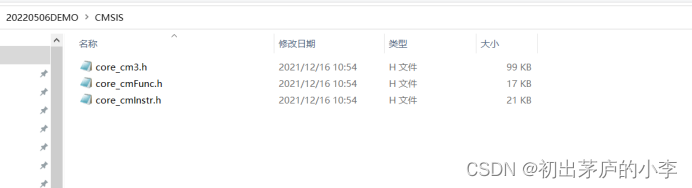

CMSIS folder

Library file folder

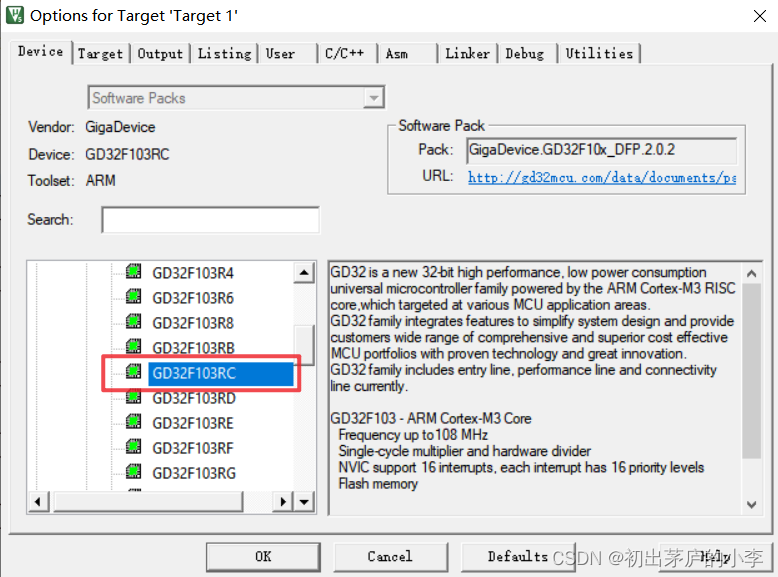

Create Project

Note: If the support package is not installed, the GigaDevice option will not appear, and the normal installation will appear

In the project folder directory

Add the header file path to let the compiler find the relevant header file and add the folder path where the corresponding header file is located to the project

Dismiss warning

4. The writing of the test code of the domestic single-chip microcomputer (GD32) library function

Open some necessary macro definitions, configure the project, GD32F10X_HD, __FPU_PRESENT

Note:
GPIOs that are not used by default need to be redirected

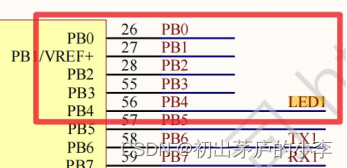

LED light schematic
