STM32 learning record - development environment installation

One 、MDK Software installation

reflection ： What is? MDK
RealView MDK yes Keil company-developed , Based on Cortex、ARM7、ARM9 Provide a complete development environment .

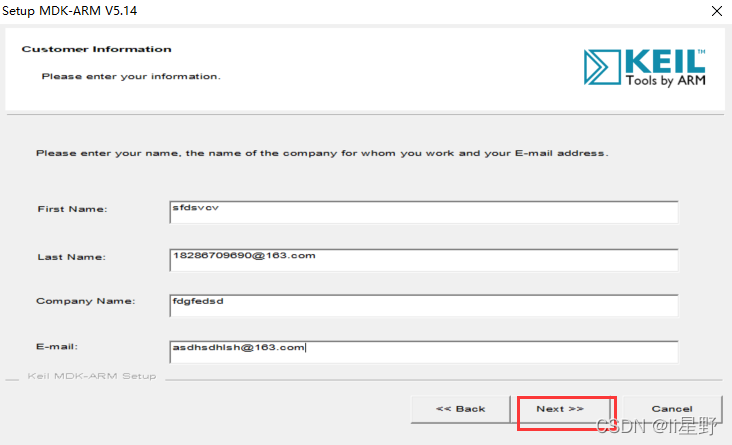

1、 install

Double-click to open MDK



The main ：
（1） The installation path cannot contain Chinese
（2） It's best not to have spaces and special characters

For the window that pops up in the middle



If an error interface appears , Click close to


Here we have downloaded the package , You can cross this interface directly

We can find the installed software icon on the desktop

It's not over here . We also need to install the support package for the chip

2、 Add support package

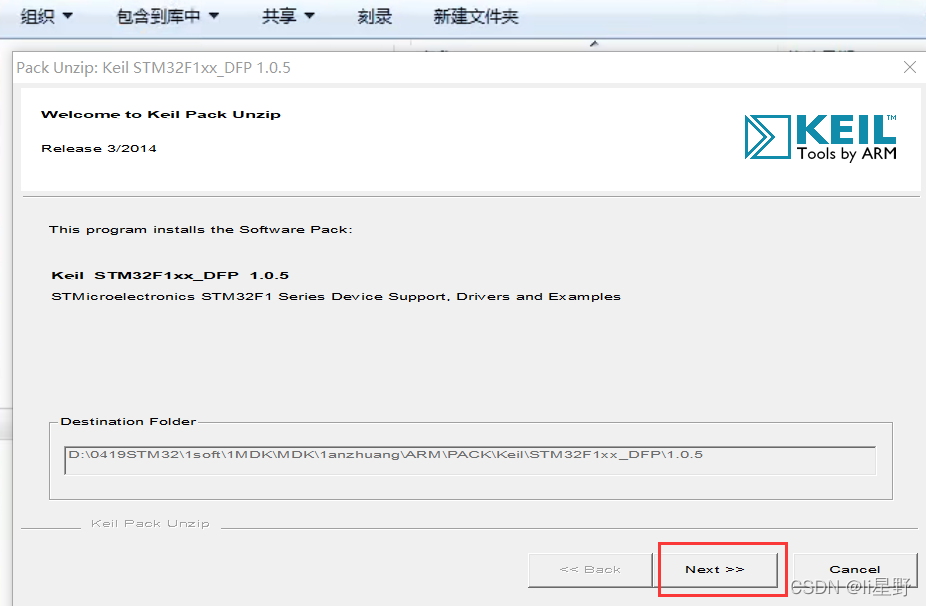

Double click the package file

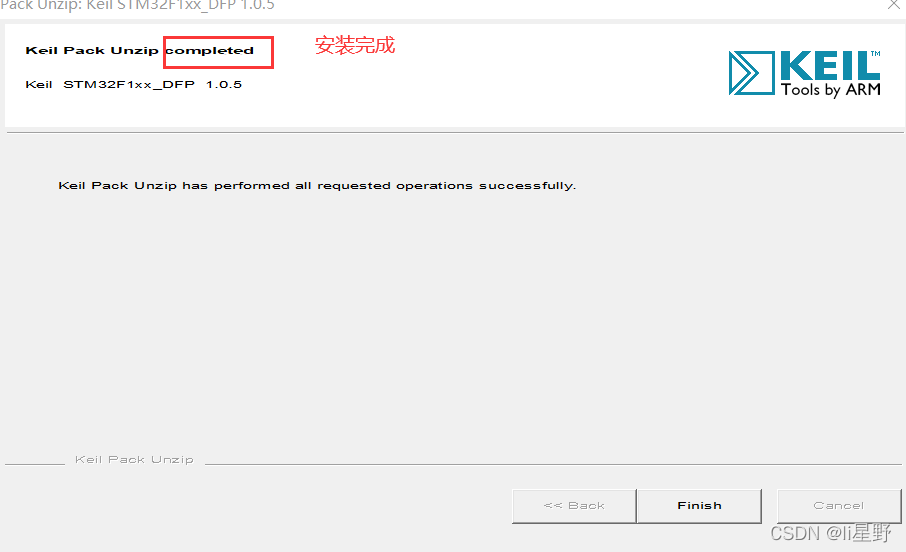

Its installation

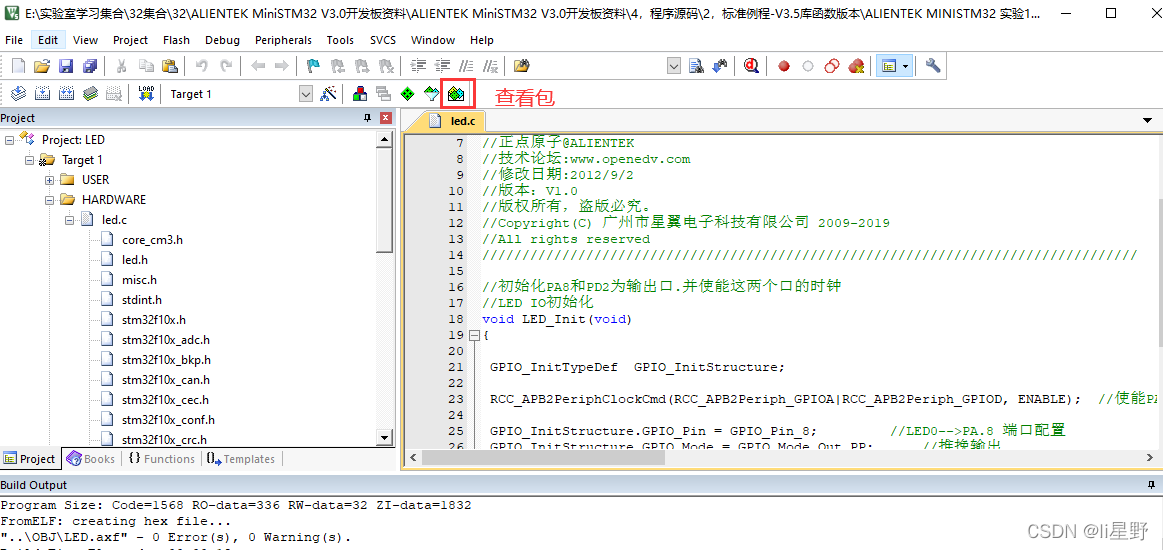

Double click to open a project source code


Proof of successful installation ！！！



keil Check the support package on the official website ：https://www.keil.com/

Support package official entrance ：https://www.keil.com/dd2/Pack/

3、 Crack

Open as Administrator

Two 、USB Serial port driver installation

（1） Can be used as a serial port
（2） If USB The serial port is connected to STM32 Serial port 1（STM32ISP Download can only be serial port 1） Words , Then you can use the serial port to download the program .
（3） Because you want to connect to USB, So you can use USB Power supply .

Encounter unclear technical terms , You can simply see what others say first , Slowly deepen your understanding ,ISP It's a way to download programs .
1、USB Serial driver chip model ：CH240
2、 Serial port download tool ：mcuisp(FlyMcu)
3、 Prepare information

summary ：
1、 There will be problems , Solve problems patiently ！ Is an opportunity to grow .
