Altium Designer 19.1.18 - Create a copper sheet with the same shape as the Keep-Out Layer

2022-08-07 12:08:00 【Grumpy marmot】

Create a copper sheet with the same shape as the Keep-Out Layer

Select the element of the Keep-Out Layer:

insert image description here

Select menu Tools >Transform >Create copper from selected elements:

insert image description here

In the Confirm dialog that pops up, click the Yes button:

insert image description here

At this time, AD will generate a copper sheet in the Keep-Out Layer:

insert image description here

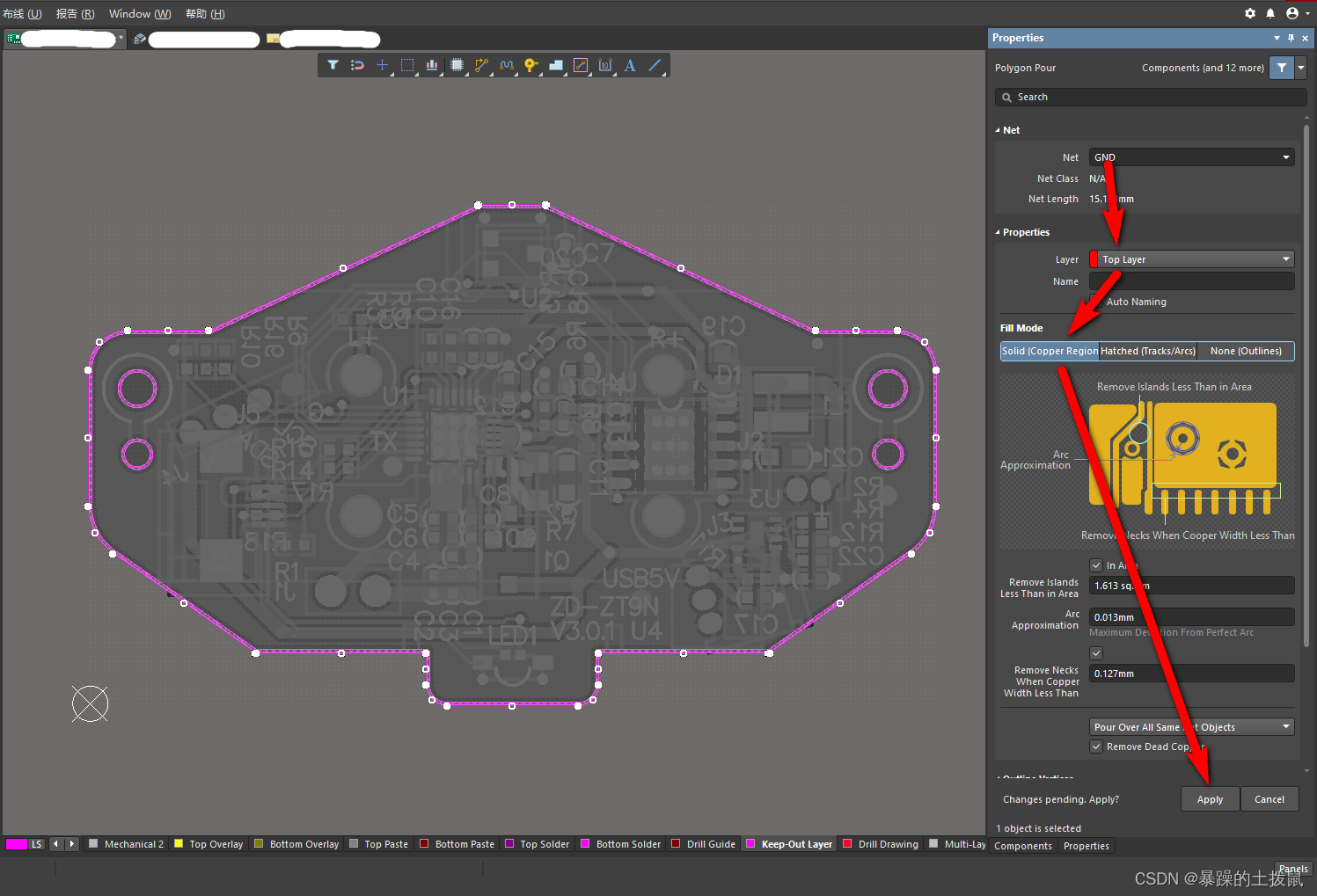

Select this copper sheet and modify:

  1. Network (Net);
  2. Layer;
  3. Fill Mode;
  4. Finally, click Apply.

insert image description here

After completing the above operations, you can create a copper sheet with the same shape as the Keep-Out Layer:

insert image description here
