On the principle of concurrent programming and the art of notify / Park

2022-04-23 03:30:00 【The view of extraordinary is often far away】

1. wait notify

1.1 In principle wait / notify

Owner Thread discovery condition not met , call wait Method , You can enter WaitSet Turn into WAITING state

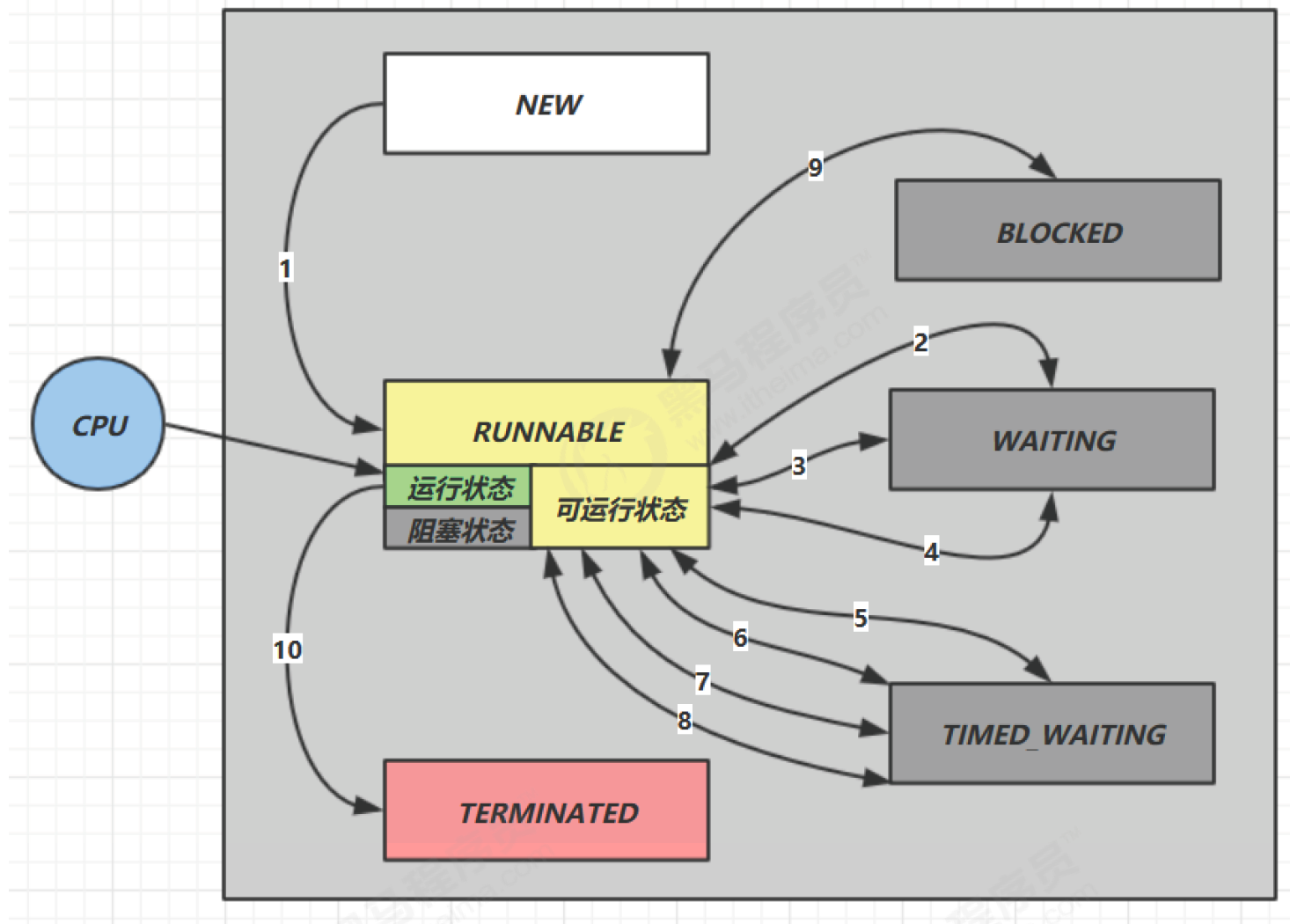

BLOCKED and WAITING All threads are blocked , Not occupy CPU Time slice
BLOCKED Thread will be Owner Wake up when thread releases lock
WAITING Thread will be Owner Threads call notify or notifyAll Wake up when , But waking up doesn't mean the person gets the lock immediately , Still need to enter EntryList Re compete , Only after competition to lock , Only then will it have the opportunity to continue the following procedures

1.2API Introduce

obj.wait() Let in object Monitor thread to waitSet wait for （ Can release the lock ）
obj.notify() stay object It's going on waitSet Pick one of the waiting threads to wake up （ Notification does not release the lock , until notify End of execution ）
obj.notifyAll() Give Way object It's going on waitSet All the waiting threads wake up

They are all means of collaboration between threads , All belong to Object Object method . You must get the lock for this object , To call these methods （ be in owner Call in state wait/notify）, Otherwise it will be reported IllegalMonitorStateException It's abnormal

final static Object obj = new Object();
public static void main(String[] args) {

    new Thread(() -> {

        synchronized (obj) {

            log.debug(" perform ....");
            try {

                obj.wait(); //  Let the thread in obj Keep waiting on
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
            log.debug(" Other code ....");
        }
    }).start();
    new Thread(() -> {

        synchronized (obj) {

            log.debug(" perform ....");
            try {

                obj.wait(); //  Let the thread in obj Keep waiting on
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
            log.debug(" Other code ....");
        }
    }).start();
    //  The main thread executes in two seconds
    sleep( 2 );
    log.debug(" Wake up the  obj  On other threads ");
    synchronized (obj) {

        obj.notify(); //  Wake up the obj Last thread
        // obj.notifyAll(); //  Wake up the obj All waiting threads on
    }
}

notify A result of

20:00:53.096 [Thread-0] c.TestWaitNotify -  perform ....
20:00:53.099 [Thread-1] c.TestWaitNotify -  perform ....
20:00:55.096 [main] c.TestWaitNotify -  Wake up the  obj  On other threads
20:00:55.096 [Thread-0] c.TestWaitNotify -  Other code ....

notifyAll Result

19:58:15.457 [Thread-0] c.TestWaitNotify -  perform ....
19:58:15.460 [Thread-1] c.TestWaitNotify -  perform ....
19:58:17.456 [main] c.TestWaitNotify -  Wake up the  obj  On other threads
19:58:17.456 [Thread-1] c.TestWaitNotify -  Other code ....
19:58:17.456 [Thread-0] c.TestWaitNotify -  Other code ....

wait() Method releases the lock on the object （ The bottom tone is wait(0)）, Get into WaitSet Waiting area , This allows other threads to get the lock of the object ( Give up cpu Executive power ) Wait indefinitely , until notify until
wait(long n) A time-bound wait , To n End waiting in milliseconds , Or by notify
One more wait(time1,time2) Methods ,time2 The unit of measurement is nanoseconds , But in fact, no matter what its value is , All are time1+1

2. wait notify The right posture

2.1sleep( n) and wait n) The difference between

sleep yes Thread Method , and wait yes Object Methods
sleep There's no need to force and synchronized In combination with , but wait Need and synchronized Together with ( Otherwise, throw it out of order )
sleep While sleeping , Object locks will not be released , but wait The object lock is released while waiting .（ They all gave up cpu The enforcement of ）
Their state TIMED_WAITING

2.2 Case comparison

step 1

Think about the following solutions , Why? ？

static final Object room = new Object();
static boolean hasCigarette = false;
static boolean hasTakeout = false;
new Thread(() -> {

    synchronized (room) {

        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (!hasCigarette) {

            log.debug(" No smoke , Take a break ！");
            sleep( 2 );
        }
        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (hasCigarette) {

            log.debug(" You can start working ");
        }
    }
}, " Xiaonan ").start();
for (int i = 0 ; i < 5 ; i++) {

    new Thread(() -> {

        synchronized (room) {

            log.debug(" You can start working ");
        }
    }, " Other people ").start();
}
sleep( 1 );
new Thread(() -> {

    //  Can you add  synchronized (room)？
    hasCigarette = true;
    log.debug(" Here comes the smoke ！");
}, " The cigarette man ").start();

Output

20:49:49.883 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:49:49.887 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！
20:49:50.882 [ The cigarette man ] c.TestCorrectPosture -  Here comes the smoke ！
20:49:51.887 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[true]
20:49:51.887 [ Xiaonan ] c.TestCorrectPosture -  You can start working
20:49:51.887 [ Other people ] c.TestCorrectPosture -  You can start working
20:49:51.887 [ Other people ] c.TestCorrectPosture -  You can start working
20:49:51.888 [ Other people ] c.TestCorrectPosture -  You can start working
20:49:51.888 [ Other people ] c.TestCorrectPosture -  You can start working
20:49:51.888 [ Other people ] c.TestCorrectPosture -  You can start working

Other working threads , All the time , Efficiency is too low
Xiaonan thread must get enough sleep 2s And then wake up , Even if the cigarettes are delivered in advance , I can't wake up right now
The code for delivering cigarettes is added synchronized (room) after , It's like Xiao Nan sleeping inside with the door locked , There's no way cigarettes can get through the door ,main No addition synchronized It's like main The thread came in through the window
resolvent , Use wait - notify Mechanism

step 2

Think about the following implementation , Why? ？

new Thread(() -> {

    synchronized (room) {

        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (!hasCigarette) {

            log.debug(" No smoke , Take a break ！");
            try {

                room.wait( 2000 );
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
        }
        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (hasCigarette) {

            log.debug(" You can start working ");
        }
    }
}, " Xiaonan ").start();
for (int i = 0 ; i < 5 ; i++) {

    new Thread(() -> {

        synchronized (room) {

            log.debug(" You can start working ");
        }
    }, " Other people ").start();
}
sleep( 1 );
new Thread(() -> {

    synchronized (room) {

        hasCigarette = true;
        log.debug(" Here comes the smoke ！");
        room.notify();
    }
}, " The cigarette man ").start();

Output

20:51:42.489 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:51:42.493 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！
20:51:42.493 [ Other people ] c.TestCorrectPosture -  You can start working
20:51:42.493 [ Other people ] c.TestCorrectPosture -  You can start working
20:51:42.494 [ Other people ] c.TestCorrectPosture -  You can start working
20:51:42.494 [ Other people ] c.TestCorrectPosture -  You can start working
20:51:42.494 [ Other people ] c.TestCorrectPosture -  You can start working
20:51:43.490 [ The cigarette man ] c.TestCorrectPosture -  Here comes the smoke ！
20:51:43.490 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[true]
20:51:43.490 [ Xiaonan ] c.TestCorrectPosture -  You can start working

It solves the problem of thread blocking of other working threads

But what if there are other threads waiting for conditions ？（notify It's random wake-up , False awakening may occur ）

step 3

new Thread(() -> {

    synchronized (room) {

        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (!hasCigarette) {

            log.debug(" No smoke , Take a break ！");
            try {

                room.wait();
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
        }
        log.debug(" Do you have any cigarettes ？[{}]", hasCigarette);
        if (hasCigarette) {

            log.debug(" You can start working ");
        } else {

            log.debug(" Didn't do it ...");
        }
    }
}, " Xiaonan ").start();
new Thread(() -> {

    synchronized (room) {

        Thread thread = Thread.currentThread();
        log.debug(" Did the takeout arrive ？[{}]", hasTakeout);
        if (!hasTakeout) {

            log.debug(" No takeout , Take a break ！");
            try {

                room.wait();
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
        }
        log.debug(" Did the takeout arrive ？[{}]", hasTakeout);
        if (hasTakeout) {

            log.debug(" You can start working ");
        } else {

            log.debug(" Didn't do it ...");
        }
    }
}, " Little girl ").start();
sleep( 1 );
new Thread(() -> {

    synchronized (room) {

        hasTakeout = true;
        log.debug(" Here's the takeout ！");
        room.notify();
    }
}, " Take away delivery ").start();

Output

20:53:12.173 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:53:12.176 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！
20:53:12.176 [ Little girl ] c.TestCorrectPosture -  Did the takeout arrive ？[false]
20:53:12.176 [ Little girl ] c.TestCorrectPosture -  No takeout , Take a break ！
20:53:13.174 [ Take away delivery ] c.TestCorrectPosture -  Here's the takeout ！
20:53:13.174 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:53:13.174 [ Xiaonan ] c.TestCorrectPosture -  Didn't do it ...

notify Only one can wake up randomly WaitSet Thread in , At this time, if there are other threads waiting , Then the correct thread may not wake up , be called 【 spurious wakeup 】
resolvent , Change it to notifyAll

step 4

new Thread(() -> {

    synchronized (room) {

        hasTakeout = true;
        log.debug(" Here's the takeout ！");
        room.notifyAll();
    }
}, " Take away delivery ").start();

Output

20:55:23.978 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:55:23.982 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！
20:55:23.982 [ Little girl ] c.TestCorrectPosture -  Did the takeout arrive ？[false]
20:55:23.982 [ Little girl ] c.TestCorrectPosture -  No takeout , Take a break ！
20:55:24.979 [ Take away delivery ] c.TestCorrectPosture -  Here's the takeout ！
20:55:24.979 [ Little girl ] c.TestCorrectPosture -  Did the takeout arrive ？[true]
20:55:24.980 [ Little girl ] c.TestCorrectPosture -  You can start working
20:55:24.980 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:55:24.980 [ Xiaonan ] c.TestCorrectPosture -  Didn't do it ...

use notifyAll Only solve the wake-up problem of a thread , But use if + wait There is only one chance to judge , Once the conditions are not established , There is no chance to re judge
resolvent , use while + wait, When conditions don't hold , Again wait

step 5

take if Change it to while( Yes, it will wait Put it in while In circulation )

if (!hasCigarette) {

    log.debug(" No smoke , Take a break ！");
    try {

        room.wait();
    } catch (InterruptedException e) {

        e.printStackTrace();
    }
}

After the changes （wait Method is notify The following code will be executed after , So here Will not lead to while Cycle idling ）

while (!hasCigarette) {

    log.debug(" No smoke , Take a break ！");
    try {

        room.wait();
    } catch (InterruptedException e) {

        e.printStackTrace();
    }
}

Output

20:58:34.322 [ Xiaonan ] c.TestCorrectPosture -  Do you have any cigarettes ？[false]
20:58:34.326 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！
20:58:34.326 [ Little girl ] c.TestCorrectPosture -  Did the takeout arrive ？[false]
20:58:34.326 [ Little girl ] c.TestCorrectPosture -  No takeout , Take a break ！
20:58:35.323 [ Take away delivery ] c.TestCorrectPosture -  Here's the takeout ！
20:58:35.324 [ Little girl ] c.TestCorrectPosture -  Did the takeout arrive ？[true]
20:58:35.324 [ Little girl ] c.TestCorrectPosture -  You can start working
20:58:35.324 [ Xiaonan ] c.TestCorrectPosture -  No smoke , Take a break ！

2.3 General writing method

synchronized(lock) {

    while( Conditions not established ) {

        lock.wait();
    }
    //  work
}
// Another thread
synchronized(lock) {

    lock.notifyAll();
}

3. Park & Unpark

3.1 Basic use

They are LockSupport Methods in class

// Pause current thread

LockSupport.park();

// Stop pause

LockSupport.unpark( Pause thread object )

First park Again unpark

Thread t1 = new Thread(() -> {

    log.debug("start...");
    sleep( 1 );
    log.debug("park...");
    LockSupport.park();
    log.debug("resume...");
},"t1");
t1.start();
sleep( 2 );
log.debug("unpark...");
LockSupport.unpark(t1);

Output

18:42:52.585 c.TestParkUnpark [t1] - start...
18:42:53.589 c.TestParkUnpark [t1] - park...
18:42:54.583 c.TestParkUnpark [main] - unpark...
18:42:54.583 c.TestParkUnpark [t1] - resume...

First unpark Again park

Thread t1 = new Thread(() -> {

    log.debug("start...");
    sleep( 2 );// Sleeping
    log.debug("park...");
    LockSupport.park();
    log.debug("resume...");
}, "t1");
t1.start();
sleep( 1 );
log.debug("unpark...");
LockSupport.unpark(t1);

Output

18:43:50.765 c.TestParkUnpark [t1] - start...
18:43:51.764 c.TestParkUnpark [main] - unpark...
18:43:52.769 c.TestParkUnpark [t1] - park... // No longer park 了 , But if this is another tune park Will stop
18:43:52.769 c.TestParkUnpark [t1] - resume...

characteristic :

And Object Of wait & notify comparison

wait,notify and notifyAll Must cooperate Object Monitor Use it together , and park,unpark No need
park & unpark It's based on threads 【 Blocking 】 and 【 Wake up the 】 Threads , and notify Only one waiting thread can be wakened randomly ,notifyAll Is to wake up all waiting threads , It's not that 【 accurate 】
park & unpark You can start with unpark, and wait & notify Not first notify

3.2 In principle park & unpark

Each thread has its own Parker object , It's made up of three parts _counter ,_cond and _mutex Make a comparison

Thread is like a traveler ,Parker Like his backpack , Conditional variables are like tents in backpacks ( Blocking queues )._counter It's like spare dry food in a backpack （0 To exhaust ,1 For the sake of sufficiency ）

call park It depends on whether you need to stop and rest
- If the spare dry food runs out , So get into the tent and rest
- If there's enough dry food in reserve , Then there is no need to stay , To move forward
call unpark, It's like filling dry food
- If the thread is still in the tent , Just wake him up and let him move on
- If the thread is still running , So next time he calls park when , Just consume spare dry food , No need to stop and move on
- Because the backpack space is limited , Multiple calls unpark Only one spare dry food will be added

First call park Call again unpark Method ：

Current thread call Unsafe.park() Method
Check _counter , This situation is 0, At this time , get _mutex The mutex
Thread entry _cond Conditional variables block
Set up _counter = 0

call Unsafe.unpark(Thread_0) Method , Set up _counter by 1
Wake up the _cond In a conditional variable Thread_0
Thread_0 Resume operation
Set up _counter by 0// That's the next tune park Method will block

First call unpark Method , Call again park Method ** （ First unpark2 Time ,park It will be cleared at one time 0, Again park It still blocks ）**

First call park The method will not stop , The second readjustment will stop

call Unsafe.unpark(Thread_0) Method , Set up _counter by 1
Current thread call Unsafe.park() Method
Check _counter , This situation is 1, At this time, the thread does not need to block , Continue operation // First call park It won't stop
Set up _counter by 0// Second call park Will stop

4 Re understand thread state transitions

Let's say we have threads Thread t

4.1 situation 1 NEW --> RUNNABLE

When calling t.start() When the method is used , from NEW --> RUNNABLE

4.2 situation 2 RUNNABLE <–> WAITING

t Thread use synchronized(obj) After getting the object lock

call obj.wait() When the method is used ,t The thread from RUNNABLE --> WAITING
call obj.notify(),obj.notifyAll(),t.interrupt() when // At this time, they all enter block state
- The competition is successful ,t The thread from WAITING --> RUNNABLE
- The competition lock failed ,t The thread from WAITING --> BLOCKED

public class TestWaitNotify {

    final static Object obj = new Object();
    public static void main(String[] args) {

        new Thread(() -> {

            synchronized (obj) {

                log.debug(" perform ....");
                try {

                    obj.wait();
                } catch (InterruptedException e) {

                    e.printStackTrace();
                }
                log.debug(" Other code ...."); //  The breakpoint
            }
        },"t1").start();
        new Thread(() -> {

            synchronized (obj) {

                log.debug(" perform ....");
                try {

                    obj.wait();
                } catch (InterruptedException e) {

                    e.printStackTrace();
                }
                log.debug(" Other code ...."); //  The breakpoint
            }
        },"t2").start();
        sleep(0.5);
        log.debug(" Wake up the  obj  On other threads ");
        synchronized (obj) {

            obj.notifyAll(); //  Wake up the obj All waiting threads on   The breakpoint
        }
    }
}

4.3 situation 3 RUNNABLE <–> WAITING

Current thread call t.join() When the method is used , The current thread starts from RUNNABLE --> WAITING
- Note that the current thread is t Wait on the monitor of the thread object
t End of thread run , Or called... Of the current thread interrupt() when , The current thread starts from WAITING --> RUNNABLE

4.4 situation 4 RUNNABLE <–> WAITING

Current thread call LockSupport.park() Method causes the current thread to run from RUNNABLE --> WAITING
call LockSupport.unpark( Target thread ) Or called a thread Of interrupt(), Will cause the target thread to run from WAITING -->
RUNNABLE

4.5 situation 5 RUNNABLE <–> TIMED_WAITING

t Thread use synchronized(obj) After getting the object lock

call obj.wait(long n) When the method is used ,t The thread from RUNNABLE --> TIMED_WAITING
t Thread waiting time exceeded n millisecond , Or call obj.notify(),obj.notifyAll(),t.interrupt() when
- The competition is successful ,t The thread from TIMED_WAITING --> RUNNABLE
- The competition lock failed ,t The thread from TIMED_WAITING --> BLOCKED

4.6 situation 6 RUNNABLE <–> TIMED_WAITING

Current thread call t.join(long n) When the method is used , The current thread starts from RUNNABLE --> TIMED_WAITING
- Note that the current thread is t Wait on the monitor of the thread object
The current thread has been waiting longer than n millisecond , or t End of thread run , Or called... Of the current thread interrupt() when , The current thread starts from
TIMED_WAITING --> RUNNABLE

4.7 situation 7 RUNNABLE <–> TIMED_WAITING

Current thread call Thread.sleep(long n), The current thread starts from RUNNABLE --> TIMED_WAITING
The current thread has been waiting longer than n millisecond , The current thread starts from TIMED_WAITING --> RUNNABLE

4.8 situation 8 RUNNABLE <–> TIMED_WAITING

Current thread call LockSupport.parkNanos(long nanos) or LockSupport.parkUntil(long millis) when , When the front line
Cheng Cong RUNNABLE --> TIMED_WAITING
call LockSupport.unpark( Target thread ) Or called a thread Of interrupt(), Or waiting for a timeout , Will cause the target thread to run from
TIMED_WAITING–> RUNNABLE

4.9 situation 9 RUNNABLE <–> BLOCKED

t Thread use synchronized(obj) If the race fails when an object lock is acquired , from RUNNABLE --> BLOCKED
a obj The synchronization block of the lock thread is executed , Will wake up all BLOCKED The threads of the , If one t Thread contention succeeded , from BLOCKED --> RUNNABLE, Other failed threads still BLOCKED

4.10 situation 10 RUNNABLE <–> TERMINATED

All the code of the current thread is running , Get into TERMINATED

5. More locks

Lots of irrelevant locks

A big room has two functions ： sleep 、 Study , Irrelevant .

Now Xiao Nan has to learn , The little girl wants to sleep , But if you only use one room （ An object lock ） Words , Then the concurrency is very low

The solution is to prepare multiple rooms （ Multiple object locks ）

for example

class BigRoom {

    public void sleep() {

        synchronized (this) {

            log.debug("sleeping 2  Hours ");
            Sleeper.sleep( 2 );
        }
    }
    public void study() {

        synchronized (this) {

            log.debug("study 1  Hours ");
            Sleeper.sleep( 1 );
        }
    }
}


================================
BigRoom bigRoom = new BigRoom();
new Thread(() -> {

    bigRoom.compute();
}," Xiaonan ").start();
new Thread(() -> {

    bigRoom.sleep();
}," Little girl ").start();

perform

A result

12:13:54.471 [ Xiaonan ] c.BigRoom - study 1  Hours
12:13:55.476 [ Little girl ] c.BigRoom - sleeping 2  Hours

improvement

class BigRoom {

    private final Object studyRoom = new Object();
    private final Object bedRoom = new Object();
    public void sleep() {

        synchronized (bedRoom) {

            log.debug("sleeping 2  Hours ");
            Sleeper.sleep( 2 );
        }
    }
    public void study() {

        synchronized (studyRoom) {

            log.debug("study 1  Hours ");
            Sleeper.sleep( 1 );
        }
    }
}

An execution result

12:15:35.069 [ Xiaonan ] c.BigRoom - study 1  Hours
12:15:35.069 [ Little girl ] c.BigRoom - sleeping 2  Hours

Subdivide the granularity of locks

benefits , It can enhance concurrency
Disadvantage , If a thread needs to acquire multiple locks at the same time , It's prone to deadlock

6 Activity

6.1 Deadlock

There are cases like this ： A thread needs to acquire multiple locks at the same time , At this time, deadlock is easy to occur

t1 Threads get A object lock , Next, I want to get B The lock of the object t2 Threads get B object lock , Next, I want to get A The lock of the object example ：

Object A = new Object();
Object B = new Object();
Thread t1 = new Thread(() -> {

    synchronized (A) {

        log.debug("lock A");
        sleep( 1 );
        synchronized (B) {

            log.debug("lock B");
            log.debug(" operation ...");
        }
    }
}, "t1");
Thread t2 = new Thread(() -> {

    synchronized (B) {

        log.debug("lock B");
        sleep(0.5);
        synchronized (A) {

            log.debug("lock A");
            log.debug(" operation ...");
        }
    }
}, "t2");


t1.start();
t2.start();

result

12:22:06.962 [t2] c.TestDeadLock - lock B
12:22:06.962 [t1] c.TestDeadLock - lock A

6.1.1 Positioning deadlocks

Deadlock detection can use jconsole Tools , Or use jps Positioning process id, Reuse jstack Positioning deadlocks ：

cmd > jps
Picked up JAVA_TOOL_OPTIONS: -Dfile.encoding=UTF-8
12320 Jps
22816 KotlinCompileDaemon
33200 TestDeadLock // JVM  process
11508 Main
28468 Launcher

cmd > jstack 33200
Picked up JAVA_TOOL_OPTIONS: -Dfile.encoding=UTF-8
2018 -12-29 05 :51:40
Full thread dump Java HotSpot(TM) 64 -Bit Server VM (25.91-b14 mixed mode):
"DestroyJavaVM" #13 prio=5 os_prio=0 tid=0x0000000003525000 nid=0x2f60 waiting on condition [0x0000000000000000]java.lang.Thread.State: RUNNABLE
"Thread-1" #12 prio=5 os_prio=0 tid=0x000000001eb69000 nid=0xd40 waiting for monitor entry[0x000000001f54f000]
java.lang.Thread.State: BLOCKED (on object monitor)
at thread.TestDeadLock.lambda$main$1(TestDeadLock.java:28)
- waiting to lock <0x000000076b5bf1c0> (a java.lang.Object)
- locked <0x000000076b5bf1d0> (a java.lang.Object)
  at thread.TestDeadLock$$Lambda$2/883049899.run(Unknown Source)
  at java.lang.Thread.run(Thread.java:745)

  "Thread-0" #11 prio=5 os_prio=0 tid=0x000000001eb68800 nid=0x1b28 waiting for monitor entry
[0x000000001f44f000]
java.lang.Thread.State: BLOCKED (on object monitor)
at thread.TestDeadLock.lambda$main$0(TestDeadLock.java:15)
waiting to lock <0x000000076b5bf1d0> (a java.lang.Object)
locked <0x000000076b5bf1c0> (a java.lang.Object)
at thread.TestDeadLock$$Lambda$1/495053715.run(Unknown Source)
at java.lang.Thread.run(Thread.java:745)
//  Omit some output
Found one Java-level deadlock:
=============================
"Thread-1":
waiting to lock monitor 0x000000000361d378 (object 0x000000076b5bf1c0, a java.lang.Object),
which is held by "Thread-0"
"Thread-0":
waiting to lock monitor 0x000000000361e768 (object 0x000000076b5bf1d0, a java.lang.Object),
which is held by "Thread-1"
Java stack information for the threads listed above:
===================================================
"Thread-1":
at thread.TestDeadLock.lambda$main$1(TestDeadLock.java:28)
- waiting to lock <0x000000076b5bf1c0> (a java.lang.Object)
- locked <0x000000076b5bf1d0> (a java.lang.Object)
  at thread.TestDeadLock$$Lambda$2/883049899.run(Unknown Source)
  at java.lang.Thread.run(Thread.java:745)
  "Thread-0":
  at thread.TestDeadLock.lambda$main$0(TestDeadLock.java:15)
- waiting to lock <0x000000076b5bf1d0> (a java.lang.Object)
- locked <0x000000076b5bf1c0> (a java.lang.Object)
  at thread.TestDeadLock$$Lambda$1/495053715.run(Unknown Source)
  at java.lang.Thread.run(Thread.java:745)
  Found 1 deadlock.

To avoid deadlock, pay attention to the locking sequence

 In addition, if a thread enters an dead loop , Cause other threads to wait , In this case  linux  You can go through  top  First of all, I'll go to
CPU  Take up high  Java  process , recycling  top -Hp  process id  To locate which thread , Last but not least  jstack  screening

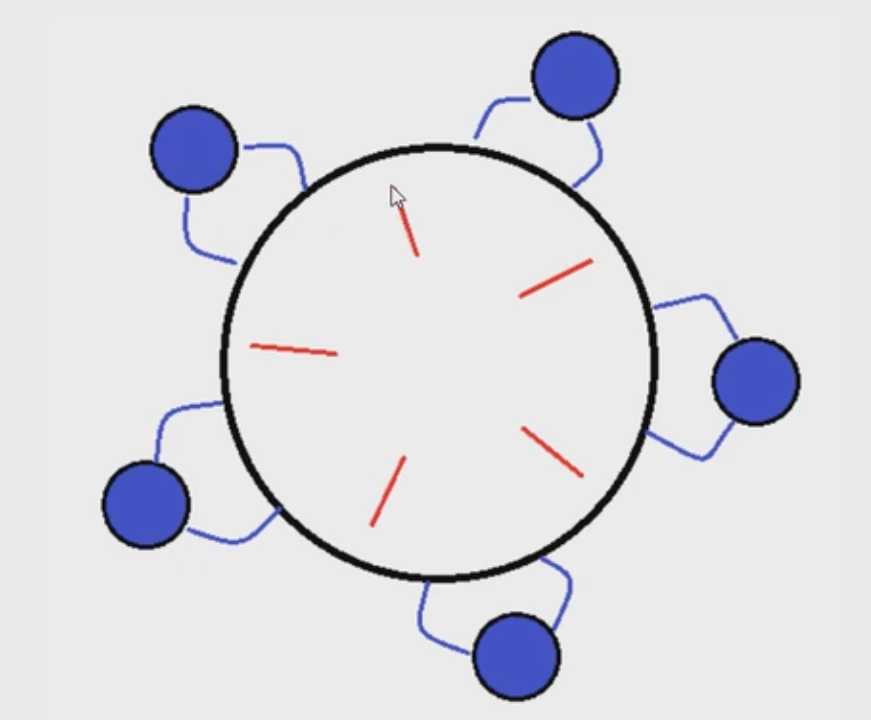

6.1.2 The dining problem of philosophers

There are five philosophers , Sitting around the round table .

They only do two things , Think and eat , Think for a while and have a meal , Think after dinner .

Eat with two chopsticks , There are... On the table 5 Chopsticks , Every philosopher has a chopstick on his left and right .

If chopsticks are held by people around you , I have to wait

Chopsticks

class Chopstick {

    String name;
    public Chopstick(String name) {

        this.name = name;
    }
    @Override
    public String toString() {

        return " chopsticks {" + name + '}';
    }
}

Philosophers

class Philosopher extends Thread {

    Chopstick left;
    Chopstick right;
    public Philosopher(String name, Chopstick left, Chopstick right) {

        super(name);
        this.left = left;
        this.right = right;
    }
    private void eat() {

        log.debug("eating...");
        Sleeper.sleep( 1 );
    }
    @Override
    public void run() {

        while (true) {

            //  Get left chopsticks
            synchronized (left) {

                //  Get the right chopsticks
                synchronized (right) {

                    //  having dinner
                    eat();
                }
                //  Put down your right chopsticks
            }
            //  Put down your left chopsticks
        }
    }
}

dining

Chopstick c1 = new Chopstick("1");
Chopstick c2 = new Chopstick("2");
Chopstick c3 = new Chopstick("3");
Chopstick c4 = new Chopstick("4");
Chopstick c5 = new Chopstick("5");
new Philosopher(" Socrates ", c1, c2).start();
new Philosopher(" Plato ", c2, c3).start();
new Philosopher(" Aristotle ", c3, c4).start();
new Philosopher(" Heraclitus ", c4, c5).start();
new Philosopher(" Archimedes ", c5, c1).start();

Not much execution will , It can't be carried out

12:33:15.575 [ Socrates ] c.Philosopher - eating...
12:33:15.575 [ Aristotle ] c.Philosopher - eating...
12:33:16.580 [ Archimedes ] c.Philosopher - eating...
12:33:17.580 [ Archimedes ] c.Philosopher - eating...
//  It's stuck here ,  Don't run down

Use jconsole Detection of deadlock , Find out

-------------------------------------------------------------------------

 name :  Archimedes
 state : cn.itcast.Chopstick@1540e19d ( chopsticks  1 )  Upper BLOCKED,  The owner :  Socrates
 Total blocked : 2 ,  Total wait count : 1
 stack trace :
cn.itcast.Philosopher.run(TestDinner.java: 48 )
 Locked  cn.itcast.Chopstick@ 6 d6f6e28 ( chopsticks  5 )

 name :  Socrates
 state : cn.itcast.Chopstick@ 677327 b6 ( chopsticks  2 )  Upper BLOCKED,  The owner :  Plato
 Total blocked : 2 ,  Total wait count : 1
 stack trace :
cn.itcast.Philosopher.run(TestDinner.java: 48 )
 Locked  cn.itcast.Chopstick@1540e19d ( chopsticks  1 )
 name :  Plato
 state : cn.itcast.Chopstick@ 14 ae5a5 ( chopsticks  3 )  Upper BLOCKED,  The owner :  Aristotle
 Total blocked : 2 ,  Total wait count : 0
 stack trace :
cn.itcast.Philosopher.run(TestDinner.java: 48 )
 Locked  cn.itcast.Chopstick@ 677327 b6 ( chopsticks  2 )
 name :  Aristotle
 state : cn.itcast.Chopstick@ 7 f31245a ( chopsticks  4 )  Upper BLOCKED,  The owner :  Heraclitus
 Total blocked : 1 ,  Total wait count : 1
 stack trace :
cn.itcast.Philosopher.run(TestDinner.java: 48 )
 Locked  cn.itcast.Chopstick@ 14 ae5a5 ( chopsticks  3 )
 name :  Heraclitus
 state : cn.itcast.Chopstick@ 6 d6f6e28 ( chopsticks  5 )  Upper BLOCKED,  The owner :  Archimedes
 Total blocked : 2 ,  Total wait count : 0
 stack trace :
cn.itcast.Philosopher.run(TestDinner.java: 48 )
 Locked  cn.itcast.Chopstick@ 7 f31245a ( chopsticks  4 )
public class TestLiveLock {
static volatile int count = 10 ;

This thread did not end as expected , The situation that cannot be implemented , Classified as 【 Activity 】 problem , In addition to deadlocks , There are also two cases: the living lock and the hungry

6.2 Live lock

Livelocks occur when two threads change each other's end conditions , In the end, no one can end , for example

static final Object lock = new Object();
public static void main(String[] args) {

    new Thread(() -> {

        //  Expectations are reduced to  0  Exit loop
        while (count > 0 ) {

            sleep(0.2);
            count--;
            log.debug("count: {}", count);
        }
    }, "t1").start();
    new Thread(() -> {

        //  Expectation exceeds  20  Exit loop
        while (count < 20 ) {

            sleep(0.2);
            count++;
            log.debug("count: {}", count);
        }
    }, "t2").start();
}
}

The difference from deadlock , The livelock is always running , It just doesn't end properly . The solution is to add random sleep time .

6.3 hunger

Many tutorials define hunger as , Because the priority of a thread is too low , Never get CPU Scheduling execution , It can't end , Hunger is not easy to demonstrate , Talking about read-write locks involves hunger

Let me talk about an example of thread starvation I encountered , Let's first look at the use of sequential locking （ Such as the first A after B） To solve the previous deadlock problem
