1 SeNet Introduce

• SENet yes Squeeze-and-Excitation Networks For short , from Momenta Made by the company on 2017CVPR, In the paper SENet Won ImageNet The last session （ImageNet 2017） Image recognition champion
• SENet It's mainly about learning channel The correlation between , The attention to the channel was screened out , A little bit more computation , But the effect is better .
• Automatically obtain the importance of each feature channel through learning , Then according to this degree of importance to enhance the useful features , And suppress features that are not useful for the current task .
• Se The idea of module is simple , Easy to implement , It is easy to load into the existing network model framework .

2 SeNet advantage

• Add a few parameters , And can improve the accuracy of the model to a certain extent .
• Is in ResNet Strategy based on , Innovation is good , It is very suitable for creating new models with high accuracy .
• It is easy to insert into your own deep neural network model , To improve the accuracy of the model .

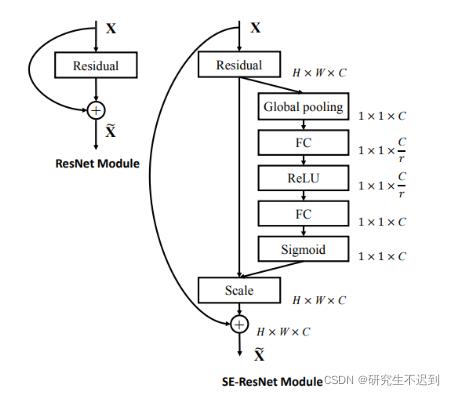

3 Se Specific introduction of the module

1. Sequeeze： Along Spatial dimension （channel） For feature compression , Turn each two-dimensional feature channel into a real number , This real number has a global receptive field to some extent , And the dimension of output matches the number of characteristic channels of input . It represents the global distribution of the response on the characteristic channel , And the layer close to the input can also obtain the global receptive field .
   Specific operation （ It corresponds to the numbers in the code one by one ）： For the original feature map 50×512×7×7 Conduct global average pooling, Then I got a 50×512×1×1 A feature map of size , This feature map has a global receptive field .
2. Excitation ： Output 50×512×1×1 Characteristics of figure , Through two fully connected neural networks , Finally, use a It is similar to that in cyclic neural network Door mechanism , Generate weights for each feature channel through parameters , The parameters are learned to explicitly model the correlation between feature channels ( The paper uses sigmoid).50×512×1×1 become 50×512 / 16×1×1, Finally, restore it ：50×512×1×1
3. Feature recalibration ： Use Excitation The result obtained is used as the weight , Then, it is weighted to... Channel by channel by multiplication U Of C On one channel （50×512×1×1 adopt expand_as obtain 50×512×7×7）, Complete the recalibration of the original features in the channel dimension , And as the input data of the next level .

class SELayer(nn.Module):
    def __init__(self, channel, reduction=16):
        super(SELayer, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.fc = nn.Sequential(
            nn.Linear(channel, channel // reduction, bias=False),
            nn.ReLU(inplace=True),
            nn.Linear(channel // reduction, channel, bias=False),
            nn.Sigmoid()
        )

    def forward(self, x):
        b, c, _, _ = x.size()
        y = self.avg_pool(x).view(b, c)
        y = self.fc(y).view(b, c, 1, 1)
        return x * y.expand_as(x)

4 Complete code

import numpy as np
import torch
from torch import nn
from torch.nn import init


class SEAttention(nn.Module):

    def __init__(self, channel=512, reduction=16):
        super().__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)  #  Global mean pooling   The output is c×1×1
        self.fc = nn.Sequential(
            nn.Linear(channel, channel // reduction, bias=False),  # channel // reduction Represents channel compression
            nn.ReLU(inplace=True),
            nn.Linear(channel // reduction, channel, bias=False),  #  Restore
            nn.Sigmoid()
        )

    def init_weights(self):
        for m in self.modules():
            print(m)  #  Not running here
            if isinstance(m, nn.Conv2d):  #  Judge type function ——：m yes nn.Conv2d Class? ？
                init.kaiming_normal_(m.weight, mode='fan_out')
                if m.bias is not None:
                    init.constant_(m.bias, 0)
            elif isinstance(m, nn.BatchNorm2d):
                init.constant_(m.weight, 1)
                init.constant_(m.bias, 0)
            elif isinstance(m, nn.Linear):
                init.normal_(m.weight, std=0.001)
                if m.bias is not None:
                    init.constant_(m.bias, 0)

    def forward(self, x):
        b, c, _, _ = x.size()  # 50×512×7×7
        y = self.avg_pool(x).view(b, c)  # ① maxpool After that ：50×512×1×1 ② view Shape get 50×512
        y = self.fc(y).view(b, c, 1, 1)  # 50×512×1×1
        return x * y.expand_as(x)  #  according to x.size To expand y


if __name__ == '__main__':
    input = torch.randn(50, 512, 7, 7)
    se = SEAttention(channel=512, reduction=8)  #  Instantiation model se
    output = se(input)
    print(output.shape)
