Blueprint passing value to Niagara

2022-08-07 13:12:00 【directx3d_beginner】

First of all, thank you for the video tutorial of "Xiao Zhou's Dad", the Up master of station b.
The discovery is actually very simple,
First, in the niagara system, set a variable in the "user public" parameter, and pass this variable to the particle system.
The second is to set an actor in the blueprint, add a niagara component, and connect this component to the niagara system.This parameter is naturally exposed in the blueprint.Then set the keyvalue value of niagara in the blueprint.

It's a bit confusing to say that.As shown below.
Below is the blueprint file and niagara particle system file, myRate is the variable
insert image description here

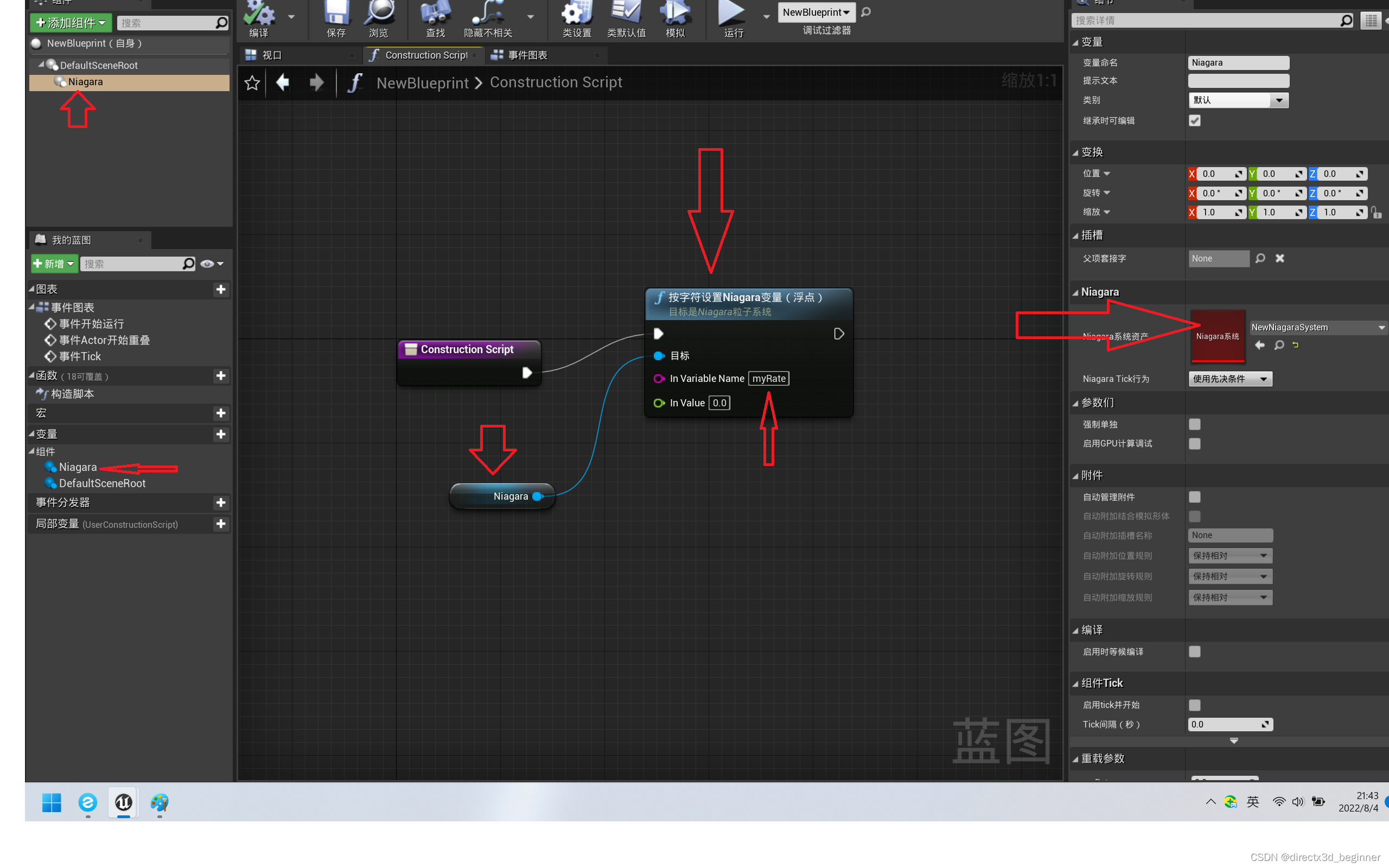

Look inside the blueprint
insert image description here
look againLooking at the particle system
insert image description here

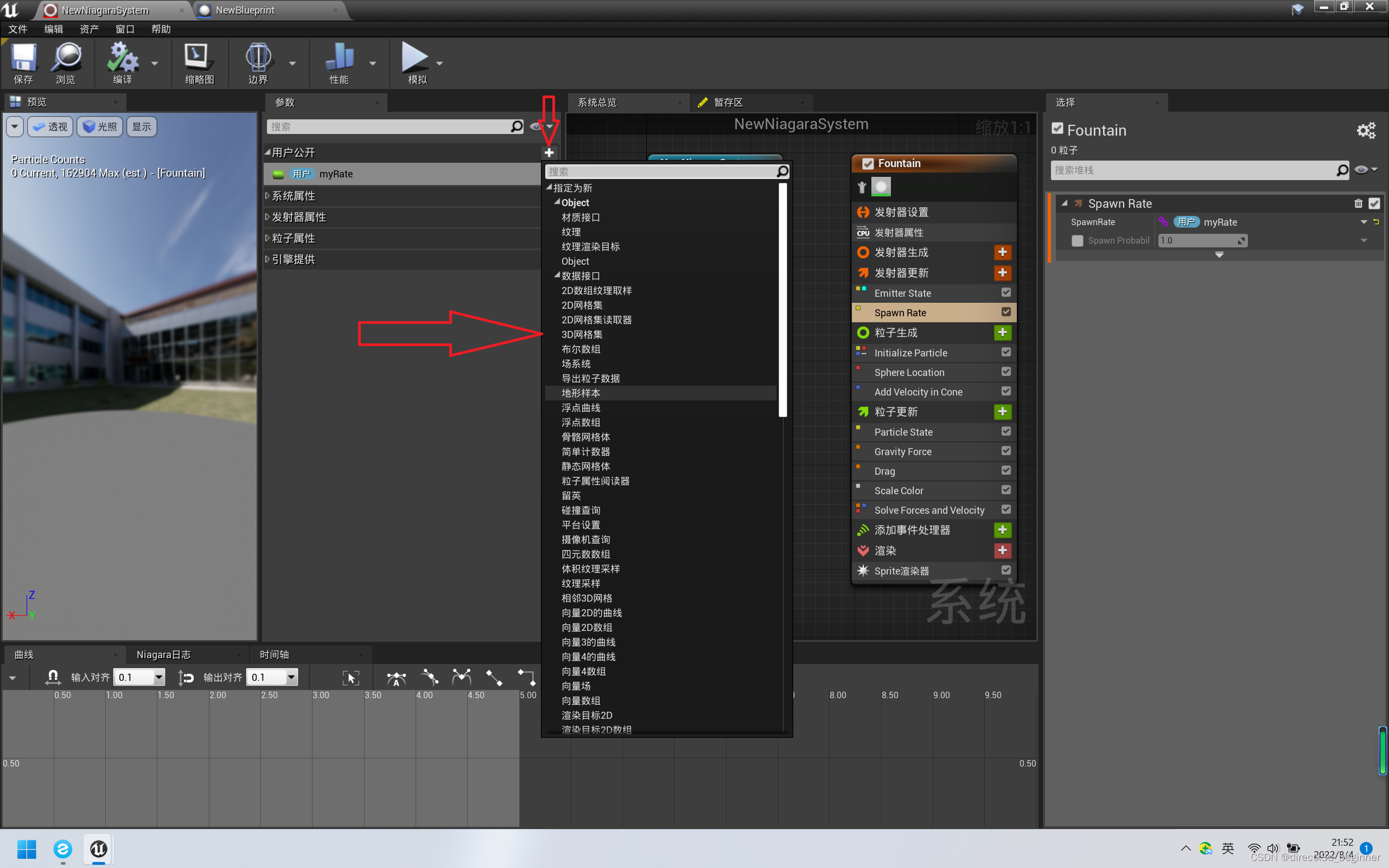

it is clear that this variable myRate is an examplegeneration rate.Of course, not only floating point types can be passed.Click the "+" to the right of "User Exposure", and find that variables of various data types can be passed.

insert image description here

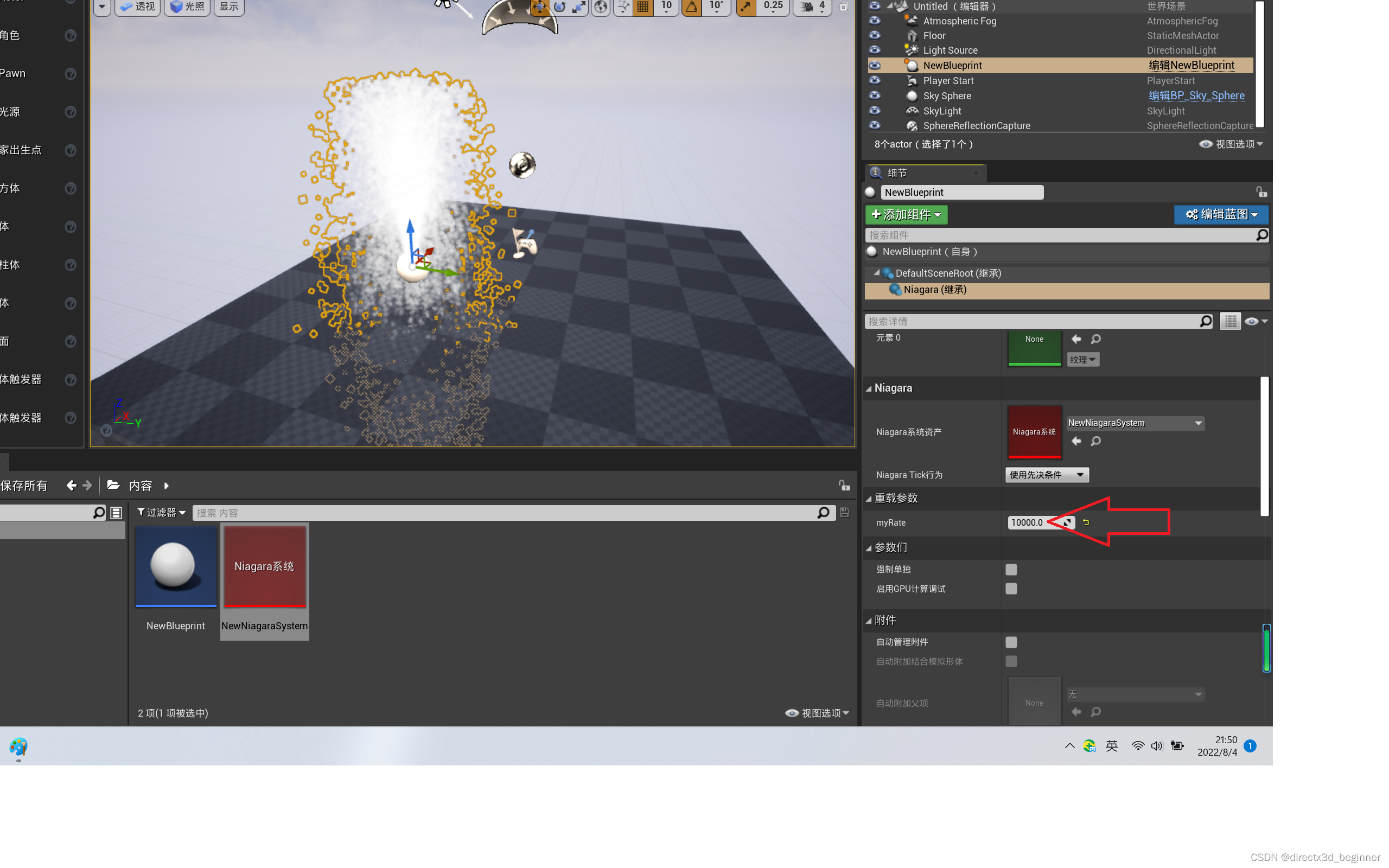

Look at the effect, when myRate = 100,
insert image description here

p>

myRate = 10000,
insert image description here
OK, thenHow about this.
