Vscode download and installation + running C language

Download and install infrequently , As time goes on, you will forget , As the saying goes, a good memory is better than a bad pen . Record the download and installation process , It's convenient for you to check later .

edition ：Windows 10 pro 1903
Click below to enter the download interface ：
Visual Studio Code Official website

windows The system directly clicks to download

install

Open the installer when the download is complete

Choose to accept , next step

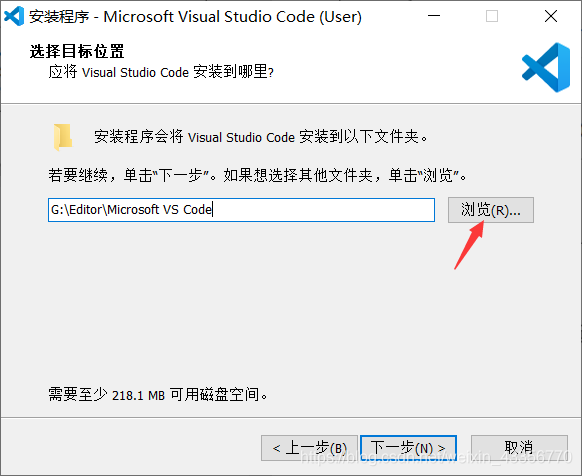

Don't put the software in C disc , Click Browse , Select another drive letter as the storage path .

Go straight to the next step

You can choose to create a desktop shortcut , Check the other options you need .

Just install it

complete

success , The first installation should be in English , I set it here to Chinese .

Sinicization

Set the interface to Chinese, you can refer to another blog .

VScode How to set up a Chinese interface

function C/C++

download Code Runner

Find the plug-in store , Input runner.

download Code Runner. Click on install I'll download it here .

Compile operation

1. Create a new folder , use vscode Open folder .

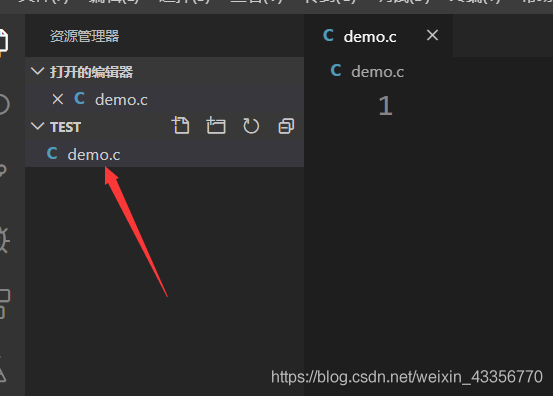

Right click in the folder to create a new file .
Write a simple demo.
Press down F5, choice c++（GDB）

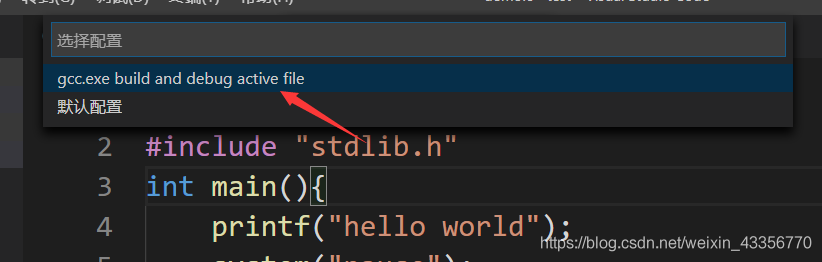

choice gcc.exe Successfully added a launch.json The configuration file

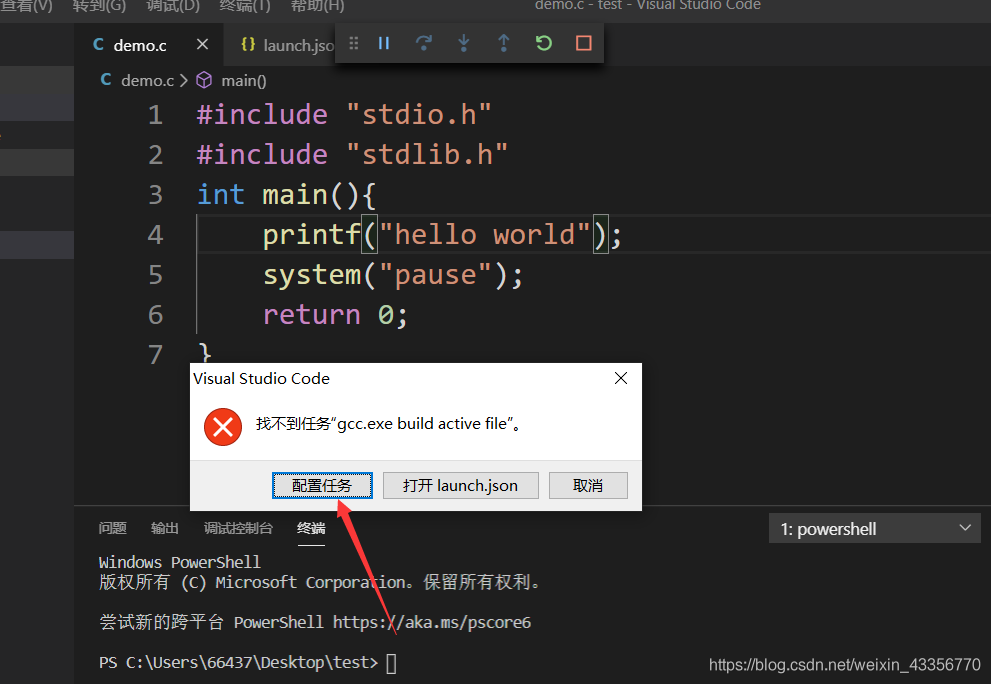

go back to .c Code office , Then press the F5, Click Configure task .

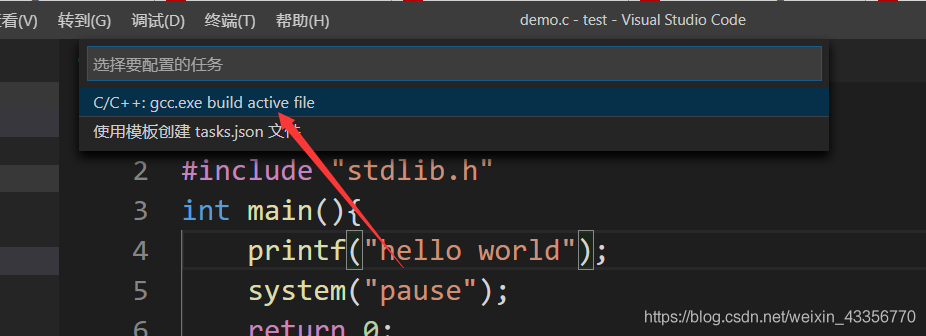

choice C/C++：gcc.exe Successful addition tasks.json file
Both configuration files can be used again .vscode In the folder

Copy and replace . Revisionist midebuggerpath route
launch.json

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "(gdb) Launch", //  Configuration name , It will be displayed in the drop-down menu of startup configuration
            "type": "cppdbg", //  Configuration type , It's only for cppdbg
            "request": "launch", //  Request configuration type , It can be for launch（ start-up ） or attach（ additional ）
            "program": "${workspaceFolder}/${fileBasenameNoExtension}.exe", //  The path of the program to be debugged
            "args": [], //  Command line parameters passed to the program during program debugging , It is usually set to empty
            "stopAtEntry": false, //  Set to true When the program will be suspended at the program entrance , Generally set as false
            "cwd": "${workspaceFolder}", //  Working directory when debugging program , It's usually ${workspaceRoot} That is, the directory where the code is located  workspaceRoot Has been abandoned , Now changed to workspaceFolder
            "environment": [],
            "externalConsole": true, //  Whether to display the console window when debugging , Generally set as true Display console
            "MIMode": "gdb",
            "miDebuggerPath": "G:/compiler/MinGW/bin/gdb.exe", // miDebugger The path of , Pay attention to the relationship between MinGw The path corresponds to
            "preLaunchTask": "gcc", //  Tasks performed before debugging session start , It's usually a compiler ,c++ by g++, c by gcc
            "setupCommands": [
                {
                    "description": "Enable pretty-printing for gdb",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": false
                }
            ]
        }
    ]
}

tasks.json

{
    "version": "2.0.0",
    "command": "gcc",
    "args": [
        "-g",
        "${file}",
        "-o",
        "${fileBasenameNoExtension}.exe"
    ], //  Compile command parameters
    "problemMatcher": {
        "owner": "cpp",
        "fileLocation": [
            "relative",
            "${workspaceFolder}"
        ],
        "pattern": {
            "regexp": "^(.*):(\\d+):(\\d+):\\s+(warning|error):\\s+(.*)$",
            "file": 1,
            "line": 2,
            "column": 3,
            "severity": 4,
            "message": 5
        }
    }
}

After configuring the file , Press down F5. Dangdang ！！！ The successful running ！
