STM32 Design of multi-channel temperature measurement wireless transmission alarm system ( Industrial timing temperature measurement / Engine room temperature regular detection, etc )
**
The hardware used in the program includes stm32f103rct6+nrf24l01+ds18b20( Numbers )+oled( Support spi/iic)
The hardware flow chart is as follows :

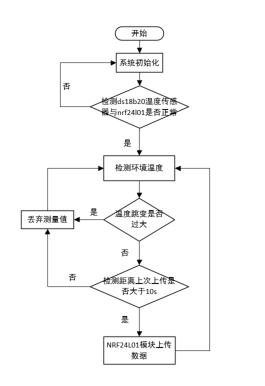

Detection end ( The sender ) The software flow chart is as follows :
The software flow chart of the receiving end is as follows :
Including the sender and receiver two parts of the program , The program is simpler , You need to download it yourself .
#include "Headfile.h"
* MCU: STM32F103RCT6 72MHz
* OLED: Support I2C/SPI Pattern
* SCL PBout(15)
* SDA PBout(13)
* LED:
* LED0 PAout(8)
* LED1 PDout(2)
* KEY:
* KEY0 PCin(1)
* KEY1 PCin(13)
* WK_UP PAin(0)
* NRF24L01:
*· NRF24L01_CE PAout(4)
* NRF24L01_CSN PCout(4)
* NRF24L01_IRQ PCin(5)
* DS18B20:
* DS18B20_DQ_OUT PAout(0)
* DS18B20_DQ_IN PAin(0)
************************************************************************************************************************/
int main()
{
HardWave_Init();
while(1)
{
userActivate();
}
}
