One 、 brief introduction

Use KubeShere Deployment application architecture diagram ：

Pay attention to three points ：

1. Application deployment mode
2. Application data mount （ data 、 The configuration file ）
3. Accessibility of applications

Two 、 Deploy MySql Analysis and preparation of

1、 Refer to our previous use docker Deployment launch mysql The script is as follows

docker run -p 3306:3306 --name mysql-01 \
-v /mydata/mysql/log:/var/log/mysql \
-v /mydata/mysql/data:/var/lib/mysql \
-v /mydata/mysql/conf:/etc/mysql/conf.d \
-e MYSQL_ROOT_PASSWORD=root \
--restart=always \
-d mysql:5.7

2、 Get ready mysql Configuration file for

[client]
default-character-set=utf8mb4

[mysql]
default-character-set=utf8mb4

[mysqld]
init_connect='SET collation_connection = utf8mb4_unicode_ci'
init_connect='SET NAMES utf8mb4'
character-set-server=utf8mb4
collation-server=utf8mb4_unicode_ci
skip-character-set-client-handshake
skip-name-resolve

3、mysql Deployment Analysis

/var/lib/mysql： This path is in the container mysql The path where the data file is stored , We use pvc Make it persistent

/etc/mysql/conf.d: This is a directory , There is a my.cnf The configuration file , We use configMap Cover it with

MYSQL_ROOT_PASSWORD： This is an environment variable , Set default root Account password

3、 ... and 、 establish ConfigMap To configure mysql Of my.cnf file

 1、 Enter the configuration center -> To configure -> establish

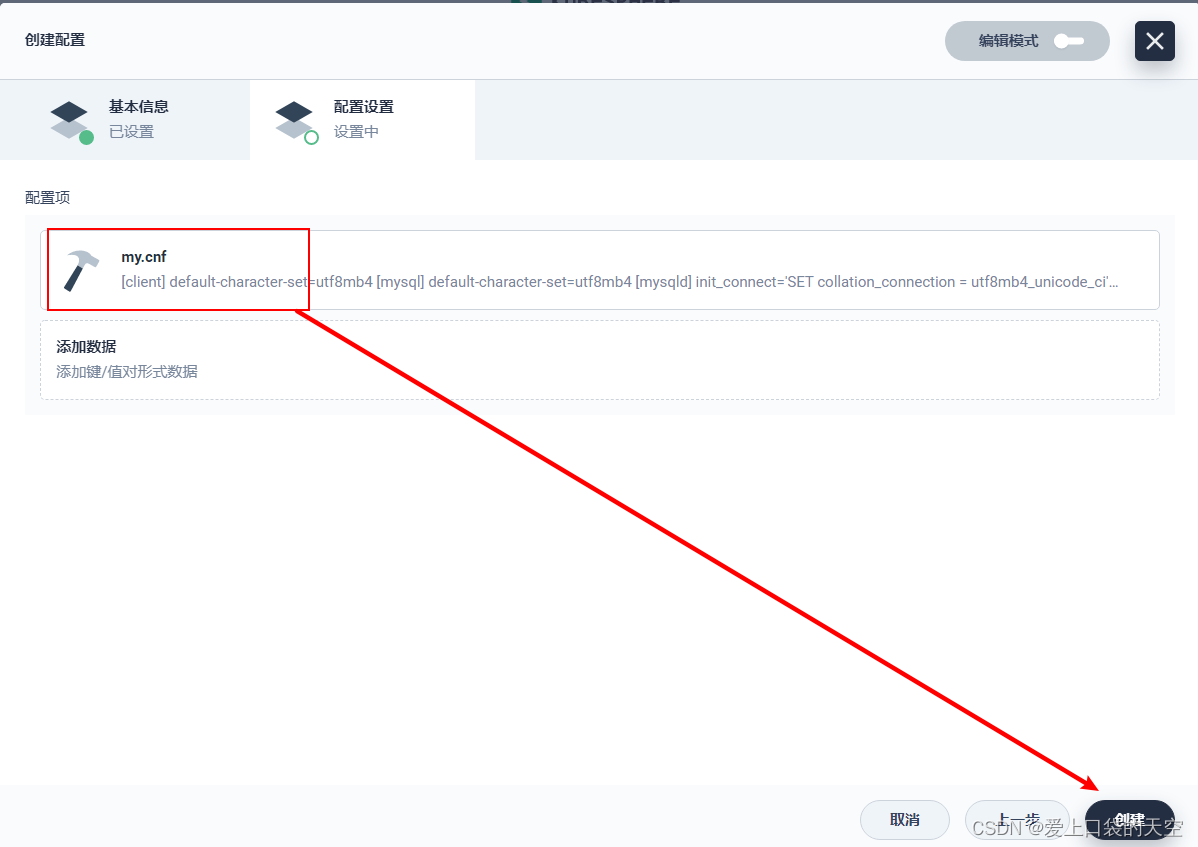

 2、 Start configuration ConfigMap



ok, So that we mysql Corresponding ConfigMap And we're done

Four 、 Create to persist mysql Data file pvc Storage

1、 Enter storage management -> Storage volume , Click Create

 2、 Start creating storage volumes



Above , Create success ！

5、 ... and 、 Start creating stateful Services mysql

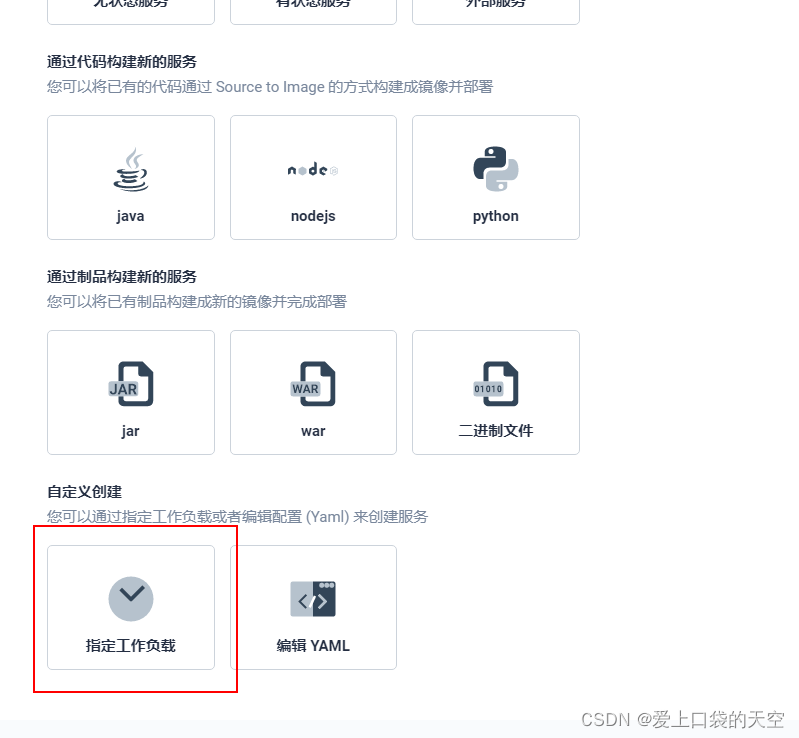

1、 Enter application load -> The workload -> Stateful replica set , Click Create

2、 Start to create mysql service

  Click next .

Click Add container image above , Choose a mirror image ： choice DockerHub Upper mysql:5.7 Mirror image .



Down ： Select limits 1 nucleus cpu and 2000M Memory and port mapping .

Down ：
Check   environment variable  ：MYSQL_ROOT_PASSWORD  password ：123456.
Time zone host... Check .

  Click on √ Hook And click next ：



  Select add storage volume , Because our storage volume has been created , That's it. mysql-pvc, Mount Directory ：/var/lib/mysql  choice Reading and writing .

  Above is our persistence mysql Of the data file , Now let's mount the configuration file ：

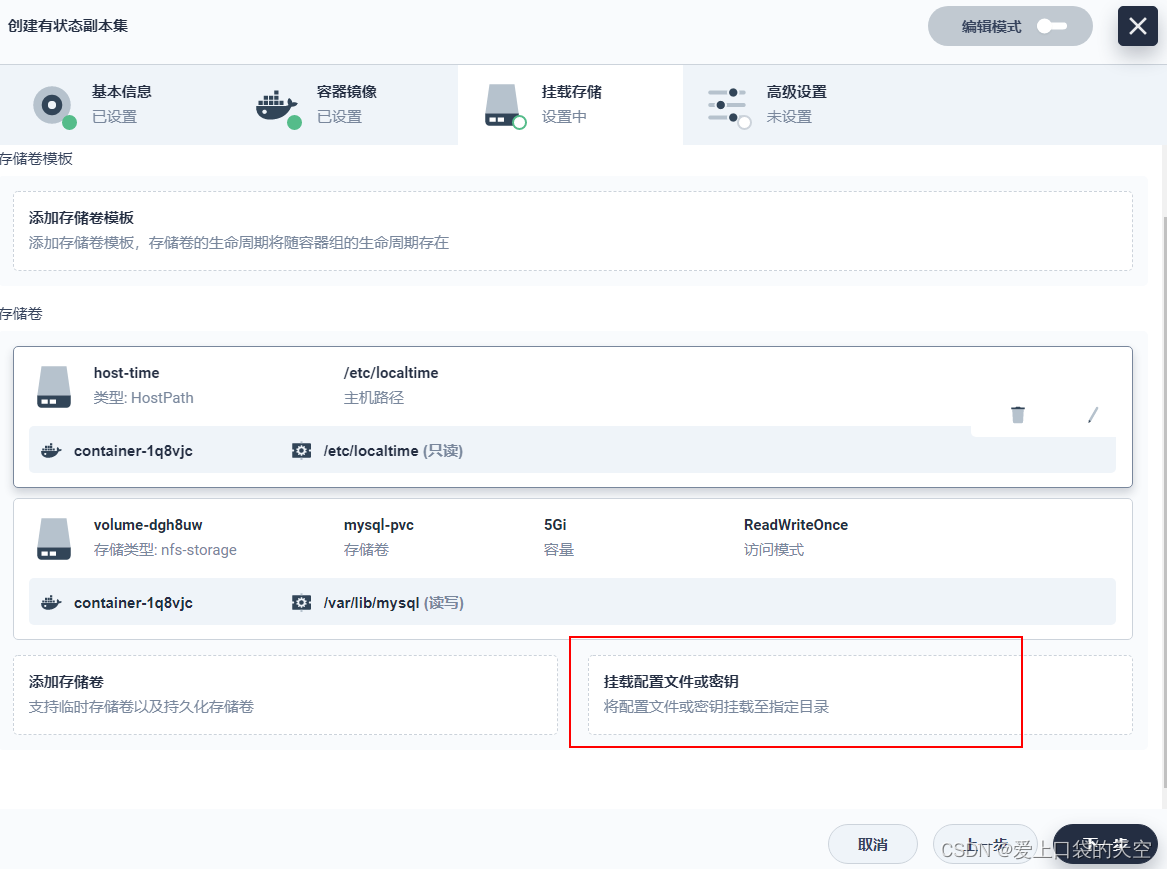

Click mount Profile ：



  Click next ：

Click Create ：



  You can click to view ：

You can find that it has been created successfully

You can also view mysql Log and enter the terminal to view information

6、 ... and 、 Create a good... Through intranet access mysql

1、 First enter through the terminal mysql Internal , Let's see if our configuration file is effective

From above, we can find , It's in effect

2、 We can apply load -> service , Check out the... We just created mysql Automatically generated service service

  From the above, we can find that we can't access the Internet , Can only be accessed between intranet containers , Because the type is ClusterIP

It can be found that the Intranet can be connected , If you want to access the Internet , We need to configure service, Of course, generally in the production environment , Intranet access is enough , Because here kubesphere The network between containers on the is connected .

7、 ... and 、 Create a good... Through Internet access mysql

1、 In the application load -> Create another one in the service mysql Service service



  Create success , The port mapped to the outside is 30805

 2、 Let's start to access... Through the tools of the Internet ,
