Design and implementation of redis (4): what is the event driver of redis

6、 ... and 、 event

Redis The server is a Event driver , There are two main types ：

• Document events ：Redis The server connects with the client through socket , File events are the server's abstraction of socket operations . The communication between the server and the client will generate corresponding file Events , The server completes a series of network communication operations by listening to these events .
• Time event ：Redis The server has some operations that need to be performed within a given time , Time event is the abstraction of this kind of timing operation .

Simply speaking , File events are Events related to socket operation ; Time events are Timed operation related events .

6.1 Document events

Redis be based on Reactor Network event processor developed by pattern , File event handler （file event handler）:

• Use I/O Multiplexing program Listen to multiple sockets at the same time , According to the socket, the current task is socket Associate different event handlers ;
• When the monitored socket is ready The reply , Read , write in , close When waiting for operation , The corresponding file event will generate , The file event handler will call the event handler associated with the socket to handle the event .

Use IO Multiplexing listening to multiple sockets , Although it runs as a single thread , But the file event processor implements a high-performance network communication model , And can be very good with Redis Docking of other modules in the server , Keep the design simplicity .

The composition of file Events

By socket ,I/O Multiplexing program , File event dispatcher , The event processor consists of .
File events are right Socket operations The abstraction of , When the socket is ready to execute The reply , Read , write in , close A file event will be generated during operation . A server usually listens to multiple sockets , Therefore, file events may occur concurrently . but IO The multiplexer will put all the events in one queue , In order , Sync , One socket at a time To the file event dispatcher . Only when the event generated by the last socket is executed by the event handler , Will continue to send the next socket .

The dispatcher executes the corresponding event handler according to the received socket call .

6.1.1 Implementation of multiplexing

Redis Yes select、epoll、evport and kqueue And other multiplexed function libraries , Each multiplex function library corresponds to a separate file ：ae_select.c,ae_epoll.c,ae_kqueue.c etc. . Each multiplexing function implements the same API, Therefore, the underlying implementation of multiplexing program is interchangeable .Redis In the multiplexer source code, the corresponding rules are defined with macros , Make the program automatically select the highest performance in the system when compiling I/O Multiplex function library .

The socket events that the multiplexer can listen for can be divided into ae.h/AE_READABLE Events and ae.h/AE_WRITABLE event

• When the socket becomes Can be read when （ The client performs... On the socket write,close,accept after ）, Socket generation AE_READABLE event .
• When the socket becomes Can write when （ The client performs... On the socket read After the operation ）, Socket generation AE_WRITABLE event .

I/O The multiplexer allows the server to listen for two events at the same time , If a socket generates two events at the same time , File event dispatch will take priority AE_READABLE, To deal with AE_WRITABLE.

6.1.2 File event handler

According to the needs of the client , The event processor is divided into connection response processor , Command request processor , Command reply processor , Copy processor , The first three processors are most commonly used .

• Connect to answer processor
  networking.c/acceptTcpHandler The function is Redis The connection response processor of , Used to connect to The server listens to the socket The client replies .

Redis The server On initialization , The program will connect the response processor and the server to listen for the socket AE_READABLE Event correlation , When the client calls sys/socket.h/connect Function when connecting to the server to listen on the socket , Socket will produce AE_READABLE event , Causes the connection answering processor to execute , And perform the corresponding socket answer operation .

Simply put, when the client connects to the socket that the server is listening to , The server socket generates and triggers a read event , The connection response processor will execute .

• Command request processor

networking.c/readQueryFromClient The function is Redis Command request processor , It is mainly responsible for reading the command request content sent by the client from the socket .

When the client successfully connects to the server , The server will Client socket Of AE_READABLE The event is associated with the command request processor . This association will be in the client There has always been a problem during the connection .

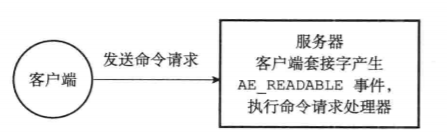

When the client sends a command request to the server , Socket generation AE_READABLE event , Causes a command request to be executed by the processor , Execute the read operation of the corresponding socket .

Simply put, when the client sends a command request , The client socket generates and triggers a read event , The command request processor will execute .

• Command reply processor

networking.c/sendReplyToClient The function is Redis Command reply processor , It is responsible for returning the command reply obtained after the server executes the command to the client through the socket .

When you need to reply to the command result , The server will Client socket Of AE_WRITEBLE Events are associated with the command reply processor , When the client is ready to receive a reply, a AE_WRITABLE event , Cause command reply processor to execute **. end of execution , The server will disarm The command replies to the socket between the processor and the client AE_WRITABLE Between events relation **.

Simply put, when the server sends a command reply , The client socket generates and triggers a write event , The command reply processor will execute .

• Copy processor

Used for replication between master and slave servers , Let's not introduce .

A complete interaction between server and client based on file Events , The processing process of the relevant processor ：

     1.  Client initiates connection ,** The server listens to the socket ** produce AE_READABLE event , Trigger connection reply processor to execute . Then create the client socket , The client state and the status of the client socket AE_READABLE Event associated with command request processor , The client can then send commands to the server .
     1.  Client sends command ,** Client socket ** produce AE_READABLE event , Trigger command request processor , The actuator reads the execution command , The specific operation is carried out by relevant procedures . After generating the corresponding command reply , Server will ** Client socket ** Of AE_WRITEBLE Event associated with command reply processor .
     1.  The client tried to read the command reply , produce AE_WRITEBLE event , Trigger command reply processor to execute . Write reply to socket , Disassociate the read event from the command reply processor .

6.2 Time event

Time events can be divided into Timing events and Periodic events ：

• Timing events : Only when the specified event arrives . Such as xx Execute once after time .
• Periodic events : Execute at regular intervals . Every time xx Once per second .

A time event mainly consists of the following three properties ：

• id： The global uniqueness created by the server for time events ID ( Identification number ). ID Number press From small to large In increasing order , New events ID The number is bigger than the old event .
• when： Millisecond precision UNIX Time stamp , The arrival of time events (arrive) Time .
• timeProc： Time event handler function . When the time event arrives , The server will call the corresponding processor to handle the event .

Whether a time event is a timed event or a periodic event depends on the return value of the time event processor :

• Event handler returns ae.h/AE_NOMORE, For timed events ： This event is deleted after reaching one , No longer arrive .
• The event handler returned a non AE_NOMORE The integer value , Is periodic time . When a time event arrives , The server will use the value returned by the event handler , Of time events when Property update , Let this event arrive again after a period of time , And keep updating and running in this way .

redis Only cycle time events are used in , Timed events are not used .

Realization
The server places all time events in an unordered list , Whenever the time event executor runs , Traverse the entire list , Find the time event that has arrived , Call the corresponding event handler .
An unordered linked list refers to a list that does not follow the when Sort by time , It doesn't mean not to press id Size sorting .

serverCron function
In many cases ,Redis Regular resource checks are required , State synchronization and other operations , You need to operate regularly , And regular operations are carried out by serverCron Functions are responsible for , It is also an application example of time events . Default every 100ms Do it once , The specific work includes ：

• Update all kinds of statistics of the server , Such as time 、 Memory footprint 、 Database usage, etc .
• Clean up expired key value pairs in the database .
• Shut down and clean up clients with invalid connections .
• Try to do AOF or RDB Persistence operation .
• If the server is the primary server , Then synchronize the slave server regularly .
• If in cluster mode , Perform regular synchronization and connectivity tests on the cluster .

Let's start from several aspects , Introduce serverCron My job ：

• Update server time cache , Default 100 Millisecond update once unixtime and mstime
• to update LRU The clock , Every Redis Objects also have lru attribute , Record the last time the command was accessed . If you want to calculate the idle time of a key , Will be through lrulock The recorded time minus the... Of the object lru Attribute record time .
• Number of commands executed by update server per second , This estimate will be put into redisServer Of ops_sec_samples Array .
• Update server memory peak record ,stat_peak_memory Record the memory peak .
• Manage client resources , call clientsCron Function to check the client ： If it has timed out, close ; If the input buffer size exceeds a certain length, recreate the input buffer of the default size .
• Manage database resources ,serverCron Called every time databaseCron function , Some databases of the server will be checked , Delete expiration key ; Shrink the dictionary .
• Execution is delayed BGREWRITEAOF,aof_rewrite_shceduled The flag bit decides ,BGSAVE During the execution of the order ,BGREWRITEAOF Will be delayed until BGSAVE After execution .
• Check the running state of the persistence operation

6.3 Scheduling of events

When there are both time events and file events on the server , The event is scheduled by ae.c/aeProcessEvents The function is responsible for . For each event cycle , The main process is ：

1. Get the latest time event and calculate how many milliseconds are left .
2. Create time task structure ; Blocking waiting for file events to occur , Maximum blocking time Determined by the number of milliseconds the most recent event has reached .
3. Deal with the generated first Document events Then process the arrived Time event .

redis Server running process

The processing of file events and time events is Sync 、 Orderly 、 Atomic execution Of , The server will not interrupt event handling , And there will be no preemption of events , therefore , Whether it's the file event handler , Or the processor of time events , They all reduce the blocking time of the program as much as possible , And give up the executive power when necessary （ For example, the execution time of time events is too long to call subprocesses , The amount of file event operation data is too large break, The rest will be executed next time ), So as to reduce the possibility of causing incident hunger .

7、 ... and 、 client

redis Server is a typical one to many server program , A server can establish connections with multiple clients , Each client can send commands to the server . The server is based on IO Event processor implemented by multiplexing technology , Single threaded processing commands .

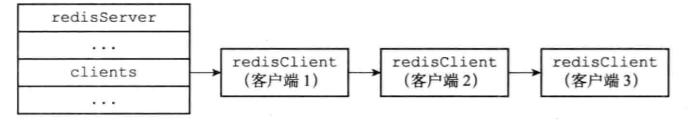

Redis The state structure of the server clients The attribute is Linked list , All client structures connected to the server are recorded , Perform batch operation or search operation on the client , Both can pass clients Linked list complete .

struct redisServer{

    // A linked list , Saved all client states
    list *clents
    ...
};

The structure of each client is

typedef struct redisClient{

    // socket descriptor
    int fd;
    // sign
    int flags;
    // Input buffer
    sds querybuf;
    // An array split by a single command
    robj **argv;
    //argv Length of array
    int argc;
    // Command function , Point to specific redisCommand structure
    struct redisCommand *cmd;
    // Fixed size output buffer , Default 16K
    char buf[REDIS_REPLY_CHUNK_BYTES];
    //buf Number of bytes used
    int bufpos;
    // Variable size output buffer
    list *reply
    // When the client was created
    time_t ctime;
    // The last time to interact with the server
    time_t lastinteraction;
    // Soft limit time
    time_t obuf_soft_limit_reached_time;
    ...
}redis client;

socket descriptor fd
Depending on the client type ：

• fd by -1 Represents a pseudo client .
• fd For more than -1 An integer representing a normal client .

Pseudo client is the command request used for processing, which comes from AOF or Lua Script , No socket connection required , You don't need a socket recorder . Ordinary clients are all clients that need socket connection from the network .
sign flags
sign flags The role of the client is recorded . There are master-slave signs ,Lua Pseudo client flag , perform MONITOR sign … Flags can be spliced in binary ：flags:||…
Input buffer querybuf
The input buffer stores instructions entered by the client , The size is dynamically reduced and expanded according to the input content , No more than 1G, Otherwise, the server will shut down the client .
Commands and parameters (argv,argc）
The commands entered by the client will be stored in the array first argv in , The data structure is like this ：

When the client enters a command , Server according to argv[0] Find the value in the command table （ Commands are not case sensitive ） The function corresponding to the command and give cmd assignment ,cmd Is the operation information related to the corresponding command function .
Output buffer （buf,bufpos,reply）
There are two output buffers , A fixed size , A variable size . Fixed storage size and small reply length , such as OK, Error return, etc . A variable size buffer holds replies with a large length , Like a long list , Large set .
The variable size buffer consists of reply Linked list implementation , Use the linked list structure to store several string objects , So that the length is not limited . The data structure is as follows ：
Time （ctime,lastinteraction,obuf_soft_limit_reached_time)
The server uses two modes to limit the size of the client output buffer :

• Hard limits ( hard limit): If the size of the output buffer exceeds the size set by the hard limit , Then the server immediately shuts down the client .
• Soft limits (softlimit): The soft limit is smaller than the hard limit , The server will decide whether to close the client according to the time when the output buffer size is between the soft and hard limits .

8、 ... and 、 Server side

8.1 Initialize server

First of all Redis Server initialization operation , The server needs to perform the following steps from Startup to being able to process command requests from the client ：

1. Initialize server state .
2. Load server configuration .
3. Initialize the server data structure .
4. Restore database state .
5. Execute the event loop .

Initialize the server state structure
It's mainly about redisServer Initialization of structure , Including setting up the server to run ID, Operating frequency , Set profile path , Set persistence conditions , Command table creation, etc .
Load configuration options
According to the configuration set by the user , Yes redisServer Modify the value of the relevant variable , Such as port number , Number of databases ,RDB Whether the compression of is turned on, etc . Other properties still use the default values .
Initialize the server data structure
The server must first load the user configuration , In order to accurately initialize other data structures . Other data structures include client linked lists ,db Array , Subscription information ,Lua Script execution environment , Slow query log related properties and so on .
Restore database state
load RDB or AOF File data recovery process .
Execute the event loop
thus , The server can receive client requests and send information .

8.2 Command execution process

With SET key value For example , The execution process of the command is ：

1. Client sends command .
2. The server receives and processes requests , Operation on Database , reply OK.
3. The server replies the command to the client .
4. The client receives the command and prints the result .

Next, it will be disassembled into sending , Read lookup , Perform preliminary operations , Call the implementation function , Carry out follow-up work , reply , Explanation of printing operation .
send out
When the client receives a command request , The command will be converted into a fixed format according to the protocol and then sent to the server .
Read
When the socket becomes readable due to writing from the client , The server will first read the content in the protocol format and save it to the input buffer . Command analysis , Extract parameters and number , Deposit in argv and argc attribute . Finally, call the command executor. Base note .
Command actuators - Find the implementation of the command
The command table is a Dictionaries , The key is the command name , The value is redisCommand structure . Several important properties are as follows ：

• name： Command name .
• proc： Point to the command implementation function .
• arity： Number of command parameters , Include command name .
• sflags： Command properties .

The process of looking up the command table is to find redisCommand, Point the pointer to it ：

Command actuators - Perform preliminary operations
Before the command is actually executed, there needs to be preparatory operation to ensure that the command can be correctly executed , Carry out smoothly . This link is equivalent to a layer of filtration , For example, check whether the command is correct , Is the parameter correct , Whether the authentication has passed , Whether there is enough memory, etc . Ensure that the configuration is effective , Accurately execute .
Command actuators - Call the implementation function of the command
The execution process is to call the execution function found and pointed to before . adopt client->cmd->proc(client); call . Then save the reply in the output buffer of the client state , The command reply processor associated with the socket .
Command actuators - Carry out follow-up work
Some aftercare work will continue , For example, slow query log records , Record the execution time ,AOF Persistence , The master server passes the command to the slave server . When all this is done , The server continues to fetch the file from the time processor and execute the next command request .
Send command reply to client
When the client socket becomes writable , The server executes the command reply processor , Send the reply from the output buffer to the client .
The client receives and prints the command reply
Turn the reply into a human readable format , Print to the user .

notes ： The content is transferred from the learning notes on YuQue , The main reference is from 《Redis Design and implementation 》 Some reference sources are no longer traceable , Infringement private deletion .
