ABAP implementation publishes restful services for external invocation example

1. Create implementation classes

• Transaction code ：SE24

• Set the interface to be implemented ：IF_HTTP_EXTENSION


2. Implementation class

• The main implementation methods ：IF_HTTP_EXTENSION~HANDLE_REQUEST


• Implementation code ：


    METHOD if_http_extension~handle_request.
      TYPES: BEGIN OF ty_input,
               rows TYPE i,
             END OF ty_input.

      DATA: l_input TYPE ty_input.

      DATA: i_string TYPE string,
            o_string TYPE string.

      "Get Importing Json
      i_string = server->request->if_http_entity~get_cdata( )."

      "Deserialize Json to data
      /ui2/cl_json=>deserialize( EXPORTING json = i_string CHANGING data = l_input ).

      "Get Return Data
      SELECT *
        FROM sflight
        INTO TABLE @DATA(lt_sflight)
        UP TO @l_input-rows ROWS.

      "Serialize Data to Json
      o_string = /ui2/cl_json=>serialize( lt_sflight ).

      "Set the return data format
      CALL METHOD server->response->if_http_entity~set_content_type
        EXPORTING
          content_type = 'application/json'.

      "set exporting data
      server->response->set_cdata(
      EXPORTING
      data   = o_string ).

    ENDMETHOD.


3. Definition RESTful service

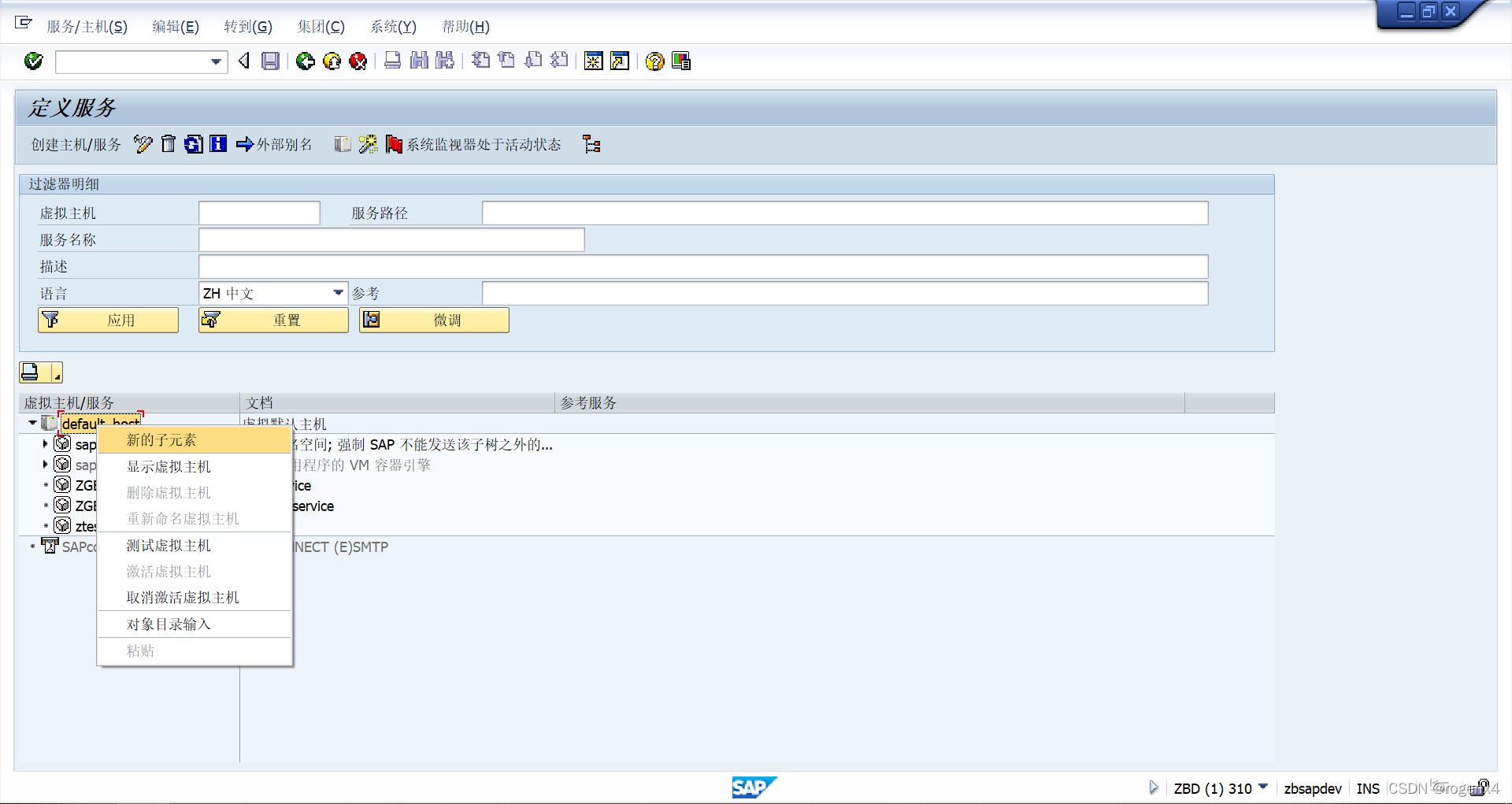

• Transaction code ：SICF
• New child element


• Set the service processor

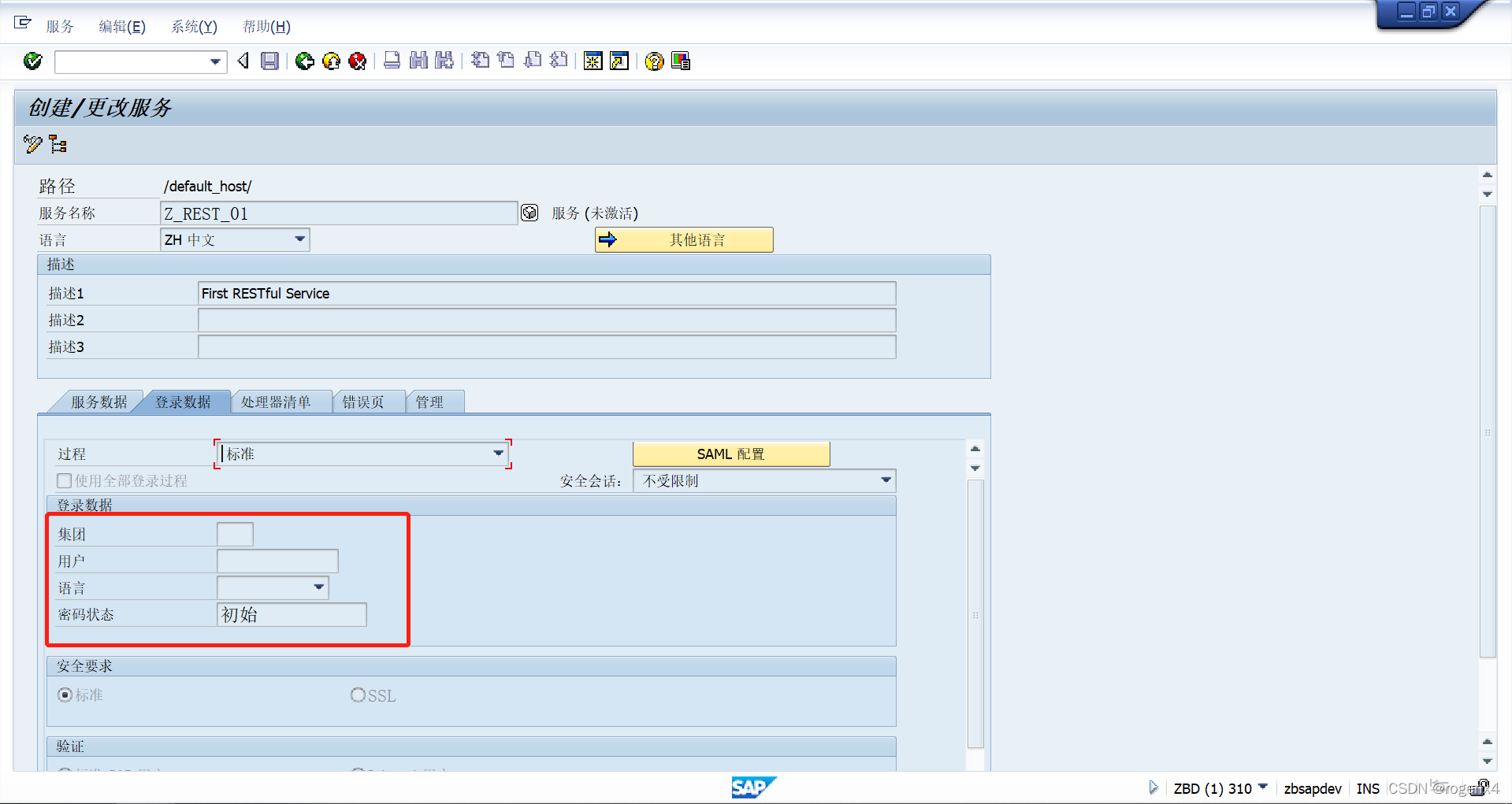

• Set default login information （ If not set , Accessing data requires SAP Account authentication ）

• Activate service



4. Test service

• Directly test whether the service is accessible

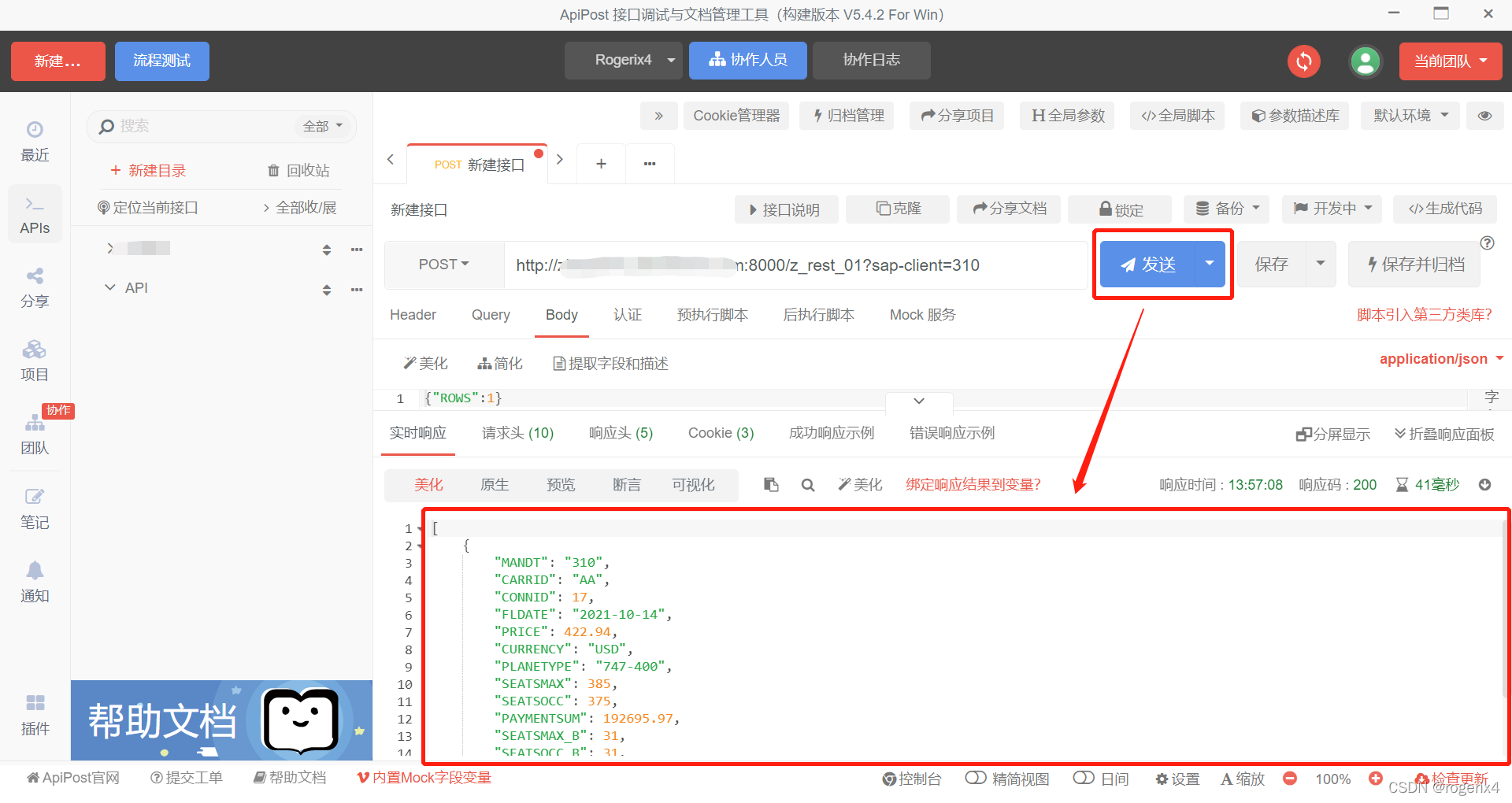

• Using third-party tools APIPost SoaUI test
  • Set up Json Query data

  • Set up SAP Account authentication （SICF Use when the default authentication account is not set ）

  • Send a request , Get the return data
