reflection Series blog is a new way of learning for me , For the origin and catalogue of this series, please refer to here .

summary

Skin change function It's not a trick , But it has become very popular , Especially when Android Q Launched Dark Mode after , Most mainstream applications in China provide at least daytime and The night Two modes .

For insensitive users , This function is really chicken ribs , But from another point of view , This is also the product carving Ultimate user experience An attempt in the process , For different situations , Users with different preferences provide more selectivity .

With Bili, Bili For example , In addition to providing the above two topics , Also free of charge Maiden heart Pink theme ：

From the perspective of product foresight , The exploration of skin changing function in China is ahead of that in foreign countries , Look at... Abstractly Android Q Of Dark Mode , It's just a new theme , therefore , Developers should put their perspective at a higher level ： Provide a set of perfect skin changing scheme for the product , Not just Adapt to dark mode .

Think about that , Developers will not focus on the technology itself —— For the whole skin changing system , covers UI、 product 、 Development 、 test 、 Different concerns of multiple roles such as operation and maintenance , These concerns ultimately rely on R & D to help make decisions , Examples are as follows ：

• UI： Different definitions UI Different color properties of components , These attributes end up under different themes , Represents different colors （ In daytime mode, the title is black , But in night mode , The title should be white ）.
• product ： Define the business process of skin changing function , From the simple skin change home page , Skin changing interaction , To different presentations under different themes 、 Payment strategy, etc .
• Development ： Provide R & D capability of skin changing function .
• test ： Ensure the stability of skin changing function , For example, automated testing and convenient color selection tools .
• Operation and maintenance ： Ensure the rapid positioning and timely solution of online problems .

besides , There are more technical points to think about , such as , With more and more themes , It is bound to lead to APK The increase of package volume , Whether it is necessary to introduce remote dynamic loading （download & install） The ability of ？ From the perspective of different roles , We can plan ahead , The next coding is more handy .

This article will focus on Android General description of the whole application system , Readers should put aside their concerns about Details of code implementation My persistence , Think from the needs of different roles , Look at a spot and know the whole leopard , Create a robust and powerful technical support for products .

One 、 Definition UI standard

What is the purpose of skin changing specification ？ about UI For designers and developers , Design and development should be based on unified and complete specifications ：

about UI The designer , stay APP Under different themes , The color of the control is no longer a single value , Instead, use a generic key To define , As shown in the figure above ,「 title 」 The color of the , It should be black during the day #000000, In dark mode, it should be white #FFFFFF, Empathy ,「 Sub title 」、「 Main background color 」、「 Split line color 」, Should follow different themes , Corresponding to different values .

When designers design , Just fill in the corresponding... For each element of the page key, Complete clearly according to the specification UI Design ：

Color Key	Day mode	Dark Mode	remarks
skinPrimaryTextColor	#000000	#FFFFFF	Title font color
skinSecondaryTextColor	#CCCCCC	#CCCCCC	Sub title font color
skinMainBgColor	#FFFFFF	#333333	The main background color of the page
skinSecondaryBgColor	#EEEEEE	#000000	Secondary background 、 The background color of the separator line
More …
skinProgressBarColor	#000000	#FFFFFF	Progress bar color

This is more obvious for the efficiency improvement of developers , Developers no longer need to care about the value of specific colors , Just put the corresponding color Fill in the layout ：

<TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello World" android:textColor="@color/skinPrimaryTextColor" />

Two 、 Constructing product thinking ： Skin bag

How to measure a developer's ability —— Fast response to complex functions 、 Stable delivery ？

If you simply recognize this idea , Then the realization of skin changing function is simple , In title color skinPrimaryTextColor For example , I just need to state two color resources ：

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="skinPrimaryTextColor">#000000</color>
    <color name="skinPrimaryTextColor_Dark">#FFFFFF</color>
</resources>

The author successfully gets rid of the complex coding implementation , stay Activity I just need 2 Lines of code ：

public void initView() {

  if (isLightMode) {
        //  Day mode
     tv.setTextColor(R.color.skinPrimaryTextColor);
  } else {
                  //  Night mode
     tv.setTextColor(R.color.skinPrimaryTextColor_Dark);
  }
}

This implementation is not for nothing , In terms of the difficulty of implementation , At least it can protect a few hair follicles of developers .

Of course , There are 「 Optimize space 」, For example, provide encapsulated tools and methods Seemingly get rid of Endless if-else：

/** *  Get the real... Under the current skin color resources , all color All must be obtained through this method . **/
@ColorRes
public static int getColorRes(@ColorRes int colorRes) {

  //  Pseudo code
  if (isLightMode) {
         //  Day mode
     return colorRes;    // skinPrimaryTextColor
  } else {
                   //  Night mode
     return colorRes + "_Dark";   // skinPrimaryTextColor_Dark
  }
}

//  Use this method in the code , Set the color of the title and sub title
tv.setTextColor(SkinUtil.getColorRes(R.color.skinPrimaryTextColor));
tvSubTitle.setTextColor(SkinUtil.getColorRes(R.color.skinSecondaryTextColor));

Obviously ,return colorRes + "_Dark" This line of code serves as int The return value of type is invalid , Readers don't need to focus on specific implementations , Because this package is still Not getting rid of the heavy if-else Realization The essence of .

Predictably, , As the number of topics increases , The code related to skin change is becoming more and more bloated , The key question is , The related colors of all controls are strongly coupled to the skin change related code itself , Every UI Containers （Activity/Fragment/ Customize View） And so on Java The code is set manually .

Besides , When the number of skin reaches a certain scale ,color The vast potential of resources will affect apk Volume , Therefore, the dynamic loading and distribution of topic resources is imperative , When users install applications, there is only one theme by default , Other themes Download and install on demand , For example, Taobao. ：

Here we are. , Skin bag The concept of should be shipped out , Developers need to treat the color resources of a single theme as a Skin bag , Under different themes , Load and replace different skin packages ：

<!-- Daytime mode skin pack colors.xml-->
<resources>
    <color name="skinPrimaryTextColor">#000000</color>
    ...
</resources>

<!-- Dark pattern skin pack colors.xml-->
<resources>
    <color name="skinPrimaryTextColor">#FFFFFF</color>
    ...
</resources>

such , For business code , Developers no longer need to focus on specific topics , You only need to specify the color in the normal way , The system will adjust the color according to the current color resource View Fill in ：

<!-- What topic are you currently switching to , The system fills with the corresponding color value -->
<TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello World" android:textColor="@color/skinPrimaryTextColor" />

Back to the original question in this section , Product thinking is also an indispensable ability for an excellent developer ： First, list different implementation schemes according to the requirements , Make corresponding trade-offs , Finally, start coding .

3、 ... and 、 Integration thinking

So far, , Everything is still in the stage of requirement proposal and Design , As the needs become clear , Technical difficulties are listed one by one in front of developers .

1. Dynamic refresh mechanism

The first problem developers face ： How to achieve after skin change Dynamic refresh function .

Take the wechat registration page as an example , After manually switching to dark mode , Wechat has refreshed the page ：

Readers can't help asking , What is the meaning of dynamic refresh , Let the current page rebuild or APP Can't you restart ？

Of course it works , however unreasonable , Because page reconstruction means the loss of page state , The user cannot accept a form page. The filled information is reset ; And if you want to make up for this problem , Rebuild the save of the append state for each page （Activity.onSaveInstanceState()）, From an implementation point of view , It's also a huge amount of work .

Therefore, dynamic refresh is imperative —— Whether the user switches the skin package in the application , Or manually switched the dark mode of the system , How do we distribute this notice , Ensure that all pages complete the corresponding refresh ？

2. Save all pages Activity

The reader knows , We can go through Application.registerActivityLifecycleCallbacks() Methods all... In the application were observed Activity Life cycle of , It also means that we can hold all Activity：

public class MyApp extends Application {


    //  All in the current application Activity
    private List<Activity> mPages = new ArrayList();

    @Override
    public void onCreate() {

        super.onCreate();
        registerActivityLifecycleCallbacks(new ActivityLifecycleCallbacks() {

            @Override
            public void onActivityCreated(@NonNull Activity activity, @Nullable Bundle savedInstanceState) {

              mPages.add(activity);
            }

            @Override
            public void onActivityDestroyed(@NonNull Activity activity) {

              mPages.remove(activity);
            }

            // ... Omit other lifecycles
        });
    }
}

With all the Activity References to , Developers can get a skin change notice , Try to make all pages View To renew the skin .

3. The question of cost

But a huge mystery came into view , For controls , The concept of skin renewal itself does not exist .

What does that mean ？ When the skin change notice arrives , I can't make TextView Update text color , It can't make View Update background color —— They are just system controls , The execution is the most basic logic , To put it bluntly , Developers can't code at all .

Some students said , Then I'll just let the whole page View All the trees View Can you re render them all ？ Sure , But back to the original question , That's all View Its own state has also been reset （ such as EditText The text is cleared ）, Step back , Even if this is acceptable , So the whole View Re rendering of trees can also have a significant impact on performance .

that , How to Save the cost of dynamic page refresh ？

Developers hope , When skin change occurs , Only the specified properties of the specified control are dynamically updated , such as ,TextView Focus only on updates background and textColor,ViewGroup Focus on the background, Other properties do not need to be reset and modified , Make the best use of every performance of the equipment ：

public interface SkinSupportable {

  void updateSkin();
}

class SkinCompatTextView extends TextView implements SkinSupportable {


  public void updateSkin() {

    //  Update with the latest resources  background  and  textColor
  }
}

class SkinCompatFrameLayout extends FrameLayout implements SkinSupportable {


  public void updateSkin() {

    //  Update with the latest resources  background
  }
}

As the code shows ,SkinSupportable It's an interface , The classes that implement this interface mean that they all support dynamic refresh , When a skin change occurs , We just need to get the current Activity, And by traversing View Trees , Let all SkinSupportable All the implementation classes of updateSkin Method to refresh itself , Then the whole page is refreshed , At the same time, it will not affect View Other properties of itself .

Of course , This also means that developers need to encapsulate conventional controls in a round of coverage , And provide the corresponding dependencies ：

implementation 'skin.support:skin-support:1.0.0'                   //  The basic control supports , such as SkinCompatTextView、SkinCompatFrameLayout etc.
implementation 'skin.support:skin-support-cardview:1.0.0'          //  Third party controls support , such as SkinCompatCardView
implementation 'skin.support:skin-support-constraint-layout:1.0.0' //  Third party controls support , such as SkinCompatConstraintLayout

In the long run , Encapsulate controls one by one , Provide dependencies that can be combined and selected , For the designer of the skin changing library , The development cost of the library itself is not high .

4. Pull one hair and move the whole body

But developers in charge of business development complain endlessly .

According to the current design , Isn't it Engineering xml file All controls in need of replacement ？

<!-- Before using -->
<TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello World" android:textColor="@color/skinPrimaryTextColor" />

<!-- Need to be replaced with -->
<skin.support.SkinCompatTextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Hello World" android:textColor="@color/skinPrimaryTextColor" />

Look at it from another Angle , This is an additional cost , If you want to remove or replace the skin changing library one day , So it's like a new refactoring .

Therefore, designers need to avoid similar Pull one hair and move the whole body The design of the , It's best to let developers feel the beauty of the skin changing library without perception Dynamic update .

5. Starting point : LayoutInflater.Factory2

Yes LayoutInflater Readers who don't know , You can refer to my This article .

understand LayoutInflater Our readers should know , In parsing xml File and instantiate View In the process of ,LayoutInflater Through self Factory2 Interface , Intercept and create the basic control as the corresponding AppCompatXXXView, It avoids reflection creation View Impact on performance , It also ensures downward compatibility :

switch (name) {

    //  analysis xml, The basic components all pass through new Way to create
    case "TextView":
        view = new AppCompatTextView(context, attrs);
        break;
    case "ImageView":
        view = new AppCompatImageView(context, attrs);
        break;
    case "Button":
        view = new AppCompatButton(context, attrs);
        break;
    case "EditText":
        view = new AppCompatEditText(context, attrs);
        break;
    // ...
    default:
    //  Others are created by reflection
}

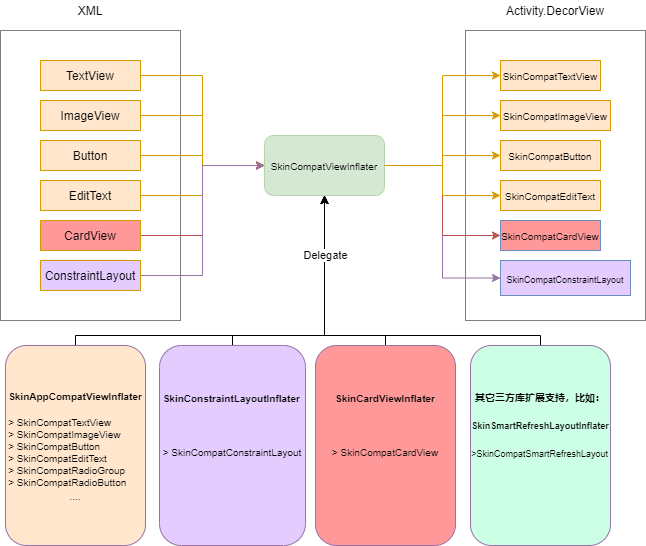

A picture to cover it ：

therefore ,LayoutInflater The implementation idea of itself provides us with a very good starting point , We just need to intercept this logic , Delegate the instantiation of the control to the skin changing library ：

As shown in the figure , We use SkinCompatViewInflater Interception replaces the system LayoutInflater Its own logic , With CardView For example , When parsing labels , take CardView The generated logic is delegated to the following dependent Libraries , If the corresponding dependency is added to the project , Then the corresponding SkinCompatCardView, It naturally supports the dynamic skin changing function .

Of course , The realization of all this logic , Originating from the project, add corresponding dependencies , And then in APP Initialize at startup ：

implementation 'skin.support:skin-support:1.0.0'
implementation 'skin.support:skin-support-cardview:1.0.0'
// implementation 'skin.support:skin-support-constraint-layout:1.0.0' //  Not added ConstraintLayout Skin changing support

// App.onCreate()
SkinCompatManager.withApplication(this)
                .addInflater(new SkinAppCompatViewInflater())   //  Basic control skin change
                .addInflater(new SkinCardViewInflater())        // cardView
                //.addInflater(new SkinConstraintViewInflater()) //  Not added ConstraintLayout Skin changing support
                .init();

With ConstraintLayout For example , When there is no corresponding dependency （）, It will be constructed by reflection by default , Generate the corresponding... Of the tag itself ConstraintLayout, Because it is not realized SkinSupportable, Naturally, there will be no skin change and update .

such , The designer of the library provides enough flexibility for the skin changing library , It not only avoids drastic modifications to the existing project , And ensure extremely low use and migration costs , If I wish remove perhaps Replace Skin changing library , Just delete build.gradle Dependence and Application Just initialize the code in .

Four 、 In depth discussion

Next, the author will make an in-depth discussion on more details of the skin changing library itself .

1、 Skin package loading strategy

The strategy pattern It is also well reflected in the design process of skin changing library .

For different skin packs , Its load 、 The installation strategy should be different , for instance ：

• 1、 Every APP There is a default skin package （ Usually in daytime mode ）, The policy needs to be loaded immediately after installation ;
• 2、 If the skin pack is remote , The user clicks to switch the skin , Need to pull... From a remote location , After the download is successful, install and load ;
• 3、 Skin package download and installation succeeded , After that, it should be from the local SD Load the card ;
• 4、 Other custom loading policies , For example, the remote skin package is encrypted , Decryption after local loading, etc .

therefore , The designer should abstract the loading and installation of the skin package into a SkinLoaderStrategy Interface , It is convenient for developers to configure on demand more conveniently and flexibly .

Besides , Since the loading behavior itself is most likely a time-consuming operation , Therefore, the scheduling of threads should be controlled , And pass the definition in time SkinLoaderListener Callback , Timely inform the loading progress and results ：

/** *  Skin package loading strategy . */
public interface SkinLoaderStrategy {

    /** *  Load skin package . */
    String loadSkinInBackground(Context context, String skinName, SkinLoaderListener listener);
}

/** *  Skin package loading monitor . */
public interface SkinLoaderListener {

    /** *  Start loading . */
    void onStart();

    /** *  Loading successful . */
    void onSuccess();

    /** *  Loading failed . */
    void onFailed(String errMsg);
}

2、 Further performance savings

In this paper , The author mentioned , Because I have all the Activity References to , So the skin changing library after skin changing , You can try to make all pages View To renew the skin .

actually 「 Update all pages 」 It's usually unnecessary , A more reasonable way is to provide a configurable item , When skin change is successful , By default, only the foreground is refreshed Activity, Other pages are in onResume Update after execution , This can significantly reduce the performance impact of rendering .

Besides , Repeat each skin change View Refreshing the tree is also a time-consuming operation , It can be done by LayoutInflater establish View At the same time as the tree , Will be realized SkinSupportable Of View Exists in a collection to which the page belongs , When a skin change occurs , You only need to target View Just update .

Last , In the above text Activity and View Are held by weak references , To reduce the possibility of memory leakage .

3、 Provide the skin changing ability of picture resources

since color Resources can support skin changes ,drawable Of course, resources should also provide support , In this way, the display of the page can be more diversified , Usually this scenario is applied to the background of the page , For this, readers can refer to Taobao APP Skin changing function and effect ：

resources Key	Day mode	Dark Mode	remarks
skinPrimaryTextColor	#000000	#FFFFFF	Title font color
skinSecondaryTextColor	#CCCCCC	#CCCCCC	Sub title font color
skinMainBgDrawable	A picture	B picture	Main background of the page
skinProgressBarDrawable	C Animation	D Animation	Load box animation
More …

Summary

A summary is not a summary , There's more to expand , such as ：

• 1、Android In the system Resources Class is how to implement the replacement of resources , What has been done in the skin changing library ？
• 2、LayoutInflater The source code clearly states , One LayoutInflater Can only be set once setFactory2(), Otherwise, an exception will be thrown , that , When is the skin changing library carried out Factory2 What about the injection , Why is it designed like this ？
• 3、 How to further expand the functions of the skin changing library according to the needs , For example, provide support for single page without skin change , And provide support for multiple pages using different skin packages ？
• 4、 How to provide more test phases 、 Tools available in the operation and maintenance phase ？
• 5、 As of the time of the author's writing ,2021 Google IO A new proposal was put forward at the conference UI Design concept Material You, take The theme The concept of from APP Up to the entire operating system , Whether it has a new impact on the existing skin changing function ？

There is no end to realization , What developers can do is through continuous multi-directional reflection , Provide products with the possibility to show more value , To go a step further , Complete the phased leap of their own professional ability .
