The mathematical formula

One . Preface

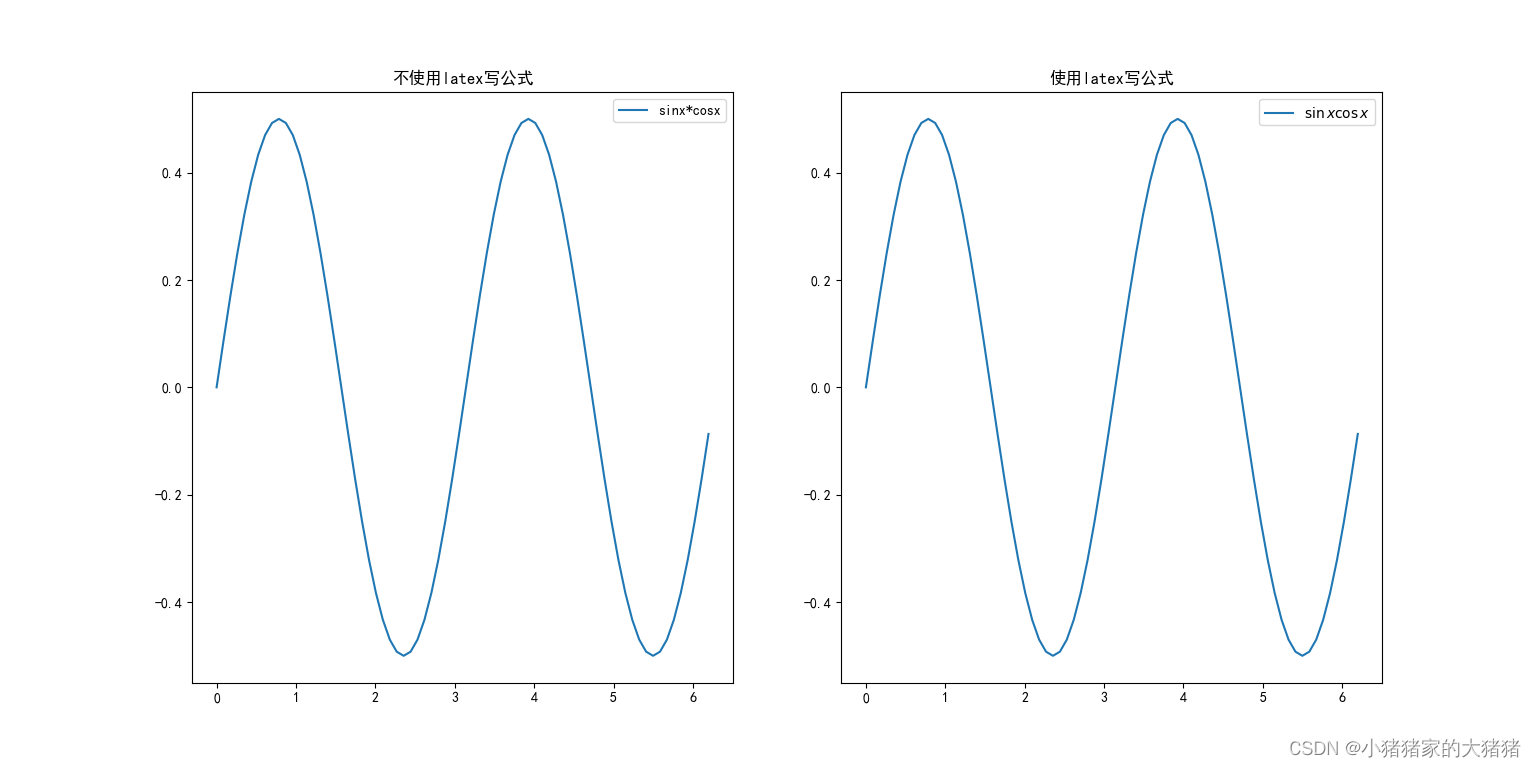

When visualizing , We often encounter the situation of drawing some formulas , These formulas appear in the legend 、 Axis labels and titles , The problem is that if you use ordinary strings to write formulas, the display effect is very poor , The comparison is as follows ：

You can see that the legend on the left is irregular and unsightly , But with the LaTeX The formula shows that the effect has been greatly improved .

Two . Solution

Matplotlib Internal LaTeX Parser and layout engine . So you can use it directly LaTeX Write the formula .

Draw two functions as an example ：

• ${\sum }_1^{n}x+3$
• $\sin x\cos x$

The complete procedure is as follows ：

import matplotlib.pyplot as plt

import numpy as np

plt.rcParams['font.sans-serif'] = ['SimHei']  #  Settings support Chinese
plt.rcParams['axes.unicode_minus'] = False  #  Set up - Number

#  obtain X and Y
n = 15
x_1 = np.arange(1, n+1, 1)
y_1 = np.cumsum(x_1) + 3

x_2 = np.arange(0, 2*np.pi, np.pi/36)
y_2 = np.sin(x_2) * np.cos(x_2)

figure, ax = plt.subplots(1, 2)
#  mapping
ax[0].plot(x_1, y_1, lw=3, color='k', label='$\sum_{1}^{n}x+3}$')
ax[0].set_title('$\sum_{1}^{n}x+3}$ function ', fontsize=20)
ax[0].set_xlabel("X", fontsize=15)
ax[0].set_ylabel('$\sum_{1}^{n}x+3}$ function ', fontsize=15)
ax[0].legend()

ax[1].plot(x_2, y_2, lw=3, color='r', label='$\sin x \cos x$')
ax[1].set_title('$\sin x \cos x$ function ', fontsize=20)
ax[1].set_xlabel("X", fontsize=15)
ax[1].set_ylabel('$\sin x \cos x$ function ', fontsize=15)
ax[1].legend()

plt.show()

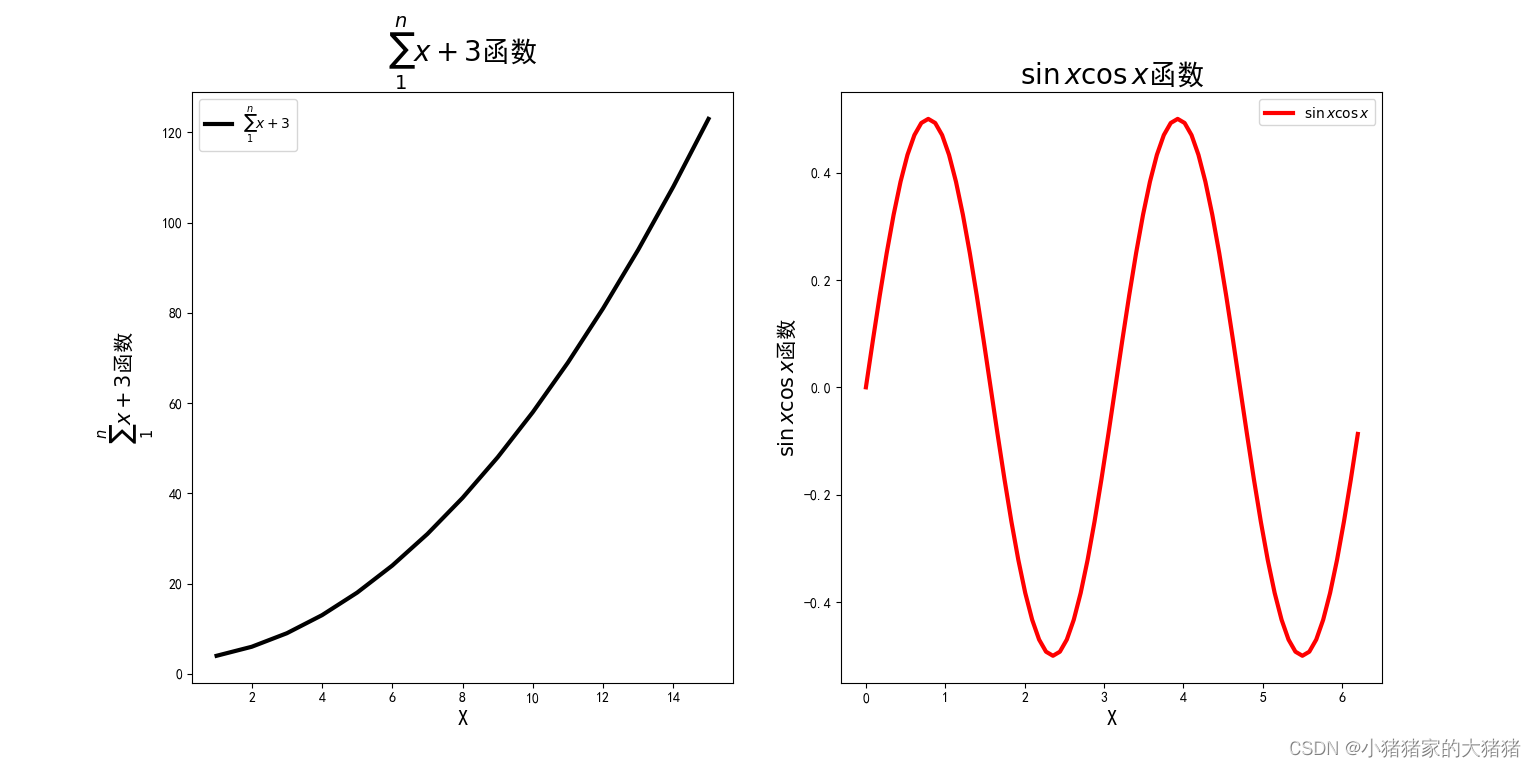

2.1 The legend uses a mathematical formula

2.2 The title uses mathematical formulas

2.3 Axis labels use mathematical formulas
