ROS2—— Teach you to write a topic hand in hand

Introduction of topic

ROS2 The complex robot system is disassembled into many module nodes , These nodes complete the data exchange through a vital channel , This passage is “ topic of conversation ”.

A node can publish data through multiple topics , You can also subscribe to topics published by multiple other nodes at the same time , The topic is a many to many subscription / Publish model .

so , Topic is an important way to realize data transmission between nodes , It is also an important way for robot subsystems to exchange data .

below , We will start with an example , Write a topic program hand in hand

Case description

Let's take a case study :

• There is one KFC And a hungry Customer.
• Customer to KFC10 You can buy a hamburger for yuan , This Customer Hungry fast , Eat a hamburger every second .
• KFC received Customer It's from 10 Yuan , towards Customer Send hamburger , To sell big chicken legs , Every time 5 Post an ad in seconds .

The above case actually realizes a topic , KFC and Customer It's two nodes Node, pay / Send hamburger / Sending an advertisement is the publisher , Collect money / Receive hamburgers / Receiving advertisements is the subscriber .

Program realization

Let's write this program

New workspace

mkdir -p ros2_ws/src
cd ros2_ws/src

mkdir -p: Create directory recursively , Even if the parent directory does not exist , The directory is automatically created at the directory level

New function pack

ros2 pkg create customer_and_kfc --build-type ament_cmake --dependencies rclcpp std_msgs

Use ament_cmake As a compilation type , And use dependencies rclcpp and std_msgs

stay ros2_ws/src/customer_and_kfc/src Create KFC.cpp and Customer.cpp

To write KFC node

Directly contribute the program , Every sentence has a comment , I don't understand. You hit me

// rclcpp library
#include "rclcpp/rclcpp.hpp"
//  Basic message type library
#include "std_msgs/msg/string.hpp"
#include "std_msgs/msg/u_int32.hpp"

//  In this way, you can use 1000ms This way of expression
using namespace std::chrono_literals;

//  Place holder , I'll talk about it in detail
using std::placeholders::_1;

//  Create a class node , Call it KFCNode, Inherited from Node, So you can use Node All the functions
class KFCNode : public rclcpp::Node
{

public:
    //  Constructors , The first parameter is the node name ,  And initialization count by 1
    KFCNode(std::string name) : Node(name), count(1)
    {

        //  Print KFC The introduction of
      	// c_str() The function is string A function of class , The effect is to turn string Type into char type (%s A string is required )
        RCLCPP_INFO(this->get_logger(), " Hello everyone ,  I am a %s My waiter .",name.c_str());

        //  Create publisher ,  Release hamburger,  The type of message published is <std_msgs::msg::String>
      	//  Format :  Publisher name  = this->create_publisher< Type of topic to post >(" The name of the topic to be posted ",  signal communication Qos);
        pub_hamburger = this->create_publisher<std_msgs::msg::String>("hamburger", 10);

        //  Create publisher ,  Release advertisement
        pub_advertisement = this->create_publisher<std_msgs::msg::String>("advertisement", 10);

        //  Create timer , Every time 5000ms Publish an advertisement
      	//  Format :  The name of the timer  = his->create_wall_timer(1000ms, std::bind(& Timer callback function , this));
        advertisement_timer = this->create_wall_timer(5000ms, std::bind(&KFCNode::advertisement_timer_callback, this));

        //  Create subscribers , subscribe money
      	//  Format :  Subscriber name  = this->create_subscription< Type of topic to subscribe to >(" Name of topic to subscribe to ",  signal communication Qos, std::bind(& Subscriber callback function , this, _1));
      	// std::bind() What's it for ?  for instance :
      	// auto f = std::bind(fun, placeholders::_2, placeholders::_1, 80);
      	// f(60,70)  Equivalent to  fun(70, 60, 80)
      	//  Remember the placeholder mentioned earlier ,placeholders::_1  Namely f(60,70)  The parameter in "1"
        sub_money = this->create_subscription<std_msgs::msg::UInt32>("money_of_hamburger", 10, std::bind(&KFCNode::money_callback, this, _1));
    }
private:
    //  Define a hamburger sale counter
  	//  stay 32 Bit system size_t yes 4 Bytes of , stay 64 Bit system ,size_t yes 8 Bytes of , In this way, using this type can increase the portability of the program .
    size_t count;

    //  Declare a timer
    rclcpp::TimerBase::SharedPtr advertisement_timer;

    //  Declare a publisher , Used to publish hamburger
    rclcpp::Publisher<std_msgs::msg::String>::SharedPtr pub_hamburger;

    //  Declare a subscriber , Used to collect money
    rclcpp::Subscription<std_msgs::msg::UInt32>::SharedPtr sub_money;

    //  Declare a publisher , For advertising
    rclcpp::Publisher<std_msgs::msg::String>::SharedPtr pub_advertisement;

    //  Ad timer callback function ( No parameter )
    void advertisement_timer_callback()
    {

      	//  Define a String String of type ,  Where the string exists .data in , %s Don't forget to use .c_str() Convert to char type .
        auto str_advertisement = std_msgs::msg::String();
        str_advertisement.data = " The price of big chicken leg is reduced ";
        RCLCPP_INFO(this->get_logger(), "KFC Published an advertisement :%s", str_advertisement.data.c_str());
        pub_advertisement->publish(str_advertisement);
    }

    //  Payback subscriber callback function ( With parameters ,  The parameter type is the same as the parameter type subscribed by the subscriber above ,  Be careful to add ::SharedPtr,  Because what comes in is a pointer )
    void money_callback(const std_msgs::msg::UInt32::SharedPtr msg)
    {

        //  If you receive ten yuan , Just released hamburger .  The subscription information is in msg->data in
        if(msg->data == 10)
        {

            RCLCPP_INFO(this->get_logger(), " collection  %d  element ", msg->data);

            //  Character stream
            auto str_hamburger_num = std_msgs::msg::String();
            str_hamburger_num.data = " The first " + std::to_string(count++) + " A hamburger ";
            RCLCPP_INFO(this->get_logger(), " This is what I sold %s", str_hamburger_num.data.c_str());

            //  Publish character stream
          	//  That's what the release says  " Publisher ->publish( To publish );",  Easy
            pub_hamburger->publish(str_hamburger_num);
        }

    }
};

int main(int argc, char **argv)
{

    //  initialization rclcpp
    rclcpp::init(argc, argv);
    //  Produce a KFC The node of
    auto node = std::make_shared<KFCNode>("KFC");
  	// spin function :  Once entered spin function , It's like it's looping in its own function . As long as the callback function queue has callback Function in , It will immediately execute callback function . If not , It will block , Will not occupy CPU. Be careful not to spin Put something else in the back ,  They won't do it
    rclcpp::spin(node);
  	//  Detect exit signal (ctrl+c)
    rclcpp::shutdown();
    return 0;
}

To write Customer node

The same statement of this program as above will not be explained , Please make your own analogy

#include "rclcpp/rclcpp.hpp"
#include "std_msgs/msg/string.hpp"
#include "std_msgs/msg/u_int32.hpp"

//  So you can use 1000ms This way of expression
using namespace std::chrono_literals;

// Place holder
using std::placeholders::_1;
using std::placeholders::_2;

//  Create a class node , The name is called CustomerNode, Inherited from Node.
class CustomerNode : public rclcpp::Node
{

public:
    //  Constructors , The first parameter is the node name
    CustomerNode(std::string name) : Node(name)
    {

        //  Print Customer The introduction of
        RCLCPP_INFO(this->get_logger(), " Hello everyone , I am a %s.",name.c_str());

        //  Create subscribers , subscribe hamburger
        //  Remember ?  Review the ,  Here _1  Express const std_msgs::msg::String::SharedPtr msg
        sub_hamburger = this->create_subscription<std_msgs::msg::String>("hamburger", 10, std::bind(&CustomerNode::hamburger_callback, this, _1));

        //  Create subscribers , subscribe advertisement
        sub_advertisement = this->create_subscription<std_msgs::msg::String>("advertisement", 10, std::bind(&CustomerNode::advertisement_callback, this, _1));

        //  Create timer , Every time 1000ms Hungry once
        hungry_timer = this->create_wall_timer(1000ms, std::bind(&CustomerNode::hungry_timer_callback, this));

        //  Create publisher , Release money
        pub_money = this->create_publisher<std_msgs::msg::UInt32>("money_of_hamburger", 10);

        //  to money assignment
        money.data = 10;

        // Give money for the first time
        pub_money->publish(money);
        RCLCPP_INFO(this->get_logger(), " i am hungry ,  I'll have a hamburger !  payment  %d  element ", money.data);

    }
private:
    //  Create a new money
    std_msgs::msg::UInt32 money;

    //  Declare a timer
    rclcpp::TimerBase::SharedPtr hungry_timer;

    //  Declare a subscriber , Used to subscribe to outgoing messages
    rclcpp::Subscription<std_msgs::msg::String>::SharedPtr sub_hamburger;

    //  Declare a publisher , For giving KFC money
    rclcpp::Publisher<std_msgs::msg::UInt32>::SharedPtr pub_money;

    //  Declare a subscriber , For subscribing to advertisements
    rclcpp::Subscription<std_msgs::msg::String>::SharedPtr sub_advertisement;

    //  Hamburg subscriber callback function
    void hamburger_callback(const std_msgs::msg::String::SharedPtr msg)
    {

        RCLCPP_INFO(this->get_logger(), " This is what I eat  %s ", msg->data.c_str());
    }

    //  Hunger timer callback function
    void hungry_timer_callback()
    {

        RCLCPP_INFO(this->get_logger(), " I'm hungry again. ,  I want another one !  payment  %d  element ", money.data);
        pub_money->publish(money);
    }

    //  Ad subscriber callback function
    void advertisement_callback(const std_msgs::msg::String::SharedPtr msg)
    {

        RCLCPP_INFO(this->get_logger(), " I got an ad : %s ", msg->data.c_str());
    }
};

int main(int argc, char **argv)
{

    // initialization rclcpp
    rclcpp::init(argc, argv);
    // Produce a Customer The node of
    auto node = std::make_shared<CustomerNode>("Customer");
    // Operation node , And detect the exit signal
    rclcpp::spin(node);
    rclcpp::shutdown();
    return 0;
}

Cmakelist.txt

If... Is not added when creating a new function package --dependencies rclcpp std_msgs Other function packages , You need to manually add : ( It can be anywhere )

find_package(rclcpp REQUIRED)
find_package(std_msgs REQUIRED)

The following two pairs of code are :

add_executable() Let the compiler compile Customer.cpp and KFC.cpp These two documents . And generate executable Customer_node and KFC_node

ament_target_dependencies Add compiled dependencies

add_executable(Customer_node src/Customer.cpp)
ament_target_dependencies(Customer_node rclcpp std_msgs)

add_executable(KFC_node src/KFC.cpp)
ament_target_dependencies(KFC_node rclcpp std_msgs)

Install the compiled file into install/customer_and_kfc/lib/customer_and_kfc Next

install(TARGETS
  Customer_node
  KFC_node
  DESTINATION lib/${PROJECT_NAME}
)

package.xml

similarly , When you create a new function package, you don't add --dependencies rclcpp std_msgs Other function packages , You need to manually add , Placed in <package> Under the label

<depend>rclcpp</depend>
<depend>std_msgs</depend>

You can also modify the following statements , It has nothing to do with the implementation function , But it's best to write it all

<version>0.0.0</version>
<description>TODO: Package description</description>
<maintainer email="[email protected]">fanziqi</maintainer>
<license>TODO: License declaration</license>

compile

--packages-select Specify compile customer_and_kfc Function pack

colcon build --packages-select customer_and_kfc

Refresh the environment

echo "source /ros2_ws/install/setup.zsh" >> ~/.bashrc
source ~/.bashrc

function

Create a new terminal window , function Customer node

ros2 run customer_and_kfc Customer_node

Create another terminal , function KFC node

ros2 run customer_and_kfc KFC_node

You should be able to see :

Customer End :

KFC End :

verified , All requirements are realized ~

Related tools

rqt_graph

Use rqt_graph This tool can visually display the connection between nodes and topics

Another terminal , Input

rqt_graph

The picture above clearly shows ROS Calculate the network form of the graph , You can clearly see what the input and output of a node are .

ros2 topic

View all topics in the system

ros2 topic list

I want to check the data type transmitted by each topic , Then add -t

ros2 topic list -t

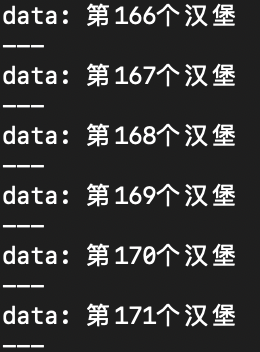

Output real-time topic content

ros2 topic echo /hamburger

View topic information

ros2 topic info /hamburger

View the data type of the topic

To successfully establish data transmission between nodes , You must publish and subscribe to messages of the same data type , The publisher issues speed instructions , Subscribers want to subscribe to location information, but it doesn't work .

Used above ros2 topic list -t Check to see , /advertisement The type of std_msgs/msg/String

View the specific data structure of this data type through the following instructions

ros2 interface show std_msgs/msg/String

You can see , std_msgs/msg/String It contains string data

Post a topic message

ros2 topic pub /test_topic std_msgs/msg/String 'data: "123"'

Check the release frequency of a topic

ros2 topic hz /hamburger
