Rights management

IoTDB It provides users with permission management operations , So as to provide users with permission management function for data , Secure data .

Basic concepts

user

The user is the legal user of the database . A user corresponds to a unique user name , And have a password as a means of Authentication . Before a person uses a database , Legal must be provided first （ That is... Stored in the database ） User name and password , Make yourself a user .

jurisdiction

The database provides a variety of operations , Not all users can perform all operations . If a user can perform an operation , It is said that the user has the permission to perform the operation . Authority can be divided into data management authority （ Such as adding, deleting, modifying and checking the data ） And rights management （ user 、 Creation and deletion of roles , Granting and revocation of authority, etc ）. Data management authority often needs a path to limit its effective scope , Its effective range is a subtree rooted at the node corresponding to the path .

role

A role is a collection of permissions , And have a unique role name as the identifier . Users usually correspond to a real identity （ For example, traffic controllers ）, A real identity may correspond to multiple users . These users with the same real identity often have the same permissions . Role is an abstraction that can uniformly manage such permissions .

Default users and their roles

After initial installation IoTDB There is a default user in ：root, The default password is root.

This user is an administrator user , Fixed has all permissions , Cannot be endowed with 、 Revoke authority , Can't be deleted .

Example of permission Operation

According to the Sample data content ,IoTDB The sample data may also belong to ln, sgcc Different power generation groups , Different power generation groups do not want other power generation groups to obtain their own database data , Therefore, we need to isolate different data at the group level .

Create user

Use CREATE USER <userName> <password> Create user .

We can ln and sgcc The group creates two user roles , be known as ln_write_user, sgcc_write_user, All passwords are write_pwd.SQL Statement for ：

CREATE USER ln_write_user 'write_pwd'
CREATE USER sgcc_write_user 'write_pwd'

In this case, the user's SQL sentence ：

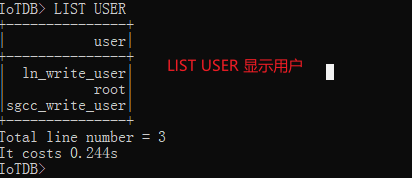

LIST USER

We can see that these two users have been created , give the result as follows ：

IoTDB> LIST USER
+---------------+
|           user|
+---------------+
|  ln_write_user|
|           root|
|sgcc_write_user|
+---------------+
Total line number = 3
It costs 0.244s

Give users permission

here , Although two users have created , But they don't have any authority , Therefore, they cannot operate on the database , For example, we use ln_write_user The user writes the data in the database ,SQL Statement for ：

First , To the user ln_write_user Sign in iotdb-cli：

./start-cli.bat -h 127.0.0.1 -p 6667 -u ln_write_user -pw write_pwd

Then write ：

INSERT INTO root.ln.wf01.wt01(timestamp,status) values(1509465600000,true)

here , The system does not allow the user to perform this operation , It will give you an error ：

IoTDB> INSERT INTO root.ln.wf01.wt01(timestamp,status) values(1509465600000,true)
Msg: 602: No permissions for this operation INSERT

Now? , We respectively grant them write permission to the corresponding storage group data , And try to write data to the corresponding storage group again .

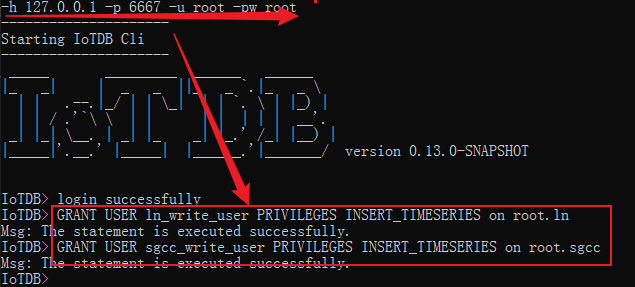

We GRANT USER <userName> PRIVILEGES <privileges> ON <nodeName> Statement gives the user permission ( Be careful ： Use the default user for empowerment ), for example ：

GRANT USER ln_write_user PRIVILEGES INSERT_TIMESERIES on root.ln
GRANT USER sgcc_write_user PRIVILEGES INSERT_TIMESERIES on root.sgcc

INSERT INTO root.ln.wf01.wt01(timestamp, status) values(1509465600000, true)

The execution status is as follows ：

Revoke user privileges

After granting user rights , We can use REVOKE USER <userName> PRIVILEGES <privileges> ON <nodeName> To revoke the granted user rights . for example ：

REVOKE USER ln_write_user PRIVILEGES INSERT_TIMESERIES on root.ln
REVOKE USER sgcc_write_user PRIVILEGES INSERT_TIMESERIES on root.sgcc

INSERT INTO root.ln.wf01.wt01(timestamp, status) values(1509465600000, true)

The execution status is as follows ：

The execution status is as follows ：

SQL sentence

Permission related statements include ：

Create user

CREATE USER <userName> <password>;
Eg: IoTDB > CREATE USER thulab 'passwd';

Delete user

DROP USER <userName>;
Eg: IoTDB > DROP USER xiaoming;

Create the role

CREATE ROLE <roleName>;
Eg: IoTDB > CREATE ROLE admin;

Delete the role

DROP ROLE <roleName>;
Eg: IoTDB > DROP ROLE admin;

Give users permission

GRANT USER <userName> PRIVILEGES <privileges> ON <nodeName>;
Eg: IoTDB > GRANT USER tempuser PRIVILEGES DELETE_TIMESERIES on root.ln;

Give role permissions

GRANT ROLE <roleName> PRIVILEGES <privileges> ON <nodeName>;
Eg: IoTDB > GRANT ROLE temprole PRIVILEGES DELETE_TIMESERIES ON root.ln;

Revoke user privileges

REVOKE USER <userName> PRIVILEGES <privileges> ON <nodeName>;
Eg: IoTDB > REVOKE USER tempuser PRIVILEGES DELETE_TIMESERIES on root.ln;

Revoke role permissions

REVOKE ROLE <roleName> PRIVILEGES <privileges> ON <nodeName>;
Eg: IoTDB > REVOKE ROLE temprole PRIVILEGES DELETE_TIMESERIES ON root.ln;

Revoke user role

REVOKE <roleName> FROM <userName>;
Eg: IoTDB > REVOKE temprole FROM tempuser;

List users

LIST USER
Eg: IoTDB > LIST USER

List the characters

LIST ROLE
Eg: IoTDB > LIST ROLE

List permissions

LIST PRIVILEGES USER  <username> ON <path>;
Eg: IoTDB > LIST PRIVILEGES USER sgcc_wirte_user ON root.sgcc;

List user permissions

LIST USER PRIVILEGES <username> ;
Eg: IoTDB > LIST USER PRIVILEGES tempuser;

List all roles of the user

LIST ALL ROLE OF USER <username> ;
Eg: IoTDB > LIST ALL ROLE OF USER tempuser;

List role permissions

LIST ROLE PRIVILEGES <roleName>
Eg: IoTDB > LIST ROLE PRIVILEGES actor;

List the permissions of the role on the specific path

LIST PRIVILEGES ROLE <roleName> ON <path>;
Eg: IoTDB > LIST PRIVILEGES ROLE wirte_role ON root.sgcc;

Update the password

ALTER USER <username> SET PASSWORD <password>;
Eg: IoTDB > ALTER USER tempuser SET PASSWORD 'newpwd';

Other instructions

user 、 The relationship between permissions and roles

Roles are sets of permissions , Permissions and roles are attributes of users . That is, a role can have several permissions . A user can have several roles and permissions （ It is called user's own permission ）.

Currently in IoTDB There are no conflicting permissions in , Therefore, the authority a user really has is the union of the user's own authority and the authority of all his roles . That is to determine whether the user can perform an operation , It depends on whether one of the user's own permissions or all permissions of the user's role allows the operation . The user's own permissions and role permissions , The same permissions may exist between the permissions of his multiple roles , But it doesn't have an impact .

It should be noted that ： If a user has certain permissions （ Corresponding operation A）, And one of his characters has the same permissions . Then, if you only revoke the permission from the user, you cannot prohibit the user from performing operations A Purpose , You also need to revoke the corresponding permissions from this role , Or revoke the role from this user . Again , If you revoke permissions only from the above roles , Nor can you prohibit the user from performing operations A.

meanwhile , Changes to the role will be immediately reflected to all users who have the role , For example, adding a certain permission to a role will immediately make all users who have the role have the corresponding permission , Deleting a permission will also cause the corresponding user to lose the permission （ Unless the user has this permission ）.

List of permissions contained in the system

Permission to name	explain
SET_STORAGE_GROUP	Create storage group . Contains permissions to set storage groups . Path related
DELETE_STORAGE_GROUP	Delete storage group . Path related
CREATE_TIMESERIES	Create time series . Path related
INSERT_TIMESERIES	insert data . Path related
READ_TIMESERIES	Query data . Path related
DELETE_TIMESERIES	Delete data or time series . Path related
DELETE_STORAGE_GROUP	Delete storage group . Path related
CREATE_USER	Create user . Path independent
DELETE_USER	Delete user . Path independent
MODIFY_PASSWORD	Change the passwords of all users . Path independent .（ People without this permission can still change their password .)
LIST_USER	List all users , List the permissions of a user , List the roles of a user and the permissions of four operations of the roles of all users . Path independent
GRANT_USER_PRIVILEGE	Give users permission . Path independent
REVOKE_USER_PRIVILEGE	Revoke user privileges . Path independent
GRANT_USER_ROLE	Give users the role of . Path independent
REVOKE_USER_ROLE	Revoke user role . Path independent
CREATE_ROLE	Create the role . Path independent
DELETE_ROLE	Delete the role . Path independent
LIST_ROLE	List all roles , List the permissions of a role , List the permissions of all users with a certain role for three operations . Path independent
GRANT_ROLE_PRIVILEGE	Give role permissions . Path independent
REVOKE_ROLE_PRIVILEGE	Revoke role permissions . Path independent
CREATE_FUNCTION	register UDF. Path independent
DROP_FUNCTION	uninstall UDF. Path independent
CREATE_TRIGGER	Create trigger . Path related
DROP_TRIGGER	Unload trigger . Path related
START_TRIGGER	Start trigger . Path related
STOP_TRIGGER	Stop trigger . Path related
CREATE_CONTINUOUS_QUERY	Create a continuous query . Path independent
DROP_CONTINUOUS_QUERY	Uninstall continuous queries . Path independent

User name restrictions

IoTDB The character length of the specified user name shall not be less than 4, The user name cannot contain spaces .

Password restrictions

IoTDB The character length of the specified password shall not be less than 4, The password cannot contain spaces , The default password is MD5 To encrypt .

Role name limit

IoTDB The character length of the specified role name shall not be less than 4, The role name cannot contain spaces .
