The most easy to understand service container and scope of dependency injection

Recommended attention 「 Code Xia Jianghu 」 Add Star standard , Never forget the Jianghu Affairs

This article is ASP.NET 6 The second in the dependency injection series 3 piece , Click the blue word above to Read the entire series .

In the last article , We discuss the basic usage and lifecycle of dependency injection .

Next , In this article , Let's continue to understand the concepts related to service containers .

Service container

Let's review what a service container is .

In the last article , We mentioned , The service container in the dependency injection system will save , A service instance with a valid life cycle created by the dependency injection system .

「 stay ASP.NET Dependency injection system , Service containers can be divided into root containers and child containers .」

The first container created in the dependency injection system is the root container , And only one root container will exist , Sub containers can have many .

The difference is ：

• 「 The instances saved in the root container are visible to all child containers .」

• 「 The instances saved in the sub container are not visible to each other .」

• 「 Service instances with different lifecycle patterns , Will be stored in different containers .」

The service instance of singleton mode is saved in the root container .

The service instance of the scope pattern is saved in the scope container , A scoped container is a child container .

Because the sub containers are not visible to each other , So the instances saved in the scope schema , Will only survive in this scope .

Service instances in transient mode will not be saved in any container .

Sub container example

Let's look at this example , Demonstrates the differences between three different lifecycle patterns ：

public interface IAccount{ }
public interface IMessage{ }
public interface ITool{ }

public class Base
{
    public Base()
    {
        Console.WriteLine($"Created:{GetType().Name}");
    }

}

public class Account: Base, IAccount {}
public class Message:Base, IMessage {}
public class Tool:Base, ITool {}

public static void Main()
{
    //  Create a service collection
    var serviceCollection = new ServiceCollection()
        .AddTransient<IAccount, Account>()
        .AddScoped<IMessage, Message>()
        .AddSingleton<ITool, Tool>();

    //  establish  ServiceProvider  Object represents the service root container
    var root = serviceCollection.BuildServiceProvider();
    //  Create sub containers 1
    var child1 = root.CreateScope().ServiceProvider;
    //  Create sub containers 2
    var child2 = root.CreateScope().ServiceProvider;

    //  Get sub container 1 Service instance of
    GetService<IAccount>(child1);
    GetService<IMessage>(child1);
    GetService<ITool>(child1);

    Console.WriteLine();

    //  Get sub container 2 Service instance of
    GetService<IAccount>(child2);
    GetService<IMessage>(child2);
    GetService<ITool>(child2);
}

//  To validate the lifecycle , Get twice in a row
public static void GetService<T>(IServiceProvider provider)
{
    provider.GetService<T>();
    provider.GetService<T>();
}

The code to create the container is the same as the example in the previous article , Here we focus on two CreateScope Use of methods ：

var root = serviceCollection.BuildServiceProvider();
var child1 = root.CreateScope().ServiceProvider;
var child2 = root.CreateScope().ServiceProvider;

By using the root container CreateScope Method , You can create ServiceScope object , It represents the scope of the service .

In each scope , There is one. ServiceProvider object , It represents the service container .

We can use the service root container , To create its sub container .

Last , We use two sub containers to get the corresponding service instances ：

//  Get sub container 1 Service instance of
GetService<IAccount>(child1);
GetService<IMessage>(child1);
GetService<ITool>(child1);

Console.WriteLine();

//  Get sub container 2 Service instance of
GetService<IAccount>(child2);
GetService<IMessage>(child2);
GetService<ITool>(child2);

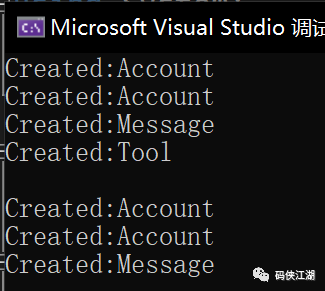

Base Constructor in class , The specific instance created will be printed in the console , Therefore, the running result of this example is as follows ：

Through the results, we can find ：

Account The service life cycle is instantaneous , So when you get the instance of the service twice , Will create a new Account object .

Message The lifecycle of a service is the scope , If you get its service instance in the same sub container , Then only one will be created Message object , And there are two sub containers , So we created two Message object .

Tool The life cycle of a service is a singleton , Service instances in singleton mode , Save only on the root container , And visible to all sub containers . Because the two sub containers have the same root container , So only when you get it for the first time Tool Object will be created .

Service scope

Each newly created service scope ServiceScope Objects have a ServiceProvider object , It represents the service container .

「 The root container can create sub containers , Sub containers can also be created .」

But all sub containers are level , That is, whoever created it , They are all sub containers of the root container , There is no such thing as “ Grandson container ”.

Although the root container and the child container are parent-child , But in fact 「 The child container does not know who its parent container is , They only know who the root container is 」.

In the eyes of the sub container , Only you have no father .

about ASP.NET applications , Service scopes have very clear boundaries , That is, every one of them HTTP Request context for .

in other words , The scope of each request is bound with the scope of the service .

We now know , Containers can be divided into root containers and sub containers .

In fact, root containers and child containers also have different identities , Let's take a look at this picture ：

「 At the top is the root container , Also called application container .」

「 Branches are sub containers , They are all sub containers created and released upon request , Also called request container .」

stay ASP.NET During application initialization , A large number of built-in service instances will be used , These service instances are provided by the application container .

When processing a specific request ,ASP.NET The framework will respond to the current request , Create a service scope object .

The request container in this service scope object , It is used to provide the service instance needed in the current request processing .
