Quartus Prime硬件实验开发(DE2-115板)实验二功能可调综合计时器设计
2022-04-23 13:54:00 【渣渣ye】
实验二功能可调综合计时器设计
- 实验目的
- 掌握QuartusII等实验工具的输入、综合、仿真、下载的使用方法
- 掌握DE2开发版的器件功能特性和使用方法
- 掌握Verilog HDL时序逻辑系统设计的主要方法和技术
- 掌握并应用EDA设计的方法和流程
- 预习要求
- 了解QuartusII等管教分配、下载的方法和流程
- 了解开发板输入、输出显示资源的工作特性
- 了解开发板设计、开发和测试的方法和流程
- 实验要求
设计一个可调的综合计时器。具体功能:
- 显示小时、分、秒,提供置零功能。显示在七段管或LCD屏幕上,可以考虑24/12小时模式切换功能。
- 能够对秒、分、小时进行分别修改,可以两位数整体修改或每位独立修改
- 整点报时功能,整点可以显示一定形式的LED来表示。
- 闹钟功能,设定特定时间,到时间以特定LED显示来显示闹钟。注意闹钟持续时间,也可以参考懒人闹钟模式。
初始操作与实验一几乎类似,详情可参考实验一链接:Quartus Prime硬件实验开发(DE2-115板)实验一CPU指令运算器设计_渣渣ye的博客-CSDN博客
需要注意的是,实验二内,需要替换管脚对应的数值,具体数值表链接如下:
FPGA硬件实验二功能可调综合计时器设计实验设计管脚设置-数据集文档类资源-CSDN下载
主体代码:
module shizhong(clkin,key0,hex0,hex1,hex2,hex3,hex4,hex5,hex6,hex7,KEY0,KEY1,key17,key16,key15,LEDR,LEDG,in,key14,key13,key12);
input clkin;
input key0,key17,key16,key15,key14,key13,key12;
input[6:1] in;
input KEY0,KEY1;
reg clk=0;
output reg[6:0] hex0,hex1,hex2,hex3,hex4,hex5,hex6,hex7;
output reg[7:0] LEDR,LEDG;
reg[7:0] out2,out3,out4,out5,out6,out7;
reg[7:0] second;
reg[7:0] minute;
reg[7:0] hour;
reg[7:0] second1;
reg[7:0] minute1;
reg[7:0] hour1;
integer N=25000000;
integer i=0;
reg[16:0] naozhong=0;
reg[16:0] s=0;
integer a=86400;
always@(posedge clkin) //分频
begin
if(i==N)
begin
i=0;
clk=~clk;
end
else i=i+1;
end
always@(posedge clk)
begin
if(key0) s=0; //置零
else
//计数
begin
//整点报时
if(s%3600==0)
begin
LEDR=8'b11111111;
end
else
begin
LEDR=8'b00000000;
s=(s+1)%a;
end
if(key17&&key16==0&&key15==0) //调整小时
begin
if(KEY0==0)s=(s+3600)%a;
else if(KEY1==0)s=(s-3600)%a;
else s=s%a;
end
else if(key17==0&&key16&&key15==0) //调整分钟
begin
if(KEY0==0)s=(s+60)%a;
else if(KEY1==0)s=(s-60)%a;
else s=s%a;
end
else if(key17==0&&key16==0&&key15) //调整秒
begin
if(KEY0==0)s=(s+1)%a;
else if(KEY1==0)s=(s-1)%a;
else s=s%a;
end
end
end
always@(key17,key16,key15,s)
begin
//闹钟
if(key17==1&&key16==1&&key15==1)
begin
naozhong = 0;
if(key12)naozhong=naozhong+in;
else if(key13)naozhong=naozhong+in*60;
else if(key14)naozhong=naozhong+in*3600;
else naozhong=naozhong;
second1=naozhong%60;
minute1=naozhong/60%60;
hour1=naozhong/3600;
out7=hour1/10;
out6=hour1%10;
out5=minute1/10;
out4=minute1%10;
out3=second1/10;
out2=second1%10;
hex7=seven(out7);
hex6=seven(out6);
hex5=seven(out5);
hex4=seven(out4);
hex3=seven(out3);
hex2=seven(out2);
hex1=7'b1111111;
hex0=7'b1111111;
end
else
begin
second=s%60;minute=s/60%60;hour=s/3600;
out7=hour/10;out6=hour%10;
out5=minute/10;out4=minute%10;
out3=second/10;out2=second%10;
hex7=seven(out7);
hex6=seven(out6);
hex5=seven(out5);
hex4=seven(out4);
hex3=seven(out3);
hex2=seven(out2);
hex1=7'b1111111;
hex0=7'b1111111;
if(s==naozhong)LEDG=8'b11111111;
else LEDG=8'b00000000;
end
end
function[6:0] seven;
input [7:0] din;
case(din)
4'h0:seven=7'b1000000;
4'h1:seven=7'b1111001;
4'h2:seven=7'b0100100;
4'h3:seven=7'b0110000;
4'h4:seven=7'b0011001;
4'h5:seven=7'b0010010;
4'h6:seven=7'b0000010;
4'h7:seven=7'b1111000;
4'h8:seven=7'b0000000;
4'h9:seven=7'b0010000;
default:seven=7'b1111111;
endcase
endfunction
endmodule

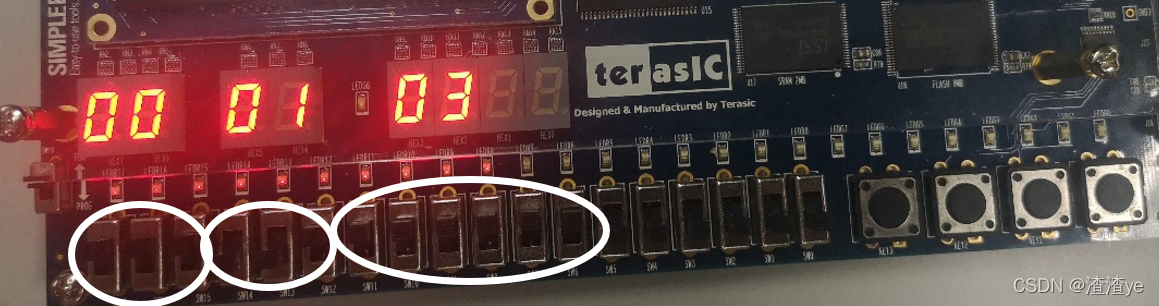

硬件测试:
归零
控制时间
设置闹钟,时间到,绿灯亮
