1. install VMware

Please download and install by yourself VMware 16.2 And above

2. img Mirror rotation vmdk Format

• Download the vmdk A system of formats , Please ignore this step
• Download the img A system of formats , Please download by yourself StarWind V2V Image Converter The tool converts it to vmdk Format , The download link is as follows https://www.starwindsoftware.com/tmplink/starwindconverter.exe

3. establish OpenWrt virtual machine

1. Create a virtual machine

2. Use custom mode

3. Use compatibility mode


4. Install the operating system later

5. choice Linux operating system , The kernel version is determined by the mirrored kernel


6. Name the virtual machine and select the storage location

7. Processor configuration

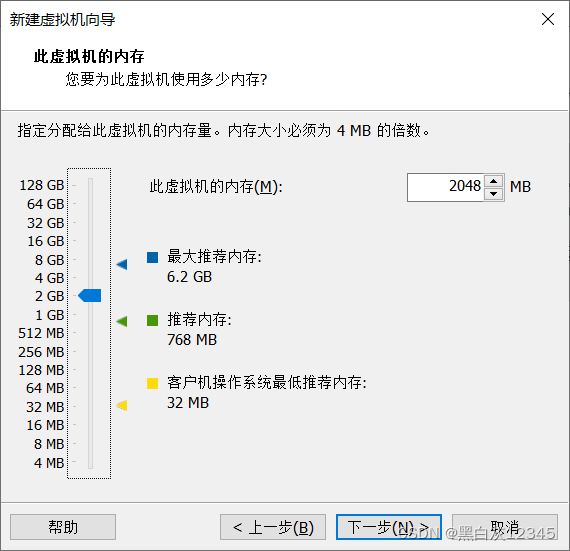

8. Memory configuration Suggest 2G start


9. The network configuration Be sure to select the bridging mode for bypass


10. I/O Set up


11. Disk settings


12. Select an existing disk to create a system , That is, the previously generated vmdk file

13. Leave the existing format unchanged


14. Custom hardware Delete useless hardware devices


4. To configure OpenWrt Soft route

1. Start virtual machine


2. View local network information , Determine the of soft routing IP Address and gateway settings


3. Modify the of soft routing IP Address and gateway

• vi /etc/config/network

• Press down i perhaps insert Key to enter edit mode
• Press down esc Exit edit mode
• Input :wq And then go back ( Save and exit editing )


5. Restart soft routing reboot
6. This machine inputs the soft route in the browser IP The address enters the soft route management interface



5. Problems encountered and solutions

1. Virtual machines can't ping Communication host

The mainframe can ping Through virtual machines
Virtual machines can't ping Communication host

• Method 1： Turn off the host firewall
• Method 2： Modify host firewall inbound rules
  Windows Security Center - Advanced settings - Enable Virtual machine monitoring Inbound rules




2. The virtual machine has no network

Because the campus network is used , Equipment certification may be involved , Virtual machines can't ping Through gateway , Naturally, you can't get out of the station , You can't access the network , It can only be solved by changing the router network .
