FTP、ssh远程访问及控制
2022-04-23 18:57:00 【朱暄的博客】
FTP
什么是FTP
FTP (File TransferProtocol,文件传输协议)是典型的c/s架构的应用层协议,需要由服务端软件、客户端软件两个部分共同实现文件传输功能。FTP客户端和服务器之间的连接是可靠的,面向连接的,为数据的传输提供了可靠的保证。tcp协议: 20
21端口:用于传输指令
20端口:用于传输数据
IFTP是一种文件传输协议,它支持两种模式,一种方式叫做Standard (也就是Active,主动方式),一种是Passive(也就是PASV,被动方式)。Standard模式FTP的客户端发送PORT命令到FTP server。 Passive模式FTP的客户端发送PASVO令到FTP Server
Standard模式
FTP客户端首先和FTP Server的TCP
21端口建立连接,通过这个通道发送命令,客户端需要接收数据的时候在这个通道上发送PORT命令。PORT命令包含了客户端用什么端口接收数据。在传送数据的时候,服务器端通过自己的TCP 20端口发送数据。FTPserver必须和客户端建立一个新的连接用来传送数据。
主动模式:
1)FTP连接请求(用户、密码连接模式命令端口等)
2)FTP服务器响应(ACK),服务器21号端口和客户端(高位端口)FTP会话连接
3)FTP服务器从自己的20号端口连接客户端发送连接请求是主动模式命令提供端口(高位)
4)最后客户端发送ACK确认,开始数据进行传输
Passive模式
在建立控制通道的时候和Standard模式类似,当客户端通过这个通道发送PASV命令的时候,FTP
server打开一个位于1024和5000之间的随机端口并且通知客户端在这个端口上传送数据的请求,然后FTP server将通过这个端口进行数据的传送,这个时候FTP server不再需要建立一个新的和客户端之间的连接。
被动模式:
1)FTP连接请求(用户、密码连接模式命令端口等)
2)FTP服务器响应(ACK)服务器21号端口和客户端(高位)建立FTP会话连接,但是这个响应过程会告诉客户端,服务器开放一个高位端口等你来连接
3)客户端给自己中的一个高位端口连接服务器响应高位端口
4)服务器给客户端一个ACK的响应,接下来就是数据传输过程
FTP作用与工作原理
FTP作用
作用: Internet上用来传送文件的协议。
VSFTP全称 (very secure FTP)
VSFTP模式: c/s模式
FTP服务器默认使用TCP协议的20、21端口与客户端进行通信
20端口用于建立数据连接,并传输文件数据
21端口用于建立控制连接,并传输FTP控制命令
FTP工作原理与流程
FTP数据连接分为两种模式:
主动模式和被动模式
FTP 会话包含了两个通道,控制通道和数据传输通道, FTP的工作有两种模式,一种是主动模式,一种是被动模式,以FTP Server为参照,主动模式,服务器主动连接客户端传输:被动模式,等待客户的连接
主动模式:服务器主动发起数据连接
被动模式:服务器被动等待数据连接
实验:搭建和配置FTP服务
查看是否安装软件包vsftp,没有安装进行yum安装
开启FTP服务
切换服务配置目录,并且备份
修改配置文件进入vim /etc/vsftpd/vsftpd.conf
修改后.(在下一行自己写入数据)
给FTP的根目录下的pub子目录最大权限
重启服务
检测
设置用户模式登录
将allow_writeable_chroot=YES允许被限制的用户主目录具有写的权限
重启服务
创建个用户让其登录
!
黑白名单
userlist_list默认位yes,为黑名单禁用
名单里由zhux所有不可登录了
SSH远程管理
openSSH服务器
SSH (Secure Shell)协议
是一种安全通道协议
对通信数据进行了加密处理,用于远程管理
OpenSSH
服务名称: sshd
服务端主程序: /usr/sbin/sshd
服务端配置文件: /etc/ssh/sshd_config
服务监听选项
端口号、协议版本、监听IP地址
禁用反向解析
[[email protected] -]# vi /etc/ssh/sshd_config
Port 22
ListenAddress 172.16.16.22
Protocol 2
UseDNS no
更改Port 22 为Port 2020 ,常规登录将不可登录 ,需要-p 2020
用户登录控制
禁用root用户、空密码用户
限制登录验证时间、重试次数
AllowUsers, DenyUsers
[[email protected] -]# vi /etc/ssh/sshd_config
LoginGraceTime 2m
PermitRootLogin no
MaxAuthTries 6
PermitEmptyPasswords no
AllowUsers jerry [email protected] AllowUsers不要与DenyUsers同时用
登录验证方式
密码验证:核对用户名、密码是否匹配
密钥对验证:核对客户的私钥、服务端公钥是否匹配
[[email protected] -]# vi /etc/ssh/sshd_config
PasswordAuthentication yes
PubkeyAuthentication yes
AuthorizedKeysFile .ssh/authorized_keys 启用密码验证、密钥对验证、指定公钥库位置
密码验证:
SSH客户端程序
ssh命令——远程安全登录
端口选项:-p 22
命令——远程安全复制
格式1: scp [email protected]:file1 file2
格式2: scp file1 [email protected]:file2
sftp命令——安全FTP上下载
sftp [email protected]
xshell
windows下一款功能非常强大的SSH客户端软件
构建密钥对验证的SSH体系:
在客机创造密钥对 ,上传公钥文件 ,将其导入到服务端用户lisi的公钥数据库 , 最后使用服务端的用户身份进行登录验证。
一创造密钥对
二将公钥文件给予对方用户

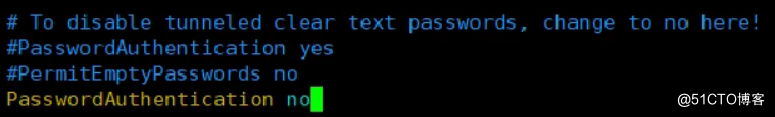

进入vim /etc/ssh/sshd_config
修改原本yes改成no wq报错并推出
systemctl restart sshd 重启服务
注意:两边机器都需更改此配置

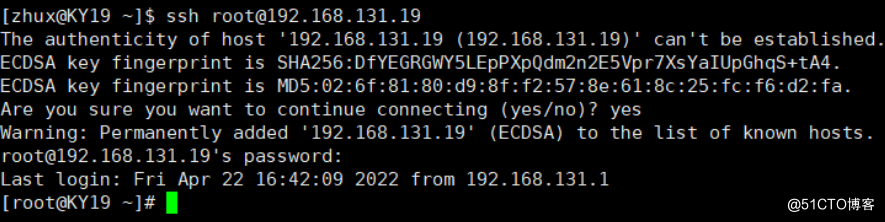

3登录
版权声明
本文为[朱暄的博客]所创,转载请带上原文链接,感谢
https://blog.51cto.com/u_15531598/5248721
