jmeter edition ：jmeter5.1.1
Plug in resources （ You can download it from your official website or get it from the following online disk ）：
link ：https://pan.baidu.com/s/1vBr85BLuhhENrnWrFTDGhg
Extraction code ：ywr4

1、Plugins Manager（ Plug in Manager ）

The easiest way to get a plug-in is to install it Plugins Manager, And then just Jmeter Click the check box in the to install any other plug-ins .

1） download jmeter-plugins-manager-1.3.jar file

Download address ：http://jmeter-plugins.org/downloads/all/

2） Operation method

Will download the .jar Files in jmeter Under the installation path apache-jmeter-5.1.1\lib\ext Folder

3） restart jmeter

After restart ,Options There will be one more option in ：Plugins Manager

2、PerfMon（ Server performance monitoring ）

install Permon Metrics Collector plug-in unit ：

1） stay JMeter The option to Option Can be opened in Plugins Manager, Here's the picture ：

2） stay Available Plugins Tab search “PerfMon”, Check the plug-in to install , Here's the picture ：

3、 install PerfMon Server Agent plug-in unit

JMeterPlugins-Standard and JMeterPlugins-Extras It's client's ,ServerAgent It's on the server side .

1） Client plug-ins

download JMeterPlugins-Standard package 、JMeterPlugins-Extras package （ Download address ：https://jmeter-plugins.org/downloads/old/）;
take JMeterPlugins-Standard-1.4.0.zip in lib\ext In the catalog JmeterPlugins-Standard.jar Files in jmeter Under the installation path apache-jmeter-5.1.1\lib\ext Folder ;
take JMeterPlugins-Extras-1.4.0.zip in lib\ext In the catalog JMeterPlugins-Extras.jar Documents are also put in jmeter Under the installation path apache-jmeter-5.1.1\lib\ext Folder .

2） Server plug-ins

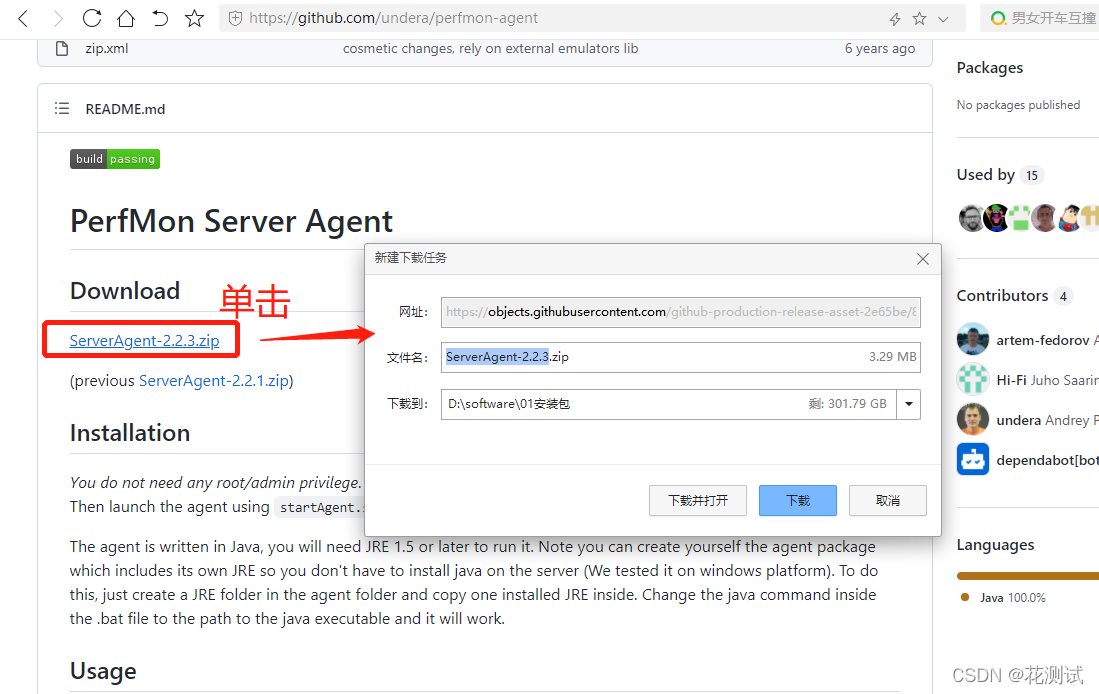

download ServerAgent-2.2.3.zip file （ Download address ：https://github.com/undera/perfmon-agent）

3） Unzip on the server ServerAgent-2.2.3.zip

windows The system starts startAgent.bat;UNIX The system starts startAgent.sh;
Be careful ： If 4444 The interface cannot be accessed directly , You need to change the port number （ Specific operation , We will not elaborate on ）.

4、jmeter Client listening test

1） Add listener

add to --> Monitor --> jp@gc - PerfMon Metrics Collector

2） Configure the data to be monitored

Click on Add Row, One more line will be added , And then click “Metric to collect” Column select the indicator to be monitored ：CPU、Memory、Disks I/O、Network I/O, wait

ps：Host/IP yes ServerAgent-2.2.3 Of the host server IP, The default port is 4444（ If not modified ServerAgent Port number ） No need to modify , After configuration, see the figure below

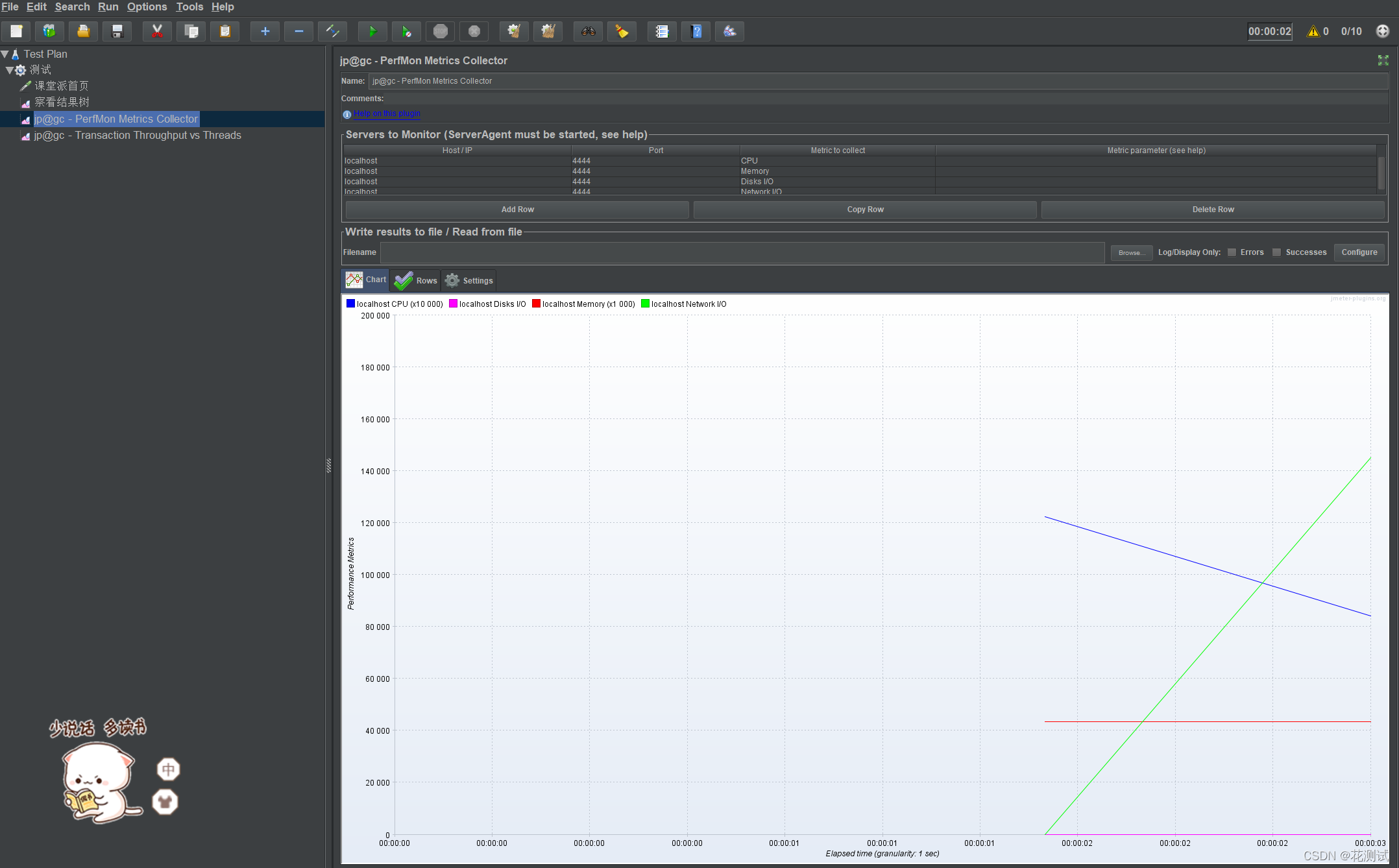

3） View the performance indicators corresponding to the test results

Perform the simplest single interface pressure test , Suppose the number of threads is set to 10, Then start , After that, you can see the corresponding performance indicators .（ Please bring your own interface information ）
Here's the picture ：CPU、Memory、Disks I/O、Network I/O
