Assembly learning Chapter III of assembly language (Third Edition) written by Wang Shuang

The third chapter register

3.1 Storage of words in memory

CPU in , use 16 Bit register to store a word , high 8 Bits hold the high byte , low 8 Bit stores the position byte . When stored in memory , Since the memory unit is a byte unit （ A unit holds a byte ）, Then a word needs two memory units with continuous addresses to store , The low order byte of this word is stored in the low address unit , The high-order byte is stored in the high-order address unit .

（ from 0 The address begins to store 20000）20000 The hexadecimal number of is 4E20H

For this word unit ,0 Unit number is the low address unit 1 Bit high address

Let's understand 2,3 Unit No .0012H（18）, Read the high byte first 00H read 12H

（ in the future , Set the starting address to N Word unit of , For example, a word unit consists of 2、3 If it is composed of two memory units, the starting address of this word unit is 2, We can say this is 2 Address word unit ）

When stored in a memory unit ,

1. A unit holds a byte , A word needs two memory units with consecutive addresses to store
2. Two consecutive memory cells store a font data （16 position ）

• 0 Byte data stored in an address unit ：20H
• 0 Font data stored in address word unit ：4E20H
• 2 Byte data stored in an address unit ：12H
• 2 Font data stored in address word unit ：0012H

3.2 DS and [address]

CPU To read and write to a memory unit , The address of this memory unit must be given first , stay 8086PC in , Memory address consists of segment address and offset address .

Read 10000H unit （1000:0） The content of

mov bx,1000H  // take 10000H（1000：0） The data in read bx in .

mov ds,bx   //ds To be an assignment bx

mov al,[0]   //[...] Represents a memory unit , among 0 Represents the offset address of the memory unit

3.3 The transmission of words

We use mov Instruction transfers byte data between register and memory , because 8086CPU yes 16 Bit structure , Yes 16 Data line . stay mov The instructions give 16 Bit register can be used for 16 Bit data transfer .
Let's implement the following figure （ use debug）

3.4mov、add、sub Instructions

We used mov、add、sub Instructions , They all have two operands .
Up to now , We know ,mov Instructions can take the following forms

mov	register , data	such as ：mov ax,8
mov	register , register	such as ：mov ax,bx
mov	register , Memory unit	such as ：mov ax,[0]
mov	Memory unit register	such as ：mov [0],ax
mov	Segment register , register	such as ：mov ds,sx

Here are two examples
（1） So let's try that “mov Segment register , register ” Usage of . Here's the picture , Get into debug use A command
Use the A The command is at the preset address 0740：0100 It's about , use mov ax,ds After the command is written, use T Command execution .
（2）“mov Memory unit , register ” The demonstration is as follows
take ax assignment 1000, In exchange for ds and ax after
mov [0],cs, Register cs Put the contents of into memory 10000H
When CS：IP Point to 0740:0105,Debug Show command mov [0000],cs Because this is an instruction to access memory , Of Debug In the lower right corner, you need to display the contents of the accessed memory unit . Due to... In the instruction CS It's a 16 Bit register , So to access a word unit , Its offset address is 0, Segment address in ds in , So it shows “DS：0000=0000” We can know that the content of this word unit is 0.
mov [0000],cs After execution CS Data in （0740H） Written 1000:0 It's about ,1000:0 Unit storage 40H,1000:1 Unit storage 7H, Last use D Command display

3.5 Data segment

about 8086PC machine , When programming, you can , Define a set of memory units · For a paragraph . We can make a group of length N（N<=64KB）、 Address continuous 、 The starting address is 16 A memory unit that is a multiple of is used as a memory space dedicated to storing data , This defines a data segment . For example, use 123BOH~123B9H This memory space is used to store data , You can think of this memory as a data segment , Segment address is 123BH, The length is 10 Bytes .
So how do we access the data in the data segment ？ Treat a piece of memory as a data segment , use ds The segment address where the data segment is stored , When accessing specific units of data with relevant instructions as needed .

You can understand it by giving examples directly here

send CS：IP Point to the address of the first instruction in the assembly

t Step by step debugging （… A little ）

mov ax,1
mov ds,ax	AX=DS=0001H	ds:[0000] The physical address of is 0010H( Physical address =0001*16+0000=0010H
mov ax,[0000]	AX=2662H	ax=ds:[0000]=2262H
mov bx,[0001]	BX=E626H	bx=ds:[0001]=E626H
mov ax,bx	AX=E626H	ax=bx=E626H
mov ax,[0000]	AX=2662H	ax=ds:[0000]=2262H
mov bx,[0002]	BX=D6E6	bx=ds:[0002]=D6E6H
add ax,bx	AX=FD48H	ax=ax+bx=2662H+D6E6H=FD48H
add ax,[0004]	AX=2C14H	ax=ax+ds:[0004]=FD48H+2ECC=2C14
mov ax,0	AX=0000H	ax=0000H
mov al,[0002]	AX=00E6H	al=ds:[0002]=E6H,ax=ah+al=00E6H
mov bx,0	BX=0000H	bx=0000H
mov bl,[000C]	BX=0026H	bl=ds:[000C]=26H;bx=bh+bl=0026H
add al,bl	AX=000CH	al=al+bl=E6+26=10CH=0CH,ax=ah+al=000CH

3.6 Stack

We can compare a stack to a box , Stacking is to put a new element at the bottom of the box （ To the top of the stack ）, Take out the top element of the stack . This rule is also called LIFO（ Last in, first out ）

3.7 CPU Stack mechanism provided

8086CPU Provides stack in and out instructions , The basic two are PUSH（ Push ） and POP（ Out of the stack ）.
push ax Indicates that register ax Data in the stack
pop ax It means to take data from the top of the stack and send it to ax
8086CPU In and out of the stack are carried out in word units

It's going on push and pop Command, we need to know the position of the top of the stack , So all we know now is CS、IP Is the segment address and offset address . So in 8086CPU There are two registers in the ,SS and SP, The segment address at the top of the stack is stored in SS in , The offset address is stored in SP in ,SS：SP Point to the top element of the stack .

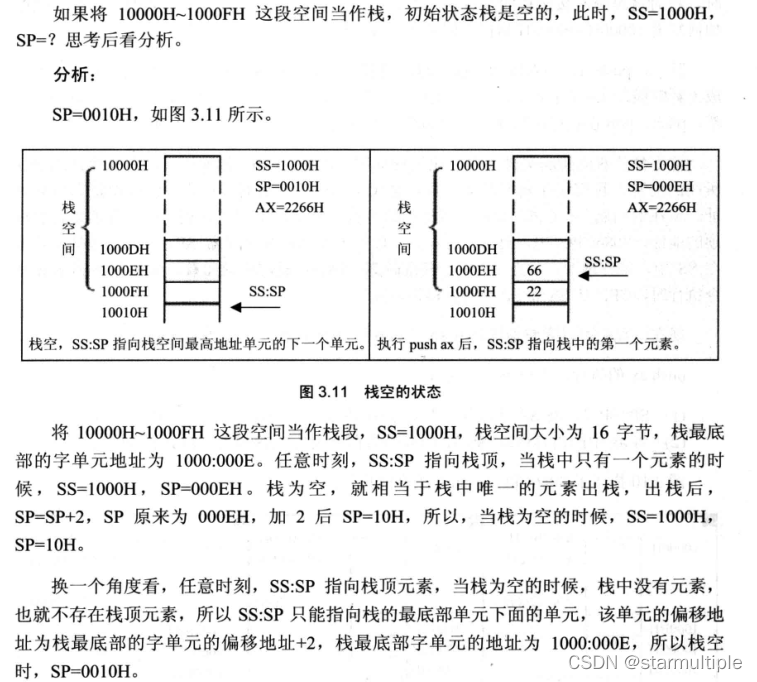

• The stack is empty

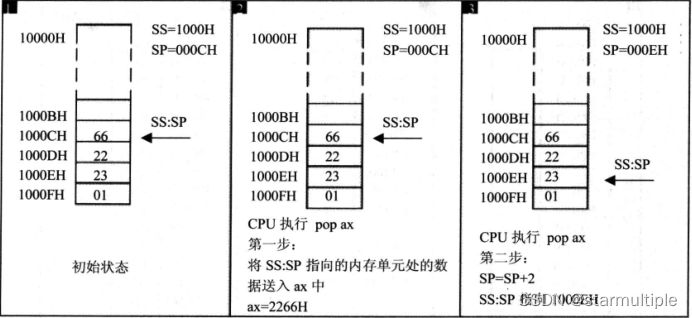

• pop Command function
  for example pop ax
  pop ax The implementation process and push ax Just the opposite
  （1） take SS：SP The data at the memory unit pointed to is sent to ax in
  （2）SP=SP+2,SS：SP The cell pointing below the current stack top is the new stack top

  After leaving the stack SS：SP Point to the new top of the stack 1000EH,pop Top of stack elements before operation ,1000CH Situated 2266H Ren existential , But it's no longer on the stack , If executed again push After the stack instruction ,SS：SP transplant 1000CH, And write new data in it .

3.8 The problem of stack top out of bounds

perform push The back stack top exceeds the stack space
perform pop follow-up

3.9 push、pop Instructions

push register ; Stack data in a register
pop register ; Out of the stack , Use a register to receive data from the stack

push and pop Data can also be transferred between memory units and memory units

push Memory unit ; Put the word at a memory unit on the stack
pop Memory unit ; Out of the stack , Use a memory word unit to receive the stack data
such as
mov ax,1000H
mov ds,ax ; The segment address of the memory unit should be placed in ds in
push [0] ; take 1000:0 The word at is pushed into the stack
pop [2]; Out of the stack , The data out of the stack is sent into 1000:2 It's about

For example
（1） take 10000H~1000FH This space is used as a stack , The initial state stack is empty ;
（2） Set up AX=001AH,BX=001BH
(3) Utilization stack , In exchange for AX and BX Data in

3.10 Stack segment

We can take the length of N（N<=64KB） A set of addresses in succession , The starting address is 16 Multiple of memory units , Use it as stack space . such as , We will 10010H~1001FH This length is 16 Bytes of memory space is used as a stack , Access as a stack . This space can be called a stack segment , Segment address is 1001H, The size is 16 byte .
We treat memory as a stack segment , It's just an arrangement when we're programming ,CPU The stack segment we define will not be automatically accessed as stack space .
If you will 10000H~1FFFFH This space is treated as a stack segment , The initial state stack is empty , here ,SS=1000H,SP=0
( We put 10000H~1FFFFH This space is treated as a stack segment ,SS=1000H, Stack space is 64KB, The address of the word unit at the bottom of the stack is 1000：FFFF.SS：PP Point to the top of the stack , There is only one element in the stack ,SS=1000H,SP=FFFEH. The stack is empty. , It's like going out of the stack , After leaving the stack SP=SP+2, be FFFE+2=0
therefore sp Final =0)
