arcengine 这个集合中找不到此项目
2022-04-22 14:22:00 【ShirmyMao】
arcengine 这个集合中找不到此项目
近期在ArcEngine开发过程中碰到很多“这个集合中找不到此项目”的错误,每次引发的原因都不一样,解决方案也有所不同,特做以下整理,若之后遇到其它情况和解决方案,将会不定时更新
1.Feature.Shape 几何赋值报错
原因:
- 可能是一个有z值一个没有z值引起的
- 也可能是新几何与图层坐标系不一致导致的,若z值的处理方法解决不了,则考虑坐标转换确保他们坐标系统一
z值问题解决方案如下:
方法1:
- 给几何对象设置z值
public static IGeometryDef GetGeometryDef(IFeatureClass featureClass)
{
var fieldName = featureClass.ShapeFieldName;
var index = featureClass.FindField(fieldName);
return featureClass.Fields.Field[index].GeometryDef;
}
/// <summary>
/// 给几何信息设置z值
/// </summary>
/// <param name="geo"></param>
/// <param name="geometryDef"></param>
public static void SetZ(IGeometryDef geometryDef, ref IGeometry geo)
{
if (geometryDef.HasZ)
{
IZAware zAware = geo as IZAware;
zAware.ZAware = true;
switch (geo.GeometryType)
{
case esriGeometryType.esriGeometryPoint:
IPoint point = geo as IPoint;
point.Z = point.Z is double.NaN ? 0 : point.Z;
geo = point;
break;
case esriGeometryType.esriGeometryMultipoint:
IPointCollection collection = geo as IPointCollection;
for (int i = 0; i < collection.PointCount; i++)
{
var p = collection.Point[i];
p.Z = 0;
collection.UpdatePoint(i, p);
}
geo = collection as IMultipoint;
break;
default:
IZ iz = geo as IZ;
if (iz != null)
iz.SetConstantZ(0);
break;
}
}
}
方法2:
- 去除图层的z值
IGeometryDefEdit geoDefEdit = geometryDef as IGeometryDefEdit;
geoDefEdit.HasZ_2 = false;
2.Feature.Store报错
原因:
var cursor=layer.Search(filter,true)

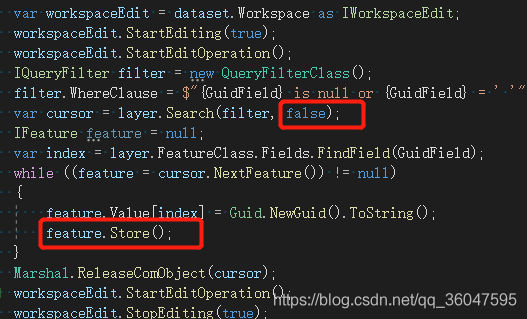

设置了recycling属性为true,若只是查询属性信息,没有问题,但是若是修改要素,由于被自动回收会报集合中找不到此项目的错误,改为false即可,如下所示:

3.layer.FeatureClass.CreateFeature()报该错误
一般这种情况是数据问题,你会发现即使直接在arcmap中创建要素也会报该错误,此时解决方案是图层右键——数据——导出数据,再次编辑你会发现没有该问题了。这可能是数据生产过程有什么bug
