ArcGIS profile analysis

1： Right click in the blank space , Show 3D Analysis toolbar , As shown in the figure .
2： find “ Insert the line ” Tools , Draw a line on the diagram .

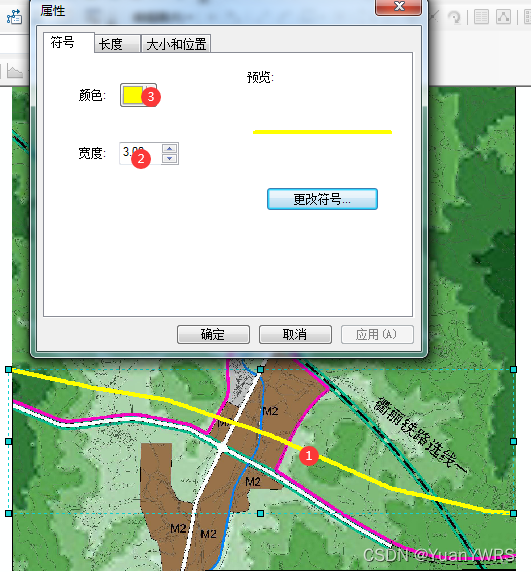

1： Drew the yellow line .
2： You can change the width , That is, thickness .
3： You can also change the color according to your hobby .

Get another line , Set to red , There are two lines in total .

1 and 2： Select these two lines （ Hold down ctrl）.
3： View section view .
4： View section information , among , The vertical axis represents the elevation , The horizontal axis represents the length （ That's distance ）.

1： Right click here , find “ Advanced properties ”, Open it as shown in the picture .
2： Check the information , You can see the detailed data .

You can also copy , Export the data to excel in .

1： Of course , You can also right-click to find the attribute , Make other settings .
2 and 3： modify x,y, Add legend , Change the color , Modify the title, etc .
