2022/4/17 Daily update

new edition vscode For the original configuration , Reverse search failure
Update code .

vscode Configurations that need to be modified or added

    "latex-workshop.view.pdf.viewer": "external",
    "latex-workshop.view.pdf.external.viewer.command": "G:/Code/SumatraPDF/SumatraPDF.exe",  // Pay attention to modifying the path
    "latex-workshop.view.pdf.external.viewer.args": [
        "%PDF%"
    ],
    "latex-workshop.view.pdf.external.synctex.command": "G:/Code/SumatraPDF/SumatraPDF.exe",  // Pay attention to modifying the path
    "latex-workshop.view.pdf.external.synctex.args": [
    "-forward-search",
    "%TEX%",
    "%LINE%",
    "%PDF%",
],

SumatraPDF Set up
Upper left corner of software Set up -> Advanced options
Modify the contents of these two ,
Pay attention to changing your path
Slash 、 quotes 、 Don't type the number of horizontal lines wrong
The code is as follows

InverseSearchCmdLine = "xxxxx\VS code\Microsoft VS Code\Code.exe" "xxxxxxx\VS code\Microsoft VS Code\resources\app\out\cli.js"  --ms-enable-electron-run-as-node -r -g "%f:%l"
EnableTeXEnhancements = true

---

Split line

---

Ah , Study latex, First, build the environment , Of course, Baidu, you will find that most of the first push CTeX suit , After downloading , I feel so ugly and old . So I went to see if there was any useful editor , Recommended many , I used a little familiar with myself 、 A scheme with a better interface ：
System ：Windows 10
Editor ：VScode（ have to ）
plug-in unit ：LaTex Workshop（ have to ）
LaTeX Distribution version ：MiKTeX（ have to ）
PDF reader ：SumatraPDF（ recommend ）

LaTeX The distribution can also use Texlive, I think it's bigger , And it's hard to , Beginners don't need too much stuff , So I choose a small and exquisite compilation package MiKTeX.

although MiKTeX Has its own editor TeXworks, But the interface is a little ugly , Or choose VScode To write , It looks much more comfortable o(￣︶￣)o.

Lightweight PDF reader SumatraPDF, It can be used for forward search and reverse search , It means Click the code to locate the document , Click the document to locate the code .vscode There are also built-in pdf viewer , But you can't search , If you don't use the search function , You don't have to .

download & Install the software

1.VScode

Write your own notes .
VScode Download and install

2.MiKTeX

Go to the official website to download
Windows user
Before installing, it is best to make sure that there are no other typesetting compilers in the computer
if there be CTeX suit , Please remove and install MiKTeX

Double click... After downloading exe Program installation , Choose an individual , Because officials say that individuals are easy to maintain ...
Installation path: , It's better not to have Chinese , Don't use strange characters ( A schoolgirl's folder has an expression .....)
Environment variables will be automatically added after installation , If you're out of luck , It's about to be added manually .
Go and confirm , Um. ~ o(￣▽￣)o I'm lucky , Automatically add .
No auto add found …\miktex\bin\x64\ The installation directory , Add environment variable , Then move to the top .

3. plug-in unit LaTex Workshop

In the expansion store , Search for latex, download LaTex Workshop.

The configuration file

open settings.json file , The steps are shown in the figure :
1. Click on the pinion in the lower left corner
2. Set up
3. Input settings
4. Select... In the left column LTeX
5. Choice in settings.json Editor in chief .
Paste the following code into setting.json In file .
Be careful ：
1. Because I write a Chinese paper, I use xelatex compile , stay latex-worshop.latex.recipes Zhongba xelatex Put it first , If you want to write an English paper, just put latexmk Put it first .
2. take tools Medium %DOC% Replace with %DOCFILE% You can support files under the Chinese path
3. To use pdflatex, Just in tex file First add the following code ：

%!TEX program = pdflatex

Automatically recompile when saving documents by default .
Add the following code to settings.json You can cancel the automatic compilation when saving .

"latex-workshop.latex.autoBuild.run": "never",

settings.json Code ：

{

  "latex-workshop.latex.recipes": [
    {

  "name": "xelatex",
  "tools": [
      "xelatex"
  ]
},
{

  "name": "latexmk",
  "tools": [
      "latexmk"
  ]
},
{

  "name": "xelatex -> bibtex -> xelatex*2",
  "tools": [
      "xelatex",
      "bibtex",
      "xelatex",
      "xelatex"
  ]
}
],
"latex-workshop.latex.tools": [
  {

"name": "xelatex",
"command": "miktex-xelatex",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "%DOC%"
]
}, {

  "name": "latexmk",
"command": "miktex-latexmk",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "-pdf",
  "%DOC%"
]
}, {

"name": "pdflatex",
"command": "miktex-pdflatex",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "%DOC%"
]
}, {

"name": "bibtex",
"command": "miktex-bibtex",
"args": [
  "%DOCFILE%"
]
}
],

// Clear auxiliary files
"latex-workshop.latex.autoClean.run": "onBuilt",
"latex-workshop.latex.clean.fileTypes": [
"*.aux",
"*.bbl",
"*.blg",
"*.idx",
"*.ind",
"*.lof",
"*.lot",
"*.out",
"*.toc",
"*.acn",
"*.acr",
"*.alg",
"*.glg",
"*.glo",
"*.gls",
"*.ist",
"*.fls",
"*.log",
"*.fdb_latexmk",
],
  "latex-workshop.view.pdf.viewer": "tab", // Built in pdf Reader view

"latex-workshop.showContextMenu":true,   // Right-click menu
}

As shown in the figure
here VScode It's already configured .
Can successfully write latex 了 .

test

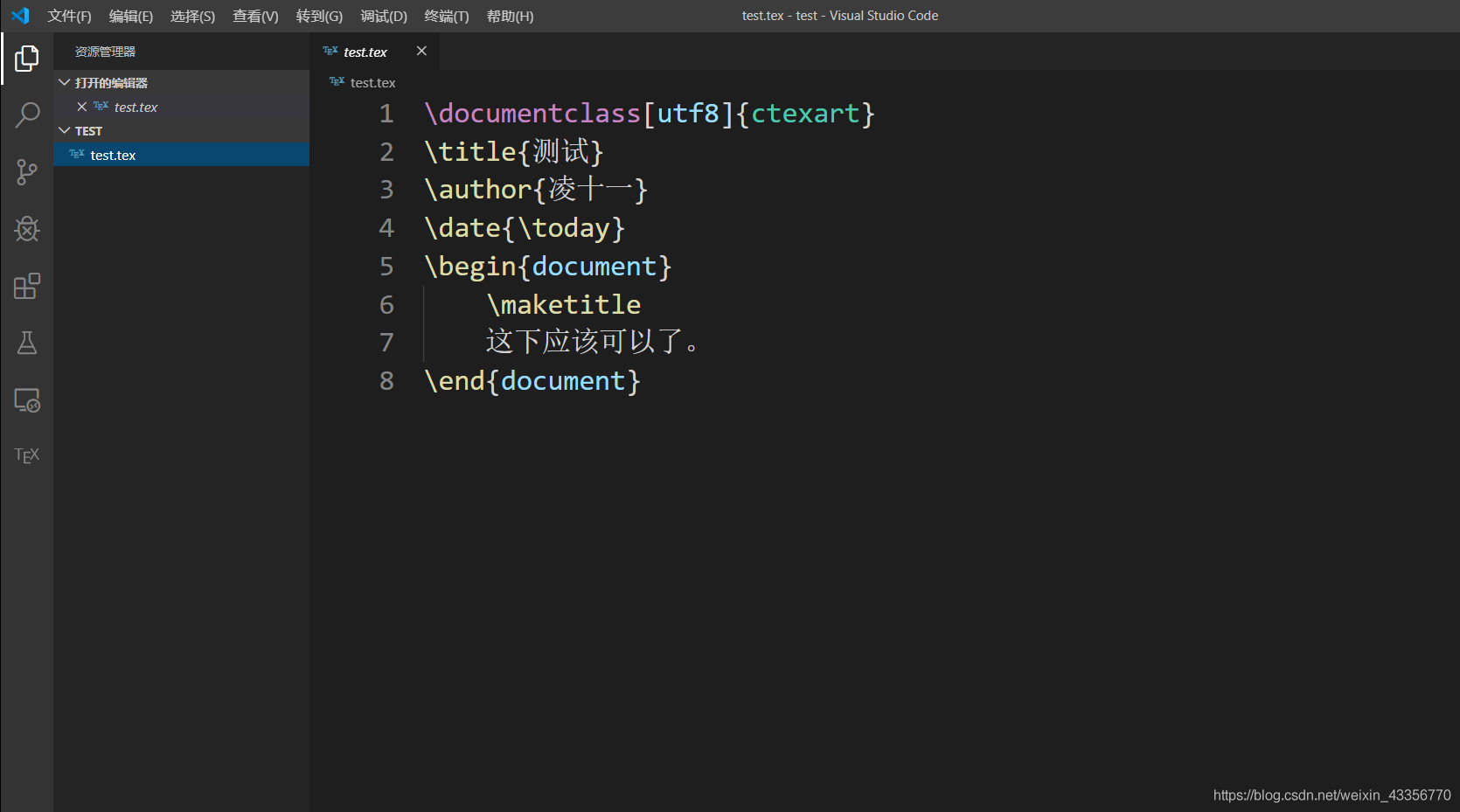

Open an empty folder , Create a new one .tex file , Simply write .
Press Ctrl+Alt+B Compile .
Press again Ctrl+Alt+V To view the . The effect is shown in the figure ：
It's over here . If you use the positioning function , Keep looking down .

SumatraPDF Set up

Download and install SumatraPDF.

** Be careful ： The following is the latest configuration format , Different from the previous . **

Because the format has been updated , It has been configured according to the original scheme for a long time, but it doesn't work , No tears to cry ！！. Baidu has consulted the latest configuration scheme for a long time , It's a success ！

1. Use SumatraPDF see

Use an external reader SumatraPDF see pdf file .
Open this again settings.json file .
latex-workshop.view.pdf.viewer Change it to **“external”**

"latex-workshop.view.pdf.viewer": "external",

Add the following code ,command It's the program SumatraPDF.exe The path of , Modify according to your installation path

"latex-workshop.view.pdf.external.viewer.command": "H:/software/SumatraPDF\\SumatraPDF.exe",
  "latex-workshop.view.pdf.external.viewer.args": [
    "%PDF%"
  ],

2. Configure forward search

Add the following code to the configuration file ：
The third to last line , Added code.exe It's you vscode The path of , also cli.js Documents are also Microsoft VS Code\resources\app\out\ Documents in , Please modify according to your installation path .
Be careful ： The path uses backslashes / Or double slashes \\.

"latex-workshop.view.pdf.external.synctex.command": "H:/software/SumatraPDF\\SumatraPDF.exe",
  "latex-workshop.view.pdf.external.synctex.args": [
      "-forward-search",
    "%TEX%",
    "%LINE%",
    "-reuse-instance",
    "-inverse-search",
    "\"G:/Editor/Microsoft VS Code\\Code.exe\" \"G:/Editor/Microsoft VS Code\\resources\\app\\out\\cli.js\" -r -g \"%f:%l\"",
    "%PDF%"
  ],

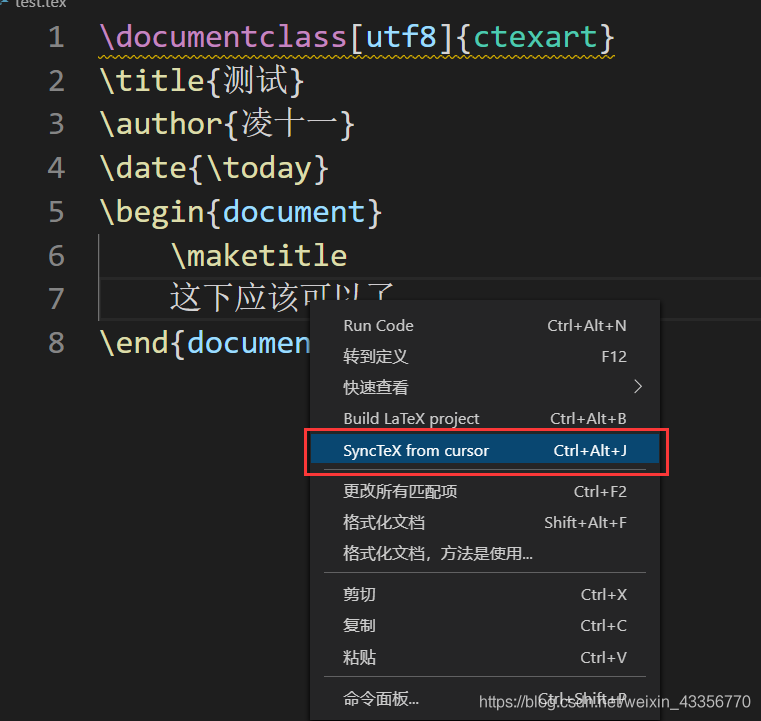

After configuration, you can press ctrl+alt+J Forward search , Or right click SyncTex from cursor. You can navigate to the document

https://pic1.zhimg.com/v2-17c9a491422e57f94429364cae367220_b.webp]

3. Configure reverse search

open SumatraPDF Software ,
Three bars in the upper left corner -> Set up -> Options .

Modify the content here ：
add to \Code.exe and \cli.js , Or the two paths in the previous step , When filling in the path here ** A slash \ ** Just fine , The path is enclosed in double quotes .
Add two parameters -r -g “%f:%l”
–ms-enable-electron-run-as-node
This is my revised ：

"G:\Editor\Microsoft VS Code\Code.exe" "G:\Editor\Microsoft VS Code\resources\app\out\cli.js" -r -g "%f:%l --ms-enable-electron-run-as-node"

stay pdf In the document Double click the content , You can locate the code .
Be careful ：.synctex.gz Do not delete files used for searching and locating .

My final profile ：

{

  "latex-workshop.latex.recipes": [
    {

  "name": "xelatex",
  "tools": [
      "xelatex"
  ]

},
{

  "name": "latexmk",
  "tools": [
      "latexmk"
  ]
},
{

  "name": "xelatex -> bibtex -> xelatex*2",
  "tools": [
      "xelatex",
      "bibtex",
      "xelatex",
      "xelatex"
  ]
}

],
"latex-workshop.latex.tools": [
  {

"name": "xelatex",
"command": "miktex-xelatex",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "%DOC%"
]
}, {

  "name": "latexmk",
"command": "miktex-latexmk",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "-pdf",
  "%DOC%"
]
}, {

"name": "pdflatex",
"command": "miktex-pdflatex",
"args": [
  "-synctex=1",
  "-interaction=nonstopmode",
  "-file-line-error",
  "%DOC%"
]
}, {

"name": "bibtex",
"command": "miktex-bibtex",
"args": [
  "%DOCFILE%"
]
}
],

// Clear auxiliary files
"latex-workshop.latex.autoClean.run": "onBuilt",
"latex-workshop.latex.clean.fileTypes": [
"*.aux",
"*.bbl",
"*.blg",
"*.idx",
"*.ind",
"*.lof",
"*.lot",
"*.out",
"*.toc",
"*.acn",
"*.acr",
"*.alg",
"*.glg",
"*.glo",
"*.gls",
"*.ist",
"*.fls",
"*.log",
"*.fdb_latexmk",
],
  "latex-workshop.view.pdf.viewer": "external",

  "latex-workshop.view.pdf.external.viewer.command": "H:/software/SumatraPDF\\SumatraPDF.exe",
  "latex-workshop.view.pdf.external.viewer.args": [
    "%PDF%"
  ],
  "latex-workshop.view.pdf.external.synctex.command": "H:/software/SumatraPDF\\SumatraPDF.exe",
  "latex-workshop.view.pdf.external.synctex.args": [
      "-forward-search",
    "%TEX%",
    "%LINE%",
    "-reuse-instance",
    "-inverse-search",
    "\"G:/Editor/Microsoft VS Code\\Code.exe\" \"G:/Editor/Microsoft VS Code\\resources\\app\\out\\cli.js\" -r -g \"%f:%l\"",
    "%PDF%"
  ],

"latex-workshop.showContextMenu":true,   // Right-click menu
}

For a long time , We finally got it , Happy ！！！！
