Cadence process angle simulation, Monte Carlo simulation, PSRR

2022-04-23 08:43:00 【Riching5】

cadence Process angle simulation 、 Monte Carlo simulation 、PSRR

Process angle simulation
Monte Carlo simulation
PSRR
Temperature scanning

Source of learning ：https://www.bilibili.com/video/BV1gX4y1g7JJ?spm_id_from=333.337.search-card.all.click

Process angle simulation

open ADE XL

When you are in ADEL Complete the simulation , And I don't want to lose the setting parameters , It's just launch Open in ADEXL
Insert picture description here

open ADEXL Emulator

Select process angle

Insert picture description here
normal Namely tt process
We'll build a new craft corner

Name it ff

Add model file
Insert picture description here

The default is tt Craft corner

by ff Set the process angle

open ADEXL Model files for
Insert picture description here
Select... Against this model file , Different processes may vary , Turn the left NOM Your choice is fast, Hook up -apply-ok

Select process angle simulation ,run
plot

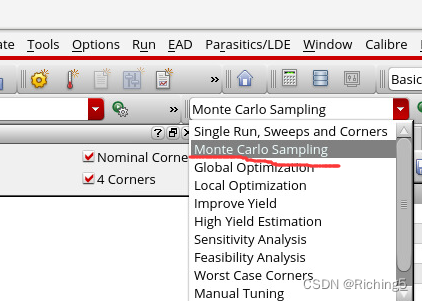

Monte Carlo simulation

The source of the picture is Liu Zhipeng

Insert picture description here
When setting, select the changing parameters and simulation points as needed , Check save data to allow family plots

then run

PSRR

Insert picture description here
Input and... Respectively VDD add to 1V Of AC（ Scan with parameters ）, Conduct AC Simulation , Get the gain from input to output and the gain from power supply to output .

Send the two curves to the calculator for difference

plot
