Latex paper typesetting operation
2022-04-23 08:42:00 【Every door must work hard】
One 、LaTeX Environment installation and configuration
latex The suffix of the file is .tex

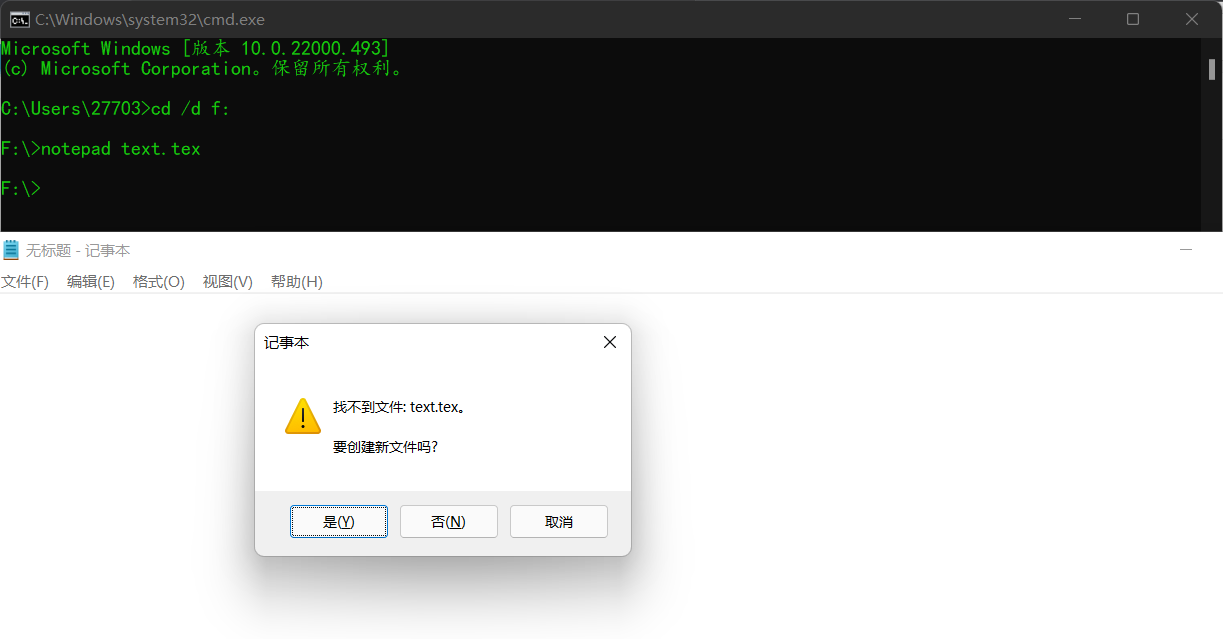

- 1. Can be in cmd Enter the command line... In the window , Edit... In Notepad .tex file

- 2. Use
latex file name .tex
Command build .dvi file

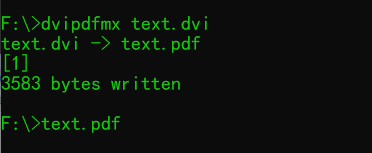

- 3. use
dvipdfmx file name .dvi
Command to generate pdf file

xelatex file name .tex
: take ②③ Step in one , Direct use tex File generation pdftexdoc ctex
: see LaTeX Macro set manualtexdoc lshort-zh
: Check the operating instructions
Two 、TeXstudio
TeXstudio : To write tex Integrated development environment IDE

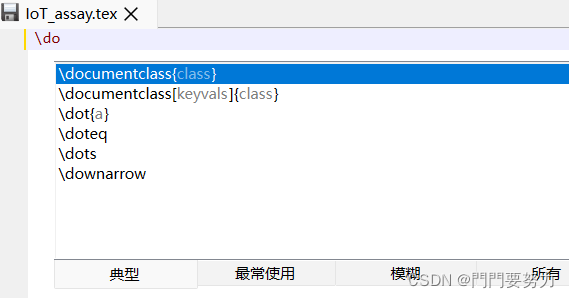

Command prompt function , It can improve the efficiency of document writing
- 1. newly build tex file
- 2. Name and save : take tex Put it under the folder , Because some intermediate files will be generated
-
3、 ... and 、 The basic structure of the source file

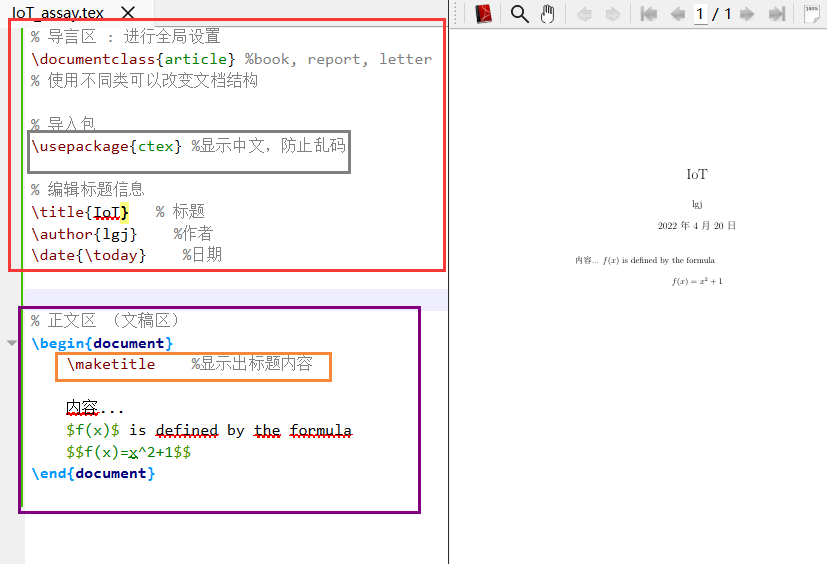

.tex The source area includes the introduction to ( Introduce classes ), Text area ( Writing a manuscript )
Four 、 Chinese processing
- 1. Make sure the encoding form is utf-8
- 2. Use
\usepackage{ctex}
Command to import macro package
Use
\documentclass{ctexart}
Specify the document type as Chinese article , You don't need to import ctex package
5、 ... and 、 The structure of the article

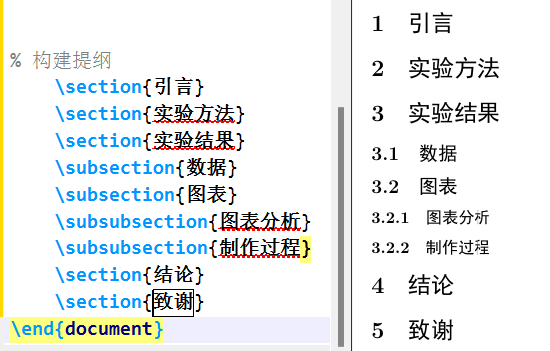

1. \section Build section :
\chapter
Generate articles with chapters
\tableofcontents
% Generate Directory2. piecewise / Line break
\par or A blank line The text can be divided into paragraphs Two backslashes :\\ Can branch , But not in segments 3. ctexset Set text style
Look up CTeX Macro set manual
Separation of style and content
6、 ... and 、 Font property settings
LaTeX Fonts in have five properties : code 、 Font family 、 HTTP: ( thickness 、 Width )、 Font shape ( Upright italics )、 font size
1. code
- 1. Text font coding :OT1 T1 EU1
- 2. Mathematical font coding :OML OMS OMX
2. Font family settings
Font family type \ Font command { Content } {\ Font declaration Content } Roman font command \textrm{ roman type }
{rmfamily roman type }
Sans serif fonts \textsf{ Sans serif fonts }
{sffamily Sans serif fonts }
Typewriter font \texttt{ Typewriter font }
{ttfamily Typewriter font }
3. HTTP:
command Statement \textmd{ normal }
{\mdseries normal }
\textbf{ In bold }
{\bfseries In bold }
4. Font shape
Font shape command Statement Erect \textup{ Erect upright shape}
{\upshape Erect zhili}
Italics \textit{ Italics italic shape}
{\itshape Italics }
Pseudo italics \textsl{ Pseudo italics slanted shape}
{\slshape Pseudo italics }
Small caps \textsc{ Small caps small caps shape}
{\scshape Small caps }
5. font size
{\tiny Small }
{\scriptsize }
{\footnotesize }
{\small Small }
{\normalsize Normal size }
{\large Big }
{\Large }
{\LARGE}
{\huge }
{\Huge }
normal size The size of is determined by the document parameter ( Optional ) control
\documentclass[10pt]{article}
Set the normal size to 10 pounds
Chinese font style settings
Font type The font size font size {\songti Song style }
{\heiti In black }
{\fangsong Imitation song }
{\kaishu Regular script }
\textbf{ bold }
\textit{ Italics }
\zihao{5} 5 Number
- Command line input
texdoc ctex
open ctex Document review details - Separation of content and style
Definition Font setting command\newcommand{\myfont}{\textit{\textbf{\textsf{fanciy text}}}}
7、 ... and 、 Special characters
1. Blank symbols
- 1. Blank line segmentation , Multiple blank lines are equivalent to one
- 2. Automatic indentation , You can't use spaces instead of
- 3. Multiple spaces in English are equivalent to one , Chinese spaces are ignored
- 4. Hexadecimal use Chinese full corner space
Use the command to display the space character Command syntax spacing Show $a \quad b$ 1 em( In the current font M Width ) a b a \quad b ab $a \qquad b$ 2 em a b a \qquad b ab $a \thinspace b$ 1/6 individual em a b a \thinspace b ab $a \enspace b$ 0.5 individual em a b a \enspace b ab $a\ b$ A space a b a\ b a b $a~b$ Hard space ( Undivided spaces ) a b a~b a b $a \kern 1pc b$ 1pc=12pt=4.218mm a b a \kern 1pc b ab $a \kern -1em b$ The specified width can be a negative number a b a \kern -1em b ab $a \hskip 1em b$ Specify the width a b a \hskip 1em b ab $a \hspace{35pt}b$ Specify the width a b a \hspace{35pt}b ab $a \hphantom{xyz}b$ Generate blank space according to the parameter occupancy width a x y z b a \hphantom{xyz}b axyzb $a \hfill b$ Elastic length space ( Fill the whole space ) $a \hfill b$ 2. LaTeX Controller
- LaTeX in
# $ % {} ~ _ ^ \ &
They all have a special meaning , need\
Escape output \\
Means line break , use\textbackslash
Output \
3. Typesetting symbols
Some special typesetting symbols
\S
\P
\dag
\ddag
\copyright
\pounds
4. TEX Symbols
TeX{}
\LaTeX{}
\LaTeXe{}
5. Other symbols
- 1. quotes
Command syntax Show `
Left single quote ‘ '
Right single quotation mark ’ ``
Left double quote “ ''
Right double quote ” -
2. A hyphen
One - Show hyphens -
Two - Show middle hyphen –
Three - Show long hyphens — -
3. Non English characters
\oe \OE \ae \AE \aa \AA \o \O \l \L \ss \SS !` ?`
-
4. stress mark ( With o For example )
8、 ... and 、 Insert a picture
latex Use graphicx Realize illustration , You need to import the macro package
\usepackage{graphicx} % Insert macro package of picture
\graphicspath{ {figures/},{pics/}} % The pictures are placed in the current directory figures Catalog pics Under the table of contents
Illustration syntax commands :
\includegraphics[ ]{photo.png}
Modify the picture size to achieve scaling , Optional parameters
[scale=0.3,height=2cm,width=2cm]
Nine 、 form tabular
-
1. Generate table vertical bar
|
-
2. Generate table horizontal lines
\hline
-
3. Specifies the left, middle, and right alignment of the column contents
l c r
-
4. from
p{1.5cm}
The specified column width , If the content exceeds, it will automatically wrap%tabular Environmental Science \begin{tabular}{|l| c |r|} % Specify column alignment \hline % Table row divider Student number & full name & class \\ \hline\hline 0 & lgj & 9 \\ 1 & gorgeous & 10\\ 2 & a & 10\\ 4 & b & 10\\ \hline \end{tabular}
Ten 、 Floating body
You need to use the floating environment to manage the layout of pictures and tables
Illustration floating – figure Environmental Science
-
1. Environment introduces
\begin{figure} ... \end{figure}
-
2. Typesetting position
[htbp]
h here ,t Top of page ,b Bottom of page ,p A single page -
3. centered
\centering
-
4. Set title
\caption{\TeX Illustration title }
-
5. Set labels to reference
\label{fig-photo}
-
6. Quote grammar
\ref{fig-photo}
…… See the picture \ref{fig-photo} % Reference label \begin{figure}[htbp] % Typesetting position \centering % centered Insert a picture \caption{\TeX Illustration title }\label{fig-photo} % Add illustration title % Set labels to reference \end{figure}
Table floating – table Environmental Science
- 1. Environment introduces
\begin{table} ... \end{table}
- 2. Typesetting position
[htbp]
h here ,t Top of page ,b Bottom of page ,p A single page - 3. centered
\centering
- 4. Set title
\caption{ Table title }
- 5. Set labels to reference
\label{tab}
- 6. Quote grammar
\ref{tab}
11、 ... and 、 reference
LaTeX The mathematical formula
