One 、 Local mode

Simulate locally in a multithreaded manner Flink Multiple roles in .( The development environment does not )
Download address ：https://flink.apache.org/downloads.html
Here is the download ：flink-1.13.0-bin-scala_2.12.tgz
Upload to common location , Then decompress .
start-up ：

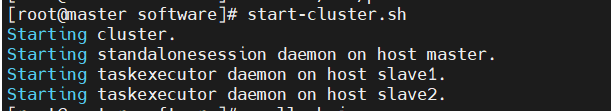

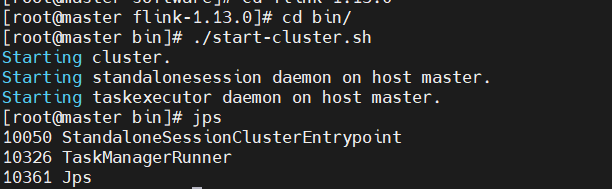

Switch to flink Of bin Under the table of contents , perform ./start-cluster.sh, Then view the process .

Two 、Standalone Independent cluster mode

( If you do the first step first , Remember to stop the service first ,stop-cluster.sh)

1. Upload 、 decompression tar package .
2. Modify the configuration file
   cd conf/flink-conf.yaml
   Appoint Flink colony JobManager RPC mailing address .
   ( My environment here is three machines , Respectively master,slave1,slave2)

jobmanager.rpc.address: master

Be careful ：flink-conf.yaml Middle configuration key/value It's time “:” You need a space after , Otherwise, the configuration will not take effect .
Explanation of other important configurations ：

# jobmanager  and taskmanager  Communication port number
jobmanager.rpc.port: 6123
# JobManager  Total process memory size
jobmanager.memory.process.size: 1600m
# At present taskmanager  How much memory does the whole process occupy
taskmanager.memory.process.size: 1728m
# Every taskmanager  What can be provided slots
taskmanager.numberOfTaskSlots: 1
# The default parallelism
parallelism.default: 1
#jobmanager  Failover strategy ,1.9  New properties that appear after , Regional recovery strategy
jobmanager.execution.failover-strategy: region
#flink web  The port number of the interface
rest.port: 8081

vi conf/workers
Appoint Flink colony TaskManager.

slave1
slave2

3. Send to the other two nodes .

scp -r flink-1.13.0 slave1:$PWD
scp -r flink-1.13.0 slave2:$PWD

4. Configure environment variables
   vi /etc/profile

export FLINK_HOME=/usr/software/flink-1.13.0
export PATH=$PATH:$FLINK_HOME/bin

source /etc/profile

5. Start cluster


6. see Flink Node process

   Can pass master:8081 visit Flink Of web Interface


3、 ... and 、Standalone HA

From the previous architecture, we can find that JobManager There is an obvious single point problem (SPOF,single point of failure).JobManager Responsible for task scheduling and resource allocation , once JobManager There was an accident , The consequences can be imagined .

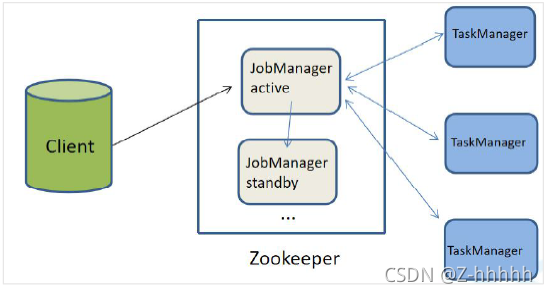

We have the help of Zookeeper With the help of the , One Standalone Of Flink The cluster will have multiple live JobManager, Only one of them is working , Others are in Standby state . When at work JobManager After losing the connection ( Such as downtime or Crash),Zookeeper From Standby Choose a new one JobManager To take over Flink colony .

1. Cluster planning
   master:JobManager+TaskManager
   slave1: JobManager+TaskManager
   slave2: JobManager

2. Modify the configuration file
   vi masters

master:8081
slave1:8081

vi worksers

master
slave1
slave2

vi flink-conf.yaml
Add the following

state.backend: filesystem
state.backend.fs.checkpointdir: hdfs://master:9000/flink-checkpoints
high-availability: zookeeper
high-availability.storageDir: hdfs://master:9000/flink/ha/
high-availability.zookeeper.quorum: master:2181,slave1:2181,slave2:2181

3. Sync flink Profile directory conf To the other two nodes

scp -r conf slave1:$PWD
scp -r conf slave2:$PWD

4. modify slave1 Upper jobmanager mailing address
   vi flink-conf.yaml
   jobmanager.rpc.address: slave1

5. start-up
   start-up HDFS
   start-up Zookeeper

take flink-shaded-hadoop-2-uber-2.7.5-10.0.jar copy to flink Of lib Under the table of contents , All three nodes are copied .

start-up flink

6. Check the process


7. test

yum install -y nc
nc -lk 1234

Four 、Flink on yarn

4.1.1、flink And yarn Interaction

Use... In the actual development process Flink on yarn There are many modes

4.1.2、 To configure

close yarn Memory check for ,yarn-site.xml. And distribute it to other nodes .

<property>
<name>yarn.nodemanager.pmem-check-enabled</name>
<value>false</value>
</property>
<property>
<name>yarn.nodemanager.vmem-check-enabled</name>
<value>false</value>
</property>

distribution

scp -r yarn-site.xml slave1:$PWD
scp -r yarn-site.xml slave2:$PWD

Whether to start a thread to check the amount of virtual memory that each task is using , If the task exceeds the assigned value , Kill it directly , The default is true. In this, we need to shut down , Because for flink Use yarn In mode , It's easy to have memory overruns , This is the time yarn Will automatically kill job.

Restart all services
dhfs
yarn
zookeeper
flink

4.2、Session Pattern

• characteristic ： You need to apply for resources in advance , start-up JobManager and TaskManger
• advantage ： You don't need to apply for resources every time you submit an assignment , Instead, use resources that have been applied for , So as to improve the execution efficiency
• shortcoming ： After the job execution is completed , Resources will not be released , Therefore, it will always occupy system resources
• Application scenarios ： It is suitable for situations where homework submission is frequent , Scenes with more small assignments

4.2.1、 Case study

yarn-session.sh( Open up resources ) + flink run( Submit tasks )
stay yarn Previous start one Flink conversation , Execute the following command ：

yarn-session.sh -n 2 -tm 800 -s 1 -d flink run /usr/software/flink-1.13.0/examples/batch/WordCount.jar

Parameter description :

# -n  To apply for 2  A container , This is how many taskmanager
# -tm  Represent each TaskManager  The memory size of
# -s  Represent each TaskManager  Of slots  Number
# -d  Indicates that the later program mode is running

stay yarn Of 8088 The interface can see Flink session cluster Running .

Task to complete

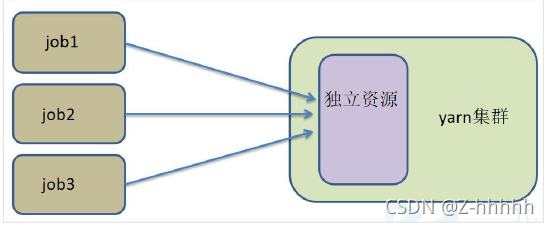

4.3、 Per-job Pattern

• characteristic ： Every time you submit an assignment, you need to apply for a resource
• advantage ： Job run completed , Resources will be released immediately , It will not occupy system resources all the time
• shortcoming ： Every time you submit an assignment, you need to apply for resources , It will affect the execution efficiency , Because it takes time to apply for resources
• Application scenarios ： Suitable for scenes with less homework 、 Big homework scene

4.3.1、 Case study

Submit directly job

flink run -m yarn-cluster -yjm 1024 -ytm 1024 /usr/software/flink-1.13.0/examples/batch/WordCount.jar

Parameter description

# -m jobmanager  The address of
# -yjm 1024  Appoint jobmanager  Memory information
# -ytm 1024  Appoint taskmanager  Memory information

Check the specific parameter description ：
flink --help

5、 ... and 、Flink test WordCount

1. install netcat
   yum install -y nc

2. Turn on nc
   nc -lk 1314

3. Count the word frequency input by the port

flink run /usr/software/flink-1.13.0/examples/streaming/SocketWindowWordCount.jar --hostname master --port 1314

stay 1314 Random input at terminal

ctrl+c After that , The other end prompts that the task is completed

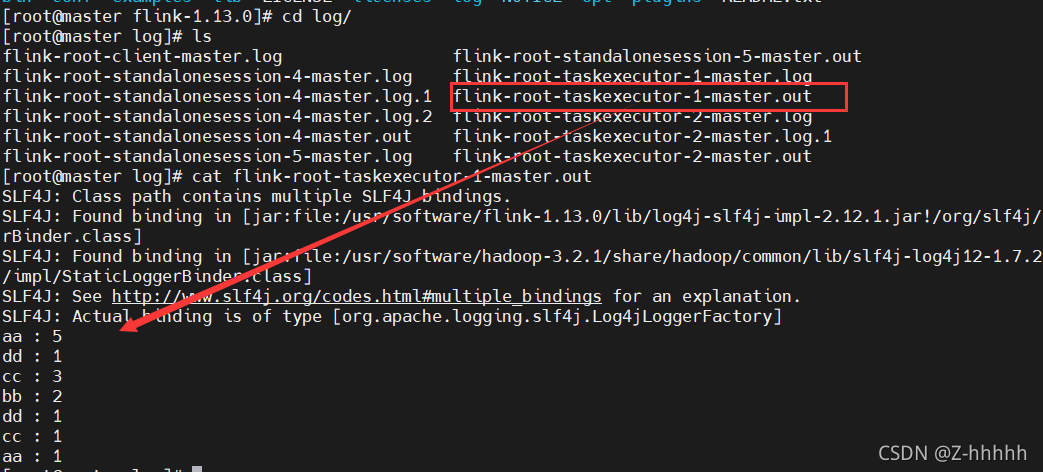

4. Check the statistics

stay Flink Of TaskManager Node log Under the table of contents . View to .out Final document .
