One 、 Basic introduction

Service It is based on four layer protocol to realize routing and forwarding , Commonly used in NodePort Way to provide external services , however When we have many business modules , Use NodePort The way is not conducive to management . therefore , We can use Ingress Controller By matching URL The way to achieve HTTP/HTTPS agent .

---

Ingress characteristic ：

• By configuring Ingress, It can provide accessible services to internal services URL、 Load balancing 、 End SSL/TLS, And it can provide virtual host based on domain name .

---

Ingress Supported scheduling methods ：

1. URL Path mapping scheduling ： By configuring Ingress Medium path Realization .
2. Host scheduling ： By configuring Ingress Medium host Realization .

---

Ingress Common configuration methods ： Users access the domain name , Domain name resolves to SLB Of IP Address , next SLB Proxy the request to the port currently listening , What we bind here is Ingress Mapped port number .Ingress By matching the URL Find the bound Service, Last Service Forward the request to the back end Pod Application .

Two 、Ingress Introduction

1. install

[root@k8s-master01 ~]# wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.48.1/deploy/static/provider/cloud/deploy.yaml
[root@k8s-master01 ~]# sed -i 's/LoadBalancer/NodePort/' deploy.yaml			# Ingress  The way of providing services
[root@k8s-master01 ~]# sed -i 's/Deployment/DaemonSet/' deploy.yaml				# Ingress  Deployment way
[root@k8s-master01 ~]# sed -i '/k8s.gcr.io/s/image:.*/image: registry.aliyuncs.com\/google_containers\/nginx-ingress-controller:v0.48.1/' deploy.yaml
[root@k8s-master01 ~]# kubectl apply -f deploy.yaml
[root@k8s-master01 ~]# kubectl get all -n ingress-nginx

2. Basic use

1） establish Pod and Service

[root@k8s-master01 ~]# vim test-web-server.yaml
apiVersion: v1
kind: Pod
metadata:
  name: test-web-server
  labels:
    app: test-web-server
spec:
  containers:
  - name: test-web-server
    image: registry.cn-hangzhou.aliyuncs.com/zhuang_zz/test:web-v1
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: test-web-server
spec:
  ports:
  - name: test-web-server
    port: 8080
    targetPort: 8080
  selector:
    app: test-web-server
[root@k8s-master01 ~]# kubectl apply -f test-web-server.yaml

2） establish Ingress

[root@k8s-master01 ~]# vim test-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: test-ingress
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: test-web-server
          servicePort: 8080
        path: /
[root@k8s-master01 ~]# kubectl apply -f test-ingress.yaml

Because our domain name is custom configured , So you need to configure Hosts analysis （ Local parsing ）

Linux：/etc/hosts
Windows：C:\Windows\System32\drivers\etc\hosts

3） verification

---

1） adopt Ingress Realization HTTPS agent

[root@k8s-master01 ~]# openssl req -x509 -nodes -days 365 \
-newkey rsa:2048 -keyout server.key -out server.crt -subj "/CN=*.tianya.com/O=*.tianya.com"
[root@k8s-master01 ~]# kubectl create secret tls www.tianya.com --key server.key --cert server.crt
[root@k8s-master01 ~]# vim test-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: test-ingress
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: test-web-server
          servicePort: 8080
        path: /
  tls:
  - hosts:
    - www.tianya.com
      secretName: www.tianya.com

2） verification

• Because the certificate configured above is self signed , did not CA authentication , So there will be a certificate error （ This is normal ）

---

1） Realization HTTP Do not automatically jump to HTTPS

When we Ingress The configuration of contains tls when ,HTTP Will automatically jump to HTTPS On . So we can pass ssl-redirect: 'false' To turn off auto jump .

[root@k8s-master01 ~]# vim test-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: test-ingress
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: 'false'
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: test-web-server
          servicePort: 8080
        path: /
  tls:
  - hosts:
    - www.tianya.com
      secretName: www.tianya.com
[root@k8s-master01 ~]# kubectl apply -f test-ingress.yaml

2） verification

---

1） adopt Service + Endpoints Implement agent to external application

Let's start using container mode Nginx application , The reason is because it's simple , Easy to verify . If it's physically installed Nginx Direct configuration Endpoints that will do .

[root@k8s-master01 ~]# vim external-nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      nodeName: k8s-master01
      containers:
      - name: nginx
        image: nginx:1.21.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
          hostPort: 8080
        volumeMounts:
        - mountPath: /usr/share/nginx/html/zhangsan
          name: nginx-html
      volumes:
      - hostPath:
          path: /root/zhangsan
        name: nginx-html
---
apiVersion: v1
kind: Endpoints
metadata:
  name: nginx
subsets:
- addresses:
  - ip: 192.168.1.1
  ports:
  - port: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  ports:
  - port: 80
    targetPort: 8080
[root@k8s-master01 ~]# kubectl apply -f external-nginx.yaml
[root@k8s-master01 ~]# echo "This is zhangsan" > /root/zhangsan/index.html

2） modify Ingress To configure

[root@k8s-master01 ~]# vim test-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: test-ingress
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: 'false'
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: test-web-server
          servicePort: 8080
        path: /
      - backend:
          serviceName: nginx
          servicePort: 80
        path: /zhangsan/
  tls:
  - hosts:
    - www.tianya.com
      secretName: www.tianya.com
[root@k8s-master01 ~]# kubectl apply -f test-ingress.yaml

3） verification

3. Implement Canary release

Release of canary , Also known as grayscale publishing , Simply put, it means switching between two versions , We can allocate a small amount of traffic to new applications first , For functional verification . When the verification passes , We can fully allocate traffic to new applications . Even if there is a problem in the verification , You can also quickly switch the traffic back to the old application .

Ingress Mainly through configuration annotations To achieve Canary release ： The official introduction

---

1） be based on Weight Implement Canary release

[root@k8s-master01 ~]# vim uat-web-server.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: uat
---
apiVersion: v1
kind: Pod
metadata:
  name: uat-web-server
  namespace: uat
  labels:
    app: uat-web-server
spec:
  containers:
  - name: uat-web-server
    image: registry.cn-hangzhou.aliyuncs.com/zhuang_zz/test:web-v2
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: uat-web-server
  namespace: uat
spec:
  ports:
  - name: uat-web-server
    port: 8080
    targetPort: 8080
  selector:
    app: uat-web-server
[root@k8s-master01 ~]# kubectl apply -f uat-web-server.yaml

2） modify Ingress To configure

[root@k8s-master01 ~]# vim canary-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: test-ingress
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: test-web-server
          servicePort: 8080
        path: /
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: uat-ingress
  namespace: uat
  annotations:
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-weight: "30"
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: uat-web-server
          servicePort: 8080
        path: /
[root@k8s-master01 ~]# kubectl apply -f canary-ingress.yaml

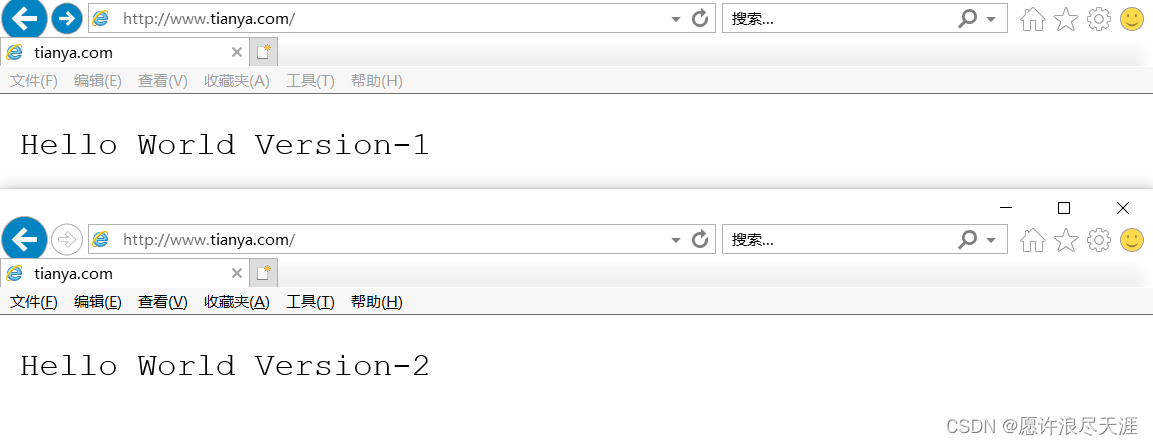

3） verification

---

1） be based on Cookie Implement Canary release

[root@k8s-master01 ~]# vim canary-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: uat-ingress
  namespace: uat
  annotations:
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-cookie: "uat-web-canary"
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: uat-web-server
          servicePort: 8080
        path: /
[root@k8s-master01 ~]# kubectl apply -f canary-ingress.yaml

2） verification

---

1） be based on Header Implement Canary release

[root@k8s-master01 ~]# vim canary-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: uat-ingress
  namespace: uat
  annotations:
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-header: "uat-web-canary"
spec:
  rules:
  - host: www.tianya.com
    http:
      paths:
      - backend:
          serviceName: uat-web-server
          servicePort: 8080
        path: /
[root@k8s-master01 ~]# kubectl apply -f canary-ingress.yaml

2） verification
