【QT】QT项目：自制Wireshark
2022-08-10 01:26:00 【Cappuccino-jay】
一、项目总览

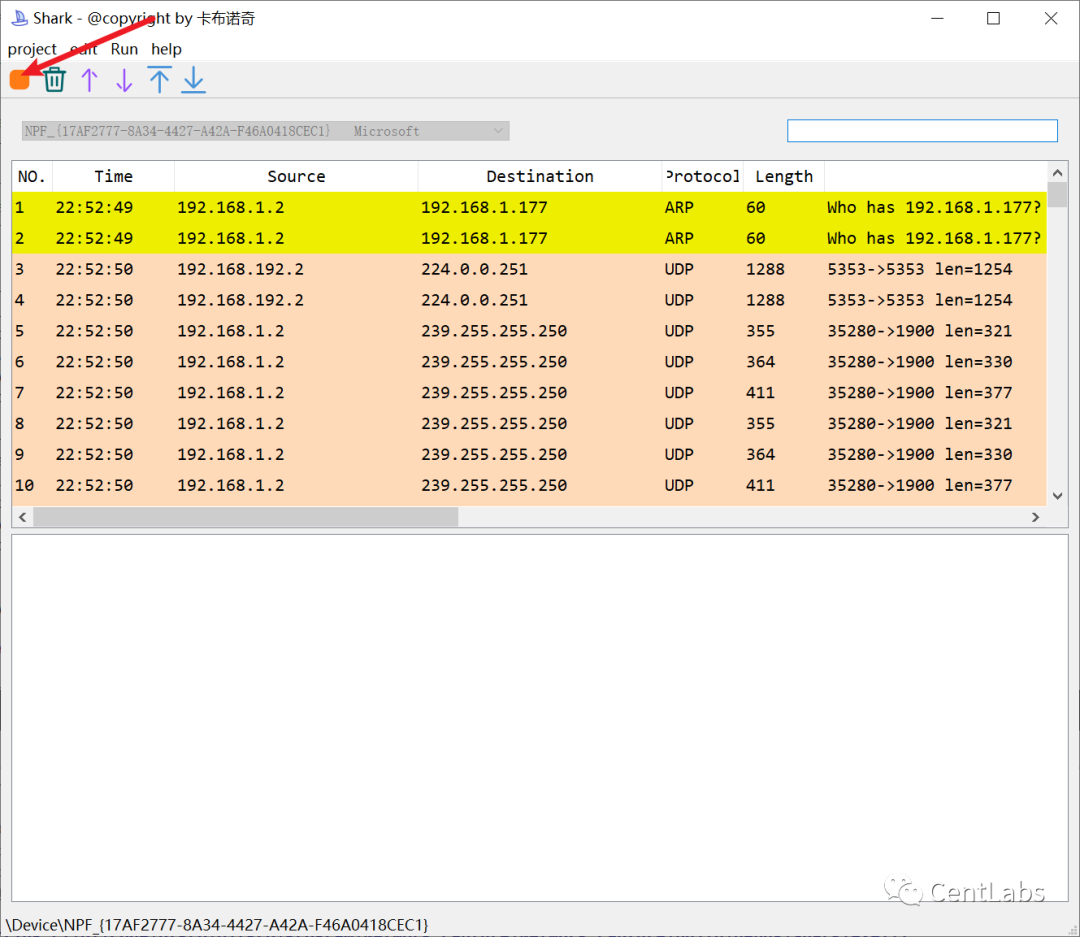

二、运行结果
三、项目源码
1、shark.pro
QT += core gui
greaterThan(QT_MAJOR_VERSION, 4): QT += widgets
CONFIG += c++11
# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Please consult the documentation of the
# deprecated API in order to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS
# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000 # disables all the APIs deprecated before Qt 6.0.0
SOURCES += \
capture.cpp \
datapackage.cpp \
main.cpp \
mainwindow.cpp \
readonlydelegate.cpp
HEADERS += \
Format.h \
capture.h \
datapackage.h \
mainwindow.h \
readonlydelegate.h
FORMS += \
mainwindow.ui
INCLUDEPATH += E:/QT/Code/QtPro/GitPro/Program/Network-capture/Network-capture/Include
LIBS += E:/QT/Code/QtPro/GitPro/Program/Network-capture/Network-capture/Lib/x64/wpcap.lib #libws2_32
LIBS += E:/QT/Code/QtPro/GitPro/Program/Network-capture/Network-capture/Lib/x64/Packet.lib
# Default rules for deployment.
qnx: target.path = /tmp/$${
TARGET}/bin
else: unix:!android: target.path = /opt/$${
TARGET}/bin
!isEmpty(target.path): INSTALLS += target
RESOURCES += \
src.qrc
2、capture.h
#ifndef CAPTURE_H
#define CAPTURE_H
#include <QThread>
#include <Format.h>
#include <QQueue>
#include "pcap.h"
#pragma comment(lib,"ws2_32.lib")
#include <QString>
#include "winsock2.h"
#include "datapackage.h"
class Capture : public QThread
{
Q_OBJECT
public:
Capture();
bool setPointer(pcap_t *pointer);
void setFlag();
void resetFlag();
int ethernetPackageHandle(const u_char *pkt_content,QString& info);
int ipPackageHandle(const u_char *pkt_content,int&ipPackage);
QString arpPackageHandle(const u_char *pkt_content);
QString icmpPackageHandle(const u_char *pkt_content);
int tcpPackageHandle(const u_char *pkt_content,QString &info,int ipPackage);
int udpPackageHandle(const u_char *pkt_content,QString&info);
QString dnsPackageHandle(const u_char *pkt_content);
protected:
static QString byteToHex(u_char *str, int size);
void run();
signals:
void send(DataPackage data);
private:
pcap_t *pointer;
struct pcap_pkthdr*header;
const u_char *pkt_data;
time_t local_time_version_sec;
struct tm local_time;
char timeString[16];
volatile bool isDone;// done flag
};
#endif // CAPTURE_H
3、capture.cpp
#include "capture.h"
#include <QDebug>
#include <QString>
Capture::Capture(){
this->isDone = false;
this->pointer = nullptr;
this->header = nullptr;
this->pkt_data = nullptr;
}
bool Capture::setPointer(pcap_t *pointer){
this->pointer = pointer;
if(pointer)
return true;
else return false;
}
void Capture::setFlag(){
this->isDone = true;
}
void Capture::resetFlag(){
this->isDone = false;
}
QString Capture::byteToHex(u_char *str, int size){
QString res = "";
for(int i = 0;i < size;i++){
char one = str[i] >> 4;
if(one >= 0x0A)
one = one + 0x41 - 0x0A;
else one = one + 0x30;
char two = str[i] & 0xF;
if(two >= 0x0A)
two = two + 0x41 - 0x0A;
else two = two + 0x30;
res.append(one);
res.append(two);
}
return res;
}
void Capture::run(){
unsigned int number_package = 0;
while(true){
if(isDone)
break;
int res = pcap_next_ex(pointer,&header,&pkt_data);
if(res == 0)
continue;
local_time_version_sec = header->ts.tv_sec;
localtime_s(&local_time,&local_time_version_sec);
strftime(timeString,sizeof(timeString),"%H:%M:%S",&local_time);
QString info = "";
int type = ethernetPackageHandle(pkt_data,info);
if(type){
DataPackage data;
int len = header->len;
data.setPackageType(type);
data.setTimeStamp(QString(timeString));
data.setDataLength(len);
data.setPackagePointer(pkt_data,len);
data.setPackageInfo(info);
if(data.pkt_content != nullptr){
emit send(data);
number_package++;
}else continue;
}
else continue;
}
return;
}
int Capture::ethernetPackageHandle(const u_char *pkt_content,QString& info){
ETHER_HEADER* ethernet;
u_short ethernet_type;
ethernet = (ETHER_HEADER*)pkt_content;
ethernet_type = ntohs(ethernet->ether_type);
switch(ethernet_type){
case 0x0800:{// ip package
int dataPackage = 0;
int res = ipPackageHandle(pkt_content,dataPackage);
switch (res) {
case 1:{// icmp package
info = icmpPackageHandle(pkt_content);
return 2;
}
case 6:{// tcp package
return tcpPackageHandle(pkt_content,info,dataPackage);
}
case 17:{ // udp package
int type = udpPackageHandle(pkt_content,info);
return type;
}
default:break;
}
break;
}
case 0x0806:{// arp package
info = arpPackageHandle(pkt_content);
return 1;
}
default:{// undefined package
break;
}
}
return 0;
}
// ip package
int Capture::ipPackageHandle(const u_char *pkt_content,int& ipPackage){
/*
+------+-----+-----+
| 1 | 6 | 17 |
+------+-----+-----+
| ICMP | TCP | UDP |
+------+-----+-----+
*/
IP_HEADER* ip;
ip = (IP_HEADER*)(pkt_content + 14);
int protocol = ip->protocol;
ipPackage = (htons(ip->total_length) - (ip->versiosn_head_length & 0x0F) * 4);
return protocol;
}
// icmp package
/*
* part of the protocol of type and code
* if you need detail information, pls check the official documents
+------+------+------------------------------------------------+
| type | code | information |
+------+------+------------------------------------------------+
| 0 | 0 | Echo response (ping command response) |
+------+------+------------------------------------------------+
| | 0 | Network unreachable |
+ +------+------------------------------------------------+
| | 1 | Host unreachable |
+ +------+------------------------------------------------+
| | 2 | Protocol unreachable |
+ +------+------------------------------------------------+
| 3 | 3 | Port unreachable |
+ +------+------------------------------------------------+
| | 4 | Fragmentation is required, but DF is set |
+ +------+------------------------------------------------+
| | 5 | Source route selection failed |
+ +------+------------------------------------------------+
| | 6 | Unknown target network |
+------+------+------------------------------------------------+
| 4 | 0 | Source station suppression [congestion control]|
+------+------+------------------------------------------------+
| 5 | any | Relocation |
+------+------+------------------------------------------------+
| 8 | 0 | Echo request (ping command request) |
+------+------+------------------------------------------------+
......
*/
QString Capture::icmpPackageHandle(const u_char *pkt_content){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 20 + 14);
u_char type = icmp->type;
u_char code = icmp->code;
QString result = "";
switch (type) {
case 0:{
if(!code)
result = "Echo response (ping)";
break;
}
case 3:{
switch (code) {
case 0:{
result = "Network unreachable";
break;
}
case 1:{
result = "Host unreachable";
break;
}
case 2:{
result = "Protocol unreachable";
break;
}
case 3:{
result = "Port unreachable";
break;
}
case 4:{
result = "Fragmentation is required, but DF is set";
break;
}
case 5:{
result = "Source route selection failed";
break;
}
case 6:{
result = "Unknown target network";
break;
}
default:break;
}
break;
}
case 4:{
result = "Source station suppression [congestion control]";
break;
}
case 5:{
result = "Relocation";
break;
}
case 8:{
if(!code)
result = "Echo request (ping)";
break;
}
default:break;
}
return result;
}
int Capture::tcpPackageHandle(const u_char *pkt_content,QString &info,int ipPackage){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
u_short src = ntohs(tcp->src_port);
u_short des = ntohs(tcp->des_port);
QString proSend = "";
QString proRecv = "";
int type = 3;
int delta = (tcp->header_length >> 4) * 4;
int tcpPayLoad = ipPackage - delta;
if((src == 443 || des == 443) && (tcpPayLoad > 0)){
if(src == 443)
proSend = "(https)";
else proRecv = "(https)";
u_char *ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + delta);
u_char isTls = *(ssl);
ssl++;
u_short*pointer = (u_short*)(ssl);
u_short version = ntohs(*pointer);
if(isTls >= 20 && isTls <= 23 && version >= 0x0301 && version <= 0x0304){
type = 6;
switch(isTls){
case 20:{
info = "Change Cipher Spec";
break;
}
case 21:{
info = "Alert";
break;
}
case 22:{
info = "Handshake";
ssl += 4;
u_char type = (*ssl);
switch (type) {
case 1: {
info += " Client Hello";
break;
}
case 2: {
info += " Server hello";
break;
}
case 4: {
info += " New Session Ticket";
break;
}
case 11:{
info += " Certificate";
break;
}
case 16:{
info += " Client Key Exchange";
break;
}
case 12:{
info += " Server Key Exchange";
break;
}
case 14:{
info += " Server Hello Done";
break;
}
default:break;
}
break;
}
case 23:{
info = "Application Data";
break;
}
default:{
break;
}
}
return type;
}else type = 7;
}
if(type == 7){
info = "Continuation Data";
}
else{
info += QString::number(src) + proSend+ "->" + QString::number(des) + proRecv;
QString flag = "";
if(tcp->flags & 0x08) flag += "PSH,";
if(tcp->flags & 0x10) flag += "ACK,";
if(tcp->flags & 0x02) flag += "SYN,";
if(tcp->flags & 0x20) flag += "URG,";
if(tcp->flags & 0x01) flag += "FIN,";
if(tcp->flags & 0x04) flag += "RST,";
if(flag != ""){
flag = flag.left(flag.length()-1);
info += " [" + flag + "]";
}
u_int sequeue = ntohl(tcp->sequence);
u_int ack = ntohl(tcp->ack);
u_short window = ntohs(tcp->window_size);
info += " Seq=" + QString::number(sequeue) + " Ack=" + QString::number(ack) + " win=" + QString::number(window) + " Len=" + QString::number(tcpPayLoad);
}
return type;
}
int Capture::udpPackageHandle(const u_char *pkt_content,QString&info){
UDP_HEADER * udp;
udp = (UDP_HEADER*)(pkt_content + 14 + 20);
u_short desPort = ntohs(udp->des_port);
u_short srcPort = ntohs(udp->src_port);
if(desPort == 53){ // dns query
info = dnsPackageHandle(pkt_content);
return 5;
}
else if(srcPort == 53){// dns reply
info = dnsPackageHandle(pkt_content);
return 5;
}
else{
QString res = QString::number(srcPort) + "->" + QString::number(desPort);
res += " len=" + QString::number(ntohs(udp->data_length));
info = res;
return 4;
}
}
QString Capture::arpPackageHandle(const u_char *pkt_content){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
u_short op = ntohs(arp->op_code);
QString res = "";
u_char*addr = arp->des_ip_addr;
QString desIp = QString::number(*addr) + "."
+ QString::number(*(addr+1)) + "."
+ QString::number(*(addr+2)) + "."
+ QString::number(*(addr+3));
addr = arp->src_ip_addr;
QString srcIp = QString::number(*addr) + "."
+ QString::number(*(addr+1)) + "."
+ QString::number(*(addr+2)) + "."
+ QString::number(*(addr+3));
u_char* srcEthTemp = arp->src_eth_addr;
QString srcEth = byteToHex(srcEthTemp,1) + ":"
+ byteToHex((srcEthTemp+1),1) + ":"
+ byteToHex((srcEthTemp+2),1) + ":"
+ byteToHex((srcEthTemp+3),1) + ":"
+ byteToHex((srcEthTemp+4),1) + ":"
+ byteToHex((srcEthTemp+5),1);
switch (op){
case 1:{
res = "Who has " + desIp + "? Tell " + srcIp;
break;
}
case 2:{
res = srcIp + " is at " + srcEth;
break;
}
default:break;
}
return res;
}
QString Capture::dnsPackageHandle(const u_char *pkt_content){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
u_short identification = ntohs(dns->identification);
u_short type = ntohs(dns->flags);
QString info = "";
if((type & 0xf800) == 0x0000){
info = "Standard query ";
}
else if((type & 0xf800) == 0x8000){
info = "Standard query response ";
}
QString name = "";
char*domain = (char*)(pkt_content + 14 + 20 + 8 + 12);
while(*domain != 0x00){
if(domain && (*domain) <= 64){
int length = *domain;
domain++;
for(int k = 0;k < length;k++){
name += (*domain);
domain++;
}
name += ".";
}else break;
}
// DNS_QUESITON *qus = (DNS_QUESITON*)(pkt_content + 14 + 20 + 8 + 12 + stringLength);
// qDebug()<<ntohs(qus->query_type);
// qDebug()<<ntohs(qus->query_class);
name = name.left(name.length()-1);
return info + "0x" + QString::number(identification,16) + " " + name;
}
4、datapackage.h
#ifndef DATAPACKAGE_H
#define DATAPACKAGE_H
#include <QString>
#include "Format.h"
/* * This class is describe the data package infomation * +-----+------------+ * | type| infomation | * +-----+------------+ * | 1 | arp | * +-----+------------+ * | 2 | icmp | * +-----+------------+ * | 3 | tcp | * +-----+------------+ * | 4 | udp | * +-----+------------+ * | 5 | dns | * +-----+------------+ * | 6 | tls | * +-----+------------+ * | 7 | ssl | * +-----+------------+ */
class DataPackage
{
private:
u_int data_length; // data pakage length
QString timeStamp; // timestamp of package
QString info; // a breif introduction of package
int packageType; // type
public:
const u_char *pkt_content; // root pointer of package data
protected:
/* * turn the byteArray to QString */
static QString byteToHex(u_char*str,int size);
public:
// Construction and destruction
DataPackage();
~DataPackage() = default;
// set the var
void setDataLength(unsigned int length); // set the package length
void setTimeStamp(QString timeStamp); // set timestamp
void setPackageType(int type); // set package type
void setPackagePointer(const u_char *pkt_content,int size); // set package pointer
void setPackageInfo(QString info); // set package information
// get the var
QString getDataLength(); // get package length
QString getTimeStamp(); // get timestamp
QString getPackageType(); // get package type
QString getInfo(); // get a breif package information
QString getSource(); // get the source address of package
QString getDestination(); // get the destination address of package
// get the mac info
QString getDesMacAddr(); // get the destination MAC address
QString getSrcMacAddr(); // get the source MAC address
QString getMacType(); // get the type of MAC address
// get the ip info
QString getDesIpAddr(); // get the destination ip address
QString getSrcIpAddr(); // get the source ip address
QString getIpVersion(); // get the ip version
QString getIpHeaderLength(); // get the ip head length
QString getIpTos(); // get the ip tos
QString getIpTotalLength(); // get the ip total package length
QString getIpIdentification(); // get the ip identification
QString getIpFlag(); // get the ip flag
QString getIpReservedBit(); // the reserved bit
QString getIpDF(); // Don't fragment
QString getIpMF(); // More fragment
QString getIpFragmentOffset(); // get the offset of package
QString getIpTTL(); // get ip ttl [time to live]
QString getIpProtocol(); // get the ip protocol
QString getIpCheckSum(); // get the checksum
// get the icmp info
QString getIcmpType(); // get the icmp type
QString getIcmpCode(); // get the icmp code
QString getIcmpCheckSum(); // get the icmp checksum
QString getIcmpIdentification(); // get the icmp identification
QString getIcmpSequeue(); // get the icmp sequence
QString getIcmpData(int size); // get the icmp data
// get the arp info
QString getArpHardwareType(); // get arp hardware type
QString getArpProtocolType(); // get arp protocol type
QString getArpHardwareLength(); // get arp hardware length
QString getArpProtocolLength(); // get arp protocol length
QString getArpOperationCode(); // get arp operation code
QString getArpSourceEtherAddr(); // get arp source ethernet address
QString getArpSourceIpAddr(); // get arp souce ip address
QString getArpDestinationEtherAddr(); // get arp destination ethernet address
QString getArpDestinationIpAddr(); // get arp destination ip address
// get the tcp info
QString getTcpSourcePort(); // get tcp source port
QString getTcpDestinationPort(); // get tcp destination port
QString getTcpSequence(); // get tcp sequence
QString getTcpAcknowledgment(); // get acknowlegment
QString getTcpHeaderLength(); // get tcp head length
QString getTcpRawHeaderLength(); // get tcp raw head length [default is 0x05]
QString getTcpFlags(); // get tcp flags
QString getTcpPSH(); // PSH flag
QString getTcpACK(); // ACK flag
QString getTcpSYN(); // SYN flag
QString getTcpURG(); // URG flag
QString getTcpFIN(); // FIN flag
QString getTcpRST(); // RST flag
QString getTcpWindowSize(); // get tcp window size
QString getTcpCheckSum(); // get tcp checksum
QString getTcpUrgentPointer(); // get tcp urgent pointer
QString getTcpOperationKind(int kind); // get tcp option kind
int getTcpOperationRawKind(int offset); // get tcp raw option kind
/* * tcp optional parts */
bool getTcpOperationMSS(int offset,u_short& mss); // kind = 2
bool getTcpOperationWSOPT(int offset,u_char&shit); // kind = 3
bool getTcpOperationSACKP(int offset); // kind = 4
bool getTcpOperationSACK(int offset,u_char&length,QVector<u_int>&edge); // kind = 5
bool getTcpOperationTSPOT(int offset,u_int& value,u_int&reply); // kind = 8
// get the udp info
QString getUdpSourcePort(); // get udp source port
QString getUdpDestinationPort(); // get udp destination port
QString getUdpDataLength(); // get udp data length
QString getUdpCheckSum(); // get udp checksum
// get the dns info
QString getDnsTransactionId(); // get dns transaction id
QString getDnsFlags(); // get dns flags
QString getDnsFlagsQR(); // get dns flag QR
QString getDnsFlagsOpcode(); // get dns flag operation code
QString getDnsFlagsAA(); // get dns flag AA
QString getDnsFlagsTC(); // get dns flag TC
QString getDnsFlagsRD(); // get dns flag RD
QString getDnsFlagsRA(); // get dns flag RA
QString getDnsFlagsZ(); // get dns flag Z [reserved]
QString getDnsFlagsRcode(); // get dns flag Rcode
QString getDnsQuestionNumber(); // get dns question number
QString getDnsAnswerNumber(); // get dns answer number
QString getDnsAuthorityNumber(); // get dns authority number
QString getDnsAdditionalNumber(); // get dns addition number
void getDnsQueriesDomain(QString&name,int&Type,int&Class);
QString getDnsDomainType(int type);
QString getDnsDomainName(int offset);
int getDnsAnswersDomain(int offset,QString&name1,u_short&Type,u_short& Class,u_int&ttl,u_short&dataLength,QString& name2);
// get the tls info
bool getisTlsProtocol(int offset);
void getTlsBasicInfo(int offset,u_char&contentType,u_short&version,u_short&length);
void getTlsClientHelloInfo(int offset,u_char&handShakeType,int& length,u_short&version,QString&random,u_char&sessionIdLength,QString&sessionId,u_short&cipherLength,QVector<u_short>&cipherSuit,u_char& cmLength,QVector<u_char>&CompressionMethod,u_short&extensionLength);
void getTlsServerHelloInfo(int offset,u_char&handShakeType,int&length,u_short&version,QString& random,u_char&sessionIdLength,QString&sessionId,u_short&cipherSuit,u_char&compressionMethod,u_short&extensionLength);
void getTlsServerKeyExchange(int offset,u_char&handShakeType,int&length,u_char&curveType,u_short&curveName,u_char&pubLength,QString&pubKey,u_short&sigAlgorithm,u_short&sigLength,QString&sig);
u_short getTlsExtensionType(int offset);
void getTlsHandshakeType(int offset,u_char&type);
/* * these functions are used to parse the extension parts * extension parts are common in handshake parts (client hello,server hello ...) * there are some extension types are not included in, maybe you should refer the official API */
void getTlsExtensionServerName(int offset,u_short&type,u_short&length,u_short&listLength,u_char&nameType,u_short&nameLength,QString& name);
void getTlsExtensionSignatureAlgorithms(int offset,u_short&type,u_short&length,u_short&algorithmLength,QVector<u_short>&signatureAlgorithm);
void getTlsExtensionSupportGroups(int offset,u_short&type,u_short&length,u_short&groupListLength,QVector<u_short>&group);
void getTlsExtensionEcPointFormats(int offset,u_short&type,u_short&length,u_char& ecLength,QVector<u_char>&EC);
void getTlsExtensionSessionTicket(int offset,u_short&type,u_short&length);
void getTlsExtensionEncryptThenMac(int offset,u_short&type,u_short&length);
void getTlsExtensionSupportVersions(int offset,u_short&type,u_short&length,u_char&supportLength,QVector<u_short>&supportVersion);
void getTlsExtensionPskKeyExchangeModes(int offset,u_short&type,u_short&length,u_char&modeLength,QVector<u_char>&mode);
void getTlsExtensionKeyShare(int offset,u_short&type,u_short&length,u_short&shareLength,u_short&group,u_short&exchangeLength,QString& exchange);
void getTlsExtensionOther(int offset,u_short&type,u_short&length,QString& data);
void getTlsExtensionExtendMasterSecret(int offset,u_short&type,u_short&length);
void getTlsExtensionPadding(int offset,u_short&type,u_short&length,QString&data);
/* * when transfer data,some types will be encoded,like using 0x01 to represent the MD5 in extension hash part * to visual display these types,we need to decode and analysis * this functions are used to do these analisis * however,some types may be the custom types, so we can't decode * also,there are some rules not be included, maybe you should refer the official API */
// Parsing the encode data
static QString getTlsHandshakeType(int type); // Parsing TLS handshake type
static QString getTlsContentType(int type); // Parsing TLS content type
static QString getTlsVersion(int version); // Parsing TLS version
static QString getTlsHandshakeCipherSuites(u_short code); // Parsing TLS cipher suite
static QString getTlsHandshakeCompression(u_char code); // Parsing TLS compression
static QString getTlsHandshakeExtension(u_short type); // Parsing TLS extension
static QString getTlsHandshakeExtensionECPointFormat(u_char type); // Parsing TLS EC point format
static QString getTlsHandshakeExtensionSupportGroup(u_short type); // Parsing TLS support group
static QString getTlsHadshakeExtensionSignature(u_char type); // Parsing TLS signature
static QString getTlsHadshakeExtensionHash(u_char type); // Parsing TLS hash
};
#endif // DATAPACKAGE_H
5、datapackage.cpp
#include "datapackage.h"
#include <QMetaType>
#include "winsock.h"
#include <QVector>
DataPackage::DataPackage()
{
// register the DataPackage type then
qRegisterMetaType<DataPackage>("DataPackage");
this->timeStamp = "";
this->data_length = 0;
this->packageType = 0;
this->pkt_content = nullptr;
}
void DataPackage::setDataLength(unsigned int length){
this->data_length = length;
}
void DataPackage::setTimeStamp(QString timeStamp){
this->timeStamp = timeStamp;
}
void DataPackage::setPackageType(int type){
this->packageType = type;
}
void DataPackage::setPackagePointer(const u_char *pkt_content,int size){
this->pkt_content = (u_char*)malloc(size);
if(this->pkt_content != nullptr)
memcpy((char*)(this->pkt_content),pkt_content,size);
else this->pkt_content = nullptr;
// Do not use `this->pkt_content = pkt_content;`
}
void DataPackage::setPackageInfo(QString info){
this->info = info;
}
QString DataPackage::byteToHex(u_char *str, int size){
QString res = "";
for(int i = 0;i < size;i++){
char one = str[i] >> 4;
if(one >= 0x0A)
one = one + 0x41 - 0x0A;
else one = one + 0x30;
char two = str[i] & 0xF;
if(two >= 0x0A)
two = two + 0x41 - 0x0A;
else two = two + 0x30;
res.append(one);
res.append(two);
}
return res;
}
QString DataPackage::getTimeStamp(){
return this->timeStamp;
}
QString DataPackage::getDataLength(){
return QString::number(this->data_length);
}
QString DataPackage::getPackageType(){
switch (this->packageType) {
case 1:return ARP;
case 2:return ICMP;
case 3:return TCP;
case 4:return UDP;
case 5:return DNS;
case 6:return TLS;
case 7:return SSL;
// TODU ...more protocol you can add
default:{
return "";
}
}
}
QString DataPackage::getInfo(){
return info;
}
QString DataPackage::getSource(){
if(this->packageType == 1)
return getArpSourceIpAddr();
else return getSrcIpAddr();
}
QString DataPackage::getDestination(){
if(this->packageType == 1)
return getArpDestinationIpAddr();
else return getDesIpAddr();
}
/* Ether */
/********************** get destination ethenet address **********************/
QString DataPackage::getDesMacAddr(){
ETHER_HEADER*ethernet;
ethernet = (ETHER_HEADER*)pkt_content;
u_char*addr;
if(ethernet){
addr = ethernet->ether_des_host;
if(addr){
QString res = byteToHex(addr,1) + ":"
+ byteToHex((addr+1),1) + ":"
+ byteToHex((addr+2),1) + ":"
+ byteToHex((addr+3),1) + ":"
+ byteToHex((addr+4),1) + ":"
+ byteToHex((addr+5),1);
if(res == "FF:FF:FF:FF:FF:FF") return "FF:FF:FF:FF:FF:FF(Broadcast)";
else return res;
}
}
return "";
}
/********************** get source ethenet address **********************/
QString DataPackage::getSrcMacAddr(){
ETHER_HEADER*ethernet;
ethernet = (ETHER_HEADER*)pkt_content;
u_char*addr;
if(ethernet){
addr = ethernet->ether_src_host;
if(addr){
QString res = byteToHex(addr,1) + ":"
+ byteToHex((addr+1),1) + ":"
+ byteToHex((addr+2),1) + ":"
+ byteToHex((addr+3),1) + ":"
+ byteToHex((addr+4),1) + ":"
+ byteToHex((addr+5),1);
if(res == "FF:FF:FF:FF:FF:FF") return "FF:FF:FF:FF:FF:FF(Broadcast)";
else return res;
}
}
return "";
}
/********************** get ethenet type **********************/
QString DataPackage::getMacType(){
ETHER_HEADER*ethernet;
ethernet = (ETHER_HEADER*)pkt_content;
u_short ethernet_type = ntohs(ethernet->ether_type);
switch (ethernet_type) {
case 0x0800: return "IPv4(0x800)";
case 0x0806:return "ARP(0x0806)";
default:{
return "";
}
}
}
/* ip */
/********************** get destination ip address **********************/
QString DataPackage::getDesIpAddr(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
sockaddr_in desAddr;
desAddr.sin_addr.s_addr = ip->des_addr;
return QString(inet_ntoa(desAddr.sin_addr));
}
/********************** get source ip address **********************/
QString DataPackage::getSrcIpAddr(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
sockaddr_in srcAddr;
srcAddr.sin_addr.s_addr = ip->src_addr;
return QString(inet_ntoa(srcAddr.sin_addr));
}
/********************** get ip version **********************/
QString DataPackage::getIpVersion(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ip->versiosn_head_length >> 4);
}
/********************** get ip header length **********************/
QString DataPackage::getIpHeaderLength(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
QString res = "";
int length = ip->versiosn_head_length & 0x0F;
if(length == 5) res = "20 bytes (5)";
else res = QString::number(length*5) + "bytes (" + QString::number(length) + ")";
return res;
}
/********************** get ip TOS **********************/
QString DataPackage::getIpTos(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ntohs(ip->TOS));
}
/********************** get ip total length **********************/
QString DataPackage::getIpTotalLength(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ntohs(ip->total_length));
}
/********************** get ip indentification **********************/
QString DataPackage::getIpIdentification(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ntohs(ip->identification),16);
}
/********************** get ip flag **********************/
QString DataPackage::getIpFlag(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number((ntohs(ip->flag_offset)& 0xe000) >> 8,16);
}
/********************** get ip reverse bit **********************/
QString DataPackage::getIpReservedBit(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
int bit = (ntohs(ip->flag_offset) & 0x8000) >> 15;
return QString::number(bit);
}
/********************** get ip DF flag[Don't Fragment] **********************/
QString DataPackage::getIpDF(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number((ntohs(ip->flag_offset) & 0x4000) >> 14);
}
/********************** get ip MF flag[More Fragment] **********************/
QString DataPackage::getIpMF(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number((ntohs(ip->flag_offset) & 0x2000) >> 13);
}
/********************** get ip Fragment Offset **********************/
QString DataPackage::getIpFragmentOffset(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ntohs(ip->flag_offset) & 0x1FFF);
}
/********************** get ip TTL **********************/
QString DataPackage::getIpTTL(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ip->ttl);
}
/********************** get ip protocol **********************/
QString DataPackage::getIpProtocol(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
int protocol = ip->protocol;
switch (protocol) {
case 1:return "ICMP (1)";
case 6:return "TCP (6)";
case 17:return "UDP (17)";
default:{
return "";
}
}
}
/********************** get ip checksum **********************/
QString DataPackage::getIpCheckSum(){
IP_HEADER*ip;
ip = (IP_HEADER*)(pkt_content + 14);
return QString::number(ntohs(ip->checksum),16);
}
/* icmp */
/********************** get icmp type **********************/
QString DataPackage::getIcmpType(){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(icmp->type));
}
/********************** get icmp code **********************/
QString DataPackage::getIcmpCode(){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(icmp->code));
}
/********************** get icmp checksum **********************/
QString DataPackage::getIcmpCheckSum(){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(icmp->checksum),16);
}
/********************** get icmp identification **********************/
QString DataPackage::getIcmpIdentification(){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(icmp->identification));
}
/********************** get icmp sequence **********************/
QString DataPackage::getIcmpSequeue(){
ICMP_HEADER*icmp;
icmp = (ICMP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(icmp->sequence));
}
QString DataPackage::getIcmpData(int size){
char*icmp;
icmp = (char*)(pkt_content + 14 + 20 + 8);
QString res= "";
for(int i = 0;i < size;i++){
res += (*icmp);
icmp++;
}
return res;
}
/* arp info */
QString DataPackage::getArpHardwareType(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
int type = ntohs(arp->hardware_type);
QString res = "";
if(type == 0x0001) res = "Ethernet(1)";
else res = QString::number(type);
return res;
}
/********************** get arp protocol type **********************/
QString DataPackage::getArpProtocolType(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
int type = ntohs(arp->protocol_type);
QString res = "";
if(type == 0x0800) res = "IPv4(0x0800)";
else res = QString::number(type);
return res;
}
/********************** get hardware length **********************/
QString DataPackage::getArpHardwareLength(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
return QString::number(arp->mac_length);
}
/********************** get arp protocol length **********************/
QString DataPackage::getArpProtocolLength(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
return QString::number(arp->ip_length);
}
/********************** get arp operator code **********************/
QString DataPackage::getArpOperationCode(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
int code = ntohs(arp->op_code);
QString res = "";
if(code == 1) res = "request(1)";
else if(code == 2) res = "reply(2)";
return res;
}
/********************** get arp source ethernet address **********************/
QString DataPackage::getArpSourceEtherAddr(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
u_char*addr;
if(arp){
addr = arp->src_eth_addr;
if(addr){
QString res = byteToHex(addr,1) + ":"
+ byteToHex((addr+1),1) + ":"
+ byteToHex((addr+2),1) + ":"
+ byteToHex((addr+3),1) + ":"
+ byteToHex((addr+4),1) + ":"
+ byteToHex((addr+5),1);
return res;
}
}
return "";
}
/********************** get arp destination ethernet address **********************/
QString DataPackage::getArpDestinationEtherAddr(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
u_char*addr;
if(arp){
addr = arp->des_eth_addr;
if(addr){
QString res = byteToHex(addr,1) + ":"
+ byteToHex((addr+1),1) + ":"
+ byteToHex((addr+2),1) + ":"
+ byteToHex((addr+3),1) + ":"
+ byteToHex((addr+4),1) + ":"
+ byteToHex((addr+5),1);
return res;
}
}
return "";
}
/********************** get arp source ip address **********************/
QString DataPackage::getArpSourceIpAddr(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
if(arp){
u_char*addr = arp->src_ip_addr;
QString srcIp = QString::number(*addr) + "."
+ QString::number(*(addr+1)) + "."
+ QString::number(*(addr+2)) + "."
+ QString::number(*(addr+3));
return srcIp;
}
return "";
}
/********************** get arp destination ip address **********************/
QString DataPackage::getArpDestinationIpAddr(){
ARP_HEADER*arp;
arp = (ARP_HEADER*)(pkt_content + 14);
if(arp){
u_char*addr = arp->des_ip_addr;
QString desIp = QString::number(*addr) + "."
+ QString::number(*(addr+1)) + "."
+ QString::number(*(addr+2)) + "."
+ QString::number(*(addr+3));
return desIp;
}
return "";
}
/* tcp */
/********************** get tcp source port **********************/
QString DataPackage::getTcpSourcePort(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
int port = ntohs(tcp->src_port);
if(port == 443) return "https(443)";
return QString::number(port);
}
/********************** get tcp destination port **********************/
QString DataPackage::getTcpDestinationPort(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
int port = ntohs(tcp->des_port);
if(port == 443) return "https(443)";
return QString::number(port);
}
/********************** get tcp sequence **********************/
QString DataPackage::getTcpSequence(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohl(tcp->sequence));
}
/********************** get tcp acknowledgment **********************/
QString DataPackage::getTcpAcknowledgment(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohl(tcp->ack));
}
/********************** get tcp header length **********************/
QString DataPackage::getTcpHeaderLength(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
int length = (tcp->header_length >> 4);
if(length == 5) return "20 bytes (5)";
else return QString::number(length*4) + " bytes (" + QString::number(length) + ")";
}
QString DataPackage::getTcpRawHeaderLength(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(tcp->header_length >> 4);
}
/********************** get tcp flags **********************/
QString DataPackage::getTcpFlags(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(tcp->flags,16);
}
/********************** get tcp PSH **********************/
QString DataPackage::getTcpPSH(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(((tcp->flags) & 0x08) >> 3);
}
/********************** get tcp ACK **********************/
QString DataPackage::getTcpACK(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(((tcp->flags) & 0x10) >> 4);
}
/********************** get tcp SYN **********************/
QString DataPackage::getTcpSYN(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(((tcp->flags) & 0x02) >> 1);
}
/********************** get tcp UGR **********************/
QString DataPackage::getTcpURG(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(((tcp->flags) & 0x20) >> 5);
}
/********************** get tcp FIN **********************/
QString DataPackage::getTcpFIN(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number((tcp->flags) & 0x01);
}
/********************** get tcp RST **********************/
QString DataPackage::getTcpRST(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(((tcp->flags) & 0x04) >> 2);
}
/********************** get tcp window size **********************/
QString DataPackage::getTcpWindowSize(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(tcp->window_size));
}
/********************** get tcp checksum **********************/
QString DataPackage::getTcpCheckSum(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(tcp->checksum),16);
}
/********************** get tcp urgent pointer **********************/
QString DataPackage::getTcpUrgentPointer(){
TCP_HEADER*tcp;
tcp = (TCP_HEADER*)(pkt_content + 14 + 20);
return QString::number(ntohs(tcp->urgent));
}
QString DataPackage::getTcpOperationKind(int kind){
switch(kind){
case 0:return "EOL"; // end of list
case 1:return "NOP"; // no operation
case 2:return "MSS"; // max segment
case 3:return "WSOPT"; // window scaling factor
case 4:return "SACK-Premitted"; // support SACK
case 5:return "SACK"; // SACK Block
case 8:return "TSPOT"; // Timestamps
case 19:return "TCP-MD5"; // MD5
case 28:return "UTP"; // User Timeout
case 29:return "TCP-AO"; // authenticated
}
}
int DataPackage::getTcpOperationRawKind(int offset){
u_char*tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
return *tcp;
}
bool DataPackage::getTcpOperationSACK(int offset,u_char&length,QVector<u_int>&edge){
u_char*tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
if(*tcp == 5){
tcp++;
length = *tcp;
tcp++;
u_int* pointer = (u_int*)tcp;
for(int i = 0;i < (length - 2)/4;i++){
u_int temp = htonl(*pointer);
edge.push_back(temp);
pointer++;
}
return true;
}else return false;
}
bool DataPackage::getTcpOperationMSS(int offset, u_short &mss){
u_char *tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
if(*tcp == 2){
tcp++;
if(*tcp == 4){
tcp++;
u_short* Mss = (u_short*)tcp;
mss = ntohs(*Mss);
return true;
}
else return false;
}
return false;
}
bool DataPackage::getTcpOperationSACKP(int offset){
u_char *tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
if(*tcp == 4)
return true;
else return false;
}
bool DataPackage::getTcpOperationWSOPT(int offset, u_char &shit){
u_char *tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
if(*tcp == 3){
tcp++;
if(*tcp == 3){
tcp++;
shit = *tcp;
}else return false;
}else return false;
}
bool DataPackage::getTcpOperationTSPOT(int offset, u_int &value, u_int &reply){
u_char *tcp;
tcp = (u_char*)(pkt_content + 14 + 20 + offset + 20);
if(*tcp == 8){
tcp++;
if(*tcp == 10){
tcp++;
u_int *pointer = (u_int*)(tcp);
value = ntohl(*pointer);
pointer++;
reply = ntohl(*pointer);
return true;
}else return false;
}else return false;
}
/* udp */
/********************** get udp source port **********************/
QString DataPackage::getUdpSourcePort(){
UDP_HEADER*udp;
udp = (UDP_HEADER*)(pkt_content + 20 + 14);
int port = ntohs(udp->src_port);
if(port == 53) return "domain(53)";
else return QString::number(port);
}
/********************** get udp destination port **********************/
QString DataPackage::getUdpDestinationPort(){
UDP_HEADER*udp;
udp = (UDP_HEADER*)(pkt_content + 20 + 14);
int port = ntohs(udp->des_port);
if(port == 53) return "domain(53)";
else return QString::number(port);
}
/********************** get udp data length **********************/
QString DataPackage::getUdpDataLength(){
UDP_HEADER*udp;
udp = (UDP_HEADER*)(pkt_content + 20 + 14);
return QString::number(ntohs(udp->data_length));
}
/********************** get udp checksum **********************/
QString DataPackage::getUdpCheckSum(){
UDP_HEADER*udp;
udp = (UDP_HEADER*)(pkt_content + 20 + 14);
return QString::number(ntohs(udp->checksum),16);
}
/* dns */
/********************** get dns transaction **********************/
QString DataPackage::getDnsTransactionId(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number(ntohs(dns->identification),16);
}
/********************** get dns flag **********************/
QString DataPackage::getDnsFlags(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
int type = ntohs(dns->flags);
QString info = "";
if((type & 0xf800) == 0x0000){
info = "(Standard query)";
}
else if((type & 0xf800) == 0x8000){
info = "(Standard query response)";
}
return QString::number(type,16) + info;
}
/********************** get dns QR **********************/
QString DataPackage::getDnsFlagsQR(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x8000) >> 15);
}
/********************** get dns Operation code **********************/
QString DataPackage::getDnsFlagsOpcode(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x7800) >> 11);
}
/********************** get dns AA **********************/
QString DataPackage::getDnsFlagsAA(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x0400) >> 10);
}
/********************** get dns TC **********************/
QString DataPackage::getDnsFlagsTC(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x0200) >> 9);
}
/********************** get dns RD **********************/
QString DataPackage::getDnsFlagsRD(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x0100) >> 8);
}
/********************** get dns RA **********************/
QString DataPackage::getDnsFlagsRA(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x0080) >> 7);
}
/********************** get dns Z(reserved) **********************/
QString DataPackage::getDnsFlagsZ(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x0070) >> 4);
}
/********************** get dns Response code **********************/
QString DataPackage::getDnsFlagsRcode(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number((ntohs(dns->flags) & 0x000f));
}
/********************** get dns Question number **********************/
QString DataPackage::getDnsQuestionNumber(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number(ntohs(dns->question));
}
/********************** get dns Answer number **********************/
QString DataPackage::getDnsAnswerNumber(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number(ntohs(dns->answer));
}
/********************** get dns Authority number **********************/
QString DataPackage::getDnsAuthorityNumber(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number(ntohs(dns->authority));
}
/********************** get dns Additional number **********************/
QString DataPackage::getDnsAdditionalNumber(){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
return QString::number(ntohs(dns->additional));
}
/********************** get dns query result **********************/
void DataPackage::getDnsQueriesDomain(QString&name,int&Type,int&Class){
DNS_HEADER*dns;
dns = (DNS_HEADER*)(pkt_content + 14 + 20 + 8);
char*domain = (char*)(pkt_content + 14 + 20 + 8 + 12);
while(*domain != 0x00){
if(domain && (*domain) <= 64){
int length = *domain;
domain++;
for(int k = 0;k < length;k++){
name += (*domain);
domain++;
}
name += ".";
}else break;
}
domain++;
name = name.left(name.length() - 1);
DNS_QUESITON *qus = (DNS_QUESITON*)(domain);
Type = ntohs(qus->query_type);
Class = ntohs(qus->query_class);
}
/********************** get dns domian name **********************/
QString DataPackage::getDnsDomainName(int offset){
char*dns;
dns = (char*)(pkt_content + 14 + 20 + 8 + offset);
QString name = "";
while(dns && *dns != 0x00){
if((unsigned char)(*dns) <= 64){
int length = *dns;
dns++;
for(int k = 0;k<length;k++){
name += (*dns);
dns++;
}
name += ".";
}else if(((*dns) & 0xc0) == 0xc0){
int accOffset = (((*dns) & 0x3f) << 8);
dns++;
accOffset += (unsigned char)(*dns);
name += getDnsDomainName(accOffset) + ".";
dns++;
break;
}
}
name = name.left(name.length() - 1);
return name;
}
/********************** get dns answer result **********************/
int DataPackage::getDnsAnswersDomain(int offset, QString &name1, u_short &Type, u_short &Class, u_int &ttl, u_short &dataLength,QString&name2){
char*dns = (char*)(pkt_content + 14 + 20 + 8 + 12 + offset);
if(((*dns) & 0xc0) == 0xc0){
int accOffset = (((*dns) & 0x3f) << 8);
dns++; //
accOffset += (*dns);
name1 = getDnsDomainName(accOffset);
dns++; //
DNS_ANSWER*answer = (DNS_ANSWER*)(dns);
Type = ntohs(answer->answer_type);
Class = ntohs(answer->answer_class);
ttl = ntohl(answer->TTL);
dataLength = ntohs(answer->dataLength);
dns += (2 + 2 + 4 + 2);
if(dataLength == 4){
for(int i = 0;i < 4;i++){
name2 += QString::number((unsigned char)(*dns));
name2 += ".";
dns++;
}
}else{
for(int k = 0;k<dataLength;k++){
if((unsigned char)(*dns) <= 64){
int length = *dns;
dns++;
k++;
for(int j = 0;j < length;j++){
name2 += *dns;
dns++;
k++;
}
name2 += ".";
}else if(((*dns) & 0xc0) == 0xc0){
int accOffset = (((*dns) & 0x3f) << 8);
dns++;
k++;
accOffset += (unsigned char)(*dns);
name2 += getDnsDomainName(accOffset) + ".";
dns++;
k++;
}
}
}
name2 = name2.left(name2.length() - 1);
return dataLength + 2 + 2 + 2 + 4 + 2;
}else{
name1 = getDnsDomainName(offset + 12);
DNS_ANSWER*answer = (DNS_ANSWER*)(dns + name1.size() + 2);
Type = ntohs(answer->answer_type);
Class = ntohs(answer->answer_class);
ttl = ntohl(answer->TTL);
dataLength = ntohs(answer->dataLength);
if(dataLength == 4){
dns += (2 + 2 + 4 + 2 + name1.size() + 1);
for(int i = 0;i < 4;i++){
name2 += (unsigned char)(*dns);
dns++;
}
}else{
for(int k = 0;k<dataLength;k++){
if((unsigned char)(*dns) <= 64){
int length = *dns;
dns++;
k++;
for(int j = 0;j < length;j++){
name2 += *dns;
dns++;
k++;
}
name2 += ".";
}else if(((*dns) & 0xc0) == 0xc0){
int accOffset = (((*dns) & 0x3f) << 8);
dns++;
k++;
accOffset += (*dns);
name2 += getDnsDomainName(accOffset);
dns++;
k++;
}
}
}
name2 = name2.left(name2.length() - 1);
return dataLength + 2 + 2 + 2 + 4 + 2 + name1.size() + 2;
}
}
/********************** get dns domain type **********************/
QString DataPackage::getDnsDomainType(int type){
switch (type) {
case 1: return "A (Host Address)";
case 2:return "NS";
case 5:return "CNAME (Canonical NAME for an alias)";
case 6:return "SOA";
case 11:return "WSK";
case 12:return "PTR";
case 13:return "HINFO";
case 15:return "MX";
case 28:return "AAAA";
case 252:return "AXFR";
case 255:return "ANY";
default:return "";
}
}
// tls
/********************** get tls protocol to check the data is meet this format or not **********************/
bool DataPackage::getisTlsProtocol(int offset){
char*ssl;
ssl = (char*)(pkt_content + 14 + 20 + 20 + offset);
u_char type = (u_char)(*ssl);
if(type >= 20 && type <= 23){
u_short *point = (u_short*)(ssl+1);
int version = ntohs(*point);
if(version >= 0x0301 && version <= 0x0304)
return true;
else return false;
}
else return false;
}
/********************** get tls basic information **********************/
void DataPackage::getTlsBasicInfo(int offset, u_char &contentType, u_short &version, u_short &length){
u_char*ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + offset);
contentType = *ssl;
ssl++;
u_short* pointer = (u_short*)(ssl);
version = ntohs(*pointer);
pointer++;
length = ntohs(*(pointer));
}
/********************** get tls handshake type **********************/
void DataPackage::getTlsHandshakeType(int offset, u_char &type){
u_char*ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + offset);
type = *ssl;
}
/********************** get tls client hello information **********************/
void DataPackage::getTlsClientHelloInfo(int offset, u_char &handShakeType, int &length, u_short &version, QString &random, u_char &sessionIdLength, QString &sessionId,u_short&cipherLength,QVector<u_short> &cipherSuit,u_char& cmLength,QVector<u_char>&CompressionMethod,u_short&extensionLength){
u_char*ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + offset);
handShakeType = *ssl;
ssl++;
length = (*ssl) * 4096 + (*(ssl+1)) * 256 + *(ssl + 2);
ssl += 3;
u_short* ver = (u_short*)(ssl);
version = ntohs(*ver);
ver++;
ssl += 2;
for(int i = 0;i < 32;i++){
random += QString::number(*ssl,16);
ssl++;
}
sessionIdLength = *ssl;
ssl++;
for(int k = 0;k < sessionIdLength;k++){
sessionId += QString::number(*ssl,16);
ssl++;
}
u_short* clen = (u_short*)(ssl);
cipherLength = ntohs(*clen);
clen++;
for(int k = 0;k < cipherLength/2;k++){
cipherSuit.push_back(ntohs(*clen));
clen++;
}
ssl += (2 + cipherLength);
cmLength = *ssl;
ssl++;
for(int k = 0;k<cmLength;k++){
CompressionMethod.push_back(*ssl);
ssl++;
}
extensionLength = (*(ssl)) * 256 + *(ssl + 1);
}
void DataPackage::getTlsServerHelloInfo(int offset, u_char &handShakeType, int &length, u_short &version, QString& random, u_char &sessionIdLength, QString &sessionId, u_short &cipherSuit, u_char &compressionMethod, u_short &extensionLength){
u_char*ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + offset);
handShakeType = *ssl;
ssl++;
length = (*ssl) * 4096 + (*(ssl + 1)) * 256 + *(ssl + 2);
ssl += 3;
u_short* ver = (u_short*)(ssl);
version = ntohs(*ver);
ver++;
ssl += 2;
for(int i = 0;i < 32;i++){
random += QString::number(*ssl,16);
ssl++;
}
sessionIdLength = *ssl;
ssl++;
for(int k = 0;k < sessionIdLength;k++){
sessionId += QString::number(*ssl,16);
ssl++;
}
u_short*point = (u_short*)(ssl);
cipherSuit = ntohs(*point);
ssl += 2;
compressionMethod = *ssl;
ssl++;
extensionLength = (*ssl) * 256 + (*(ssl + 1));
}
void DataPackage::getTlsServerKeyExchange(int offset, u_char &handShakeType, int &length, u_char &curveType, u_short &curveName, u_char &pubLength, QString &pubKey, u_short &sigAlgorithm, u_short &sigLength, QString &sig){
u_char*ssl;
ssl = (u_char*)(pkt_content + 14 + 20 + offset);
handShakeType = *ssl;
ssl++;
length = (*ssl) * 4096 + (*(ssl + 1)) * 256 + *(ssl + 2);
ssl += 3;
curveType = (*ssl);
ssl++;
u_short*point = (u_short*)(ssl);
curveName = ntohs(*point);
ssl += 2;
pubLength = (*ssl);
ssl++;
for(int i = 0;i < pubLength;i++){
pubKey += QString::number(*ssl,16);
ssl++;
}
point = (u_short*)(ssl);
sigAlgorithm = ntohs(*point);
point++;
sigLength = ntohs(*point);
ssl += 4;
for(int i = 0;i < sigLength;i++){
sig += QString::number(*ssl,16);
ssl++;
}
}
/********************** get tls handshake type **********************/
QString DataPackage::getTlsHandshakeType(int type){
switch (type) {
case 1:return "Client Hello";
case 2:return "Server hello";
case 11:return "Certificate";
case 16:return "Client Key Exchange";
case 4:return "New Session Ticket";
case 12:return "Server Key Exchange";
case 14:return "Server Hello Done";
default:return "";
}
}
/********************** get tls content type **********************/
QString DataPackage::getTlsContentType(int type){
switch (type) {
case 20: return "Change Cipher Spec";
case 21:return "Alert";
case 22:return "Handshake";
case 23:return "Application Data";
default:return "";
}
}
/********************** get tls version **********************/
QString DataPackage::getTlsVersion(int version){
switch (version) {
case 0x0300:return "SSL 3.0";
case 0x0301:return "TLS 1.0";
case 0x0302:return "TLS 1.1";
case 0x0303:return "TLS 1.2";
case 0x0304:return "TLS 1.3";
default:return "Unkonwn";
}
}
/********************** get tls handshake cipher suites **********************/
QString DataPackage::getTlsHandshakeCipherSuites(u_short code){
switch (code) {
case 0x00ff: return "TLS_EMPTY_RENEGOTIATION_INFO_SCSV (0x00ff)";
case 0xc02c: return "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02c)";
case 0xc030: return "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 (0xc030)";
case 0x009f: return "TLS_DHE_RSA_WITH_AES_256_GCM_SHA384 (0x009f)";
case 0xc0ad: return "TLS_ECDHE_ECDSA_WITH_AES_256_CCM (0xc0ad)";
case 0xc09f: return "TLS_DHE_RSA_WITH_AES_256_CCM (0xc09f)";
case 0xc024: return "TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384 (0xc024)";
case 0xc028: return "TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384 (0xc028)";
case 0x006b: return "TLS_DHE_RSA_WITH_AES_256_CBC_SHA256 (0x006b)";
case 0xc00a: return "TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA (0xc00a)";
case 0xc014: return "TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA (0xc014)";
case 0x0039: return "TLS_DHE_RSA_WITH_AES_256_CBC_SHA (0x0039)";
case 0xc0af: return "TLS_ECDHE_ECDSA_WITH_AES_256_CCM_8 (0xc0af)";
case 0xc0a3: return "TLS_DHE_RSA_WITH_AES_256_CCM_8 (0xc0a3)";
case 0xc087: return "TLS_ECDHE_ECDSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc087)";
case 0xc08b: return "TLS_ECDHE_RSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc08b)";
case 0xc07d: return "TLS_DHE_RSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc07d)";
case 0xc073: return "TLS_ECDHE_ECDSA_WITH_CAMELLIA_256_CBC_SHA384 (0xc073)";
case 0xc077: return "TLS_ECDHE_RSA_WITH_CAMELLIA_256_CBC_SHA384 (0xc077)";
case 0x00c4: return "TLS_DHE_RSA_WITH_CAMELLIA_256_CBC_SHA256 (0x00c4)";
case 0x0088: return "TLS_DHE_RSA_WITH_CAMELLIA_256_CBC_SHA (0x0088)";
case 0xc02b: return "TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02b)";
case 0xc02f: return "TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 (0xc02f)";
case 0x009e: return "TLS_DHE_RSA_WITH_AES_128_GCM_SHA256 (0x009e)";
case 0xc0ac: return "TLS_ECDHE_ECDSA_WITH_AES_128_CCM (0xc0ac)";
case 0xc09e: return "TLS_DHE_RSA_WITH_AES_128_CCM (0xc09e)";
case 0xc023: return "TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256 (0xc023)";
case 0xc027: return "TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256 (0xc027)";
case 0x0067: return "TLS_DHE_RSA_WITH_AES_128_CBC_SHA256 (0x0067)";
case 0xc009: return "TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA (0xc009)";
case 0xc013: return "TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA (0xc013)";
case 0x0033: return "TLS_DHE_RSA_WITH_AES_128_CBC_SHA (0x0033)";
case 0xc0ae: return "TLS_ECDHE_ECDSA_WITH_AES_128_CCM_8 (0xc0ae)";
case 0xc0a2: return "TLS_DHE_RSA_WITH_AES_128_CCM_8 (0xc0a2)";
case 0xc086: return "TLS_ECDHE_ECDSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc086)";
case 0xc08a: return "TLS_ECDHE_RSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc08a)";
case 0xc07c: return "TLS_DHE_RSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc07c)";
case 0xc072: return "TLS_ECDHE_ECDSA_WITH_CAMELLIA_128_CBC_SHA256 (0xc072)";
case 0xc076: return "TLS_ECDHE_RSA_WITH_CAMELLIA_128_CBC_SHA256 (0xc076)";
case 0x00be: return "TLS_DHE_RSA_WITH_CAMELLIA_128_CBC_SHA256 (0x00be)";
case 0x0045: return "TLS_DHE_RSA_WITH_CAMELLIA_128_CBC_SHA (0x0045)";
case 0xc008: return "TLS_ECDHE_ECDSA_WITH_3DES_EDE_CBC_SHA (0xc008)";
case 0xc012: return "TLS_ECDHE_RSA_WITH_3DES_EDE_CBC_SHA (0xc012)";
case 0x0016: return "TLS_DHE_RSA_WITH_3DES_EDE_CBC_SHA (0x0016)";
case 0x00ab: return "TLS_DHE_PSK_WITH_AES_256_GCM_SHA384 (0x00ab)";
case 0xc0a7: return "TLS_DHE_PSK_WITH_AES_256_CCM (0xc0a7)";
case 0xc038: return "TLS_ECDHE_PSK_WITH_AES_256_CBC_SHA384 (0xc038)";
case 0x00b3: return "TLS_DHE_PSK_WITH_AES_256_CBC_SHA384 (0x00b3)";
case 0xc036: return "TLS_ECDHE_PSK_WITH_AES_256_CBC_SHA (0xc036) ";
case 0x0091: return "TLS_DHE_PSK_WITH_AES_256_CBC_SHA (0x0091)";
case 0xc091: return "TLS_DHE_PSK_WITH_CAMELLIA_256_GCM_SHA384 (0xc091)";
case 0xc09b: return "TLS_ECDHE_PSK_WITH_CAMELLIA_256_CBC_SHA384 (0xc09b)";
case 0xc097: return "TLS_DHE_PSK_WITH_CAMELLIA_256_CBC_SHA384 (0xc097)";
case 0xc0ab: return "TLS_PSK_DHE_WITH_AES_256_CCM_8 (0xc0ab)";
case 0x00aa: return "TLS_DHE_PSK_WITH_AES_128_GCM_SHA256 (0x00aa)";
case 0xc0a6: return "TLS_DHE_PSK_WITH_AES_128_CCM (0xc0a6)";
case 0xc037: return "TLS_ECDHE_PSK_WITH_AES_128_CBC_SHA256 (0xc037)";
case 0x00b2: return "TLS_DHE_PSK_WITH_AES_128_CBC_SHA256 (0x00b2)";
case 0xc035: return "TLS_ECDHE_PSK_WITH_AES_128_CBC_SHA (0xc035)";
case 0x0090: return "TLS_DHE_PSK_WITH_AES_128_CBC_SHA (0x0090)";
case 0xc090: return "TLS_DHE_PSK_WITH_CAMELLIA_128_GCM_SHA256 (0xc090)";
case 0xc096: return "TLS_DHE_PSK_WITH_CAMELLIA_128_CBC_SHA256 (0xc096)";
case 0xc09a: return "TLS_ECDHE_PSK_WITH_CAMELLIA_128_CBC_SHA256 (0xc09a)";
case 0xc0aa: return "TLS_PSK_DHE_WITH_AES_128_CCM_8 (0xc0aa)";
case 0xc034: return "TLS_ECDHE_PSK_WITH_3DES_EDE_CBC_SHA (0xc034)";
case 0x008f: return "TLS_DHE_PSK_WITH_3DES_EDE_CBC_SHA (0x008f)";
case 0x009d: return "TLS_RSA_WITH_AES_256_GCM_SHA384 (0x009d)";
case 0xc09d: return "TLS_RSA_WITH_AES_256_CCM (0xc09d)";
case 0x003d: return "TLS_RSA_WITH_AES_256_CBC_SHA256 (0x003d)";
case 0x0035: return "TLS_RSA_WITH_AES_256_CBC_SHA (0x0035)";
case 0xc032: return "TLS_ECDH_RSA_WITH_AES_256_GCM_SHA384 (0xc032)";
case 0xc02a: return "TLS_ECDH_RSA_WITH_AES_256_CBC_SHA384 (0xc02a)";
case 0xc00f: return "TLS_ECDH_RSA_WITH_AES_256_CBC_SHA (0xc00f)";
case 0xc02e: return "TLS_ECDH_ECDSA_WITH_AES_256_GCM_SHA384 (0xc02e)";
case 0xc026: return "TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA384 (0xc026)";
case 0xc005: return "TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA (0xc005)";
case 0xc0a1: return "TLS_RSA_WITH_AES_256_CCM_8 (0xc0a1)";
case 0xc07b: return "TLS_RSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc07b)";
case 0x00c0: return "TLS_RSA_WITH_CAMELLIA_256_CBC_SHA256 (0x00c0)";
case 0x0084: return "TLS_RSA_WITH_CAMELLIA_256_CBC_SHA (0x0084)";
case 0xc08d: return "TLS_ECDH_RSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc08d) ";
case 0xc079: return "TLS_ECDH_RSA_WITH_CAMELLIA_256_CBC_SHA384 (0xc079) ";
case 0xc089: return "TLS_ECDH_ECDSA_WITH_CAMELLIA_256_GCM_SHA384 (0xc089)";
case 0xc075: return "TLS_ECDH_ECDSA_WITH_CAMELLIA_256_CBC_SHA384 (0xc075)";
case 0x009c: return "TLS_RSA_WITH_AES_128_GCM_SHA256 (0x009c)";
case 0xc09c: return "TLS_RSA_WITH_AES_128_CCM (0xc09c)";
case 0x003c: return "TLS_RSA_WITH_AES_128_CBC_SHA256 (0x003c)";
case 0x002f: return "TLS_RSA_WITH_AES_128_CBC_SHA (0x002f)";
case 0xc031: return "TLS_ECDH_RSA_WITH_AES_128_GCM_SHA256 (0xc031)";
case 0xc029: return "TLS_ECDH_RSA_WITH_AES_128_CBC_SHA256 (0xc029)";
case 0xc00e: return "TLS_ECDH_RSA_WITH_AES_128_CBC_SHA (0xc00e)";
case 0xc02d: return "TLS_ECDH_ECDSA_WITH_AES_128_GCM_SHA256 (0xc02d)";
case 0xc025: return "TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA256 (0xc025)";
case 0xc004: return "TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA (0xc004)";
case 0xc0a0: return "TLS_RSA_WITH_AES_128_CCM_8 (0xc0a0)";
case 0xc07a: return "TLS_RSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc07a)";
case 0x00ba: return "TLS_RSA_WITH_CAMELLIA_128_CBC_SHA256 (0x00ba)";
case 0x0041: return "TLS_RSA_WITH_CAMELLIA_128_CBC_SHA (0x0041)";
case 0xc08c: return "TLS_ECDH_RSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc08c)";
case 0xc078: return "TLS_ECDH_RSA_WITH_CAMELLIA_128_CBC_SHA256 (0xc078)";
case 0xc088: return "TLS_ECDH_ECDSA_WITH_CAMELLIA_128_GCM_SHA256 (0xc088)";
case 0xc074: return "TLS_ECDH_ECDSA_WITH_CAMELLIA_128_CBC_SHA256 (0xc074)";
case 0x000a: return "TLS_RSA_WITH_3DES_EDE_CBC_SHA (0x000a)";
case 0xc00d: return "TLS_ECDH_RSA_WITH_3DES_EDE_CBC_SHA (0xc00d) ";
case 0xc003: return "TLS_ECDH_ECDSA_WITH_3DES_EDE_CBC_SHA (0xc003)";
case 0x00ad: return "TLS_RSA_PSK_WITH_AES_256_GCM_SHA384 (0x00ad)";
case 0x00b7: return "TLS_RSA_PSK_WITH_AES_256_CBC_SHA384 (0x00b7)";
case 0x0095: return "TLS_RSA_PSK_WITH_AES_256_CBC_SHA (0x0095)";
case 0xc093: return "TLS_RSA_PSK_WITH_CAMELLIA_256_GCM_SHA384 (0xc093)";
case 0xc099: return "TLS_RSA_PSK_WITH_CAMELLIA_256_CBC_SHA384 (0xc099)";
case 0x00ac: return "TLS_RSA_PSK_WITH_AES_128_GCM_SHA256 (0x00ac)";
case 0x00b6: return "TLS_RSA_PSK_WITH_AES_128_CBC_SHA256 (0x00b6)";
case 0x0094: return "TLS_RSA_PSK_WITH_AES_128_CBC_SHA (0x0094)";
case 0xc092: return "TLS_RSA_PSK_WITH_CAMELLIA_128_GCM_SHA256 (0xc092)";
case 0xc098: return "TLS_RSA_PSK_WITH_CAMELLIA_128_CBC_SHA256 (0xc098)";
case 0x0093: return "TLS_RSA_PSK_WITH_3DES_EDE_CBC_SHA (0x0093)";
case 0x00a9: return "TLS_PSK_WITH_AES_256_GCM_SHA384 (0x00a9)";
case 0xc0a5: return "TLS_PSK_WITH_AES_256_CCM (0xc0a5)";
case 0x00af: return "TLS_PSK_WITH_AES_256_CBC_SHA384 (0x00af)";
case 0x008d: return "TLS_PSK_WITH_AES_256_CBC_SHA (0x008d)";
case 0xc08f: return "TLS_PSK_WITH_CAMELLIA_256_GCM_SHA384 (0xc08f)";
case 0xc095: return "TLS_PSK_WITH_CAMELLIA_256_CBC_SHA384 (0xc095)";
case 0xc0a9: return "TLS_PSK_WITH_AES_256_CCM_8 (0xc0a9)";
case 0x00a8: return "TLS_PSK_WITH_AES_128_GCM_SHA256 (0x00a8)";
case 0xc0a4: return "TLS_PSK_WITH_AES_128_CCM (0xc0a4)";
case 0x00ae: return "TLS_PSK_WITH_AES_128_CBC_SHA256 (0x00ae)";
case 0x008c: return "TLS_PSK_WITH_AES_128_CBC_SHA (0x008c)";
case 0xc08e: return "TLS_PSK_WITH_CAMELLIA_128_GCM_SHA256 (0xc08e)";
case 0xc094: return "TLS_PSK_WITH_CAMELLIA_128_CBC_SHA256 (0xc094)";
case 0xc0a8: return "TLS_PSK_WITH_AES_128_CCM_8 (0xc0a8)";
case 0x008b: return "TLS_PSK_WITH_3DES_EDE_CBC_SHA (0x008b)";
case 0xc007: return "TLS_ECDHE_ECDSA_WITH_RC4_128_SHA (0xc007)";
case 0xc011: return "TLS_ECDHE_RSA_WITH_RC4_128_SHA (0xc011)";
case 0xc033: return "TLS_ECDHE_PSK_WITH_RC4_128_SHA (0xc033)";
case 0x008e: return "TLS_DHE_PSK_WITH_RC4_128_SHA (0x008e) ";
case 0x0005: return "TLS_RSA_WITH_RC4_128_SHA (0x0005)";
case 0x0004: return "TLS_RSA_WITH_RC4_128_MD5 (0x0004)";
case 0xc00c: return "TLS_ECDH_RSA_WITH_RC4_128_SHA (0xc00c)";
case 0xc002: return "TLS_ECDH_ECDSA_WITH_RC4_128_SHA (0xc002) ";
case 0x0092: return "TLS_RSA_PSK_WITH_RC4_128_SHA (0x0092)";
case 0x008a: return "TLS_PSK_WITH_RC4_128_SHA (0x008a)";
case 0x1302: return "TLS_AES_256_GCM_SHA384 (0x1302)";
case 0x1303: return "TLS_CHACHA20_POLY1305_SHA256 (0x1303)";
case 0x1301: return "TLS_AES_128_GCM_SHA256 (0x1301)";
case 0xcca9: return "TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca9)";
case 0xcca8: return "TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xcca8)";
case 0xccaa: return "TLS_DHE_RSA_WITH_CHACHA20_POLY1305_SHA256 (0xccaa)";
default:return "0x" + QString::number(code,16);
}
}
/********************** get tls handshake compression **********************/
QString DataPackage::getTlsHandshakeCompression(u_char code){
switch (code) {
case 0:return "null";
default:return "";
}
}
QString DataPackage::getTlsHandshakeExtension(u_short type){
switch (type) {
case 0: return "server_name";
case 5: return "status_request";
case 11:return "ec_point_format";
case 10:return "supported_groups";
case 35:return "session_ticket";
case 22:return "encrypt_then_mac";
case 23:return "extended_master_secret";
case 13:return "signature_algorithms";
case 43:return "supported_versions";
case 45:return "psk_key_exchange_modes";
case 51:return "key_share";
case 21:return "padding";
case 18:return "signed_certificate_timestamp";
case 39578:return "Reserved (GREASE) (39578)";
default:return "Unknown type";
}
}
QString DataPackage::getTlsHandshakeExtensionECPointFormat(u_char type){
switch (type) {
case 0:return "EC point format: uncompressed (0)";
case 1:return "EC point format: ansiX962_compressed_prime (1)";
case 2:return "EC point format: ansiX962_compressed_char2 (2)";
default:return QString::number(type);
}
}
QString DataPackage::getTlsHandshakeExtensionSupportGroup(u_short type){
switch (type) {
case 0x001d:return "x25519 (0x001d)";
case 0x0017:return "secp256r1 (0x0017)";
case 0x001e:return "x448 (0x001e)";
case 0x0019:return "secp521r1 (0x0019)";
case 0x0018:return "secp384r1 (0x0018)";
case 0x001c:return "brainpoolP512r1 (0x001c)";
case 0x001b:return "brainpoolP384r1 (0x001b)";
case 0x0016:return "secp256k1 (0x0016)";
case 0x001a:return "brainpoolP256r1 (0x001a)";
case 0x0015:return "secp224r1 (0x0015)";
case 0x0014:return "secp224k1 (0x0014)";
case 0x0013:return "secp192r1 (0x0013)";
case 0x0012:return "secp192k1 (0x0012)";
default:return "0x" + QString::number(type,16);
}
}
QString DataPackage::getTlsHadshakeExtensionHash(u_char type){
switch (type) {
case 4:return "SHA256";
case 5:return "SHA384";
case 6:return "SHA512";
case 2:return "SHA1";
case 3:return "SHA224";
case 1:return "MD5";
default:return "Unknown";
}
}
QString DataPackage::getTlsHadshakeExtensionSignature(u_char type){
switch (type) {
case 1:return "RSA";
case 2:return "DSA";
case 3:return "ECDSA";
default:return "Unknown";
}
}
u_short DataPackage::getTlsExtensionType(int offset){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
return ntohs(*ssl);
}
void DataPackage::getTlsExtensionServerName(int offset, u_short &type, u_short &length, u_short &listLength, u_char &nameType, u_short &nameLength, QString &name){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
listLength = ntohs(*ssl);
ssl++;
u_char*p = (u_char*)ssl;
nameType = *p;
p++;
nameLength = (*p) * 16 + *(p+1);
p += 2;
for(int i = 0;i < nameLength;i++){
name += (*p);
p++;
}
return;
}
void DataPackage::getTlsExtensionKeyShare(int offset, u_short &type, u_short &length, u_short &shareLength, u_short &group, u_short &exchangeLength,QString &exchange){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
shareLength = ntohs(*ssl);
ssl++;
group = ntohs(*ssl);
ssl++;
exchangeLength = ntohs(*ssl);
ssl++;
u_char*point = (u_char*)(ssl);
for(int i = 0;i < exchangeLength;i++){
exchange += QString::number(*point,16);
point++;
}
}
void DataPackage::getTlsExtensionEcPointFormats(int offset, u_short &type, u_short &length,u_char& ecLength,QVector<u_char> &EC){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
u_char* point = (u_char*)(ssl);
ecLength = *point;
point++;
for(int i = 0;i < ecLength;i++){
EC.push_back(*point);
point++;
}
}
void DataPackage::getTlsExtensionOther(int offset, u_short &type, u_short &length,QString&data){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
u_char*point = (u_char*)(ssl);
for(int i = 0;i < length;i++){
data += QString::number(*point,16);
point++;
}
}
void DataPackage::getTlsExtensionSupportGroups(int offset, u_short &type, u_short &length, u_short &groupListLength, QVector<u_short> &group){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
groupListLength = ntohs(*ssl);
ssl++;
for(int i = 0;i < groupListLength/2;i++){
group.push_back(ntohs(*ssl));
ssl++;
}
}
void DataPackage::getTlsExtensionSessionTicket(int offset, u_short &type, u_short &length){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
}
void DataPackage::getTlsExtensionEncryptThenMac(int offset, u_short &type, u_short &length){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
}
void DataPackage::getTlsExtensionExtendMasterSecret(int offset, u_short &type, u_short &length){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
}
void DataPackage::getTlsExtensionSignatureAlgorithms(int offset, u_short &type, u_short &length, u_short &algorithmLength, QVector<u_short> &signatureAlgorithm){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
algorithmLength = ntohs(*ssl);
ssl++;
for(int i = 0;i < algorithmLength/2;i++){
signatureAlgorithm.push_back(ntohs(*ssl));
ssl++;
}
}
void DataPackage::getTlsExtensionSupportVersions(int offset, u_short &type, u_short &length, u_char &supportLength, QVector<u_short> &supportVersion){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
u_char*point = (u_char*)(ssl);
supportLength = *point;
point++;
ssl = (u_short*)(point);
for(int i = 0;i < supportLength;i++){
supportVersion.push_back(ntohs(*ssl));
ssl++;
}
}
void DataPackage::getTlsExtensionPadding(int offset, u_short &type, u_short &length,QString& data){
u_short*ssl;
ssl = (u_short*)(pkt_content + 14 + 20 + offset);
type = ntohs(*ssl);
ssl++;
length = ntohs(*ssl);
ssl++;
u_char*point = (u_char*)(ssl);
for(int i = 0;i < length;i++){
data += QString::number(*point,16);
point++;
}
}
6、Format.h
#ifndef FORMAT_H
#define FORMAT_H
/* @ This head file is used to define format of packages @ auther DJH-sudo @ if you have any question,pls contact me at [email protected] */
// define some types and macro defination
typedef unsigned char u_char; // 1 byte
typedef unsigned short u_short; // 2 byte
typedef unsigned int u_int; // 4 byte
typedef unsigned long u_long; // 4 byte
#define ARP "ARP" //
#define TCP "TCP" //
#define UDP "UDP" //
#define ICMP "ICMP" //
#define DNS "DNS" //
#define TLS "TLS" //
#define SSL "SSL" //
// Ethernet protocol format
/* +-------------------+-----------------+------+ | 6 byte | 6 byte |2 byte| +-------------------+-----------------+------+ |destination address| source address | type | +-------------------+-----------------+------+ */
typedef struct ether_header{
// 14 byte
u_char ether_des_host[6]; // destination addr [6 byte]
u_char ether_src_host[6]; // source addr [6 byte]
u_short ether_type; // type [2 byte]
}ETHER_HEADER;
// Ipv4 header
/* +-------+-----------+---------------+-------------------------+ | 4 bit | 4 bit | 8 bit | 16 bit | +-------+-----------+---------------+-------------------------+ |version|head length| TOS/DS_byte | total length | +-------------------+--+---+---+----+-+-+-+-------------------+ | identification |R|D|M| offset | +-------------------+---------------+-+-+-+-------------------+ | ttl | protocal | checksum | +-------------------+---------------+-------------------------+ | source ip address | +-------------------------------------------------------------+ | destination ip address | +-------------------------------------------------------------+ */
typedef struct ip_header{
// 20 byte
u_char versiosn_head_length; // version [4 bit] and length of header [4 bit]
u_char TOS; // TOS/DS_byte [1 byte]
u_short total_length; // ip package total length [2 byte]
u_short identification; // identification [2 byte]
u_short flag_offset; // flag [3 bit] and offset [13 bit]
u_char ttl; // TTL [1 byte]
u_char protocol; // protocal [1 byte]
u_short checksum; // checksum [2 byte]
u_int src_addr; // source address [4 byte]
u_int des_addr; // destination address [4 byte]
}IP_HEADER;
// Tcp header
/* +----------------------+---------------------+ | 16 bit | 16 bit | +----------------------+---------------------+ | source port | destination port | +----------------------+---------------------+ | sequence number | +----------------------+---------------------+ | ack number | +----+---------+-------+---------------------+ |head| reserve | flags | window size | +----+---------+-------+---------------------+ | checksum | urgent pointer | +----------------------+---------------------+ */
typedef struct tcp_header{
// 20 byte
u_short src_port; // source port [2 byte]
u_short des_port; // destination [2 byte]
u_int sequence; // sequence number [4 byte]
u_int ack; // Confirm serial number [4 byte]
u_char header_length; // header length [4 bit]
u_char flags; // flags [6 bit]
u_short window_size; // size of window [2 byte]
u_short checksum; // checksum [2 byte]
u_short urgent; // urgent pointer [2 byte]
}TCP_HEADER;
// Udp header
/* +---------------------+---------------------+ | 16 bit | 16 bit | +---------------------+---------------------+ | source port | destination port | +---------------------+---------------------+ | data package length | checksum | +---------------------+---------------------+ */
typedef struct udp_header{
// 8 byte
u_short src_port; // source port [2 byte]
u_short des_port; // destination port [2 byte]
u_short data_length; // data length [2 byte]
u_short checksum; // checksum [2 byte]
}UDP_HEADER;
// Icmp header
/* +---------------------+---------------------+ | 1 byte | 1 byte | 2 byte | +---------------------+---------------------+ | type | code | checksum | +---------------------+---------------------+ | identification | sequence | +---------------------+---------------------+ | option | +-------------------------------------------+ */
typedef struct icmp_header{
// at least 8 byte
u_char type; // type [1 byte]
u_char code; // code [1 byte]
u_short checksum; // checksum [2 byte]
u_short identification; // identification [2 byte]
u_short sequence; // sequence [2 byte]
}ICMP_HEADER;
//Arp
/* |<-------- ARP header ------------>| +------+--------+-----+------+-------+----------+---------+---------------+--------------+ |2 byte| 2 byte |1byte| 1byte|2 byte | 6 byte | 4 byte | 6 byte | 4 byte | +------+--------+-----+------+-------+----------+---------+---------------+--------------+ | type |protocol|e_len|ip_len|op_type|source mac|source ip|destination mac|destination ip| +------+--------+-----+------+-------+----------+---------+---------------+--------------+ */
typedef struct arp_header{
// 28 byte
u_short hardware_type; // hardware type [2 byte]
u_short protocol_type; // protocol [2 byte]
u_char mac_length; // MAC address length [1 byte]
u_char ip_length; // IP address length [1 byte]
u_short op_code; // operation code [2 byte]
u_char src_eth_addr[6]; // source ether address [6 byte]
u_char src_ip_addr[4]; // source ip address [4 byte]
u_char des_eth_addr[6]; // destination ether address [6 byte]
u_char des_ip_addr[4]; // destination ip address [4 byte]
}ARP_HEADER;
// dns
/* +--------------------------+---------------------------+ | 16 bit |1b|4bit|1b|1b|1b|1b|3b|4bit| +--------------------------+--+----+--+--+--+--+--+----+ | identification |QR| OP |AA|TC|RD|RA|..|Resp| +--------------------------+--+----+--+--+--+--+--+----+ | Question | Answer RRs | +--------------------------+---------------------------+ | Authority RRs | Additional RRs | +--------------------------+---------------------------+ */
typedef struct dns_header{
// 12 byte
u_short identification; // Identification [2 byte]
u_short flags; // Flags [total 2 byte]
u_short question; // Question Number [2 byte]
u_short answer; // Answer RRs [2 byte]
u_short authority; // Authority RRs [2 byte]
u_short additional; // Additional RRs [2 byte]
}DNS_HEADER;
// dns question
typedef struct dns_question{
// char* name; // Non-fixed
u_short query_type; // 2 byte
u_short query_class; // 2 byte
}DNS_QUESITON;
typedef struct dns_answer{
// char* name // Non-fixed
u_short answer_type; // 2 byte
u_short answer_class; // 2 byte
u_int TTL; // 4 byte
u_short dataLength; // 2 byte
//char* name // Non-fixed
}DNS_ANSWER;
#endif // FORMAT_H
7、mainwindow.h
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include <stdio.h>
#include <pcap.h>
#pragma comment(lib,"ws2_32.lib")
#include "capture.h"
#include "readonlydelegate.h"
#include <QVector>
QT_BEGIN_NAMESPACE
namespace Ui {
class MainWindow; }
QT_END_NAMESPACE
class MainWindow : public QMainWindow
{
Q_OBJECT
public:
// construction and destruction
MainWindow(QWidget *parent = nullptr);
~MainWindow();
// show network card
void showNetworkCard();
// capture the data package
int capture();
private slots:
void on_comboBox_currentIndexChanged(int index);
void on_tableWidget_cellClicked(int row, int column);
void on_lineEdit_returnPressed();
void on_lineEdit_textChanged(const QString &arg1);
void on_tableWidget_currentCellChanged(int currentRow, int currentColumn, int previousRow, int previousColumn);
public slots:
void handleMessage(DataPackage data);
private:
Ui::MainWindow *ui;
pcap_if_t *all_devices; // all adapter device
pcap_if_t *device; // An adapter
pcap_t *pointer; // data package pointer
ReadOnlyDelegate* readOnlyDelegate; // readonly detegate
int countNumber; // countNumber
int rowNumber; // rowNumber
QVector<DataPackage>data; // store data
char errbuf[PCAP_ERRBUF_SIZE]; // error buffer
bool isStart; // the thread is start or not
};
#endif // MAINWINDOW_H
8、mainwindow.cpp
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include "pcap.h"
#include <QDebug>
#include "winsock.h"
#include "capture.h"
#include <QStringList>
#include <QColor>
#include <QMessageBox>
#include <QTreeWidgetItem>
#include <QStringList>
/* * MainWindow * Constructure function * initialize the variables and GUI */
MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
, ui(new Ui::MainWindow)
{
ui->setupUi(this);
statusBar()->showMessage("welcome to shark!");
// set the toolbar
ui->toolBar->addAction(ui->actionstart_capture);
ui->toolBar->addAction(ui->actionclear_all);
ui->toolBar->addAction(ui->actionup);
ui->toolBar->addAction(ui->actiondown);
ui->toolBar->addAction(ui->actionTop);
ui->toolBar->addAction(ui->actionEnd);
// show network card
showNetworkCard();
// initialization
Capture *thread = new Capture;
ui->comboBox->setEnabled(true);
isStart = false;
static bool index = false;
countNumber = 0;
rowNumber = -1;
data.clear();
device = nullptr;
pointer = nullptr;
// add the signal-slot
connect(ui->actionstart_capture,&QAction::triggered,this,[=]{
index = !index;
if(index){
if(ui->tableWidget->rowCount()){
int type = QMessageBox::information(NULL,"information","Before restarting do you want to save result?","Save","Continue","Cancel");
if(type == 0)
{
// save the file...
}else if(type == 1){
qDebug()<<"not save";
}else{
index = !index;
isStart = false;
return;
}
}
ui->tableWidget->clearContents();
ui->tableWidget->setRowCount(0);
ui->treeWidget->clear();
countNumber = 0;
rowNumber = -1;
int dataSize = this->data.size();
for(int i = 0;i < dataSize;i++){
free((char*)(this->data[i].pkt_content));
this->data[i].pkt_content = nullptr;
}
QVector<DataPackage>().swap(data);
int res = capture();
if(pointer && res != -1){
thread->resetFlag();
thread->setPointer(pointer);
ui->comboBox->setEnabled(false);
thread->start();
ui->actionstart_capture->setIcon(QIcon(":/stop.png"));
countNumber = 0;
isStart = true;
}else{
// fail to start
index = !index;
countNumber = 0;
rowNumber = -1;
isStart = false;
}
}else{
thread->setFlag();
ui->comboBox->setEnabled(true);
thread->quit();
thread->wait();
pcap_close(pointer);
ui->actionstart_capture->setIcon(QIcon(":/start.png"));
isStart = false;
}
});
connect(ui->actionclear_all,&QAction::triggered,this,[=]{
if(!isStart){
int type = QMessageBox::information(this,"information","Do you want to clear all?","Yes","Cancel");
if(type == 0){
ui->tableWidget->clearContents();
ui->tableWidget->setRowCount(0);
ui->treeWidget->clear();
countNumber = 0;
rowNumber = -1;
int dataSize = this->data.size();
for(int i = 0;i < dataSize;i++){
free((char*)(this->data[i].pkt_content));
this->data[i].pkt_content = nullptr;
}
QVector<DataPackage>().swap(data);
}else return;
}
});
connect(ui->actionup,&QAction::triggered,this,[=]{
int index = ui->tableWidget->currentRow();
if(index > 0){
ui->tableWidget->setCurrentCell(index - 1,0);
on_tableWidget_cellClicked(index - 1,0);
}else return;
});
connect(ui->actiondown,&QAction::triggered,this,[=]{
int index = ui->tableWidget->currentRow();
if(index >= 0 && index < ui->tableWidget->rowCount() - 1){
ui->tableWidget->setCurrentCell(index + 1,0);
on_tableWidget_cellClicked(index + 1,0);
}else return;
});
connect(ui->actionTop,&QAction::triggered,this,[=]{
int index = ui->tableWidget->currentRow();
if(index > 0){
ui->tableWidget->setCurrentCell(0,0);
on_tableWidget_cellClicked(0,0);
}else return;
});
connect(ui->actionEnd,&QAction::triggered,this,[=]{
int index = ui->tableWidget->rowCount() - 1;
if(index > 0){
ui->tableWidget->setCurrentCell(index,0);
on_tableWidget_cellClicked(index,0);
}
});
connect(thread,&Capture::send,this,&MainWindow::handleMessage);
// initialization
ui->tableWidget->setShowGrid(false);
ui->toolBar->setMovable(false);
ui->tableWidget->verticalHeader()->setVisible(false);
ui->tableWidget->setColumnCount(7);
readOnlyDelegate = new ReadOnlyDelegate();
ui->tableWidget->setItemDelegate(readOnlyDelegate);
QStringList title = {
"NO.","Time","Source","Destination","Protocol","Length","Info"};
ui->tableWidget->setHorizontalHeaderLabels(title);
ui->tableWidget->verticalHeader()->setDefaultSectionSize(30);
ui->tableWidget->setColumnWidth(0,50);
ui->tableWidget->setColumnWidth(1,150);
ui->tableWidget->setColumnWidth(2,300);
ui->tableWidget->setColumnWidth(3,300);
ui->tableWidget->setColumnWidth(4,100);
ui->tableWidget->setColumnWidth(5,100);
ui->tableWidget->setColumnWidth(6,1000);
ui->tableWidget->setSelectionBehavior(QAbstractItemView::SelectRows);
ui->treeWidget->setHeaderHidden(true);
}
/* * ~MainWindow * Destructure function * free memory */
MainWindow::~MainWindow()
{
// free the memory you have allocated!
int dataSize = this->data.size();
for(int i = 0;i<dataSize;i++){
free((char*)(this->data[i].pkt_content));
this->data[i].pkt_content = nullptr;
}
// do not use 'data.clear()' only,it can't free totally!
QVector<DataPackage>().swap(data);
delete readOnlyDelegate;
delete ui;
}
/* * showNetworkCard * scan the network cards and show information about it at combox */
void MainWindow::showNetworkCard(){
int n = pcap_findalldevs(&all_devices,errbuf);
ui->comboBox->clear();
if(n == -1){
statusBar()->showMessage("There is something wrong" + QString(errbuf));
ui->comboBox->addItem("Cannot find a matching network card, please restart and test");
return;
}
ui->comboBox->clear();
ui->comboBox->addItem("please chose the Network Card!");
for(device = all_devices;device!= nullptr;device = device->next){
QString device_name = device->name;
device_name.replace("\\Device\\","");
QString device_description = device->description;
QString item = device_name + " " + device_description;
ui->comboBox->addItem(item);
}
}
/* * on_comboBox_currentIndexChanged * when item of combox changed,the device pointer will also change * this function could ensure device pointer point to the selected network card */
void MainWindow::on_comboBox_currentIndexChanged(int index)
{
int i = 0;
if(index!=0){
for(device = all_devices;i<index - 1;i++,device = device->next);
}else{
device = nullptr;
}
return;
}
/* * capture * starting capture the data package from card * the data package in data link layer must meet the IEEE 802.3 protocol * or it will be throwed away */
int MainWindow::capture(){
// pcap_t * pcap_open_live(char*device,int snaplen,int promisc,int to_ms,char*errbuf);
if(device)
pointer = pcap_open_live(device->name,65536,1,1000,errbuf);
else{
statusBar()->showMessage("pls choose Network Card!");
return -1;
}
if(!pointer){
statusBar()->showMessage(errbuf);
pcap_freealldevs(all_devices);
device = nullptr;
return -1;
}else{
// check the data link IEEE 802.3
if(pcap_datalink(pointer) != DLT_EN10MB){
pcap_close(pointer);
pcap_freealldevs(all_devices);
device = nullptr;
return -1;
}
statusBar()->showMessage(device->name);
}
return 0;
}
/* * handleMessage * slot function Auto trigger * This function will analysis package it received and show in the table */
void MainWindow::handleMessage(DataPackage data){
ui->tableWidget->insertRow(countNumber);
this->data.push_back(data);
QString type = data.getPackageType();
QColor color;
// show different color
if(type == TCP){
color = QColor(216,191,216);
}else if(type == TCP){
color = QColor(144,238,144);
}
else if(type == ARP){
color = QColor(238,238,0);
}
else if(type == DNS){
color = QColor(255,255,224);
}else if(type == TLS || type == SSL){
color = QColor(210,149,210);
}else{
color = QColor(255,218,185);
}
ui->tableWidget->setItem(countNumber,0,new QTableWidgetItem(QString::number(countNumber + 1)));
ui->tableWidget->setItem(countNumber,1,new QTableWidgetItem(data.getTimeStamp()));
ui->tableWidget->setItem(countNumber,2,new QTableWidgetItem(data.getSource()));
ui->tableWidget->setItem(countNumber,3,new QTableWidgetItem(data.getDestination()));
ui->tableWidget->setItem(countNumber,4,new QTableWidgetItem(type));
ui->tableWidget->setItem(countNumber,5,new QTableWidgetItem(data.getDataLength()));
ui->tableWidget->setItem(countNumber,6,new QTableWidgetItem(data.getInfo()));
// set color
for(int i = 0;i < 7;i++){
ui->tableWidget->item(countNumber,i)->setBackground(color);
}
countNumber++;
}
/* * on_tableWidget_cellClicked * click the table item the detail inforamation will show at the bottom tree widget * this function will analysis data pakckage chosed in detail */
void MainWindow::on_tableWidget_cellClicked(int row, int column)
{
if(rowNumber == row || row < 0){
return;
}else{
ui->treeWidget->clear();
rowNumber = row;
if(rowNumber < 0 || rowNumber > data.size())
return;
QString desMac = data[rowNumber].getDesMacAddr();
QString srcMac = data[rowNumber].getSrcMacAddr();
QString type = data[rowNumber].getMacType();
QString tree1 = "Ethernet, Src:" +srcMac + ", Dst:" + desMac;
QTreeWidgetItem*item = new QTreeWidgetItem(QStringList()<<tree1);
ui->treeWidget->addTopLevelItem(item);
item->addChild(new QTreeWidgetItem(QStringList()<<"Destination:" + desMac));
item->addChild(new QTreeWidgetItem(QStringList()<<"Source:" + srcMac));
item->addChild(new QTreeWidgetItem(QStringList()<<"Type:" + type));
QString packageType = data[rowNumber].getPackageType();
// arp package analysis
if(packageType == ARP){
QString ArpType = data[rowNumber].getArpOperationCode();
QTreeWidgetItem*item2 = new QTreeWidgetItem(QStringList()<<"Address Resolution Protocol " + ArpType);
ui->treeWidget->addTopLevelItem(item2);
QString HardwareType = data[rowNumber].getArpHardwareType();
QString protocolType = data[rowNumber].getArpProtocolType();
QString HardwareSize = data[rowNumber].getArpHardwareLength();
QString protocolSize = data[rowNumber].getArpProtocolLength();
QString srcMacAddr = data[rowNumber].getArpSourceEtherAddr();
QString desMacAddr = data[rowNumber].getArpDestinationEtherAddr();
QString srcIpAddr = data[rowNumber].getArpSourceIpAddr();
QString desIpAddr = data[rowNumber].getArpDestinationIpAddr();
item2->addChild(new QTreeWidgetItem(QStringList()<<"Hardware type:" + HardwareType));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Protocol type:" + protocolType));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Hardware size:" + HardwareSize));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Protocol size:" + protocolSize));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Opcode:" + ArpType));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Sender MAC address:" + srcMacAddr));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Sender IP address:" + srcIpAddr));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Target MAC address:" + desMacAddr));
item2->addChild(new QTreeWidgetItem(QStringList()<<"Target IP address:" + desIpAddr));
return;
}else {
// ip package analysis
QString srcIp = data[rowNumber].getSrcIpAddr();
QString desIp = data[rowNumber].getDesIpAddr();
QTreeWidgetItem*item3 = new QTreeWidgetItem(QStringList()<<"Internet Protocol Version 4, Src:" + srcIp + ", Dst:" + desIp);
ui->treeWidget->addTopLevelItem(item3);
QString version = data[rowNumber].getIpVersion();
QString headerLength = data[rowNumber].getIpHeaderLength();
QString Tos = data[rowNumber].getIpTos();
QString totalLength = data[rowNumber].getIpTotalLength();
QString id = "0x" + data[rowNumber].getIpIdentification();
QString flags = data[rowNumber].getIpFlag();
if(flags.size()<2)
flags = "0" + flags;
flags = "0x" + flags;
QString FragmentOffset = data[rowNumber].getIpFragmentOffset();
QString ttl = data[rowNumber].getIpTTL();
QString protocol = data[rowNumber].getIpProtocol();
QString checksum = "0x" + data[rowNumber].getIpCheckSum();
int dataLengthofIp = totalLength.toUtf8().toInt() - 20;
item3->addChild(new QTreeWidgetItem(QStringList()<<"0100 .... = Version:" + version));
item3->addChild(new QTreeWidgetItem(QStringList()<<".... 0101 = Header Length:" + headerLength));
item3->addChild(new QTreeWidgetItem(QStringList()<<"TOS:" + Tos));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Total Length:" + totalLength));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Identification:" + id));
QString reservedBit = data[rowNumber].getIpReservedBit();
QString DF = data[rowNumber].getIpDF();
QString MF = data[rowNumber].getIpMF();
QString FLAG = ",";
if(reservedBit == "1"){
FLAG += "Reserved bit";
}
else if(DF == "1"){
FLAG += "Don't fragment";
}
else if(MF == "1"){
FLAG += "More fragment";
}
if(FLAG.size() == 1)
FLAG = "";
QTreeWidgetItem*bitTree = new QTreeWidgetItem(QStringList()<<"Flags:" + flags + FLAG);
item3->addChild(bitTree);
QString temp = reservedBit == "1"?"Set":"Not set";
bitTree->addChild(new QTreeWidgetItem(QStringList()<<reservedBit + "... .... = Reserved bit:" + temp));
temp = DF == "1"?"Set":"Not set";
bitTree->addChild(new QTreeWidgetItem(QStringList()<<"." + DF + ".. .... = Don't fragment:" + temp));
temp = MF == "1"?"Set":"Not set";
bitTree->addChild(new QTreeWidgetItem(QStringList()<<".." + MF + ". .... = More fragment:" + temp));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Fragment Offset:" + FragmentOffset));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Time to Live:" + ttl));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Protocol:" + protocol));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Header checksum:" + checksum));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Source Address:" + srcIp));
item3->addChild(new QTreeWidgetItem(QStringList()<<"Destination Address:" + desIp));
if(packageType == TCP || packageType == TLS || packageType == SSL){
QString desPort = data[rowNumber].getTcpDestinationPort();
QString srcPort = data[rowNumber].getTcpSourcePort();
QString ack = data[rowNumber].getTcpAcknowledgment();
QString seq = data[rowNumber].getTcpSequence();
QString headerLength = data[rowNumber].getTcpHeaderLength();
int rawLength = data[rowNumber].getTcpRawHeaderLength().toUtf8().toInt();
dataLengthofIp -= (rawLength * 4);
QString dataLength = QString::number(dataLengthofIp);
QString flag = data[rowNumber].getTcpFlags();
while(flag.size()<2)
flag = "0" + flag;
flag = "0x" + flag;
QTreeWidgetItem*item4 = new QTreeWidgetItem(QStringList()<<"Transmission Control Protocol, Src Port:" + srcPort + ", Dst Port:" + desPort + ",Seq:" + seq + ", Ack:" + ack + ", Len:" + dataLength);
ui->treeWidget->addTopLevelItem(item4);
item4->addChild(new QTreeWidgetItem(QStringList()<<"Source Port:" + srcPort));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Destination Port:" + desPort));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Sequence Number (raw) :" + seq));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Ackowledgment Number (raw) :" + ack));
QString sLength = QString::number(rawLength,2);
while(sLength.size()<4)
sLength = "0" + sLength;
item4->addChild(new QTreeWidgetItem(QStringList()<<sLength + " .... = Header Length:" + headerLength));
QString PSH = data[rowNumber].getTcpPSH();
QString URG = data[rowNumber].getTcpURG();
QString ACK = data[rowNumber].getTcpACK();
QString RST = data[rowNumber].getTcpRST();
QString SYN = data[rowNumber].getTcpSYN();
QString FIN = data[rowNumber].getTcpFIN();
QString FLAG = "";
if(PSH == "1")
FLAG += "PSH,";
if(URG == "1")
FLAG += "UGR,";
if(ACK == "1")
FLAG += "ACK,";
if(RST == "1")
FLAG += "RST,";
if(SYN == "1")
FLAG += "SYN,";
if(FIN == "1")
FLAG += "FIN,";
FLAG = FLAG.left(FLAG.length()-1);
if(SYN == "1"){
item4->addChild(new QTreeWidgetItem(QStringList()<<"Sequence Number: 0 (relative sequence number)"));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Acknowledgment Number: 0 (relative ack number)"));
}
if(SYN == "1" && ACK == "1"){
item4->addChild(new QTreeWidgetItem(QStringList()<<"Sequence Number: 0 (relative sequence number)"));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Acknowledgment Number: 1 (relative ack number)"));
}
QTreeWidgetItem*flagTree = new QTreeWidgetItem(QStringList()<<"Flags:" + flag + " (" + FLAG + ")");
item4->addChild(flagTree);
QString temp = URG == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .." + URG + ". .... = Urgent(URG):" + temp));
temp = ACK == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... ..." + ACK + " .... = Acknowledgment(ACK):" + temp));
temp = PSH == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... " + PSH + "... = Push(PSH):" + temp));
temp = RST == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... ." + RST + ".. = Reset(RST):" + temp));
temp = SYN == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... .." + SYN + ". = Syn(SYN):" + temp));
temp = FIN == "1"?"Set":"Not set";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... ..." + FIN + " = Fin(FIN):" + temp));
QString window = data[rowNumber].getTcpWindowSize();
QString checksum = "0x" + data[rowNumber].getTcpCheckSum();
QString urgent = data[rowNumber].getTcpUrgentPointer();
item4->addChild(new QTreeWidgetItem(QStringList()<<"window:" + window));
item4->addChild(new QTreeWidgetItem(QStringList()<<"checksum:" + checksum));
item4->addChild(new QTreeWidgetItem(QStringList()<<"Urgent Pointer:" + urgent));
if((rawLength * 4) > 20){
QTreeWidgetItem * optionTree = new QTreeWidgetItem(QStringList()<<"Options: (" + QString::number(rawLength * 4 - 20) + ") bytes");
item4->addChild(optionTree);
for(int j = 0;j < (rawLength * 4 - 20);){
int kind = data[rowNumber].getTcpOperationRawKind(j);
switch (kind) {
case 0:{
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - End of List (EOL)");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"kind:End of List (0)"));
optionTree->addChild(subTree);
j++;
break;
}case 1:{
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - No-Operation (NOP)");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"kind: No-Operation (1)"));
optionTree->addChild(subTree);
j++;
break;
}
case 2:{
u_short mss;
if(data[rowNumber].getTcpOperationMSS(j,mss)){
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - Maximun Segment Size: " + QString::number(mss) + " bytes");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"kind: Maximun Segment Size (2)"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: 4"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"MSS Value: " + QString::number(mss)));
j += 4;
}
break;
}
case 3:{
u_char shift;
if(data[rowNumber].getTcpOperationWSOPT(j,shift)){
int factor = 1 << shift;
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - Window scale: " + QString::number(shift) + " (multiply by " + QString::number(factor) + ")");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"kind: Window scale (3)"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: 3"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Shift Count: " + QString::number(shift)));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"[Multiplier: " + QString::number(factor) + "]"));
j += 3;
}
break;
}
case 4:{
if(data[rowNumber].getTcpOperationSACKP(j)){
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - SACK Permitted");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Kind: SCAK Permitted (4)"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: 2"));
j += 2;
}
break;
}
case 5:{
u_char length = 0;
QVector<u_int>edge;
if(data[rowNumber].getTcpOperationSACK(j,length,edge)){
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - SACK");
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Kind: SCAK (5)"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(length)));
int num = edge.size();
for(int k = 0;k < num;k += 2){
subTree->addChild(new QTreeWidgetItem(QStringList()<<"left edge = " + QString::number(edge[k])));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"right edge = " + QString::number(edge[k + 1])));
}
j += length;
}
break;
}
case 8:{
u_int value = 0;
u_int reply = 0;
if(data[rowNumber].getTcpOperationTSPOT(j,value,reply)){
QString val = QString::number(value);
QString rep = QString::number(reply);
QTreeWidgetItem * subTree = new QTreeWidgetItem(QStringList()<<"TCP Option - TimeStamps: TSval " +val + ", TSecr " + rep);
optionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Kind: Time Stamp Option (8)"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: 10"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Timestamp value: " + val));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Timestamp echo reply: " + rep));
j += 10;
}
break;
}
case 19:{
j += 18;
break;
}
case 28:{
j += 4;
break;
}
default:{
j++;
break;
}
}
}
}
if(dataLengthofIp > 0){
item4->addChild(new QTreeWidgetItem(QStringList()<<"TCP Payload (" + QString::number(dataLengthofIp) + ")"));
if(packageType == TLS){
QTreeWidgetItem* tlsTree = new QTreeWidgetItem(QStringList()<<"Transport Layer Security");
ui->treeWidget->addTopLevelItem(tlsTree);
u_char contentType = 0;
u_short version = 0;
u_short length = 0;
data[rowNumber].getTlsBasicInfo((rawLength * 4),contentType,version,length);
QString type = data[rowNumber].getTlsContentType(contentType);
QString vs = data[rowNumber].getTlsVersion(version);
switch (contentType) {
case 20:{
// ... TODO
break;
}
case 21:{
QTreeWidgetItem* tlsSubree = new QTreeWidgetItem(QStringList()<<vs + " Record Layer: Encrypted Alert");
tlsTree->addChild(tlsSubree);
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Content Type: " + type + " (" + QString::number(contentType) + ")"));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + vs + " (0x0" + QString::number(version,16) + ")"));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Length " + QString::number(length)));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Alert Message: Encrypted Alert"));
break;
}
case 22:{
// handshake
u_char handshakeType = 0;
data[rowNumber].getTlsHandshakeType((rawLength * 4 + 5),handshakeType);
if(handshakeType == 1){
// client hello
int tlsLength = 0;
u_short rawVersion = 0;
QString random = "";
u_char sessionLength = 0;
QString sessionId = "";
u_short cipherLength = 0;
QVector<u_short>cipher;
u_char cmLength = 0;
QVector<u_char>compressionMethod;
u_short extensionLength = 0;
data[rowNumber].getTlsClientHelloInfo((rawLength * 4 + 5),handshakeType,tlsLength,rawVersion,random,sessionLength,sessionId,cipherLength,cipher,cmLength,compressionMethod,extensionLength);
QString type = data[rowNumber].getTlsHandshakeType(handshakeType);
QString tlsVersion = data[rowNumber].getTlsVersion(rawVersion);
QTreeWidgetItem* tlsSubTree = new QTreeWidgetItem(QStringList()<<vs + " Record Layer: " + type + " Protocol: " + type);
tlsTree->addChild(tlsSubTree);
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Content Type: " + type + " (" + QString::number(contentType) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + vs + " (0x0" + QString::number(version,16) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Length " + QString::number(length)));
QTreeWidgetItem* handshakeTree = new QTreeWidgetItem(QStringList()<<"Handshake Protocol: " + type);
tlsSubTree->addChild(handshakeTree);
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Handshake Type: " + type + "(" + QString::number(handshakeType) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(tlsLength)));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + tlsVersion + " (0x0" + QString::number(rawVersion) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Random: " + random));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Session ID Length: " + QString::number(sessionLength)));
if(sessionLength > 0){
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Session ID: " + sessionId));
}
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Cipher Suites Length: " + QString::number(cipherLength)));
if(cipherLength > 0){
QTreeWidgetItem* cipherTree = new QTreeWidgetItem(QStringList()<<"Cipher Suites (" + QString::number(cipherLength/2) + " suites)");
handshakeTree->addChild(cipherTree);
for(int k = 0;k < cipherLength/2;k++){
QString temp = data[rowNumber].getTlsHandshakeCipherSuites(cipher[k]);
cipherTree->addChild(new QTreeWidgetItem(QStringList()<<"Cipher Suite: " + temp));
}
}
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Compression Method Length: " + QString::number(cmLength)));
if(cmLength > 0){
QTreeWidgetItem* cmTree = new QTreeWidgetItem(QStringList()<<"Compression Methods (" + QString::number(cmLength) + " method)");
handshakeTree->addChild(cmTree);
for(int k = 0;k < cmLength;k++){
QString temp = data[rowNumber].getTlsHandshakeCompression(compressionMethod[k]);
cmTree->addChild(new QTreeWidgetItem(QStringList()<<"Compression Methods: " + temp + " (" + QString::number(compressionMethod[k]) + ")"));
}
}
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Extensions Length: " + QString::number(extensionLength)));
if(extensionLength > 0){
int exOffset = (rawLength * 4) + (tlsLength - extensionLength + 5 + 4);
for(int k = 0;k < extensionLength;){
int code = data[rowNumber].getTlsExtensionType(exOffset);
u_short exType = 0;
u_short exLength = 0;
switch (code) {
case 0:{
// server_name
u_short listLength = 0;
u_char nameType = 0;
u_short nameLength = 0;
QString name = "";
data[rowNumber].getTlsExtensionServerName(exOffset,exType,exLength,listLength,nameType,nameLength,name);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
if(exLength > 0 && listLength > 0){
QTreeWidgetItem*serverTree = new QTreeWidgetItem(QStringList()<<"Server Name Indication extension");
extensionTree->addChild(serverTree);
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name list length: " + QString::number(listLength)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name Type: " + QString::number(nameType)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name length: " + QString::number(nameLength)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name: " + name));
}
break;
}
case 11:{
// ec_point_format
u_char ecLength = 0;
QVector<u_char>EC;
data[rowNumber].getTlsExtensionEcPointFormats(exOffset,exType,exLength,ecLength,EC);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"EC point formats Length: " + QString::number(ecLength)));
QTreeWidgetItem* EXTree = new QTreeWidgetItem(QStringList()<<"Elliptic curves point formats (" + QString::number(ecLength) + ")");
extensionTree->addChild(EXTree);
for(int g = 0;g < ecLength;g++){
QString temp = data[rowNumber].getTlsHandshakeExtensionECPointFormat(EC[g]);
EXTree->addChild(new QTreeWidgetItem(QStringList()<<temp));
}
break;
}
case 10:{
// supported_groups
u_short groupListLength = 0;
QVector<u_short>group;
data[rowNumber].getTlsExtensionSupportGroups(exOffset,exType,exLength,groupListLength,group);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Groups List Length: " + QString::number(groupListLength)));
QTreeWidgetItem* sptTree = new QTreeWidgetItem(QStringList()<<"Supported Groups (" + QString::number(groupListLength/2) + " groups)");
extensionTree->addChild(sptTree);
for(int g = 0;g < groupListLength/2;g++){
QString temp = data[rowNumber].getTlsHandshakeExtensionSupportGroup(group[g]);
sptTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Group: " + temp));
}
break;
}
case 35:{
// session_ticket
data[rowNumber].getTlsExtensionSessionTicket(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 22:{
// encrypt_then_mac
data[rowNumber].getTlsExtensionEncryptThenMac(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 23:{
// extended_master_secret
data[rowNumber].getTlsExtensionExtendMasterSecret(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 13:{
// signature_algorithms
u_short algorithmLength = 0;
QVector<u_short>algorithm;
data[rowNumber].getTlsExtensionSignatureAlgorithms(exOffset,exType,exLength,algorithmLength,algorithm);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithms Length: " + QString::number(algorithmLength)));
QTreeWidgetItem* sigTree = new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithms (" + QString::number(algorithmLength/2) + " algorithms)");
extensionTree->addChild(sigTree);
for(int g = 0;g < algorithmLength/2;g++){
QTreeWidgetItem*subTree = new QTreeWidgetItem(QStringList()<<"Signature Algorithm: 0x0" + QString::number(algorithm[g],16));
sigTree->addChild(subTree);
QString hash = data[rowNumber].getTlsHadshakeExtensionHash((algorithm[g] & 0xff00) >> 8);
QString sig = data[rowNumber].getTlsHadshakeExtensionSignature((algorithm[g] & 0x00ff));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithm Hash: " + hash + " (" + QString::number((algorithm[g] & 0xff00) >> 8) + ")"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithm Signature: " + sig + " (" + QString::number(algorithm[g] & 0x00ff) + ")"));
}
break;
}
case 43:{
// supported_versions
u_char supportLength = 0;
QVector<u_short>supportVersion;
data[rowNumber].getTlsExtensionSupportVersions(exOffset,exType,exLength,supportLength,supportVersion);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Versions length: " + QString::number(supportLength)));
for(int g = 0;g < supportLength/2;g++){
QString temp = data[rowNumber].getTlsVersion(supportVersion[g]);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Version: " + temp));
}
break;
}
case 51:{
// key_share
u_short shareLength = 0;
u_short group = 0;
u_short exchangeLength = 0;
QString exchange = "";
data[rowNumber].getTlsExtensionKeyShare(exOffset,exType,exLength,shareLength,group,exchangeLength,exchange);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
QTreeWidgetItem*subTree = new QTreeWidgetItem(QStringList()<<"Key Share extension");
extensionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Client Key Share Length: " + QString::number(shareLength)));
QTreeWidgetItem* entryTree = new QTreeWidgetItem(QStringList()<<"Key Share Entry: Group ");
subTree->addChild(entryTree);
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Group: " + QString::number(group)));
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Key Exchange Length: " + QString::number(exchangeLength)));
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Key Exchange: " + exchange));
break;
}
case 21:{
// padding
QString rdata = "";
data[rowNumber].getTlsExtensionPadding(exOffset,exType,exLength,rdata);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType + " (21)"));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Padding Data: " + rdata));
break;
}
default:{
QString rdata = "";
data[rowNumber].getTlsExtensionOther(exOffset,exType,exLength,rdata);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType + " (" + QString::number(exType) + ")"));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Data: " + rdata));
break;
}
}
k += (exLength + 4);
exOffset += (exLength + 4);
}
}
}
else if(handshakeType == 2){
// Server hello
int tlsLength = 0;
u_short rawVersion = 0;
QString random = "";
u_char sessionLength = 0;
QString sessionId = "";
u_short cipher = 0;
u_char compressionMethod = 0;
u_short extensionLength = 0;
data[rowNumber].getTlsServerHelloInfo((rawLength * 4 + 5),handshakeType,tlsLength,rawVersion,random,sessionLength,sessionId,cipher,compressionMethod,extensionLength);
QString type = data[rowNumber].getTlsHandshakeType(handshakeType);
QString tlsVersion = data[rowNumber].getTlsVersion(rawVersion);
QTreeWidgetItem* tlsSubTree = new QTreeWidgetItem(QStringList()<<vs + " Record Layer: " + type + " Protocol: " + type);
tlsTree->addChild(tlsSubTree);
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Content Type: " + type + " (" + QString::number(contentType) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + vs + " (0x0" + QString::number(version,16) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Length " + QString::number(length)));
QTreeWidgetItem* handshakeTree = new QTreeWidgetItem(QStringList()<<"Handshake Protocol: " + type);
tlsSubTree->addChild(handshakeTree);
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Handshake Type: " + type + "(" + QString::number(handshakeType) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(tlsLength)));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + tlsVersion + " (0x0" + QString::number(rawVersion,16) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Random: " + random));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Session ID Length: " + QString::number(sessionLength)));
if(sessionLength > 0){
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Session ID: " + sessionId));
}
QString temp = data[rowNumber].getTlsHandshakeCipherSuites(cipher);
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Cipher Suites: " +temp));
temp = data[rowNumber].getTlsHandshakeCompression(compressionMethod);
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Compression Methods: " + temp + " (" + QString::number(compressionMethod) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Extensions Length: " + QString::number(extensionLength)));
if(extensionLength > 0){
int exOffset = (rawLength * 4) + (tlsLength - extensionLength + 5 + 4);
for(int k = 0;k < extensionLength;){
int code = data[rowNumber].getTlsExtensionType(exOffset);
u_short exType = 0;
u_short exLength = 0;
switch (code) {
case 0:{
// server_name
u_short listLength = 0;
u_char nameType = 0;
u_short nameLength = 0;
QString name = "";
data[rowNumber].getTlsExtensionServerName(exOffset,exType,exLength,listLength,nameType,nameLength,name);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
if(exLength > 0 && listLength > 0){
QTreeWidgetItem*serverTree = new QTreeWidgetItem(QStringList()<<"Server Name Indication extension");
extensionTree->addChild(serverTree);
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name list length: " + QString::number(listLength)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name Type: " + QString::number(nameType)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name length: " + QString::number(nameLength)));
serverTree->addChild(new QTreeWidgetItem(QStringList()<<"Server Name: " + name));
}
break;
}
case 11:{
// ec_point_format
u_char ecLength = 0;
QVector<u_char>EC;
data[rowNumber].getTlsExtensionEcPointFormats(exOffset,exType,exLength,ecLength,EC);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"EC point formats Length: " + QString::number(ecLength)));
QTreeWidgetItem* EXTree = new QTreeWidgetItem(QStringList()<<"Elliptic curves point formats (" + QString::number(ecLength) + ")");
extensionTree->addChild(EXTree);
for(int g = 0;g < ecLength;g++){
QString temp = data[rowNumber].getTlsHandshakeExtensionECPointFormat(EC[g]);
EXTree->addChild(new QTreeWidgetItem(QStringList()<<temp));
}
break;
}
case 10:{
// supported_groups
u_short groupListLength = 0;
QVector<u_short>group;
data[rowNumber].getTlsExtensionSupportGroups(exOffset,exType,exLength,groupListLength,group);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Groups List Length: " + QString::number(groupListLength)));
QTreeWidgetItem* sptTree = new QTreeWidgetItem(QStringList()<<"Supported Groups (" + QString::number(groupListLength/2) + " groups)");
extensionTree->addChild(sptTree);
for(int g = 0;g < groupListLength/2;g++){
QString temp = data[rowNumber].getTlsHandshakeExtensionSupportGroup(group[g]);
sptTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Group: " + temp));
}
break;
}
case 35:{
// session_ticket
data[rowNumber].getTlsExtensionSessionTicket(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 22:{
// encrypt_then_mac
data[rowNumber].getTlsExtensionEncryptThenMac(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 23:{
// extended_master_secret
data[rowNumber].getTlsExtensionExtendMasterSecret(exOffset,exType,exLength);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
break;
}
case 13:{
// signature_algorithms
u_short algorithmLength = 0;
QVector<u_short>algorithm;
data[rowNumber].getTlsExtensionSignatureAlgorithms(exOffset,exType,exLength,algorithmLength,algorithm);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithms Length: " + QString::number(algorithmLength)));
QTreeWidgetItem* sigTree = new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithms (" + QString::number(algorithmLength/2) + " algorithms)");
extensionTree->addChild(sigTree);
for(int g = 0;g < algorithmLength/2;g++){
QTreeWidgetItem*subTree = new QTreeWidgetItem(QStringList()<<"Signature Algorithm: 0x0" + QString::number(algorithm[g],16));
sigTree->addChild(subTree);
QString hash = data[rowNumber].getTlsHadshakeExtensionHash((algorithm[g] & 0xff00) >> 8);
QString sig = data[rowNumber].getTlsHadshakeExtensionSignature((algorithm[g] & 0x00ff));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithm Hash: " + hash + " (" + QString::number((algorithm[g] & 0xff00) >> 8) + ")"));
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Signature Hash Algorithm Signature: " + sig + " (" + QString::number(algorithm[g] & 0x00ff) + ")"));
}
break;
}
case 43:{
// supported_versions
u_char supportLength = 0;
QVector<u_short>supportVersion;
data[rowNumber].getTlsExtensionSupportVersions(exOffset,exType,exLength,supportLength,supportVersion);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Versions length: " + QString::number(supportLength)));
for(int g = 0;g < supportLength/2;g++){
QString temp = data[rowNumber].getTlsVersion(supportVersion[g]);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Supported Version: " + temp));
}
break;
}
case 51:{
// key_share
u_short shareLength = 0;
u_short group = 0;
u_short exchangeLength = 0;
QString exchange = "";
data[rowNumber].getTlsExtensionKeyShare(exOffset,exType,exLength,shareLength,group,exchangeLength,exchange);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
QTreeWidgetItem*subTree = new QTreeWidgetItem(QStringList()<<"Key Share extension");
extensionTree->addChild(subTree);
subTree->addChild(new QTreeWidgetItem(QStringList()<<"Client Key Share Length: " + QString::number(shareLength)));
QTreeWidgetItem* entryTree = new QTreeWidgetItem(QStringList()<<"Key Share Entry: Group ");
subTree->addChild(entryTree);
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Group: " + QString::number(group)));
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Key Exchange Length: " + QString::number(exchangeLength)));
entryTree->addChild(new QTreeWidgetItem(QStringList()<<"Key Exchange: " + exchange));
break;
}
case 21:{
// padding
QString rdata = "";
data[rowNumber].getTlsExtensionPadding(exOffset,exType,exLength,rdata);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType + " (21)"));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Padding Data: " + rdata));
break;
}
default:{
QString rdata = "";
data[rowNumber].getTlsExtensionOther(exOffset,exType,exLength,rdata);
QString subType = data[rowNumber].getTlsHandshakeExtension(exType);
QTreeWidgetItem*extensionTree = new QTreeWidgetItem(QStringList()<<"Extension: " + subType + " (len=" + QString::number(exLength) + ")");
handshakeTree->addChild(extensionTree);
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Type: " + subType + " (" + QString::number(exType) + ")"));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(exLength)));
extensionTree->addChild(new QTreeWidgetItem(QStringList()<<"Data: " + rdata));
break;
}
}
k += (exLength + 4);
exOffset += (exLength + 4);
}
}
}
else if(handshakeType == 12){
// Server Key Exchange
int tlsLength = 0;
u_char curveType = 0;
u_short curveName = 0;
u_char pubLength = 0;
QString pubKey = "";
u_short sigAlgorithm = 0;
u_short sigLength = 0;
QString sig = "";
data[rowNumber].getTlsServerKeyExchange((rawLength * 4 + 5),handshakeType,tlsLength,curveType,curveName,pubLength,pubKey,sigAlgorithm,sigLength,sig);
QString type = data[rowNumber].getTlsHandshakeType(handshakeType);
QTreeWidgetItem* tlsSubTree = new QTreeWidgetItem(QStringList()<<vs + " Record Layer: " + type + " Protocol: " + type);
tlsTree->addChild(tlsSubTree);
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Content Type: " + type + " (" + QString::number(contentType) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + vs + " (0x0" + QString::number(version,16) + ")"));
tlsSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Length " + QString::number(length)));
QTreeWidgetItem* handshakeTree = new QTreeWidgetItem(QStringList()<<"Handshake Protocol: " + type);
tlsSubTree->addChild(handshakeTree);
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Handshake Type: " + type + "(" + QString::number(handshakeType) + ")"));
handshakeTree->addChild(new QTreeWidgetItem(QStringList()<<"Length: " + QString::number(tlsLength)));
}
// ... TODO
break;
}
case 23:{
QTreeWidgetItem* tlsSubree = new QTreeWidgetItem(QStringList()<<vs + " Record Layer: " + type + " Protocol: http-over-tls");
tlsTree->addChild(tlsSubree);
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Content Type: " + type + " (" + QString::number(contentType) + ")"));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Version: " + vs + " (0x0" + QString::number(version,16) + ")"));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Length " + QString::number(length)));
tlsSubree->addChild(new QTreeWidgetItem(QStringList()<<"Encrypted Application Data: ..."));
break;
}
default:break;
}
}else if(packageType == SSL){
ui->treeWidget->addTopLevelItem(new QTreeWidgetItem(QStringList()<<"Transport Layer Security"));
}
}
}else if(packageType == UDP || packageType == DNS){
QString srcPort = data[rowNumber].getUdpSourcePort();
QString desPort = data[rowNumber].getUdpDestinationPort();
QString Length = data[rowNumber].getUdpDataLength();
QString checksum = "0x" + data[rowNumber].getUdpCheckSum();
QTreeWidgetItem*item5 = new QTreeWidgetItem(QStringList()<<"User Datagram Protocol, Src Port:" + srcPort + ", Dst Port:" + desPort);
ui->treeWidget->addTopLevelItem(item5);
item5->addChild(new QTreeWidgetItem(QStringList()<<"Source Port:" + srcPort));
item5->addChild(new QTreeWidgetItem(QStringList()<<"Destination Port:" + desPort));
item5->addChild(new QTreeWidgetItem(QStringList()<<"length:" + Length));
item5->addChild(new QTreeWidgetItem(QStringList()<<"Checksum:" + checksum));
int udpLength = Length.toUtf8().toInt();
if(udpLength > 0){
item5->addChild(new QTreeWidgetItem(QStringList()<<"UDP PayLoad (" + QString::number(udpLength - 8) + " bytes)"));
}
if(packageType == DNS){
QString transaction = "0x" + data[rowNumber].getDnsTransactionId();
QString QR = data[rowNumber].getDnsFlagsQR();
QString temp = "";
if(QR == "0") temp = "query";
if(QR == "1") temp = "response";
QString flags = "0x" + data[rowNumber].getDnsFlags();
QTreeWidgetItem*dnsTree = new QTreeWidgetItem(QStringList()<<"Domain Name System (" + temp + ")");
ui->treeWidget->addTopLevelItem(dnsTree);
dnsTree->addChild(new QTreeWidgetItem(QStringList()<<"Transaction ID:" + transaction));
QTreeWidgetItem* flagTree = new QTreeWidgetItem(QStringList()<<"Flags:" + flags);
dnsTree->addChild(flagTree);
temp = QR == "1"?"Message is a response":"Message is a query";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<QR + "... .... .... .... = Response:" + temp));
QString Opcode = data[rowNumber].getDnsFlagsOpcode();
if(Opcode == "0") temp = "Standard query (0)";
else if(Opcode == "1") temp = "Reverse query (1)";
else if(Opcode == "2") temp = "Status request (2)";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".000 " + Opcode + "... .... .... = Opcode:" + temp));
if(QR == "1"){
QString AA = data[rowNumber].getDnsFlagsAA();
temp = AA == "1"?"Server is an authority for domain":"Server is not an authority for domain";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... ." + AA + ".. .... .... = Authoritative:" + temp));
}
QString TC = data[rowNumber].getDnsFlagsTC();
temp = TC == "1"?"Message is truncated":"Message is not truncated";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .." + TC + ". .... .... = Truncated:" + temp));
QString RD = data[rowNumber].getDnsFlagsRD();
temp = RD == "1"?"Do query recursively":"Do query not recursively";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... ..." + RD + " .... .... = Recursion desired:" + temp));
if(QR == "1"){
QString RA = data[rowNumber].getDnsFlagsRA();
temp = RA == "1"?"Server can do recursive queries":"Server can not do recursive queries";
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... " + RA + "... .... = Recursion available:" + temp));
}
QString Z = data[rowNumber].getDnsFlagsZ();
while(Z.size()<3)
Z = "0" + Z;
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... ." + Z + " .... = Z:reserved(" + Z + ")"));
if(QR == "1"){
QString Rcode = data[rowNumber].getDnsFlagsRcode();
if(Rcode == "0")
temp = "No error (0)";
else if(Rcode == "1") temp = "Format error (1)";
else if(Rcode == "2") temp = "Server failure (2)";
else if(Rcode == "3") temp = "Name Error (3)";
else if(Rcode == "4") temp = "Not Implemented (4)";
else if(Rcode == "5") temp = "Refused (5)";
int code = Rcode.toUtf8().toInt();
QString bCode = QString::number(code,2);
while (bCode.size()<4)
bCode = "0" + bCode;
flagTree->addChild(new QTreeWidgetItem(QStringList()<<".... .... .... " + bCode + " = Reply code:" + temp));
}
QString question = data[rowNumber].getDnsQuestionNumber();
dnsTree->addChild(new QTreeWidgetItem(QStringList()<<"Questions:" + question));
QString answer = data[rowNumber].getDnsAnswerNumber();
dnsTree->addChild(new QTreeWidgetItem(QStringList()<<"Answer RRs:" + answer));
QString authority = data[rowNumber].getDnsAuthorityNumber();
dnsTree->addChild(new QTreeWidgetItem(QStringList()<<"Authority RRs:" + authority));
QString additional = data[rowNumber].getDnsAdditionalNumber();
dnsTree->addChild(new QTreeWidgetItem(QStringList()<<"Additional RRs:" + additional));
int offset = 0;
if(question == "1"){
QString domainInfo;
int Type;
int Class;
data[rowNumber].getDnsQueriesDomain(domainInfo,Type,Class);
QTreeWidgetItem*queryDomainTree = new QTreeWidgetItem(QStringList()<<"Queries");
dnsTree->addChild(queryDomainTree);
offset += (4 + domainInfo.size() + 2);
QString type = data[rowNumber].getDnsDomainType(Type);
QTreeWidgetItem*querySubTree = new QTreeWidgetItem(QStringList()<<domainInfo + " type " + type + ", class IN");
queryDomainTree->addChild(querySubTree);
querySubTree->addChild(new QTreeWidgetItem(QStringList()<<"Name:" + domainInfo));
querySubTree->addChild(new QTreeWidgetItem(QStringList()<<"[Name Length:" + QString::number(domainInfo.size()) + "]"));
querySubTree->addChild(new QTreeWidgetItem(QStringList()<<"Type:" + type + "(" + QString::number(Type) + ")"));
querySubTree->addChild(new QTreeWidgetItem(QStringList()<<"Class: IN (0x000" + QString::number(Class) + ")"));
}
int answerNumber = answer.toUtf8().toInt();
if(answerNumber > 0){
QTreeWidgetItem*answerTree = new QTreeWidgetItem(QStringList()<<"Answers");
dnsTree->addChild(answerTree);
for(int i = 0;i< answerNumber;i++){
QString name1;
QString name2;
u_short type;
u_short Class;
u_int ttl;
u_short length;
int tempOffset = data[rowNumber].getDnsAnswersDomain(offset,name1,type,Class,ttl,length,name2);
QString sType = data[rowNumber].getDnsDomainType(type);
QString temp = "";
if(type == 1) temp = "addr";
else if(type == 5) temp = "cname";
QTreeWidgetItem*answerSubTree = new QTreeWidgetItem(QStringList()<<name1 + ": type " + sType + ",class IN, " + temp + ":" + name2);
answerTree->addChild(answerSubTree);
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Name:" + name1));
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Type:" + sType + "(" + QString::number(type) + ")"));
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Class: IN (0x000" + QString::number(Class) + ")"));
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Time to live:" + QString::number(ttl) + "(" + QString::number(ttl) + " second)"));
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<"Data length:" + QString::number(length)));
answerSubTree->addChild(new QTreeWidgetItem(QStringList()<<sType + ":" + name2));
offset += tempOffset;
}
}
}
}else if(packageType == ICMP){
dataLengthofIp -= 8;
QTreeWidgetItem*item6 = new QTreeWidgetItem(QStringList()<<"Internet Message Protocol");
ui->treeWidget->addTopLevelItem(item6);
QString type = data[rowNumber].getIcmpType();
QString code = data[rowNumber].getIcmpCode();
QString info = ui->tableWidget->item(row,6)->text();
QString checksum = "0x" + data[rowNumber].getIcmpCheckSum();
QString id = data[rowNumber].getIcmpIdentification();
QString seq = data[rowNumber].getIcmpSequeue();
item6->addChild(new QTreeWidgetItem(QStringList()<<"type:" + type + "(" + info + ")"));
item6->addChild(new QTreeWidgetItem(QStringList()<<"code:" + code));
item6->addChild(new QTreeWidgetItem(QStringList()<<"Checksum:" + checksum));
item6->addChild(new QTreeWidgetItem(QStringList()<<"type:" + type + "(" + info + ")"));
item6->addChild(new QTreeWidgetItem(QStringList()<<"Identifier:" + id));
item6->addChild(new QTreeWidgetItem(QStringList()<<"Sequence Number:" + seq));
if(dataLengthofIp > 0){
QTreeWidgetItem* dataItem = new QTreeWidgetItem(QStringList()<<"Data (" + QString::number(dataLengthofIp) + ") bytes");
item6->addChild(dataItem);
QString icmpData = data[rowNumber].getIcmpData(dataLengthofIp);
dataItem->addChild(new QTreeWidgetItem(QStringList()<<icmpData));
}
}
}
// the ethernet may have padding to ensure that the minimum length of the data packet is greater than 46
int macDataLength = data[rowNumber].getIpTotalLength().toUtf8().toInt();
int dataPackageLength = data[rowNumber].getDataLength().toUtf8().toInt();
int delta = dataPackageLength - macDataLength;
if(delta > 14){
int padding = delta - 14;
QString pad = "";
while (pad.size() < padding * 2) {
pad += "00";
}
item->addChild(new QTreeWidgetItem(QStringList()<<"Padding: " + pad));
}
}
}
/* * on_lineEdit_returnPressed * if you press the enter key,when capture is stopped * table will Filter eligible item */
void MainWindow::on_lineEdit_returnPressed()
{
QString text = ui->lineEdit->text();
text = text.toUpper();
QString target = "#";
if(text == "" || text == "UDP" || text == "TCP" || text == "DNS" || text == "ARP"|| text == "ICMP"|| text == "SSL" || text == "TLS"){
ui->lineEdit->setStyleSheet("QLineEdit {background-color: rgb(154,255,154);}");
target = text;
}else{
ui->lineEdit->setStyleSheet("QLineEdit {background-color: rgb(250,128,114);}");
}
int count = 0;
int number = ui->tableWidget->rowCount();
if(!isStart && target != "#"){
if(target!=""){
for(int i = 0;i < number;i++){
if(ui->tableWidget->item(i,4)->text() != target){
ui->tableWidget->setRowHidden(i,true);
}else{
ui->tableWidget->setRowHidden(i,false);
count++;
}
}
}else{
int number = ui->tableWidget->rowCount();
for(int i = 0;i < number;i++){
ui->tableWidget->setRowHidden(i,false);
count++;
}
}
}
double res = 0;
if(number != 0)
res = (count*100.0)/number;
statusBar()->showMessage("Have show (" + QString::number(count) + ") " +QString::number(res,10,2) + "%");
}
/* * on_lineEdit_textChanged * when text at lineEdit changed,it will check input information is correct or not * if it is corrected,the color is green or it will be red */
void MainWindow::on_lineEdit_textChanged(const QString &arg1)
{
QString text = arg1;
text = text.toLower();
if(text == "" || text == "udp" || text == "tcp" || text == "dns" || text == "arp" || text == "icmp" || text == "tls" || text == "ssl"){
ui->lineEdit->setStyleSheet("QLineEdit {background-color: rgb(154,255,154);}");
}else{
ui->lineEdit->setStyleSheet("QLineEdit {background-color: rgb(250,128,114);}");
}
}
/* * on_tableWidget_currentCellChanged * this fucntion can response to up-down key * when you use the keyboard to manipulate,this bottom treewidget will also show information as well as you use mouse */
void MainWindow::on_tableWidget_currentCellChanged(int currentRow, int currentColumn, int previousRow, int previousColumn)
{
if((currentRow != previousRow) && previousRow >= 0){
on_tableWidget_cellClicked(currentRow,currentColumn);
}else return;
}
9、readonlydelegate.h
#ifndef READONLYDELEGATE_H
#define READONLYDELEGATE_H
#include<QWidget>
#include<QItemDelegate>
#include<QStyleOptionViewItem>
class ReadOnlyDelegate: public QItemDelegate
{
public:
ReadOnlyDelegate(QWidget *parent = nullptr):QItemDelegate(parent)
{
}
QWidget *createEditor(QWidget *parent, const QStyleOptionViewItem &option,
const QModelIndex &index) const override //final
{
Q_UNUSED(parent)
Q_UNUSED(option)
Q_UNUSED(index)
return nullptr;
}
};
#endif // READONLYDELEGATE_H
10、main.cpp
#include "mainwindow.h"
#include <QApplication>
int main(int argc, char *argv[])
{
/* * pls modify the shark.pro: * INCLUDEPATH += yourpath/Include * LIBS += your path/Lib/wpcap.lib libws2_32 * or IDE will warn you can't find some headerfiles! * this step helps us to add winpcap to our project actually */
QApplication a(argc, argv);
MainWindow w;
w.setWindowTitle("Shark - @copyright by 卡布诺奇");
w.show();
return a.exec();
}
11、mainwindow.ui
边栏推荐
猜你喜欢
随机推荐
Research on Ethernet PHY Chip LAN8720A Chip
Initial attempt at UI traversal
【论文笔记】基于深度学习的机器人抓取虚拟仿真实验教学系统
ABAP 里文件操作涉及到中文字符集的问题和解决方案
你有对象类,我有结构体,Go lang1.18入门精炼教程，由白丁入鸿儒，go lang结构体(struct)的使用EP06
中英文互译在线翻译-在线翻译软件
C＃ 单例模式
UXDB现在支持函数索引吗？
unity编辑器扩展界面使用 List
mstsc/Mstsc (Microsoft terminal services client)远程桌面连接
Experimental support for decorators may change in future releases.Set the "experimentalDecorators" option in "tsconfig" or "jsconfig" to remove this warning
Teach you how to write performance test cases
【UNR ＃6 C】稳健型选手（分治）（主席树）（二分）
微信账户体系科普：什么是UnionId、OpenId与wxopenid？
力扣每日一题-第51天-744. 寻找比目标字母大的最小字母
3dmax如何制作模型走路动画
[论文阅读] Diverse Image-to-Image Translation via Disentangled Representations
LeetCode 每日一题——1413. 逐步求和得到正数的最小值
Problems and solutions related to Chinese character set in file operations in ABAP
Interdepartmental Communication Skills
