Database experiment I database definition and data import
2022-04-23 21:30:00 【Hebuter-Rui】
1. The experiment purpose
Understand and master the database DDL Language , Be able to use SQL DDL sentence , And can complete data import .
2. The contents and requirements of the experiment
Understand and master SQL DDL Sentence syntax , In particular, the specific meaning and usage of various parameters ; Use SQL Sentence creation 、 Modify and delete basic tables ; master SQL How to debug the common syntax errors of statements ; Complete the data import .
3. The experimental steps
3.1 Use menu commands to create a database test
CREATE DATABASE test;
3.2 In the database test The following basic tables are defined on the
surface 1 District Table (region)
Field name | Chinese meaning | type | constraint |
regionkey | Area number | int | Primary key |
name | Area name | char(25) | null |
comment | remarks | varchar(150) | null |
surface 2 Country table (nation)
Field name | Chinese meaning | type | constraint |
nationkey | Country number | int | Primary key |
name | Country name | char(25) | null |
regionkey | Area number | int | Foreign keys , reference region Tabular regionkey |
comment | remarks | varchar(150) | null |
surface 3 Supplier basic table (supplier)
Field name | Chinese meaning | type | constraint |
suppkey | Supplier No | int | Primary key |
name | Name of supplier | char(100) | null |
address | Supplier address | varchar(100) | null |
nationkey | Country number | int | Foreign keys , reference nation Tabular nationkey |
phone | Supplier phone | char(30) | null |
acctbal | Supplier account balance forehead | numeric(12,2) | null |
comment | remarks | varchar(100) | null |
surface 4 Basic parts list (part)
Field name | Chinese meaning | type | constraint |
partkey | Part number | int | Primary key |
name | Part name | varchar(100) | null |
mfgr | manufacturer | char(50) | null |
brand | brand | char(50) | null |
type | Part type | varchar(25) | null |
size | Size | int | null |
container | packing | char(10) | null |
retailprice | wholesale price | numeric(8,2) | null |
comment | remarks | varchar(20) | null |
surface 5 Parts supply contact list (partsupp)
Field name | Chinese meaning | type | constraint | remarks |
partkey | Part number | int | Foreign keys , reference part Tabular partkey | partkey and suppkey Union as primary key |
suppkey | Supplier No | int | Outside key , ginseng mirror supplier surface Of suppkey | |
availqty | Quantity available | int | null | |
supplycost | Supply price | numeric(10,2) | null | |
comment | remarks | varchar(200) | null |
surface 6 Customer watch (customer)
Field name | Chinese meaning | type | constraint |
custkey | Customer number | int | Primary key |
name | full name | varchar(25) | null |
address | Address | varchar(40) | null |
nationkey | Country number | int | Foreign keys , come from nation Tabular nationkey |
phone | Telephone | char(30) | null |
acctbal | Account balance | numeric(12,2) | null |
mktsegment | Market segmentation | char(10) | null |
comment | remarks | varchar(100) | null |
surface 7 The order sheet (orders)
Field name | Chinese meaning | type | constraint |
orderkey | The order no. | int | Primary key |
custkey | Customer number | int | Outside key , ginseng mirror customer surface Of Custkey |
orderstatus | The order status | char(1) | null |
totalprice | Order amount | numeric(10,2) | null |
orderdate | Order date | date | null |
orderpriority | Order priority | char(15) | null |
clerk | Bookkeeper | char(16) | null |
shippriority | Transportation priority | char(1) | null |
comment | remarks | varchar(60) | null |
surface 8 Order details (lineitem)
Field name | Chinese meaning | type | constraint | remarks |
orderkey | The order no. | int | Foreign keys , reference orders Tabular orderkey | orderkey and linenumber United Cooperation is the primary key |
partkey | Part number | int | Foreign keys , reference part surface Of partkey | partkey and suppkey United Combined reference partsupp surface Of partkey and suppkey |
suppkey | Supplier No | int | Foreign keys , reference supplier Tabular suppkey | |
linenumber | Order details Number | int | null | |
quantity | Number of parts | int | null | |
extendedprice | Detailed order price grid | numeric(8,2) | null | |
discount | discount | numeric(3,2) | null | |
tax | tax rate | numeric(3,2) | null | |
returnflag | Return mark | char(1) | null | |
linestatus | Order details state | char(1) | null | |
shipdate | Date of shipment | date | null | |
commitdate | Commission date | date | null | |
receiptdate | Date of receipt | date | null | |
shipinstruct | Shipping instructions | char(25) | null | |
shipmode | Mode of shipment | char(10) | null | |
comment | remarks | varchar(40) | null |
New table source code :
CREATE TABLE region(
regionkey INT PRIMARY KEY,
name CHAR(25),
comment VARCHAR(150)
);
CREATE TABLE nation(
nationkey INT PRIMARY KEY,
name CHAR(25),
regionkey INT,
comment VARCHAR(150),
FOREIGN KEY(regionkey) REFERENCES region(regionkey)
);
CREATE TABLE supplier(
suppkey INT PRIMARY KEY,
name CHAR(100),
address VARCHAR(100),
nationkey INT,
phone CHAR(30),
acctbal NUMERIC(12,2),
comment VARCHAR(100),
FOREIGN KEY(nationkey) REFERENCES nation(nationkey)
);
CREATE TABLE part(
partkey INT PRIMARY KEY,
name VARCHAR(100),
mfgr CHAR(50),
brand CHAR(50),
type VARCHAR(25),
size INT,
container CHAR(10),
retailprice NUMERIC(8,2),
comment VARCHAR(20)
);
CREATE TABLE partsupp(
partkey INT,
suppkey INT,
availqty INT,
supplycost NUMERIC(10,2),
comment VARCHAR(200),
PRIMARY KEY(partkey,suppkey),
FOREIGN KEY(partkey) REFERENCES part(partkey),
FOREIGN KEY(suppkey) REFERENCES supplier(suppkey)
);
CREATE TABLE customer(
custkey INT PRIMARY KEY,
name VARCHAR(25),
address VARCHAR(40),
nationkey INT,
phone CHAR(30),
acctbal NUMERIC(12,2),
mktsegment CHAR(10),
comment VARCHAR(100),
FOREIGN KEY(nationkey) REFERENCES nation(nationkey)
);
CREATE TABLE orders(
orderkey INT PRIMARY KEY,
custkey INT,
orderstatus CHAR(1),
totalprice NUMERIC(10,2),
orderdate DATE,
orderpriority CHAR(15),
clerk CHAR(16),
shippriority CHAR(1),
comment VARCHAR(60),
FOREIGN KEY(custkey) REFERENCES customer(custkey)
);
CREATE TABLE lineitem(
orderkey INT,
partkey INT,
suppkey INT,
linenumber INT,
quantity INT,
extendedprice NUMERIC(8,2),
discount NUMERIC(3,2),
tax NUMERIC(3,2),
returnflag CHAR(1),
linestatus CHAR(1),
shipdate DATE,
commitdate DATE,
receiptdate DATE,
shipinstruct CHAR(25),
shipmode CHAR(10),
comment VARCHAR(40),
PRIMARY KEY(orderkey,linenumber),
FOREIGN KEY(partkey,suppkey) REFERENCES partsupp(partkey,suppkey)
);

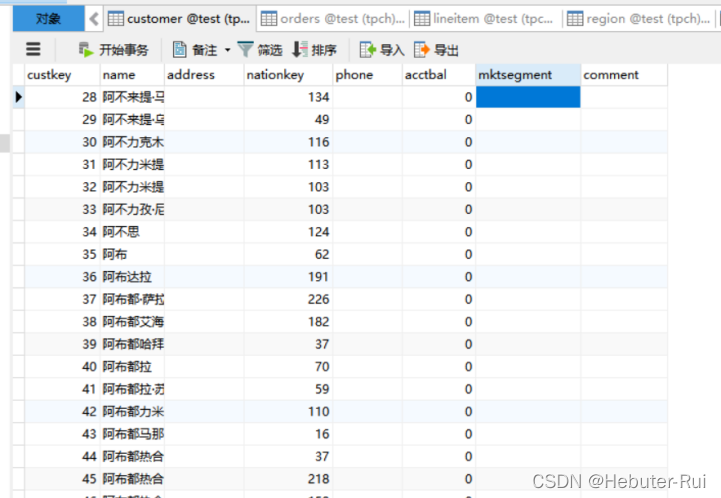

3.3 according to qq In the group “ Data import tutorial .rar”, Put the data of each table (.csv Format ) Import to the created table , The import order is in the order of table creation
experimental data (orders The date data of the table needs to be used after the format is modified , The modified format in the link below )
link :https://pan.baidu.com/s/1PMH0_sg-ibD-Gzddfu9HWA
Extraction code :11yn
