Pixel mobile phone brick rescue tutorial

Pixel Saving bricks course

The so-called brick rescue , You just can't turn on your cell phone 、 It's broken down , Be commonly called “ Brick ”, If you are reluctant to change again , Then we need to save the brick
9008 I haven't used a deep brush , So if you need to use 9008 Deep brush , Please look elsewhere for tutorials
Go straight to the point —— Rescue brick
The preparation of the instruments ： One computer , A line , A dying movie pixel mobile phone , as well as 3GB Traffic
First step ： Download driver
If needed ADB Need drive , If you need to save bricks, you need ADB, So you need to download drive
After entering the official website, click this
Don't try to install it automatically after the download is complete , Because it doesn't have this function , You need to follow this step
The second step ： install ADB

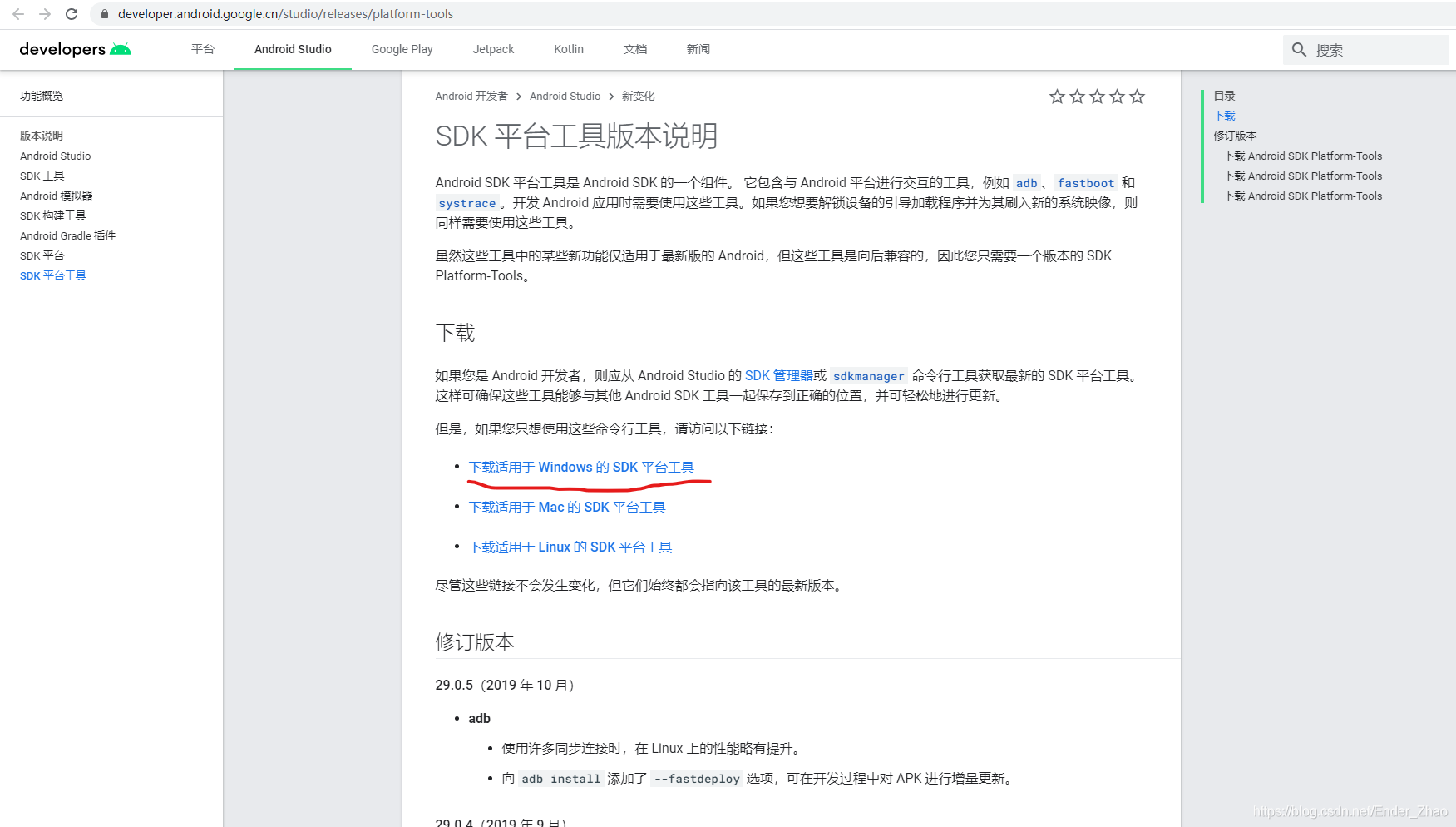

First of all download ADB First enter this website , And then click “ Download for Windows Of SDK The platform tools ”（ If your system is Windows）

Unzip after download （ After decompression, you will get the name platform-tools Folder ）, Then put the unzipped folder into any disk （ It's recommended here C disc ） It is recommended to use ad free 7z decompression
Put in C Right click the mouse behind the disc , Then click Create Shortcut , And in “ Enter the object location ” Input in ”cmd“ Then make sure
Right again cmd Right click , attribute , Then change the starting position in the attribute , Set the path of the starting position to adb Under the folder , Then make sure ADB It's set up .
（ Be careful ： If you change it to ” The goal is “, Then this will become a shortcut to the current folder , And then you , You have to recreate a shortcut …）
The third step : Unlock BL
Don't unlock BL It's hard to turn mobile phones into bricks , If you succeed in your... Without special modifications pixel Turn into brick , Then please go Android official feedback Bugs
Step four ： Download recovery firmware
First, go to pixel Official website Download the corresponding version of firmware （ The picture obtained after decompression ）

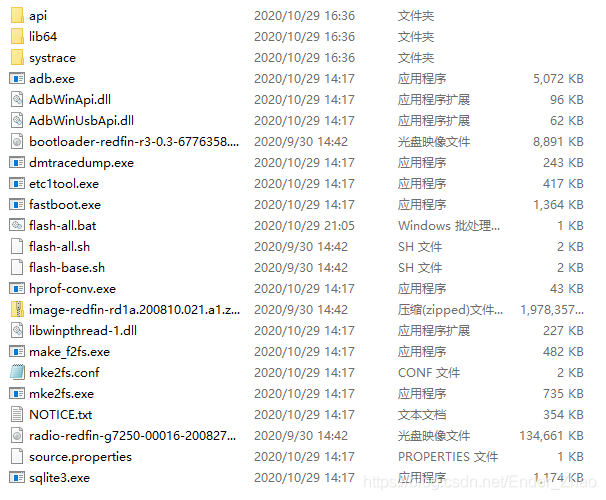

Then put these documents into ADB Folder in which （ Pictured ）
Step five ： Data recovery without retention
First, press and hold the volume reduction key and on key of the mobile phone at the same time to enter the boot program , Then connect the computer , Open it directly “flach-all.bat”, After waiting, your mobile phone can be turned on
Step six ： Retain data recovery
Recommended Notepad++ Edit the file
If you want to restore the phone without losing data, you have to modify it first flach-all.bat file
Put the... On line 23 “-w” Just remove it （ Pictured ）
Remove and save , Then press and hold the volume reduction key and on key of the mobile phone at the same time to enter the boot program , Finally, connect the computer , open “flach-all.bat” That's it （ Apply to both root Upgraded system after , But demotion does not preserve data ）

If you need to unlock BL or root Android 11, Please go to This article Get tutorials .
