Development of Matlab GUI bridge auxiliary Designer (functional introduction)

This development idea is based on a paper written by my senior brother , The topic is the standardization of bridge superstructure .

The basic meaning is to design the bridge width and span faster and more succinctly through the idea of assembly , This code will not be disclosed for the time being .

---------------------------------------------------------------------------------------------------------------------------

This procedure consists of several parts ,1 Login interface ,2, Main program interface ,3, Longitudinal span procedure ,4, Cross program ,5 Model interface .

All interfaces use guide Generate .

1. Login interface

Connect to database , Generate the registry through the database account , Log in and connect , as for matlab Connecting to the database requires the next Library , For my personal use mysql, Tutorial reference .https://www.cnblogs.com/hitxzmlovelife/p/5588865.html?utm_source=itdadao&utm_medium=referral

2. main interface

There's nothing to say. It's simple button And illustrations .

3. Vertical interface

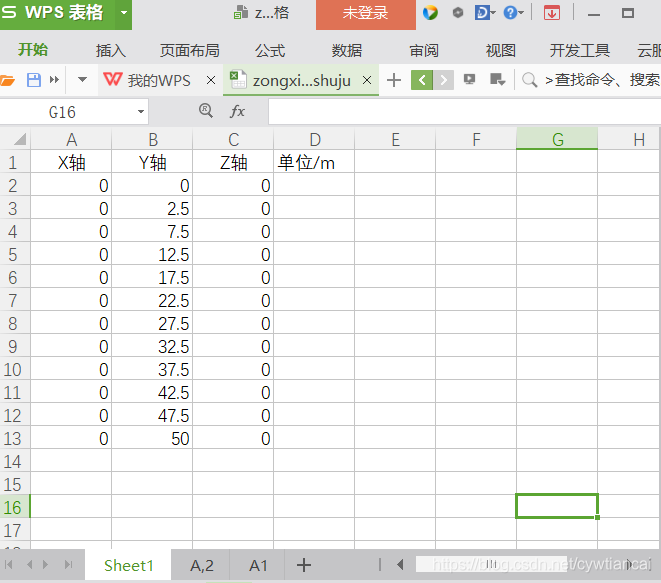

  Span combination can be seen in my previous blog , This is modified on the basis of the original , The calculation adopts the analytic hierarchy process , Sort from top to bottom , On the right side print You can enter the coordinate system into excel in .

4. Horizontal interface

The horizontal interface is slightly cumbersome , A dynamic database is established on the left , Used to update information interactively , Then calculate the transverse length , Meet the needs of human change .

On the right is static data , By choosing the length, we can get the appropriate combination . To meet all kinds of situations ,

If the range is set, the data that does not conform to the actual situation will report an error by itself .

plot1 Connect with the drawing . You can view the current drawing type .

plot3 Connect to the model , Note that models in all formats can be in MATLAB Shown in , also , If you need to carry out red marking and other treatment , You have to parse the model , Change in model file .

---------------------------------------------------------

It will be uploaded and packaged in a while exe file , The source code will be published later , But I've said so much , In fact, there is no difference .
