One 、ESP32 Introduction of serial port

  UART Is a character oriented universal data link , Communication between devices can be realized . Asynchronous transmission means that there is no need to add clock information to the transmitted data . This also requires the rate of the sender and receiver 、 Stop bit 、 Parity bits, etc. should be the same , Communication can succeed .
   A typical UART The frame starts at a start bit , This is followed by valid data , Then the parity bit （ not essential ）, Finally, the stop bit .
  ESP32 Upper UART The controller supports a variety of character lengths and stop bits . in addition , The controller also supports software and hardware flow control and control DMA, It can realize seamless high-speed data transmission . Developers can use multiple UART port , At the same time, it can ensure little software overhead .
  ESP32 There's... In the chip 3 individual UART The controller is available , And compatible with different UART equipment . in addition ,UART It can also be used for infrared data exchange (IrDA) or RS-485 modems .
• Programmable baud rate
• 3 individual UART Sending of FIFO And receiving FIFO share 1024 × 8-bit RAM
• Full duplex asynchronous communication
• Support baud rate self-test function of input signal
• Support 5/6/7/8 Bit data length
• Support 1/1.5/2/3 Stop bits
• Support parity bit
• Support RS485 agreement
• Support IrDA agreement
• Support DMA High speed data communication
• Support UART Wake up mode
• Support software flow control and hardware flow control
   It is worth noting that ESP32 In the three-way serial port 0 Pin modification is not supported. The default is RGIO1 As RX,GPIO3 As TX, When configuring, you need to pay attention to , A serial port 0 By default, it is used as a download program ESP_LOG Output .UART1 The default pin is GPIO9 Used as a U1RXD,GPIO10 Used as a U1TXD, But these two pins are also used for external connection flash Of , So in use UART1 You need to set other pins when you need to ,UART2 The default pin is GPIO16 Used as a U2RXD,GPIO17 Used as a U2TXD.

Two 、 Hardware design

   The hardware settings here use M5Stack Hardware to realize the experimental demonstration of serial communication protocol .

3、 ... and 、 Implementation code ;

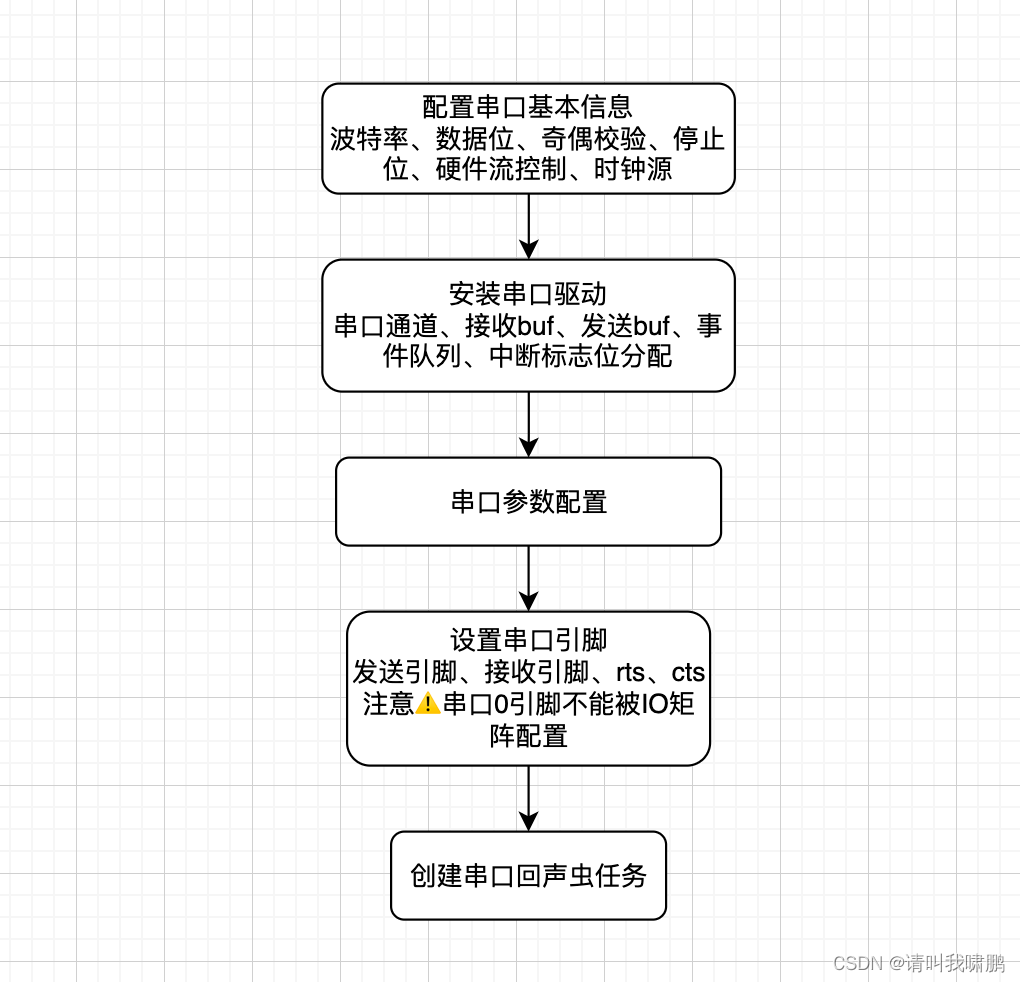

   Initialization flow

   Among them, if the parameters of the serial port are configured, you can use ESP-IDF Item configuration menu to configure serial port pins , To configure -1 Default to the original pin . Serial port echo bug is to send the received data intact .
   The initialization code is as follows

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/uart.h"
#include "driver/gpio.h"
#include "sdkconfig.h"

#define ECHO_TEST_TXD (CONFIG_EXAMPLE_UART_TXD)
#define ECHO_TEST_RXD (CONFIG_EXAMPLE_UART_RXD)
#define ECHO_TEST_RTS (UART_PIN_NO_CHANGE)
#define ECHO_TEST_CTS (UART_PIN_NO_CHANGE)

#define ECHO_UART_PORT_NUM (CONFIG_EXAMPLE_UART_PORT_NUM)
#define ECHO_UART_BAUD_RATE (CONFIG_EXAMPLE_UART_BAUD_RATE)
#define ECHO_TASK_STACK_SIZE (CONFIG_EXAMPLE_TASK_STACK_SIZE)

#define BUF_SIZE (1024)

static void echo_task(void *arg)
{

    uart_config_t uart_config = {

        .baud_rate = ECHO_UART_BAUD_RATE,       // Configure serial port baud rate
        .data_bits = UART_DATA_8_BITS,          // Configure serial port data bits  8 Digit bit
        .parity    = UART_PARITY_DISABLE,       // Configure serial parity   Do not enable parity
        .stop_bits = UART_STOP_BITS_1,          // Configure serial port stop bit   A stop bit
        .flow_ctrl = UART_HW_FLOWCTRL_DISABLE,  // Configure hardware flow control   Hardware flow control is not enabled
        .source_clk = UART_SCLK_APB,            // Configure clock source  APB Clock source
    };
    int intr_alloc_flags = 0;

#if CONFIG_UART_ISR_IN_IRAM
    intr_alloc_flags = ESP_INTR_FLAG_IRAM;      // If caching is disabled , You can call ISR
#endif
    // Install serial driver   Serial port number 、 receive buff、 send out buff、 Event queue 、 Flag of allocation interruption
    ESP_ERROR_CHECK(uart_driver_install(ECHO_UART_PORT_NUM, BUF_SIZE * 2, 0, 0, NULL, intr_alloc_flags));
    // Serial port parameter configuration   Serial number 、 Serial port configuration parameters
    ESP_ERROR_CHECK(uart_param_config(ECHO_UART_PORT_NUM, &uart_config));
    // Set the serial port pin number   Serial port number 、tx Pin 、rx Pin 、rts Pin 、cts Pin
    ESP_ERROR_CHECK(uart_set_pin(ECHO_UART_PORT_NUM, ECHO_TEST_TXD, ECHO_TEST_RXD, ECHO_TEST_RTS, ECHO_TEST_CTS));

    //  Request temporary memory
    uint8_t *data = (uint8_t *) malloc(BUF_SIZE);

    while (1) {

        // Read data from the UART  Serial data received
        int len = uart_read_bytes(ECHO_UART_PORT_NUM, data, BUF_SIZE, 20 / portTICK_RATE_MS);
        // Write data back to the UART  Send serial data
        uart_write_bytes(ECHO_UART_PORT_NUM, (const char *) data, len);
    }
}

void app_main(void)
{

    xTaskCreate(echo_task, "uart_echo_task", ECHO_TASK_STACK_SIZE, NULL, 10, NULL); // Create serial port responder task
}

Four 、 Serial port experimental demonstration results

5、 ... and 、ESP32 Serial port function API

5.1、uart_types.h The contents of the document API

  uart_types.h The content in the file basically realizes the setting structure of some serial port protocols

// UART Port number , The value is UART_NUM_0 ~ (UART_NUM_MAX -1).
typedef int  uart_port_t;

// UART Mode selection
typedef enum {

    UART_MODE_UART = 0x00,                     /*!< mode: Ordinary UART Pattern */
    UART_MODE_RS485_HALF_DUPLEX = 0x01,        /*!< mode: from RTS Pin controlled half duplex RS485 UART Pattern */
    UART_MODE_IRDA = 0x02,                     /*!< mode:IRDA UART Pattern */
    UART_MODE_RS485_COLLISION_DETECT = 0x03,   /*!< mode:RS485 collision detection UART Pattern ( For testing purposes )*/
    uart_mod_rs485_app_ctrl = 0x04,            /*!< mode: Application control RS485 UART Pattern ( For testing purposes )*/
} uart_mode_t;

//UART Word length constant
typedef enum {

    UART_DATA_5_BITS = 0x0,    /*!< 5 Byte length  */
    UART_DATA_6_BITS = 0x1,    /*!< 6 Byte length  */
    UART_DATA_7_BITS = 0x2,    /*!< 7 Byte length  */
    UART_DATA_8_BITS = 0x3,    /*!< 8 Byte length  */
    UART_DATA_BITS_MAX = 0x4,
} uart_word_length_t;

//UART Stop digits
typedef enum {

    UART_STOP_BITS_1   = 0x1,   /*!< 1 Byte stop bit  */
    UART_STOP_BITS_1_5 = 0x2,   /*!< 1.5 Byte stop bit  */
    UART_STOP_BITS_2   = 0x3,   /*!< 2 Byte stop bit  */
    UART_STOP_BITS_MAX = 0x4,
} uart_stop_bits_t;

//UART Parity constant
typedef enum {

    UART_PARITY_DISABLE = 0x0,  /*!< Ban UART Parity check */
    UART_PARITY_EVEN    = 0x2,  /*!< Enable UART Even check */
    UART_PARITY_ODD     = 0x3    /*!< Enable UART Parity check */
} uart_parity_t;

//UART Hardware flow control mode
typedef enum {

    UART_HW_FLOWCTRL_DISABLE = 0x0,/*!< Disable hardware flow control */
    UART_HW_FLOWCTRL_RTS = 0x1,    /*!< Enable RX Hardware flow control (rts)*/
    UART_HW_FLOWCTRL_CTS = 0x2,    /*!<enable TX Hardware flow control (cts)*/
    UART_HW_FLOWCTRL_CTS_RTS = 0x3,/*!< Enable hardware flow control */
    UART_HW_FLOWCTRL_MAX = 0 x4,
} uart_hw_flowcontrol_t;

//UART Signal bitmap
typedef enum {

    Uart_signal_inv_disable = 0,           /*!< Ban UART Signal inversion */
    UART_SIGNAL_IRDA_TX_INV = (0x1 << 0),  /*!< back UART irda_tx The signal */
    UART_SIGNAL_IRDA_RX_INV = (0x1 << 1),  /*!< The inverse UART irda_rx The signal */
    UART_SIGNAL_RXD_INV = (0x1 << 2),      /*!< The inverse UART rxd The signal */
    UART_SIGNAL_CTS_INV = (0x1 << 3),      /*!< reverse UART cts The signal */
    UART_SIGNAL_DSR_INV = (0x1 << 4),      /*!< reverse UART dsr The signal */
    UART_SIGNAL_TXD_INV = (0x1 << 5),      /*!< The inverse UART txd The signal */
    UART_SIGNAL_RTS_INV = (0x1 << 6),      /*!< reverse UART rts The signal */
    UART_SIGNAL_DTR_INV = (0x1 << 7),      /*!< reverse UART dtr The signal */
} uart_signal_inv_t;

//UART Source clock
typedef enum {

    UART_SCLK_APB = 0x0,       /*!< come from APB Of UART Source clock */
#if SOC_UART_SUPPORT_RTC_CLK
    UART_SCLK_RTC = 0x1,       /*!< UART The source clock comes from RTC*/
# endif
#if SOC_UART_SUPPORT_XTAL_CLK
    UART_SCLK_XTAL = 0x2,      /*!< UART The source clock comes from XTAL*/
# endif
#if SOC_UART_SUPPORT_REF_TICK
    UART_SCLK_REF_TICK = 0x3,  /*!< UART The source clock comes from REF_TICK*/
# endif
} uart_sclk_t;

/* * @brief  A serial port AT Command character configuration parameters  *  Note that this function may be different on different chips . Please refer to... When configuring TRM. */
typedef struct {

    uint8_t  cmd_char;      /* !< UART AT Configure command parameters  */
    uint8_t  char_num;      /* !< UART AT Command character repeat number  */
    uint32_t gap_tout;      /* !< AT Interval between command characters ( Baud rate ) */
    uint32_t pre_idle;      /* !<  Not AT Characters and the first AT Idle time between characters ( Baud rate ) */
    uint32_t post_idle;     /* !<  the last one AT Characters and none AT Idle time between characters ( Baud rate ) */
} uart_at_cmd_t;

/** * @brief UART Software flow control configuration parameters  */
typedef struct {

    uint8_t xon_char;       /* !< Xon Flow control character */
    uint8_t xoff_char;      /* !< Xoff Flow control character */
    uint8_t xon_thrd;       /* !< If software flow control is enabled , also rxfifo The amount of data in is less than xon_thrd, Send a xon_char */
    uint8_t xoff_thrd;      /* !< If software flow control is enabled , also rxfifo The amount of data in xoff_thrd, Send a xoff_char */
} uart_sw_flowctrl_t;

/** * @brief uart_param_config Functional UART Configuration parameters  */
typedef struct {

    int  baud_rate;                 /* !< UART Baud rate */
    uart_word_length_t data_bits;   /* !< UART Byte size */
    uart_parity_t parity;           /* !< UART Check mode */
    uart_stop_bits_t stop_bits;     /* !< UART Stop bit */
    uart_hw_flowcontrol_t flow_ctrl;/* !< UART HW Flow control mode (cts/rts)*/
    uint8_t rx_flow_ctrl_thresh;    /* !< UART HW RTS threshold */
    union{

        uart_sclk_t source_clk;     /* !< UART Source clock selection */
        bool use_ref_tick __attribute__((deprecated));  /* ! Deprecated method to select ref tick clock source, take source_clk Change the field to */
    };
} uart_config_t;

5.2、 stay uart.h The contents of the document API

   stay uart.h There is more in the file , Mainly ESP32 The architecture of the configuration parameters of the serial port, as well as the initialization function and configuration function , It also includes parameters and functions such as serial port events API. reminder ： You can give these API Copy to text editor , for example Vscode in , Then you can quickly find and locate the function and the meaning of function parameters .

// Effective UART Port number
#define UART_NUM_0 (0) /*!< UART port 0 */
#define UART_NUM_1 (1) /*!< UART port 1 */
#if SOC_UART_NUM > 2
#define UART_NUM_2 (2) /*!< UART port 2 */
# endif
#define UART_NUM_MAX (SOC_UART_NUM) /*!< UART port max */

/* @brief When calling ' uart_set_pin ', instead of GPIO number, ' UART_PIN_NO_CHANGE ' * A pin that holds the current assignment can be provided .*/
#define UART_PIN_NO_CHANGE (1)

SOC_UART_FIFO_LEN       //< UART  Hardware FIFO The length of
SOC_UART_BITRATE_MAX    //< Maximum configurable bit rate

//UART Interrupt configuration parameters uart_intr_config function
typedef struct {

    uint32_t intr_enable_mask;          /* !< UART Interrupt enable mask , choice uart_xxxx_int _ena_reg (i) Under the UART_XXXX_int _ENA_M, Join bit or operator */
    uint8_t rx_timeout_thresh;          /* !< UART Timeout interrupt threshold ( Company : Time to send a byte )*/
    uint8_t txfifo_empty_intr_thresh;   /* !< UART TX Air break threshold .*/
    uint8_t rxfifo_full_thresh;         /* !< UART RX Full interrupt threshold .*/
} uart_intr_config_t;

//UART The event type is used in the circular buffer
typedef enum {

    UART_DATA ,                         /*!< UART Data events */
    UART_BREAK ,                        /*!< UART Interruptions */
    UART_BUFFER_FULL ,                  /*!< UART RX Buffer full event */
    UART_FIFO_OVF ,                     /*!< UART FIFO Overflow event */
    UART_FRAME_ERR ,                    /*!< UART RX Frame error event */
    UART_PARITY_ERR ,                   /*!< UART RX Parity Events */
    UART_DATA_BREAK ,                   /*!< UART TX Data and interrupt events */
    UART_PATTERN_DET ,                  /*!<  detected UART Pattern */
    UART_EVENT_MAX ,                    /*!< UART Maximum event index */
} uart_event_type_t;

// The event structure is used for UART Event queue
typedef struct {

    uart_event_type_t type; /* !< UART Event type */
    size_t size;            /* !< UART_DATA The event UART data size */
    bool timeout_flag;      /* !< UART Data reading timeout flag UART_DATA event ( In the configuration RX TOUT No new data was received during the period )*/
                            /* !< If the event is caused by FIFO-full Caused by interruption , Then there will be no event with timeout flag before the next byte arrives */
} uart_event_t;

typedef intr_handle_t uart_isr_handle_t;

/* * @brief install UART Driver and set UART For default configuration . * UART ISR The processor will be attached to the same... Where this function runs CPU At the core . * Rx_buffer_size Should be greater than UART_FIFO_LEN.Tx_buffer_size Should be zero or greater than UART_FIFO_LEN. * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param rx_buffer_size UART RX Ring buffer size . * @param tx_buffer_size UART TX Ring buffer size . *  If set to 0, The driver will not use TX buffer ,TX Function will block the task , Until all the data is sent out . * @param queue_size UART Event queue size / depth . * @param uart_queue UART Event queue handle . Once the successful , A new queue handle will be written here to provide  *  visit UART event . If set to NULL, The driver will not use the event queue . * @param intr_alloc_flags Flag used to assign interrupts . One or more (ORred) * ESP_intr_FLAG_ * value . For more information, see esp_intr_alloc.h. There's no setup here ESP_intr_FLAG_IRAM * ( Driver's ISR The handler is not in IRAM in ) * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_driver_install(uart_port_t uart_num, int  rx_buffer_size, int  tx_buffer_size, int  queue_size, QueueHandle_t* uart_queue, int  intr_alloc_flags);

/* * @brief uninstall UART drive . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_driver_delete (uart_port_t uart_num);

/** * @brief Check whether the drive is installed  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - The real driver is installed  * - The wrong driver is not installed  */
bool uart_is_driver_installed (uart_port_t uart_num);

/** *  Set up UART Data bits . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param data_bit UART Data bits  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_word_length(uart_port_t uart_num, uart_word_length_t data_bit);

/* *  obtain UART Data bit configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param data_bit receive UART Pointer to the data bit value . * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, result Will be put in (*data_bit) */
esp_err_t uart_get_word_length(uart_port_t uart_num, uart_word_length_t* data_bit);

/** *  obtain UART Data bit configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param data_bit receive UART Pointer to the data bit value . * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, result Will be put in (*data_bit) */
esp_err_t uart_get_word_length(uart_port_t uart_num, uart_word_length_t* data_bit);

/** *  Set up UART Stop bit . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param stop_bits UART Stop bit  * @return * - ESP_OK success  * - ESP_FAIL Failure  */
esp_err_t uart_set_stop_bits(uart_port_t uart_num, uart_stop_bits_t stop_bits);

/** *  obtain UART Stop bit configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param stop_bits Accept UART Pointer to stop bit value . * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, The result will be put into (*stop_bit) */
esp_err_t uart_get_stop_bits(uart_port_t uart_num, uart_stop_bits_t* stop_bits);

/** * @brief Set up UART Check mode . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param parity_mode uart Parity configuration enum * @return * - ESP_FAIL Parameter error  * - ESP_OK success  */
esp_err_t uart_set_parity(uart_port_t uart_num, uart_parity_t parity_mode);

/** *  obtain UART Parity mode configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param parity_mode Accept UART Pointer to parity mode value . * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, The result will be put into (*parity_mode) */
esp_err_t uart_get_parity(uart_port_t uart_num, uart_parity_t* parity_mode);

/** *  Set up UART Baud rate . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param baudrate UART Baud rate . * @return * - ESP_FAIL Parameter error  * - ESP_OK success  */
esp_err_t uart_set_baudrate(uart_port_t uart_num, uint32_t baudrate);

/** *  obtain UART Baud rate configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param baudrate Accept UART Pointer to baud rate value  * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, The results will be entered (*baudrate) */
esp_err_t uart_get_baudrate(uart_port_t uart_num, uint32_t* baudrate);

/** * @brief Set up UART Line reverse mode  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param inverse_mask Select the connection to be reversed . Use ' uart_signal_inv_t ' Of ORred Mask  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_line_inverse(uart_port_t uart_num, uint32_t inverse_mask);

/** * @brief Set hardware flow control . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param flow_ctrl Hardware flow control mode  * @param rx_thresh Hardware RX Flow control threshold (0 ~ UART_FIFO_LEN). *  Only when UART_HW_FLOWCTRL_RTS When setting ,rx_threshresh The value will be set . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_hw_flow_ctrl(uart_port_t uart_num, uart_hw_flowcontrol_t flow_ctrl, uint8_t rx_thresh);

/** * @brief Set software flow control . * @param uart_num UART_NUM_0, UART_NUM_1 or UART_NUM_2 * @param Turn the switch on or off  * @param rx_thresh_xon Low water mark  * @param rx_thresh_xoff High water level  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_sw_flow_ctrl(uart_port_t uart_num, bool enable, uint8_t rx_thresh_xon, uint8_t rx_thresh_xoff);

/** *  obtain UART Hardware flow control configuration . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param flow_ctrl Options for different flow control modes . * @return * - ESP_FAIL Parameter error  * - ESP_OK Success, The result will be put into (*flow_ctrl) */
esp_err_t uart_get_hw_flow_ctrl(uart_port_t uart_num, uart_hw_flowcontrol_t* flow_ctrl);

/** * @brief eliminate UART Interrupt state  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param clr_mask Bitmask of interrupt status to be cleared . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_clear_in t_status(uart_port_t uart_num, uint32_t clr_mask);

/** *  Set up UART Interrupt enable  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param enable_mask Enable bitmask . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_enable_intr_mask(uart_port_t uart_num, uint32_t enable_mask);

/* * @brief eliminate UART Interrupt enable bit  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param disable_mask Disable bitmask of bits . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_disable_intr_mask(uart_port_t uart_num, uint32_t disable_mask);

/* *  Enable UART RX interrupt (RX_FULL and RX_TIMEOUT interrupt ) * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_enable_rx_intr (uart_port_t uart_num);

/* *  close UART RX interrupt (RX_FULL and RX_TIMEOUT interrupt ) * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_disable_rx_intr (uart_port_t uart_num);

/* * @brief close UART TX interrupt (TXFIFO_EMPTY interrupt ) * @param uart_num UART Port number  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_disable_tx_intr (uart_port_t uart_num);

/*  open UART TX interrupt (TXFIFO_EMPTY interrupt ) * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param Enable 1: Enable ;0: Ban  * @param thresh TX Interrupt threshold ,0 ~ UART_FIFO_LEN * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_enable_tx_intr(uart_port_t uart_num, int  enable, int  thresh);

/* *  register UART Interrupt processor (ISR). * @note UART ISR The processor will be attached to the same... Where this function runs CPU At the core . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param fn Interrupt handling function . * @param Function of parameter handler  * @param intr_alloc_flags Flag used to assign interrupts . One or more (ORred) * ESP_intr_FLAG_ * value . For more information, see esp_intr_alloc.h. *  Returns a pointer to the handle . If the null, The interrupt handle will  *  Back here . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_isr_register(uart_port_t uart_num, void (*fn)(void*), void* arg, int  intr_alloc_flags, uart_isr_handle_t *handle);

/* *  Free of charge UART Interrupt handler registered uart_isr_register. Must be called in the same core  * uart_isr_register Called . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_isr_free (uart_port_t uart_num);

/* *  take UART Signals from peripherals are assigned to GPIO Pin  *  If UART Signal configuration GPIO Number matches one of them  * IOMUX The signal is this GPIO, The signal will be connected directly  *  adopt IOMUX. otherwise GPIO And the signal will pass through  * GPIO matrix . for example ESP32 conversation  * ' uart_set_pin(0,1,3, -1, -1) ' Be performed , because GPIO1 yes UART0 Of  *  default TX Pins and GPIO3 yes UART0 Default RX Pin , Both are  *  adopt IOMUX Separate connection U0TXD and U0RXD, Common bypass GPIO matrix . *  The check is performed on a per stitch basis . therefore , There may be  * RX Pin pass GPIO The matrix is bound to GPIO On , and TX Is bound.  *  adopt IOMUX Connect to GPIO. * @note Internal signals can be output to multiple GPIO plate . *  Only one input signal can be connected GPIO plate . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param tx_io_num UART TX Pin GPIO Number . * @param rx_io_num UART RX Pin GPIO Number . * @param rts_io_num UART RTS Pin GPIO Number . * @param cts_io_num UART CTS Pin GPIO Number . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_pin(uart_port_t uart_num, int  tx_io_num, int  rx_io_num, int  rts_io_num, int  cts_io_num);

/* * @brief Manual settings UART RTS Pin level . *  Be careful UART Must be configured to disable hardware flow control . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param 1 level :RTS Low output ( active );0: RTS High output ( block ) * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_rts(uart_port_t uart_num, int  level);

/* *  Manual settings UART DTR Pin level . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param level 1: DTR Low output ;0: DTR High output  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_dtr(uart_port_t uart_num, int  level);

/* * @brief Set up UART After idle interval tx FIFO It's empty.  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param idle_num tx FIFO The idle interval after is empty ( Company : The time required to send a bit ) *  At the current baud rate ) * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_set_tx_idle_num(uart_port_t uart_num, uint 16_t idle_num);

/* * @brief UART Configuration parameters . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param uart_config UART Parameter setting  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_param_config(uart_port_t uart_num, const uart_config_t *uart_config)

/** *  To configure UART interrupt . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param intr_conf UART Interrupt settings  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_intr_config(uart_port_t uart_num, const uart_intr_config_t *intr_conf);

/* * @brief Wait until UART TX FIFO It's empty. . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param ticks_to_wait Timeout time , With RTOS Timing and counting  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  * - ESP_ERR_TIMEOUT Timeout time  */
esp_err_t uart_wait_tx_done(uart_port_t uart_num, TickType_t ticks_to_wait);

/* *  Send data from a given buffer and length to UART port . *  This function will not wait for enough space in TX FIFO. It will populate the available TX FIFO, And in FIFO Return when full . * @ Note that this function should only be used in UART TX Use when buffer is not enabled . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param Buffer data buffer address  * @param len Length of data sent  * @return * -(-1) Parameter error  * - OTHERS(>=0) Send to TX FIFO Bytes of  */
int  uart_tx_chars(uart_port_t uart_num, const char* buffer, uint32_t len);

/** *  Send data from a given buffer and length to UART port , *  If UART Driver parameters tx_buffer_size Set to zero : *  This function will not return , Until all the data has been sent out , Or at least push TX FIFO. *  otherwise , If 'tx_buffer_size' > 0, This function copies all the data returned to tx Ring buffer , *  then UART ISR Gradually move the data from the ring buffer to TX FIFO. * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param SRC Data buffer address  * @param size Length of data sent  * @return * -(-1) Parameter error  * - OTHERS(>=0) Send to TX FIFO Bytes of  */
int  uart_write_bytes(uart_port_t uart_num, const void* src, size_t size);

/** *  Send data from a given buffer and length to UART port , *  If UART Driver parameters tx_buffer_size Set to zero : *  This function will not return , Until all data and interrupt signals have been sent . *  After all data is sent , Send interrupt signal . *  otherwise , If 'tx_buffer_size' > 0, This function copies all the data returned to tx Ring buffer , *  then UART ISR Gradually move the data from the ring buffer to TX FIFO. *  After all data is sent , Send interrupt signal . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param SRC Data buffer address  * @param size Length of data sent  * @param brk_len Interrupt signal duration ( Company : The time required to send a bit at the current baud rate ) * @return * -(-1) Parameter error  * - OTHERS(>=0) Send to TX FIFO Bytes of  */
int  uart_write_bytes_with_break(uart_port_t uart_num, const void* src, size_t size, int  brk_len);

/* * @brief UART from UART buffer Read bytes in  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param buf Pointer to buffer . * @param length Data length  * @param ticks_to_wait Timeout time , With RTOS timing  * @return * -(-1) error  * - OTHERS(>=0) from UART FIFO Number of bytes read  */
int  uart_read_bytes(uart_port_t uart_num, void* buf, uint32_t length, TickType_t ticks_to_wait);

/* * @brief uart_flush_input Another name for . * UART Ring buffer flushing . This will discard UART RX All data in the buffer . * @note Not waiting for data to be sent , Clear this function UART rx buffer . *  In order to send all the data in tx FIFO, We can use uart_wait_tx_done function . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_flush (uart_port_t uart_num);

/* * @brief Clear input buffer , Discard all data in the ring buffer . *  In order to be in tx FIFO Send all data in , We can use uart_wait_tx_done function . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_flush_input (uart_port_t uart_num);

/* * @brief UART obtain RX The length of data cached in the ring buffer  * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param size size_t The pointer to , The length used to accept cached data  * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_get_buffered_data_len(uart_port_t uart_num, size_t* size);

/* * @brief UART Disable the mode detection function . *  Designed for applications such as “AT command ”. *  When the hardware detects a series of identical characters , Will trigger an interrupt . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_disable_pattern_det_intr (uart_port_t uart_num);

#if CONFIG_IDF_TARGET_ESP32
/* * @brief UART Enable the mode detection function . *  Designed for applications such as “AT command ”. *  When the hardware detects a series of identical characters , Will trigger an interrupt . * @ Note that this function only applies to esp32. This function is deprecated , Please use  * uart_enable_pattern_det_baud_intr Instead of . * @param uart_num UART Port number . * @param pattern_chr Pattern characters . * @param chr_num Number of characters ,8 A value . * @param chr_tout The interval between each pattern character timed out ,24 A value , The unit is APB (80Mhz) Clock cycle . *  When the duration is less than this value , It will not accept this data as at_cmd character . * @param post_idle Idle time after the last mode character ,24 A value , The unit is APB (80Mhz) Clock cycle . *  When the duration is less than this value , It will not accept the previous data as the last at_cmd character  * @param pre_idle Idle time before the first mode character ,24 A value , The unit is APB (80Mhz) Clock cycle . *  When the duration is less than this value , It will not accept this data as the first at_cmd character . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_enable_pattern_det_intr(uart_port_t uart_num, char pattern_chr, uint8_t chr_num, int  chr_tout, int  post_idle, int  pre_idle) __attribute__((deprecated));
# endif

/* * @brief UART Enable the mode detection function . *  Designed for applications such as “AT command ”. *  When the hardware detects a series of identical characters , Will trigger an interrupt . * @param uart_num UART Port number . * @param pattern_chr Pattern characters . * @param chr_num Number of characters ,8 A value . * @param chr_tout The interval timeout between each pattern character ,16 A value , The unit is the baud rate cycle you configured . *  When the duration is greater than this value , It will not accept this data as at_cmd character . * @param post_idle Idle time after the last mode character ,16 A value , The unit is the baud rate cycle you configured . *  When the duration is less than this value , It will not accept the previous data as the last at_cmd character  * @param pre_idle Idle time before the first mode character ,16 A value , The unit is the baud rate cycle you configured . *  When the duration is less than this value , It will not accept this data as the first at_cmd character . * @return * - ESP_OK success  * - ESP_FAIL Parameter error  */
esp_err_t uart_enable_pattern_det_baud_intr(uart_port_t uart_num, char pattern_chr, uint8_t chr_num, int  chr_tout, int  post_idle, int  pre_idle);

/* *  Returns the most recently detected pattern position in the buffer . *  The position of the detected pattern is saved in a queue , *  This function will exit the first mode position , And move the pointer to the next mode position . *  If RX The buffer is full and flow control is not enabled , *  Due to overflow , The detected pattern may not be available in rx Found... In buffer . *  following api The mode location information will be modified : * uart_flush_input, uart_read_bytes, uart_driver_delete, uart_pop_pattern_pos *  Make sure that the mode queue and rx Atomic access to the data buffer is the responsibility of the application  *  When using pattern detection features . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * -(-1) The mode with the current index or parameter error was not found  * - Other modes are located in rx buffer . */
int  uart_pattern_pop_pos (uart_port_t uart_num);

/* *  Returns the most recently detected pattern position in the buffer . *  The position of the detected pattern is saved in a queue , *  This function does nothing to the queue . *  If RX The buffer is full and flow control is not enabled , *  Due to overflow , The detected pattern may not be available in rx Found... In buffer . *  following api The mode location information will be modified : * uart_flush_input, uart_read_bytes, uart_driver_delete, uart_pop_pattern_pos *  Make sure that the mode queue and rx Atomic access to the data buffer is the responsibility of the application  *  When using pattern detection features . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @return * -(-1) The mode with the current index or parameter error was not found  * - Other modes are located in rx buffer . */
int  uart_pattern_get_pos (uart_port_t uart_num);

/* *  Allocate a new memory of a given length to save rx Mode position detected in buffer . * @param uart_num UART Port number , The maximum port number is (UART_NUM_MAX -1). * @param queue_length The maximum queue length of the detected pattern . *  If the queue length is not large enough , Some mode locations may be lost . *  Set this value to the maximum number of data buffer modes that can be saved at the same time . * @return * - ESP_ERR_NO_MEM Out of memory  * - Not installed ESP_ERR_INVALID_STATE The driver  * - ESP_FAIL Parameter error  * - ESP_OK success  */
esp_err_t uart_pattern_queue_reset(uart_port_t uart_num, int  queue_length);

/* * @brief UART Set the communication mode  * @note This function must be in the uart_driver_install() after , When the driver object is initialized, execute . * @param uart_num To configure Uart Number , The maximum port number is (UART_NUM_MAX -1). * @param mode UART UART Mode setting  * @return * - ESP_OK success  * - ESP_ERR_INVALID_ARG Parameter error  */
esp_err_t uart_set_mode(uart_port_t uart_num, uart_mode_t mode);

/* * @brief Set up RX fifo Full of uart threshold  * @note If the application uses a higher baud rate , It is the observation byte  *  In hardware RX fifo Be overwritten , This threshold can then be reduced  * @param uart_num UART_NUM_0, UART_NUM_1 or UART_NUM_2 * @param threshold RX fifo Threshold of full interrupt  * @return * - ESP_OK success  * - ESP_ERR_INVALID_ARG Parameter error  * - Not installed ESP_ERR_INVALID_STATE The driver  */
esp_err_t uart_set_rx_full_threshold(uart_port_t uart_num, int  threshold);

/* * @brief Set up uart The threshold is empty fifo * @param uart_num UART_NUM_0, UART_NUM_1 or UART_NUM_2 * @param threshold TX fifo The threshold value of air interruption  * @return * - ESP_OK success  * - ESP_ERR_INVALID_ARG Parameter error  * - Not installed ESP_ERR_INVALID_STATE The driver  */
esp_err_t uart_set_tx_empty_threshold(uart_port_t uart_num, int  threshold);

/** * @brief UART by TOUT Property setting threshold timeout  * @param uart_num To configure Uart Number , The maximum port number is (UART_NUM_MAX -1). * @param tout_thresh With uart The symbol period defines the timeout threshold . The maximum value of the threshold is 126. * tout_thresh = 1, Defined TOUT Interrupt timeout , Equal to the current baud rate, the next symbol (~11 position ) The transmission time of . *  When time passes, it will trigger UART_RXFIFO_TOUT_int  interrupt . If tout_thresh == 0, *  Ban TOUT function . * @return * - ESP_OK success  * - ESP_ERR_INVALID_ARG Parameter error  * - Not installed ESP_ERR_INVALID_STATE The driver  */
esp_err_t uart_set_rx_timeout(uart_port_t uart_num, const uint8_t tout_thresh);

/** * @brief by RS485 Return to collision detection mode  *  The function returns a collision detection flag collision_flag Variable pointed to . * *collision_flag = true, If a collision is detected , Otherwise it is equal to false. *  This function should be executed when the actual transfer is completed ( stay uart_write_bytes() after ). * @param uart_num The maximum port number configured is (UART_NUM_MAX -1). * @param collision_flag bool Pointer to type variable , Returns the collision flag . * @return * - ESP_OK success  * - ESP_ERR_INVALID_ARG Parameter error  */
esp_err_t uart_get_collision_flag(uart_port_t uart_num, bool* collision_flag);

/** *  Set up RX Number of pin signal edges , Used for light sleep and wake-up  * UART It can be used to wake up the system from mild sleep . This feature is very useful  *  Through counting RX The number of positive sides on the pin , And compare the count with  *  threshold . When the count exceeds the threshold , The system will wake up  *  Just sleep . Provide threshold setting function . *  Stop bit and parity bit ( If enabled ) It also affects the number of edges . *  for example ,ASCII code 97 The letter of “a” Encoded on the network as 0100001101 * ( And 8n1 To configure ), Including start and stop bits . This sequence has 3 individual  *  Positive edge ( from 0 The transition to 1). therefore , arousal system  *  When 'a' When sent , Set up wakeup_threshold=3. *  The character that triggered the wake-up was not UART receive ( That is, it cannot  *  from UART FIFO get ). According to the baud rate , A few characters  *  It will not be accepted after . Please note that , When the chip enters and exits  *  Light sleep mode ,APB The frequency will change . Make sure UART Yes  *  Always correct baud rate , choice REF_TICK As UART Clock source , *  take uart_config_t Medium use_ref_tick Field set to true. * @note stay ESP32 in , The wake-up signal can only pass through IO_MUX( namely IO_MUX) Input . * GPIO3 It should be configured as function_1 Wake up UART0, * GPIO9 It should be configured as function_5 Wake up UART1), UART2 *  Light sleep wake-up function is not supported . * @param uart_num UART Number , The maximum port number is (UART_NUM_MAX -1). * @param wakeup_threshold RX Number of edges , Wake up for light sleep , The value is 3 ..0 x3ff. * @return * - ESP_OK It means success  * - uart_num Incorrect or wakeup_threshold When incorrect, it is ESP_ERR_INVALID_ARG *  stay [3,0x3ff] Beyond the range . */
esp_err_t uart_set_wakeup_threshold(uart_port_t uart_num, int  wakeup_threshold);

/** *  obtain RX The number of pin signal edges is light sleep wake-up . *  About UART See for an explanation of uart_set_wakeup_threshold Description of  *  Wake up function . * @param uart_num UART Number , The maximum port number is (UART_NUM_MAX -1). * @param[out] out_wakeup_threshold Output , Set to wakeup The current value of the  *  Given UART The threshold of . * @return * - ESP_OK It means success  * - If out_wakeup_threshold by NULL, be ESP_ERR_INVALID_ARG */
esp_err_t uart_get_wakeup_threshold(uart_port_t uart_num, int * out_wakeup_threshold);

/** * @brief Wait until UART tx Memory is empty and the last character is sent ok( Polling mode ). * @param uart_num UART Number  * * @return * - ESP_OK It means success  * - ESP_ERR_INVALID_ARG Parameter error  * - Not installed ESP_FAIL drive  */
esp_err_t uart_wait_tx_idle_polling (uart_port_t uart_num);

/** *  To configure TX The signal goes back to RX modular , For testing purposes only . * @param uart_num UART Number  * @param loop_back_en Set to true To enable the loopback function , Otherwise set to false. * * @return * - ESP_OK It means success  * - ESP_ERR_INVALID_ARG Parameter error  * - Not installed ESP_FAIL drive  */
esp_err_t uart_set_loop_back(uart_port_t uart_num, bool loop_back_en);

/** *  To configure UART RX Timeout interrupt behavior . *  When always_rx_timeout by true when , Even if FIFO A timeout interrupt will also be triggered when it is full . *  This function can cause additional timeout interrupts to trigger sending only timeout Events . *  Only if you want to ensure that timeout interrupts always occur after the byte stream , To call this function . * @param uart_num UART Number  * @param always_rx_timeout_en Set to false Enables the default behavior for timeout interrupts , * Set to true Always trigger timeout interrupt . */
Void uart_set_always_rx_timeout(uart_port_t uart_num, bool always_rx_timeout_en);
