HCIP第五次实验
2022-04-23 17:27:00 【无所不知的神奇海螺】

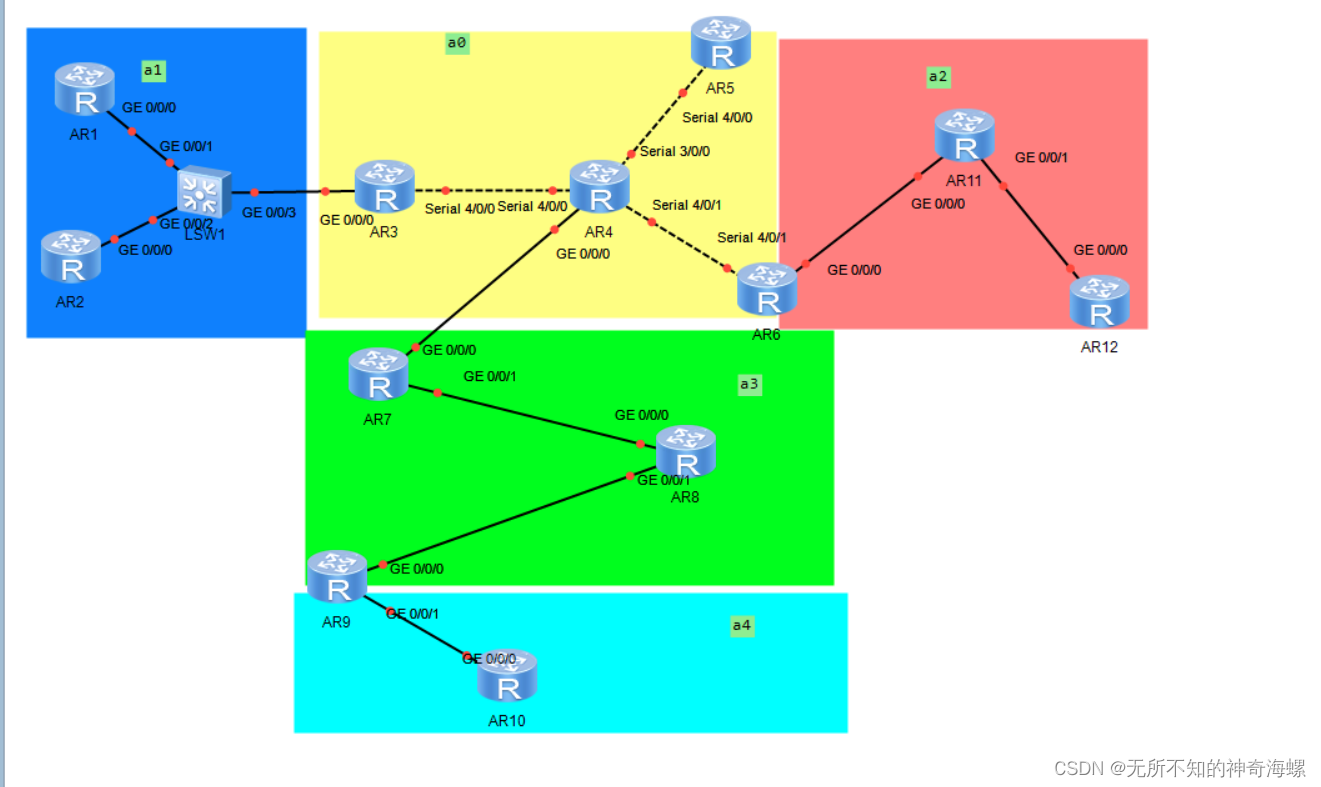

作业要求
作业结果

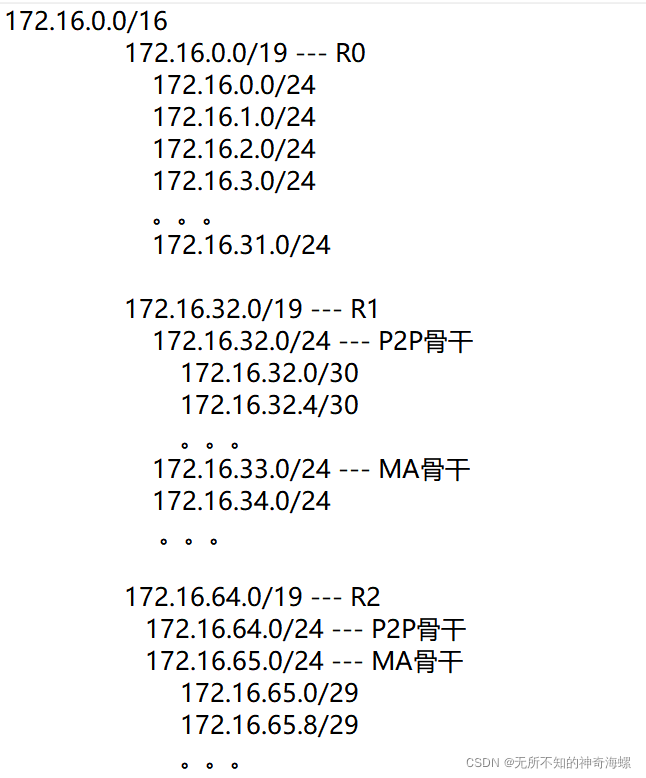

子网划分后为
多出的172.16.192.0/19和172.16.224.0/19网段并不算浪费,可以当做备用网段
注:一般用户网段掩码分到24、25、26就行了如果再分(例如23)就有可能出现饱和,网络会非常卡顿
先对a0进行操作,ip配好后设置缺省
由于重复操作,只展示r3
搭建mgre
中心站点r3配置
开启伪广播
mgre分支的配置
由于重复配置,只展示r5
OSPF配置
r1,r2因为在a1,所以可以直接宣告所有接口
r3由于一个接口在a1,一个在a0,所以要分别宣告
r3需要在a1宣告的ip是 172.16.33.3/29 和 172.16.36.1/24 ,转化后为172.16.00100001 和 172.16.00100100 ,最后三位不一样,所以反掩码应该是00000111,意思是最后三位可以改变
r3在a1宣告的命令是 --- network 172.16.32.0 0.0.7.255
r5在a0,直接一次性宣告 network 172.16.0.0 0.0.255.255
r6需要在a0宣告l0 (172.16.3.1/24)和t0(172.16.1.3/29)接口
在a2的接口直接宣告即可
其余的路由器操作如上
